20153-3

Description
1000MHz - 2000MHz RF/MICROWAVE 90 DEGREE HYBRID COUPLER, 0.2dB INSERTION LOSS-MAX
CategoryWireless rf/communication    Radio frequency and microwave
File Size255KB,3 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

20153-3 Overview

1000MHz - 2000MHz RF/MICROWAVE 90 DEGREE HYBRID COUPLER, 0.2dB INSERTION LOSS-MAX

20153-3 Parametric

Parameter NameAttribute value
Objectid1531594360
Reach Compliance Codeunknown
structureMODULE
Maximum input power (CW)46.99 dBm
Maximum insertion loss0.2 dB
Maximum operating frequency2000 MHz
Minimum operating frequency1000 MHz
Maximum operating temperature110 °C
Minimum operating temperature-50 °C
RF/Microwave Device Types90 DEGREE HYBRID COUPLER
Maximum voltage standing wave ratio1.25

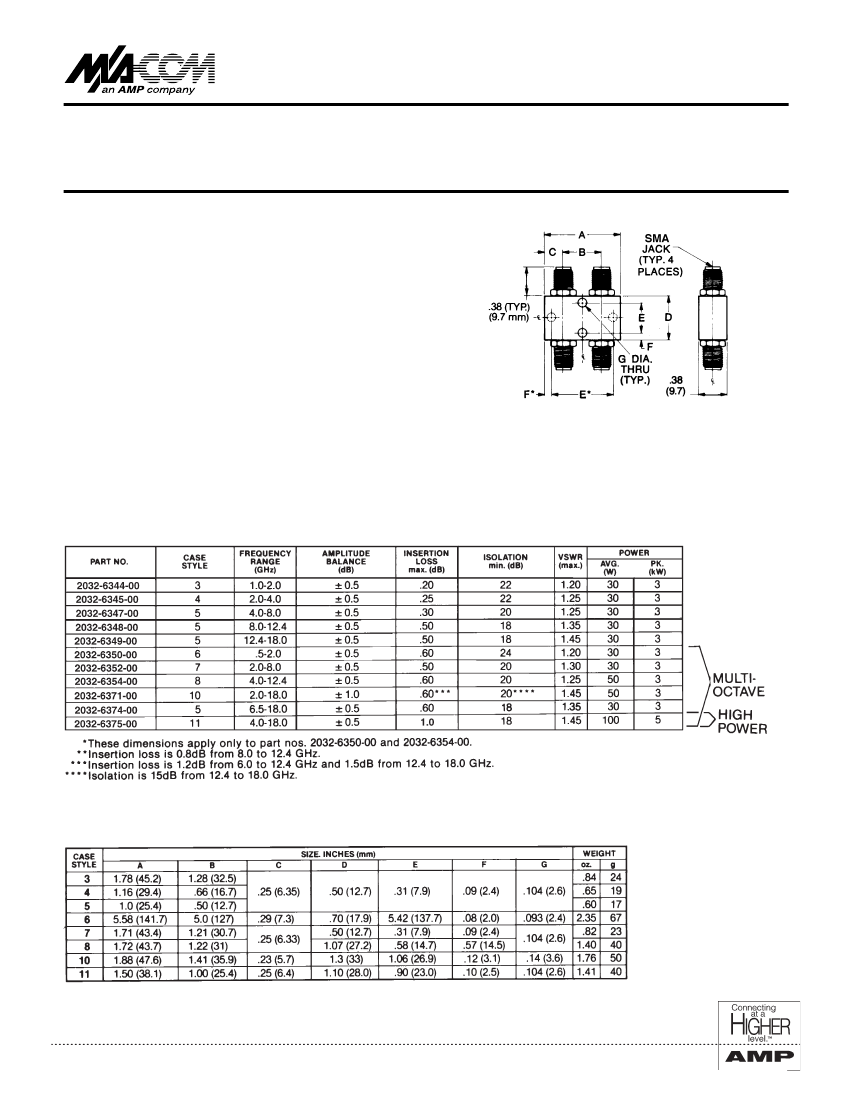

3 dB Hybrid Couplers
203X Series
V3.00
Features
q
q
q
q
q
90° Quadrature Phase
Frequency Range: .06 to 18 GHz
Temperature Range: -65° to +125°C
Meets MIL-E-5400 Environments
Non-crossover Versions Available
Description
3dB quadrature mini-hybrids are the ultimate in compact,
rugged high stress environment components. The
crossover feature of the location of both outputs on one
side allows simplicity in system or subsystem design.
Multi-octave coverage of the complete frequency spec-
trum, along with high isolation performance, qualifies
them as an asset to any system.
All dimensions are ± .020 except mounting diameters
(± .005) and mounting hole location (± .010).

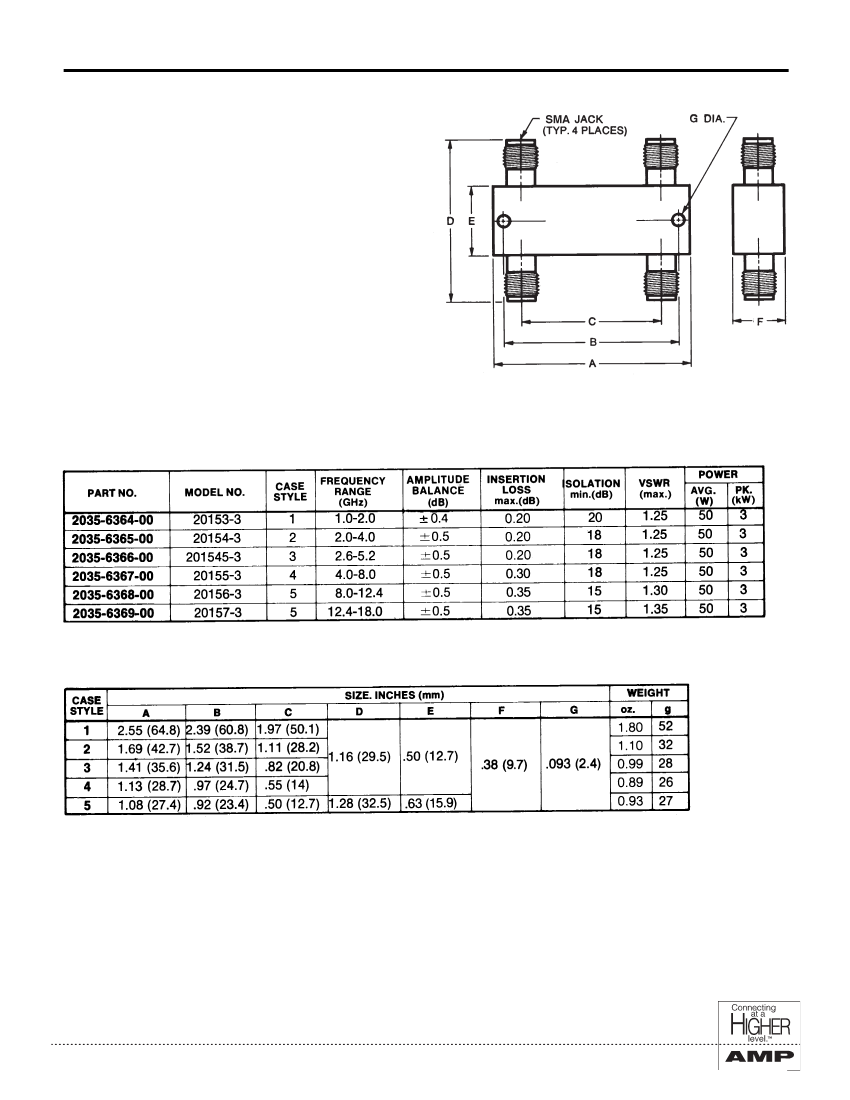

90° Crossover Electrical Specifications

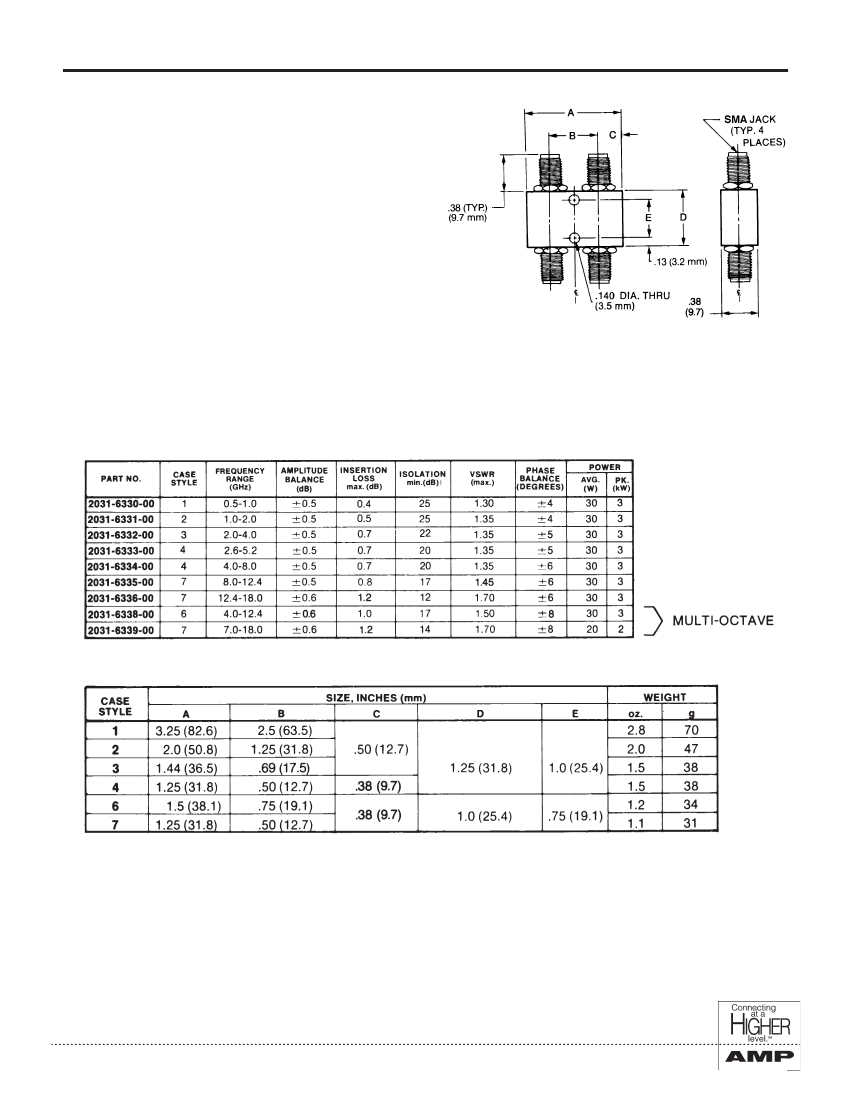

90° Crossover Mechanical Specifications
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
