URZ0J471MPD1TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> URZ0J471MPD1TD

URZ0J471MPD1TD: DescriptionAluminum Electrolytic Capacitors - Leaded 470uF 6.3V 105c; CategoryPassive components; File Size268KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

URZ0J471MPD1TD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	URZ0J471MPD1TD	-	-	View	Buy Now

URZ0J471MPD1TD Overview

Aluminum Electrolytic Capacitors - Leaded 470uF 6.3V 105c

URZ0J471MPD1TD Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	Nichicon
RoHS	Details
Termination Style	Radial
Capacitance	470 uF
Voltage Rating DC	6.3 VDC
Product	High Temp Electrolytic Capacitors
Packaging	Cut Tape
Packaging	Reel
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

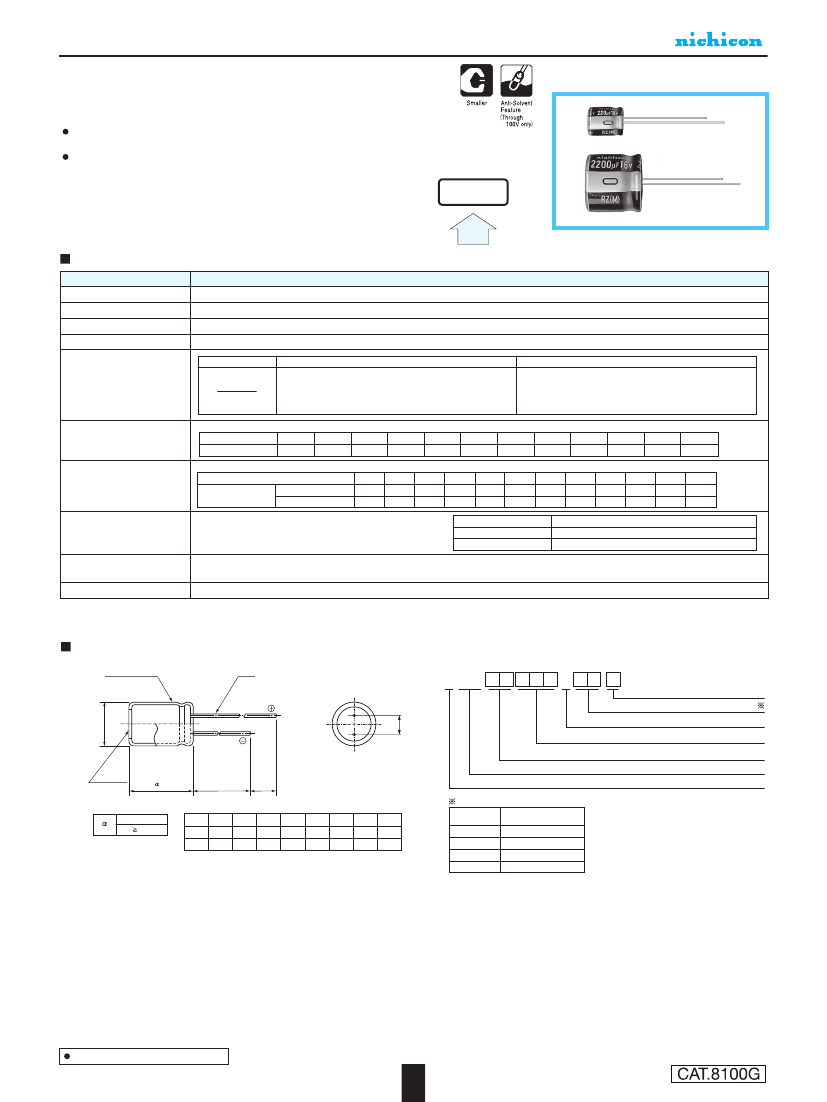

ALUMINUM ELECTROLYTIC CAPACITORS

URZ

Compact & Low-Profile Sized,

Wide Temperature Range

Very small case sizes same as URS, but operating over wide

temperature range of – 55 (– 40) to +105˚C.

Compliant to the RoHS directive (2011/65/EU).

(Through 100V only)

URZ

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

URS

Performance Characteristics

–55 to +105˚C (6.3 to 100V) , –40 to +105˚C (160 to 400V)

6.3 to 400V

1 to 10000µF

± 20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 to 100

After 1 minute's application of rated voltage at 20°C, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage at 20°C, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

6.3

0.28

0.24

0.20

6.3

0.16

0.14

0.12

160 to 400

Leakage Current

After 1 minute's application of rated voltage at 20°C,

= 0.04CV+100 (µA) or less

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz at 20˚C

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

(

MAX.

)

0.10

100

0.08

160

0.20

100

200

0.20

160

200

250

0.20

250

400

0.25

400

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

The specifications listed at right shall be met when

the capacitors are restored to 20°C after the rated

voltage is applied for 1000 hours at 105°C.

Capacitance change

tan

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

9 10 11

Size code

Configuration

P ±

0.5

UR Z 1 A 3 3 1 MPD

φD

0.5 MAX

Capacitance tolerance (±20%)

Rated capacitance (330µF)

Rated voltage (10V)

Pressure

relief vent

(φ8up)

Series name

MAX

MIN

(mm)

Type

Configuration

5 · 6.3

8 · 10

12.5 to 18

Pb-free leadwire

Pb-free PET sleeve

(φD < 20) 1.5

(φD 20) 2.0

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

10.0

1.0

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.
