51939-118 datasheet, PDF - EEWORLD Datasheet

51939-118: DescriptionBoard Connector, 18 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size178KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51939-118 Overview

Board Connector, 18 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	2129258589
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.83
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	2.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

PDM: Rev:D

STATUS:

Released

Printed: Dec 20, 2010

.

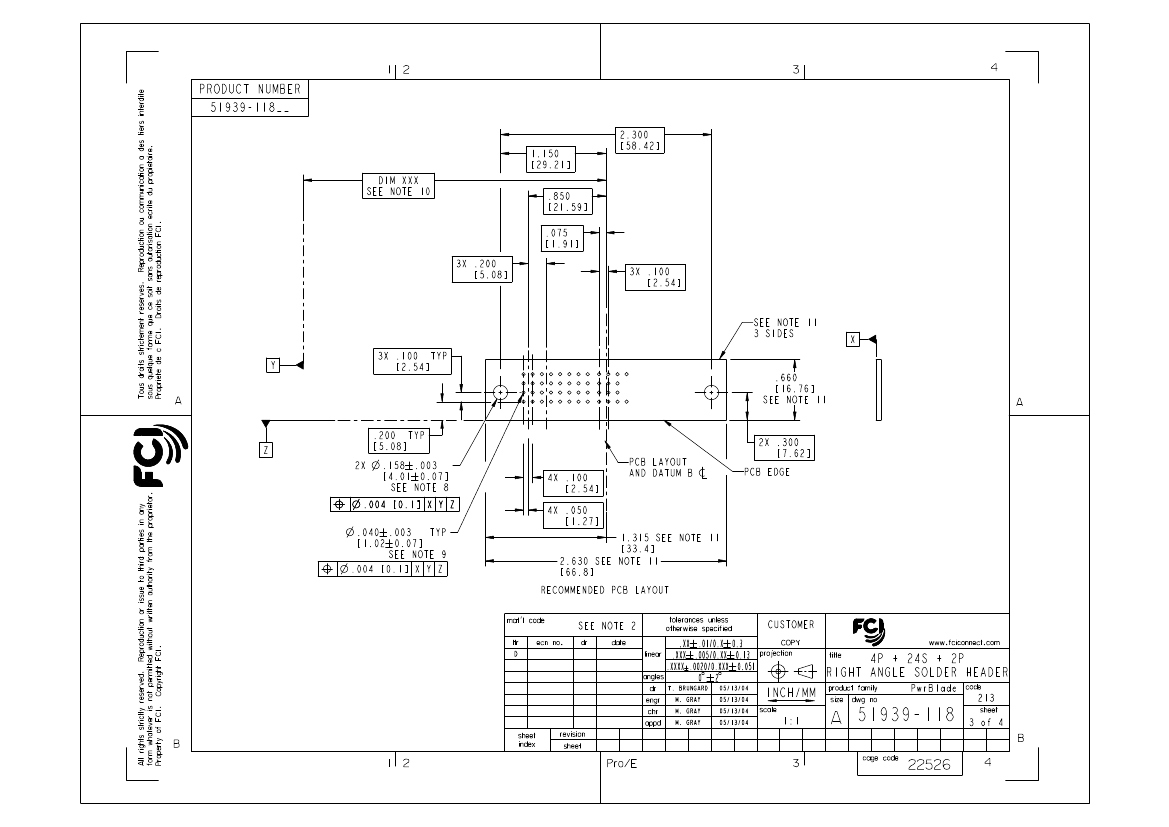

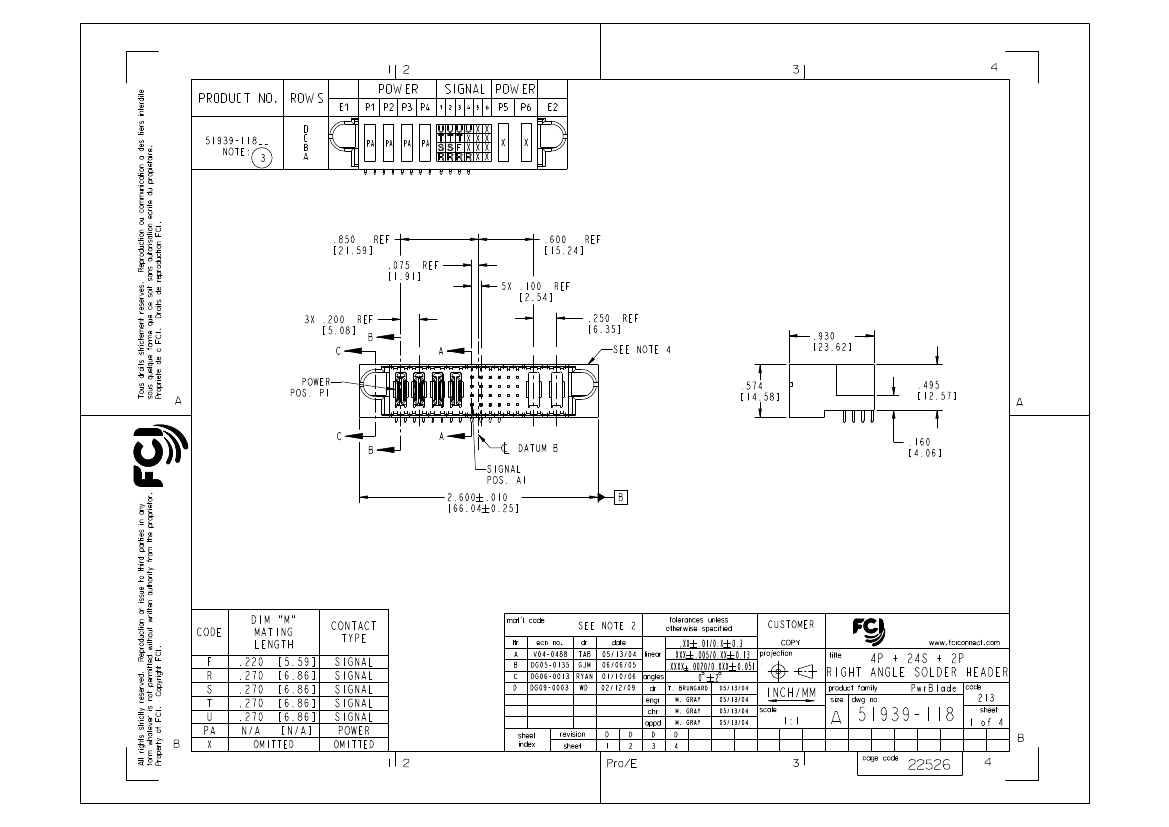

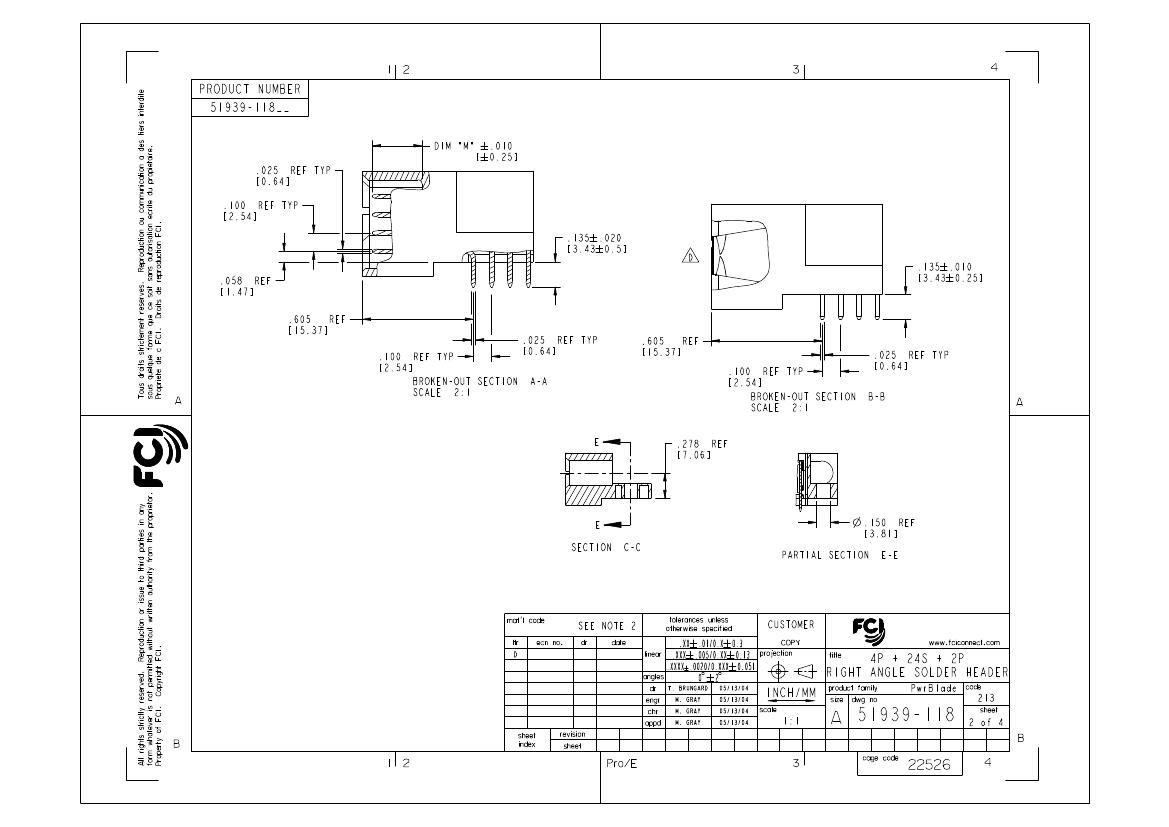

	51939-118
Description	Board Connector, 18 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Receptacle,
Is it Rohs certified?	incompatible
Objectid	2129258589
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.83
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	HOLE .138-.163
body width	0.574 inch
subject depth	0.93 inch
body length	2.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S24P6
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
