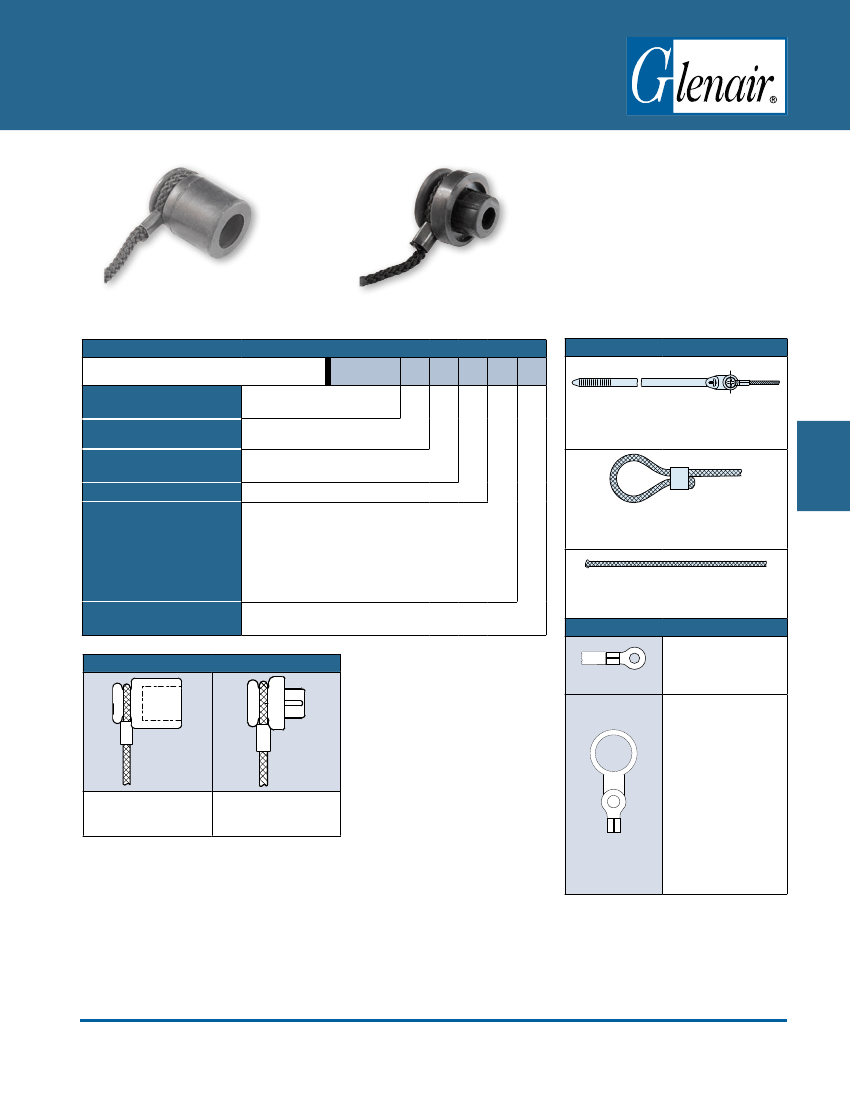

809-083 and 809-087 Dimensions
Splash proof Molded Rubber Covers
fit all Series 804 plugs and receptacles.
Braided black nylon lanyard is available
with metal rings, cable tie or slipknot
for attachment to panel or to cable.
809-083 Plug Cover
How To Order
Sample Part Number
Series (See Table I)
Shell Size
Attachment Type
Attachment Length (inches)
809-087 Receptacle Cover
Table II: Attachment Code
-05
G
6
-SK
C
809-083
809-083
= Plug Cover
809-087
= Receptacle Cover
-05, -06, -07, -08, -09, -10, -11, -12,
-14, -15
-G
= Nylon Rope
Omit
= No Lanyard
Length in Inches
-WS
= Nylon Cable Tie
-SK
= Slip Knot
-SCS
= Slip/Crimp Sleeve
-00
= Lanyard with no Attachment
Lug Terminal =
-01
thru
-06
Solid Ring =
-14
thru
-33
Omit for Standard Neoprene
C
= Conductive Rubber
Nylon Cable Tie, 1.77 Inch (45mm) Maximum
Wire Bundle Diameter
-WS
Attachment Code
(See Table II)
Slip Knot
-SK
Lanyard With No Attachment (Fused End)
-00
Conductive Rubber
Lug Terminals and Rings
-01
– .126 (3.20) I.D.
-02
– .145 (3.68) I.D.
-05
– .188 (4.78) I.D.
-06
– .197 (5.00) I.D.
-32
– .265 (6.73) I.D.
-29
– .315 (8.00) I.D.
-14
– .385 (9.78) I.D.
-15
– .445 (11.30) I.D.
-33
– .510 (12.95) I.D.
-16
– .570 (14.48) I.D.
-17
– .635 (16.13) I.D.
-18
– .695 (17.65) I.D.
-27
– .766 (19.46) I.D.
-31
– .820 (20.83) I.D.
-19
– .885 (22.48) I.D.
-26
– .950 (24.13) I.D.
-28
– 1.015 (25.75) I.D.
-20
– 1.070 (27.18) I.D.
Table I: Series Style
Lug Terminal
809-083
Push-Pull Receptacle
Cover
809-087
Push-Pull Receptacle
Cover
Solid Ring
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-65
E-Mail: sales@glenair.com
Accessories
Series 804 Push-Pull Mighty Mouse
Rubber Covers
X
Series 804 Push-Pull Mighty Mouse
Rubber Covers

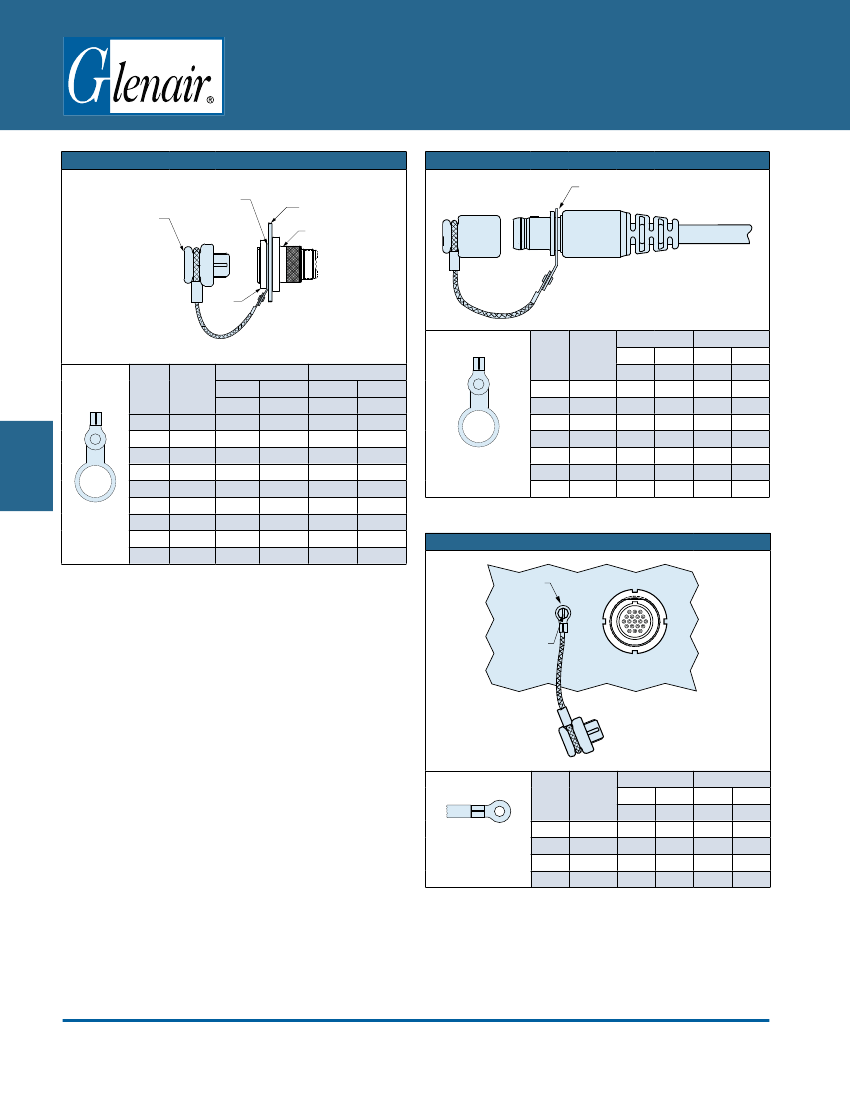

809-083 and 809-087 Dimensions
809-087 Cover Attachment to RPM Jam Nut Receptacle
ATTACHMENT RING
FITS UNDER JAM NUT
PROTECTIVE
COVER
809-087
X
Solid Ring
Accessories
PANEL
JAM
NUT
809-083 & -087 Cover Attachment to Cable Aseembly
INSTALL RING BEFORE
MOLDING OR BACKSHELL
INSTALLATION
RECEPTACLE
CONNECTOR
STYLE 07
PLUG CONNECTOR AND
COVER SHOWN
Attch.
Code
15
33
17
18
27
31
19
28
20
Shell
Size
5
6
7,8
9
10
11
12
14
15
Ring I.D.
in.
± .010
.445
.510
.635
.695
.766
.820
.885
1.015
1.070
mm.
± .025
11.30
12.95
16.13
17.65
19.46
20.83
22.48
25.78
27.18
Ring O.D.
in.
± .015
.57
.62
.76
.82
.89
.94
1.01
1.20
1.20
mm.
± 0.38
14.48
15.75
19.30
20.83
22.61
23.88
25.65
30.48
30.48
Solid Ring
Attch.
Code
29
14
33
16
17
27
26
Shell
Size
5
6
7
8,9
10
11, 12
14, 15
Ring I.D.
In.
mm.
± .010
.315
.385
.510
.570
.635
.766
.950
±0.25
8.00
9.80
13.00
14.48
16.13
19.50
24.13
Ring O.D.
In.
mm.
± .015
.440
.510
.620
.570
.635
.890
.950
± 0.38
11.20
13.00
15.70
14.48
16.13
22.60
24.13
809-087 Cover Attachment to Panel
LUG
TERMINAL
SCREW
CONNECTOR
PROTECTIVE
COVER
809-087
Ring I.D.
In.
±.005
.126
.145
.188
.197
mm.
±0.13
3.20
3.68
4.78
5.00
Ring O.D.
In.
Max.
.31
.31
.31
.31
mm.
Max.
7.9
7.9
7.9
7.9
Attch.
Code
Lug Terminal for
Attaching Receptacle
Covers to a Panel with
a Screw
01
02
05
06
Shell
Size
#4, M3
#6
#8, M4
#10
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
SMALL
RING
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
CONNECTOR
www.glenair.com
SCREW
X-66
E-Mail: sales@glenair.com
PROTECTIVE
COVER
667-202

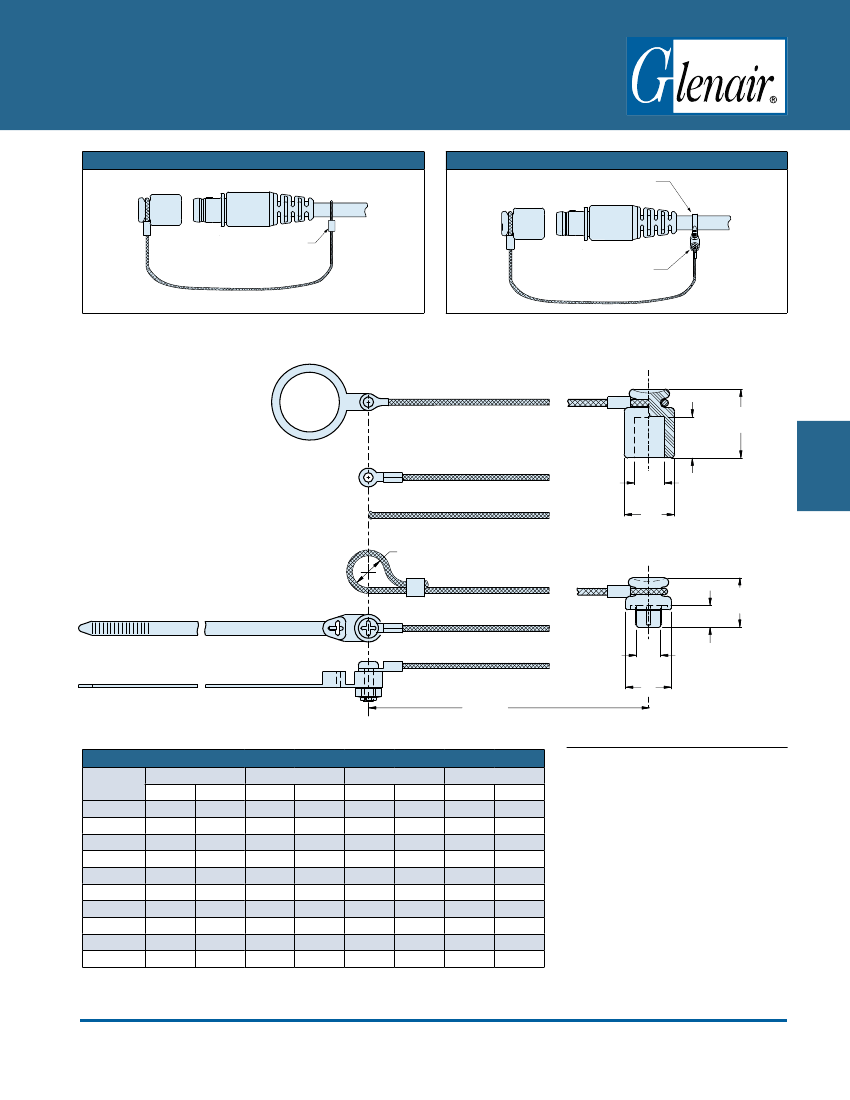

809-083 and 809-087 Dimensions
809-083 Cover Attachment to Cable with Slip Knot
809-083 Cover Attachment to Cable with Type WS Cable Tie
BLACK NYLON CABLE TIE
WITH SST LOCKING TAB
FRICTION SLEEVE
SST SCREW WITH
SELF-LOCKING NUT
809-083
PLUG COVER
SOLID RING
.94 (23.9)
.56 (14.2)
LUG TERMINAL
NO LUG, FUSED END (00)
ø.50
REF
LENGTH MEASURED
AT .50 DIAMETER
øA
øB
809-087
RECEPTACLE COVER
.69 (17.5)
SLIP KNOT (SK)
CABLE TIE (WS)
øC
øD
LENGTH
(SEE ORDERING INFORMATION)
.30 (7.6)
Dimensions
Shell Size
5
6
7
8
9
10
11
12
14
15
ØA
In
.23
.29
.36
.41
.46
.54
.61
.66
.78
.84
mm
5.8
7.4
9.1
10.4
11.7
13.7
15.5
16.8
19.8
21.3
In
.56
.56
.56
.68
.68
.79
.94
.94
1.11
1.11
ØB
mm
14.2
14.2
14.2
17.3
17.3
20.1
23.9
23.9
28.2
28.2
In
.27
.33
.40
.44
.50
.57
.63
.69
.82
.87
ØC
mm
6.9
8.4
10.2
11.2
12.7
14.5
16.0
17.5
20.8
22.1
In
.59
.65
.78
.78
.84
.90
.96
1.03
1.15
1.21
ØD
mm
15.0
16.5
19.8
19.8
21.3
22.9
24.4
26.2
29.2
30.7
Materials and Finishes
1. Cover: Neoprene rubber blend, black
2. Lanyard: .062" (1.57) diameter nylon
cord, black
3. Cable Tie: 6/6 nylon, black, SST locking
tab
4. Ring: Stainless steel, black zinc-cobalt
finish
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-67
E-Mail: sales@glenair.com
Accessories
Series 804 Push-Pull Mighty Mouse
Rubber Covers
X
