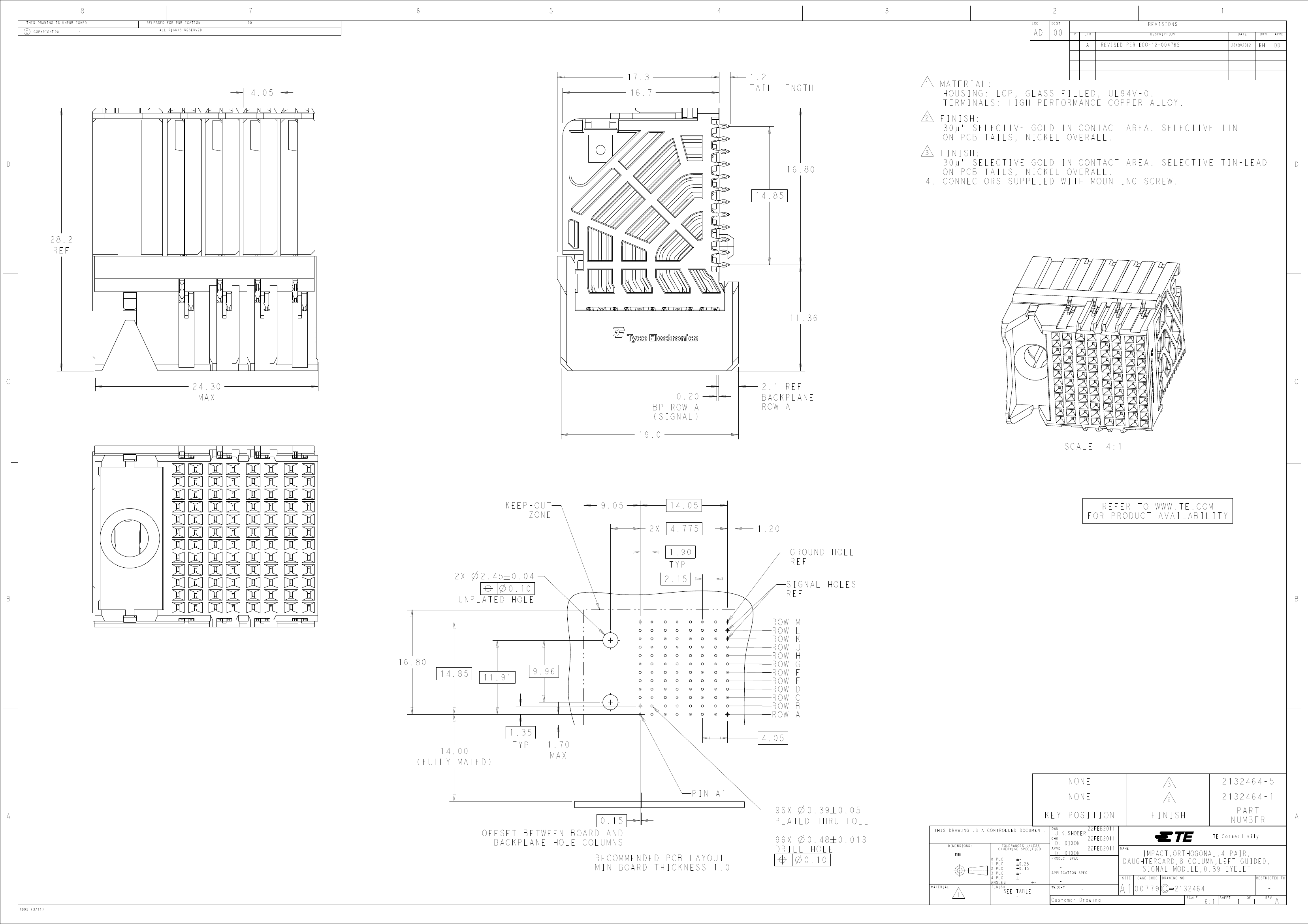

IMP100O,R,RA4P8C,LG,39
| Parameter Name | Attribute value |
| Connector System | Board to Board |
| Line spacing | 1.35 mm [ 0.053 in ] |
| Connector type | female end |
| with hood | without hood |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | Connector components |
| Signal arrangement | difference |
| Make first/break last | no |
| Number of signal positions | 64 |
| Stackable | no |
| Number of pairs | 32 |
| Number of Positions | 96 |
| Rows | 12 |
| Number of columns | 8 |
| Board-to-board configuration | orthogonal, right angle |
| PCB mounting direction | right angle |
| boot position | Left |
| Number of grounding locations | 32 |
| Operating voltage (VDC) | 30 |
| Operating voltage (VAC) | 30 |
| Data rate (Gb/s) | 25 |
| Number of differential pairs per column | 4 |
| Terminal base material | copper alloy |
| Terminal base material | nickel |
| Contact Current Rating (Max) (A) | .75 |
| PCB terminal termination area plating material surface coating | matte |
| Terminal contact plating thickness | .76 µm [ 29.92 µin ] |
| Terminal termination area plating material | tin |
| Terminal design | double beam |
| Terminal contact plating material | gold |
| Terminal layout | Direct plug-in |
| Terminal type | Press fit |
| PCB terminal termination area plating thickness | 1.27 µm [ 50 µin ] |
| Terminal conduction (typ.) | signal (data) |
| Base plate material thickness | 1.27 µm [ 50 µin ] |
| Terminal type | socket |
| PCB Termination Methods | Through hole - solderless connection |
| PCB mounting fixation type | Function/Standard-compliant tails and screws |
| PCB installation and fixation | with |
| rail hardware | with |
| joint alignment | with |
| Joint alignment type | keying |
| Connector mounting type | board mounting |
| PCB Mount Alignment Type | Positioning post |
| joint fixation | Without |
| Centerline (Pitch) | 1.9 mm [ .075 in ] |
| Shell color | black |
| Shell material | LCP (Liquid Crystal Polymer) |
| PCB Hole Diameter | .39 mm [ .015 in ] |
| PCB thickness (recommended) | 1 mm [ .039 in ] |
| length | 24.3 mm [ .957 in ] |
| tail length | 1.2 mm [ .047 in ] |
| width | 28.2 mm [ 1.11 in ] |
| high | 17.3 mm [ .681 in ] |
| Working group temperature range | -55 – 85 °C [ -67 – 185 °F ] |
| Circuit Application | Signal |
| Obtain CSA certification | yes |
| UL rating | Recognized |
| UL file number | E28476 |
| UL flammability rating | UL 94V-0 |
| Encapsulation method | Packaging, boxes and tubes |
