B130L-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> B130L-13

B130L-13: DescriptionSchottky Diodes u0026 Rectifiers 30V 1A; Categorysemiconductor Discrete semiconductor; File Size107KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

B130L-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B130L-13	-	-	View	Buy Now

B130L-13 Overview

Schottky Diodes u0026 Rectifiers 30V 1A

B130L-13 Parametric

Parameter Name	Attribute value
Product Category	Schottky Diodes & Rectifiers
Manufacturer	Diodes
RoHS	No
Product	Schottky Diodes
Mounting Style	SMD/SMT
Package / Case	SMA
If - Forward Current	1 A
Vrrm - Repetitive Reverse Voltage	30 V
Vf - Forward Voltage	0.47 V
Ifsm - Forward Surge Current	25 A
Configuration	Single
Technology	Si
Ir - Reverse Current	1000 uA
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Packaging	Cut Tape
Packaging	Reel
Height	2.1 mm
Length	4.6 mm
Operating Temperature Range	- 55 C to + 125 C
Factory Pack Quantity	5000
Termination Style	SMD/SMT
Type	Schottky Barrier Rectifier
Width	2.92 mm
Unit Weight	0.002258 oz

Preview

Download Datasheet

View All

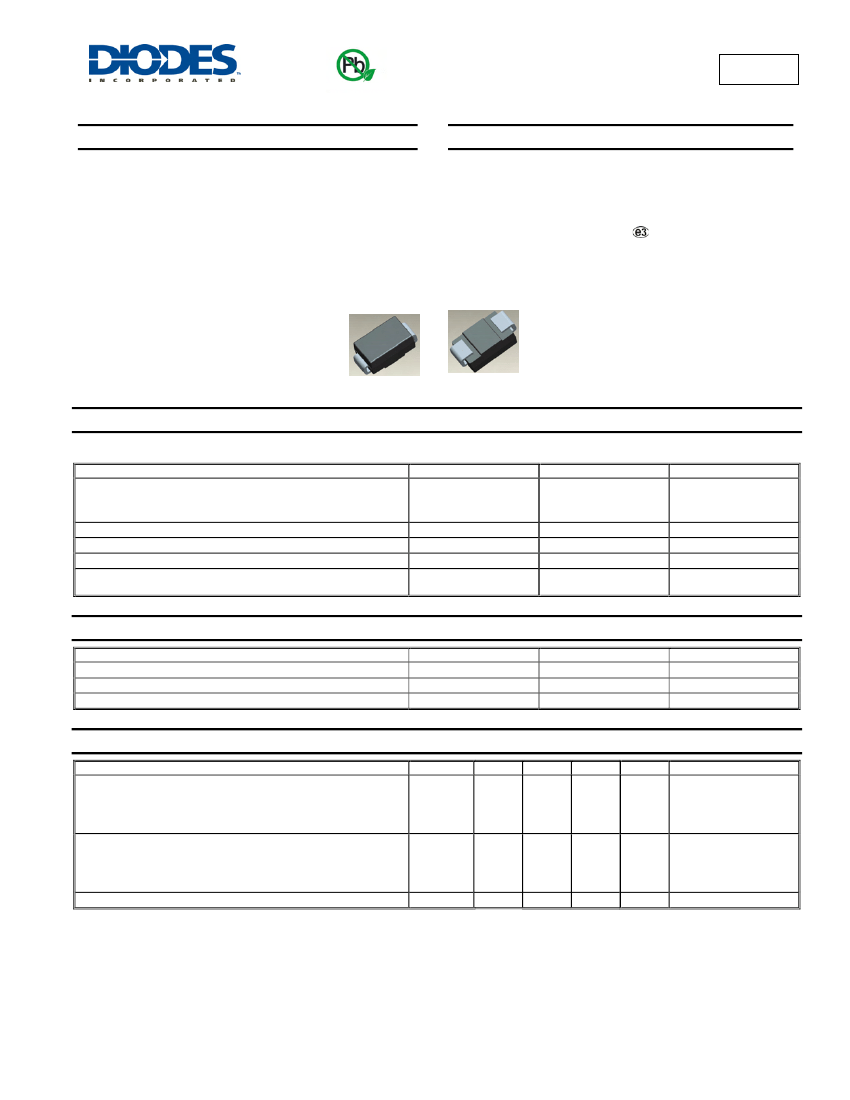

B130L

Green

1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Please click here to visit our online spice models database.

Features

•

Low Forward Voltage Drop

Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Lead Free Finish, RoHS Compliant (Note 1)

Green Molding Compound (No Halogen and Antimony)

(Note 4)

Mechanical Data

•

Case: SMA

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Lead Free Plating (Matte Tin Finish). Solderable

per MIL-STD-202, Method 208

Polarity: Cathode Band or Cathode Notch

Marking Information: See Page 3

Ordering Information: See Page 3

Weight: 0.064 grams (approximate)

Top View

Bottom View

Maximum Ratings

= 25°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitance load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

@ I

= 1mA

Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

@ T

= 105°C

Peak Repetitive Forward Current (Note 2)

Non-Repetitive Peak Forward Surge Current 8.3ms

Single Half Sine-Wave Superimposed on Rated Load

Symbol

RRM

RWM

R(RMS)

FRM

FSM

Value

1.0

2.0

Unit

Thermal Characteristics

Characteristic

Typical Thermal Resistance Junction to Terminal

Operating Temperature Range

Storage Temperature Range

Symbol

STG

Value

-55 to +125

-55 to +150

Unit

°C/W

°C

Electrical Characteristics

Characteristic

Forward Voltage Drop

= 25°C unless otherwise specified

Symbol

Min

Typ

Max

0.41

0.35

0.47

0.43

0.4

1.0

110

Unit

Leakage Current (Note 3)

Total Capacitance

Notes:

Test Condition

= 1.0A, T

= 25°C

= 1.0A,

= 100°C

= 2.0A,

= 25°C

= 2.0A,

= 100°C

= 15V,

= 25°C

= 15V,

= 100°C

= 30V,

= 25°C

= 30V,

= 100°C

= 4V, f = 1MHz

EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at http://www.diodes.com/quality/lead_free.html.

At Rated V

, Square Wave, 25KHz, T

= 40°C.

Short duration pulse test used to minimize self-heating effect.

Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.

B130L

Document number: DS30151 Rev. 8 - 2

1 of 4

www.diodes.com

July 2009

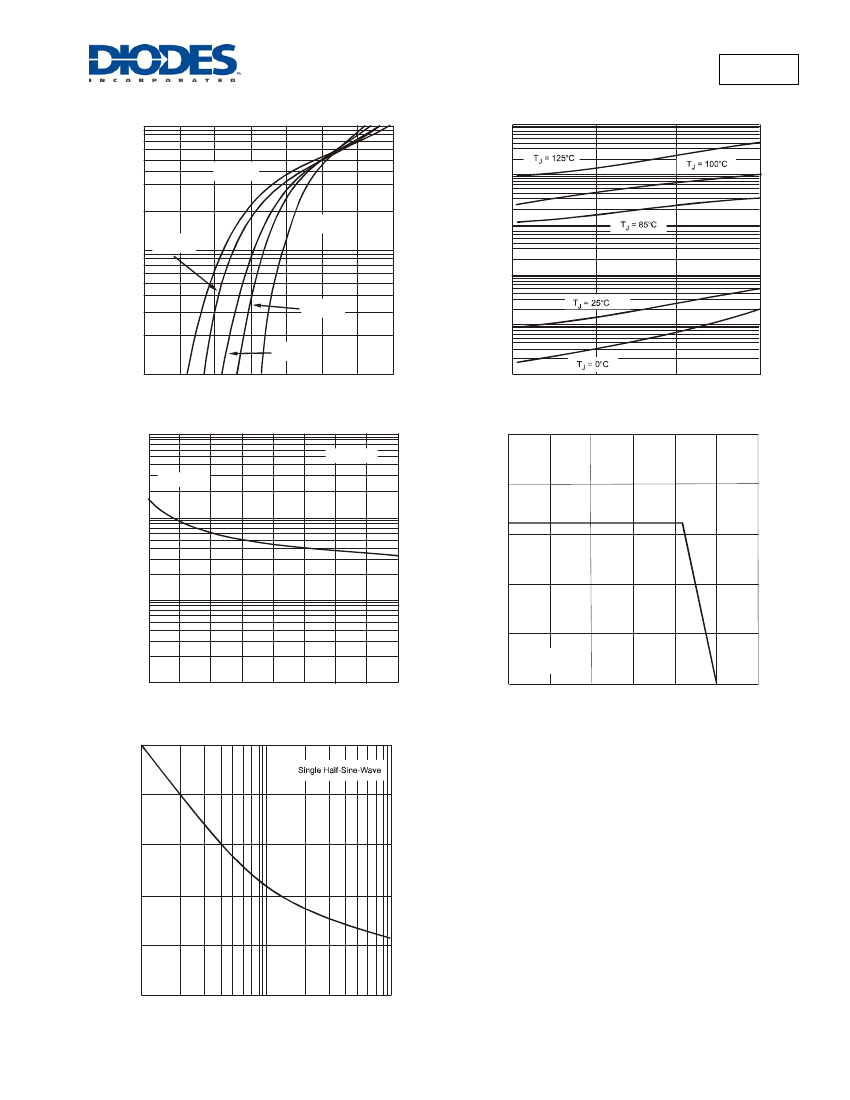

B130L

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

B130L

Document number: DS30151 Rev. 8 - 2

4 of 4

www.diodes.com

July 2009
