M85049-112S14TW06-6D datasheet, PDF

Datasheet> All Categories > The connector> M85049-112S14TW06-6D

M85049-112S14TW06-6D: DescriptionCircular MIL Spec Backshells; CategoryThe connector; File Size111KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

M85049-112S14TW06-6D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M85049-112S14TW06-6D	-	-	View	Buy Now

M85049-112S14TW06-6D Overview

Circular MIL Spec Backshells

M85049-112S14TW06-6D Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
MIL Type	MIL-DTL-38999 I, II

Preview

Download Datasheet

View All

AS85049/112

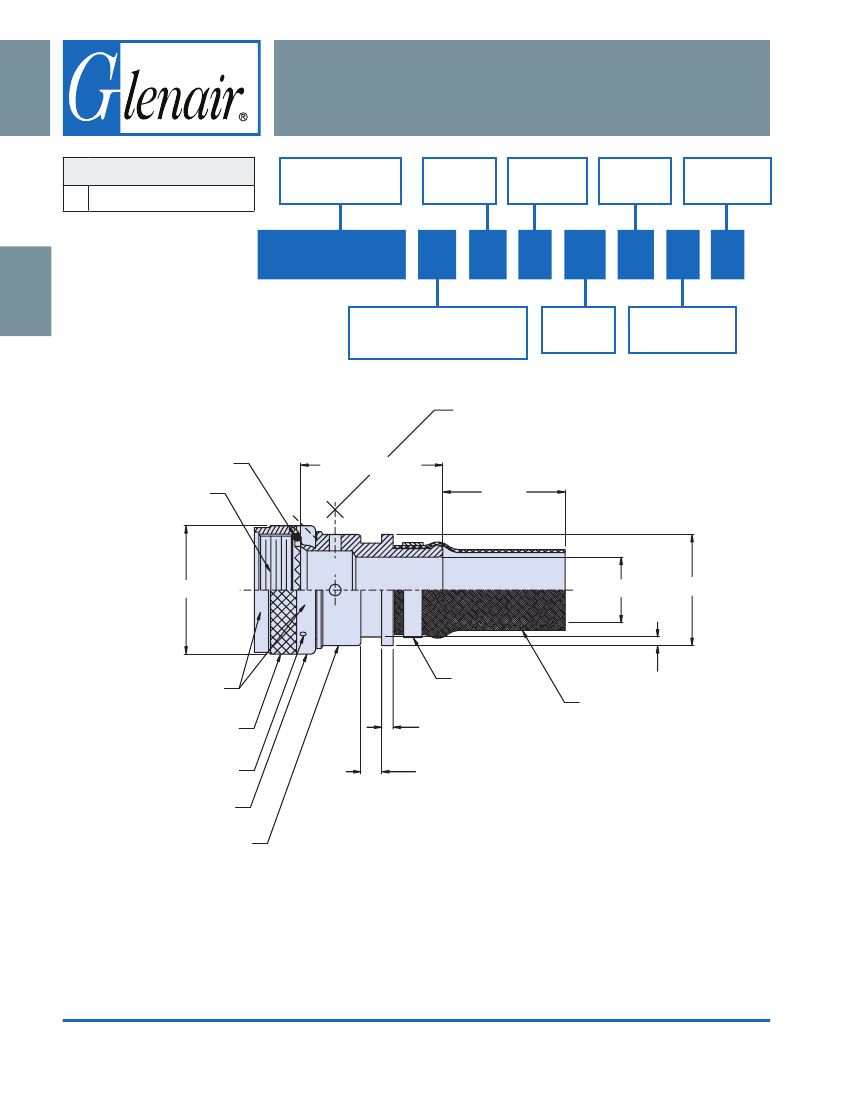

Straight RFI/EMI Shield-Sock Shrink Boot Adapter

with Optional Self-Locking Coupling Nut

AS85049

CONNECTOR DESIGNATOR:

MIL-DTL-38999 Series I and II

Product Series and

Specification Sheet

Shell Size

(Table I)

Shield Finish

(Table IV)

Entry Size

(Table II)

Drain Hole

(Omit for None)

M85049/112

Finish

(Table III)

= Detented, Self-Locking

–

= Non-Self-Locking (Use Dash)

= Non-Detented, Self-Locking

Braid Length

1 Inch Increments,

6” Min., 18” Max

See Note 9

O-Ring

A Thread

1.19 (30.2) Max

Length

±.50 (12.7)

Marking Location

Optional

Knurl Style Mfr

Option - Typ

See Note 8

Coupling Nut

Adapter Body

See Note 5

.075 (1.9)

(Ref)

.140 (3.56)

.130 (3.30)

Single Layer Shield

Dimensions in inches (millimeters) and are subject to change without notice.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-118

E-Mail: sales@glenair.com
