RBR2L40ATE25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> RBR2L40ATE25

RBR2L40ATE25: DescriptionSchottky Diodes u0026 Rectifiers Diode, Rectifier FRD 40V-VR 2A-IO Single; CategoryDiscrete semiconductor diode; File Size2MB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

RBR2L40ATE25 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RBR2L40ATE25	-	-	View	Buy Now

RBR2L40ATE25 Overview

Schottky Diodes u0026 Rectifiers Diode, Rectifier FRD 40V-VR 2A-IO Single

RBR2L40ATE25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.55 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	40 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	80 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

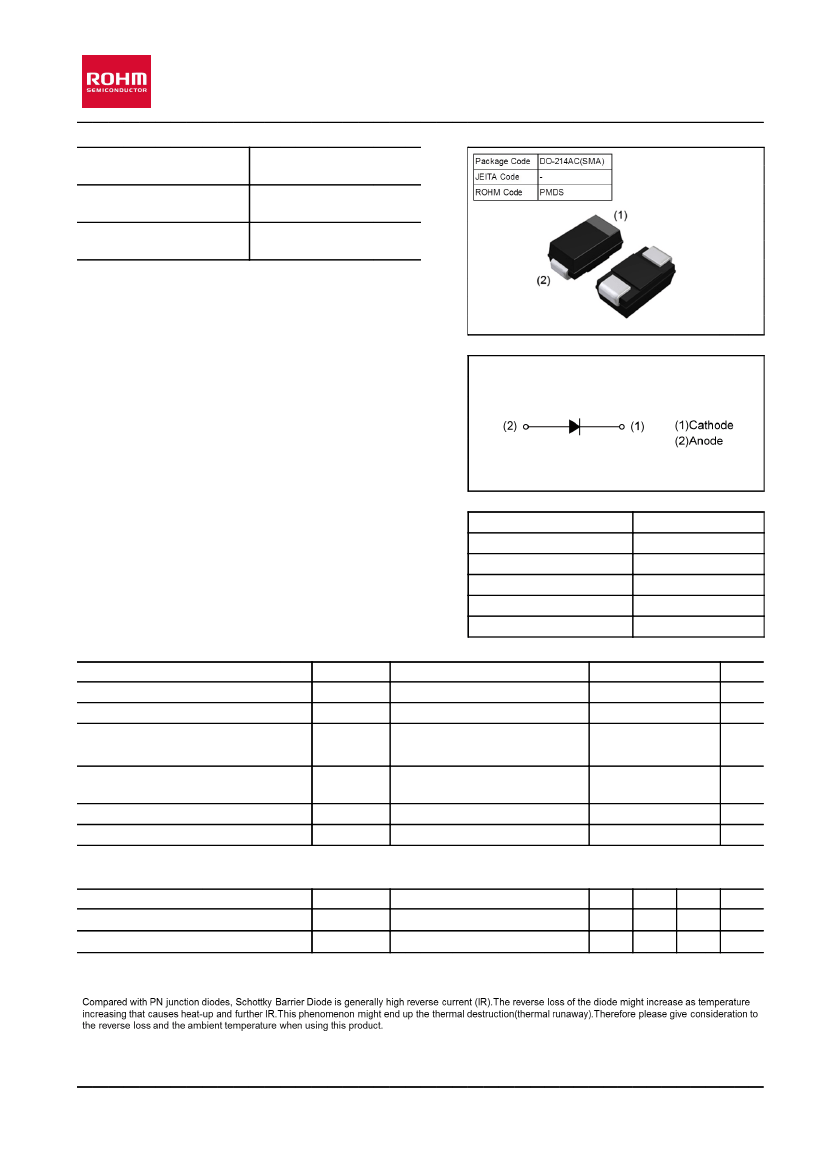

RBR2L40A

Schottky Barrier Diode

Data sheet

●

Outline

FSM

●

Features

High reliability

Small power mold type

Low V

●

Application

General rectification

●

Structure

Silicon epitaxial planar

●

Absolute Maximum Ratings (T

=25ºC unless otherwise specified)

ew om

es en

ig de

ns d

●

Inner Circuit

●

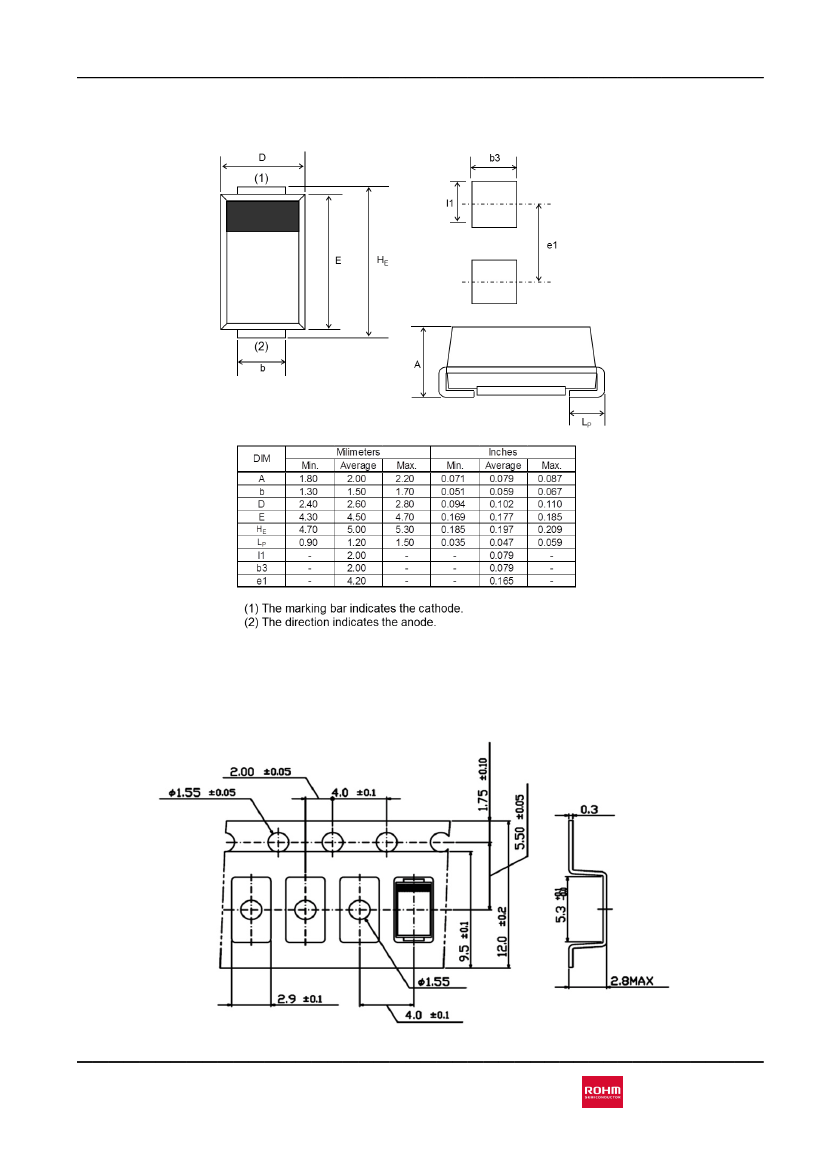

Packaging Specifications

Packing

Embossed T

ape

Reel Size(mm)

180

aping Width(mm)

Basic Ordering Unit(pcs)

1500

aping Code

TE25

Marking

Parameter

Symbol

Conditions

Repetitive peak reverse voltage

Reverse voltage

Duty

≦

0.5

Reverse direct voltage

Limits

150

-55

150

Unit

℃

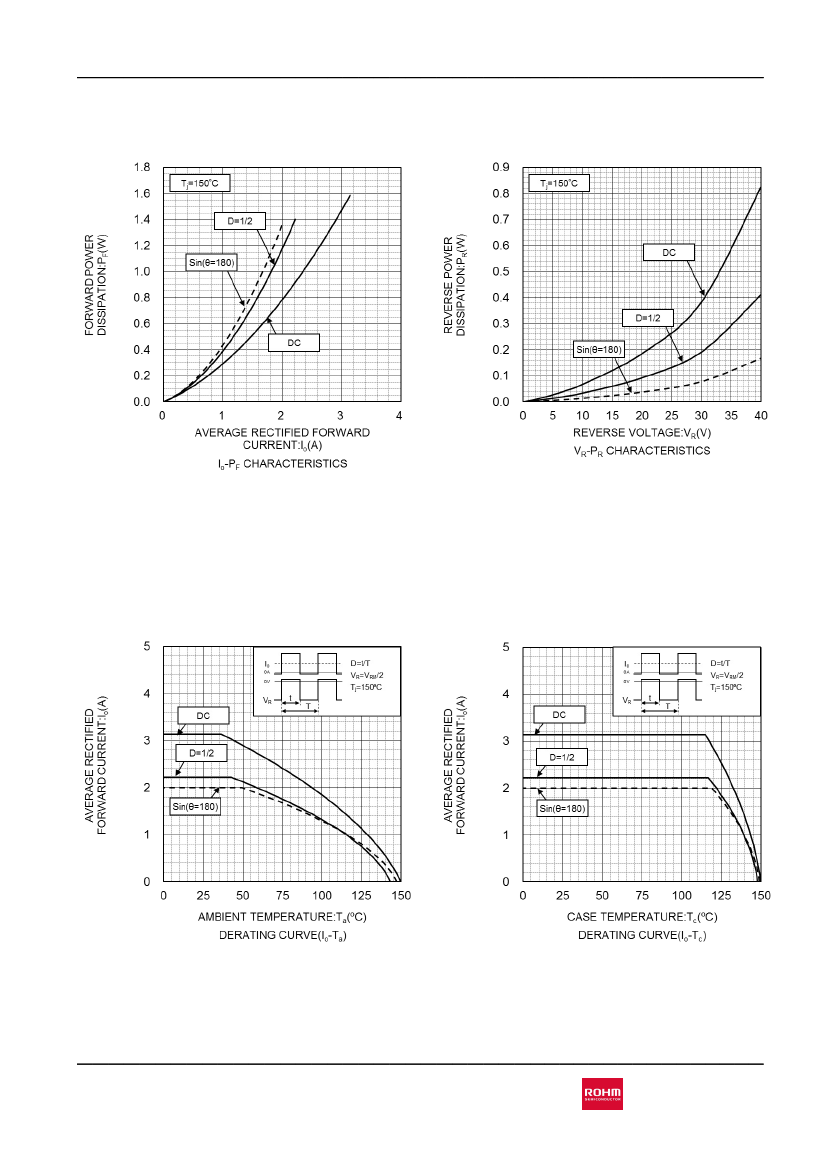

Average rectified forward current

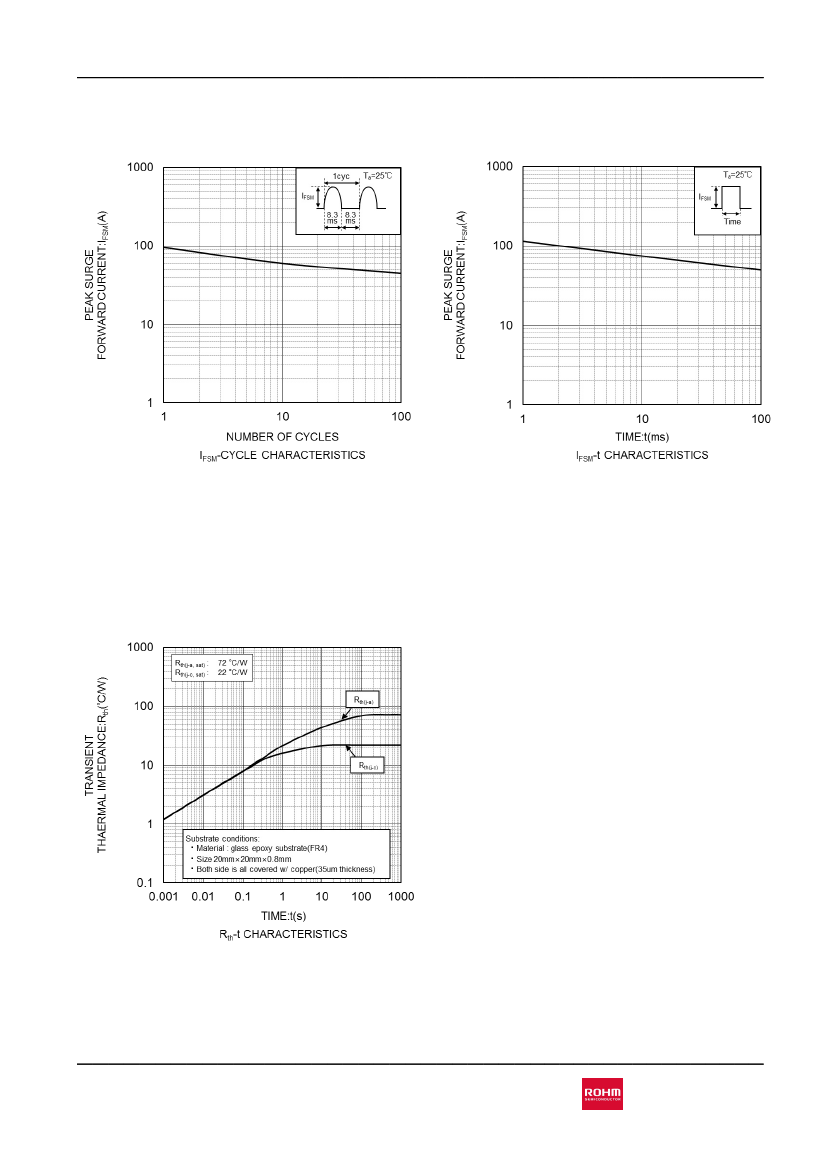

Peak forward surge current

Glass epoxy mounted

、

60Hz half sin waveform

、

resistive load

、

=107

℃

Max.

FSM

stg

60Hz half sin waveform

、

Non-repetitive

、

one cycle

、

=25

℃

Junction temperature

(1)

Storage temperature

Note(1) T avoid occurrence of thermal runaway

，

actual board is to be designed to fulfill dP

/dT

<1/R

th(j-a)

●

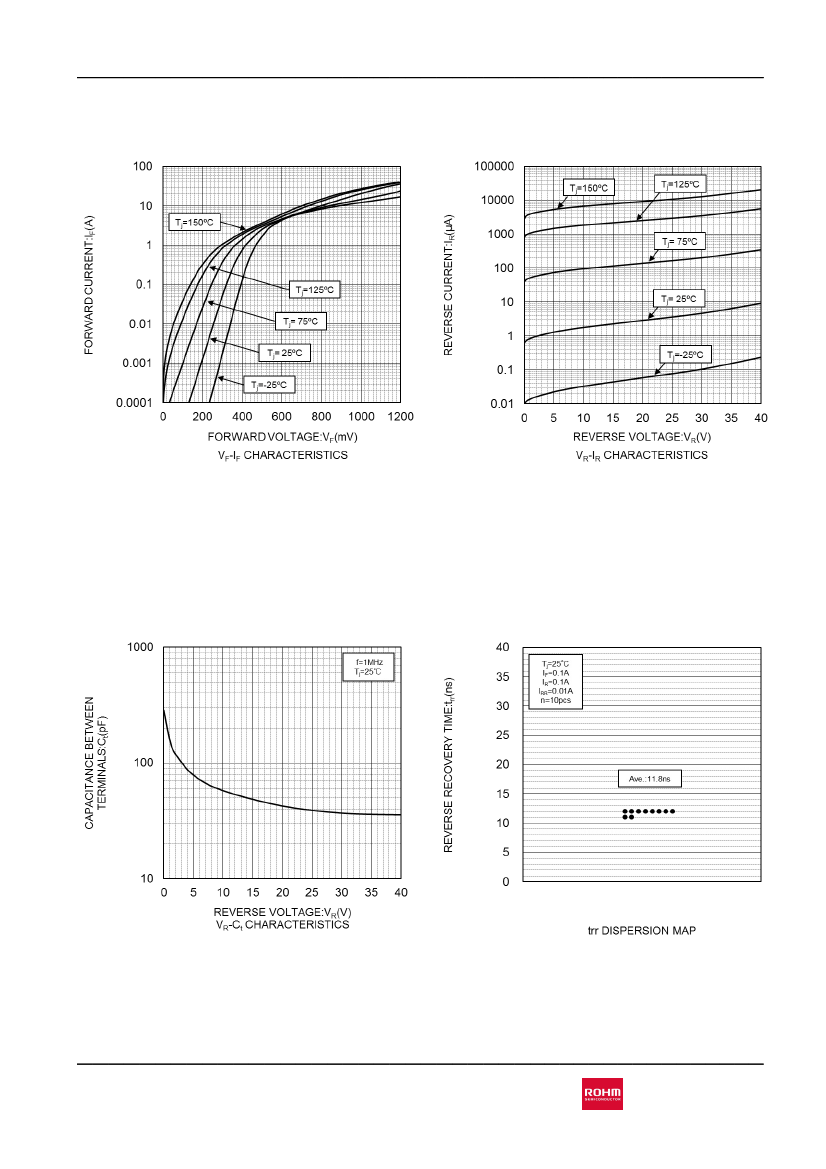

Characteristics (T

=25ºC unless otherwise specified)

Parameter

Symbol

Conditions

=2A

=40V

Min. Typ. Max. Unit

0.55

μA

Forward voltage

Reverse current

Attention

www.rohm.com

1/5

2017/05/10_Rev.001
