TMCGD6ST154AC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> TMCGD6ST154AC

TMCGD6ST154AC: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.5A, 125VDC, 5.96mm, PANEL MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size473KB，7 Pages; ManufacturerC&K Components; Environmental Compliance

Download Datasheet Parametric View All

TMCGD6ST154AC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TMCGD6ST154AC	-	-	View	Buy Now

TMCGD6ST154AC Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.5A, 125VDC, 5.96mm, PANEL MOUNT, ROHS COMPLIANT

TMCGD6ST154AC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1667359116
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	8.1
Actuator length	0.11 inch
Actuator material	THERMOPLASTIC
Actuator stroke	5.96 mm
Actuator type	LEVER, HIGH FORCE
body width	10.2 mm
body height	15.7 mm
Body length or diameter	27.7 mm
center contact material	SILVER
Contact (AC) maximum rated power R load	0.3HP@250VAC
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@125VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	125 V
Dielectric withstand voltage	1000VRMS V
Electrical life	350000 Cycle(s)
End contact material	SILVER
Insulation resistance	1000000000 Ω
Installation features	PANEL MOUNT
Maximum operating force	0.74 N
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum pre-travel	4.06 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

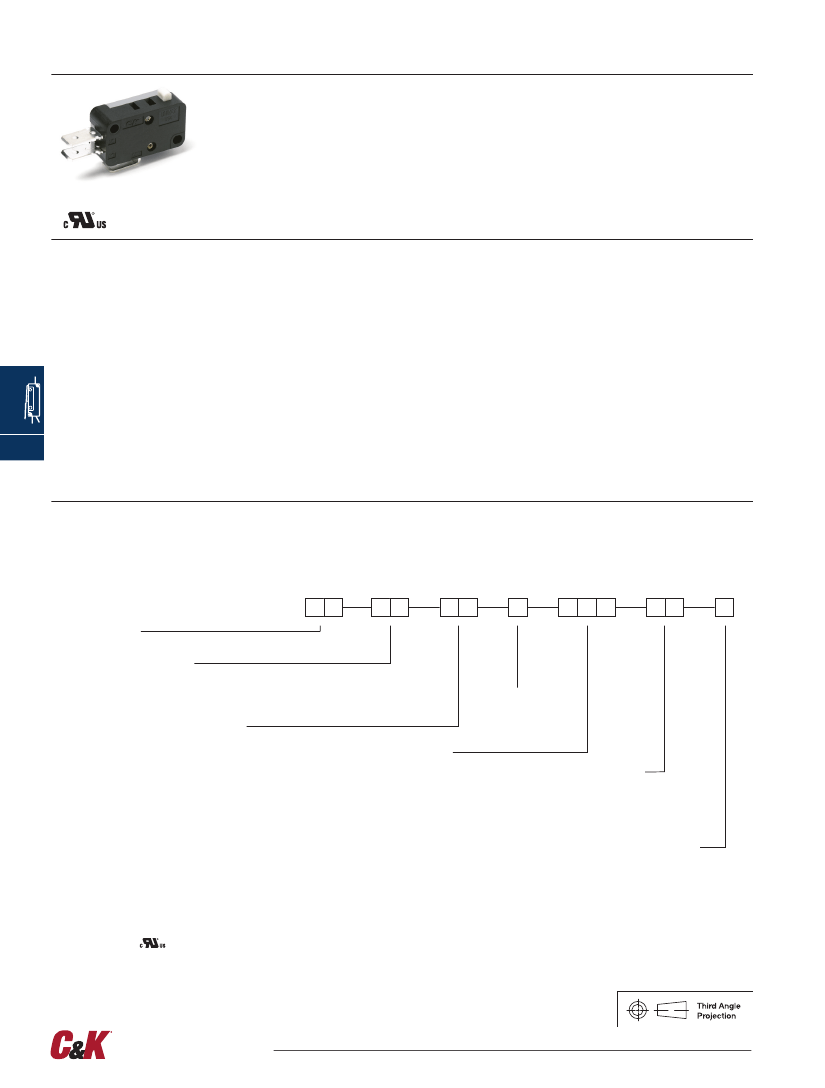

TM Series

Miniature Snap-acting Switches

Features/Benefits

•

Broad range of operating forces available

•

Wide variety of actuator and terminal styles

•

Cost-effective solution

Typical Applications

•

Pumps and motors

•

White goods

•

Consumer appliances

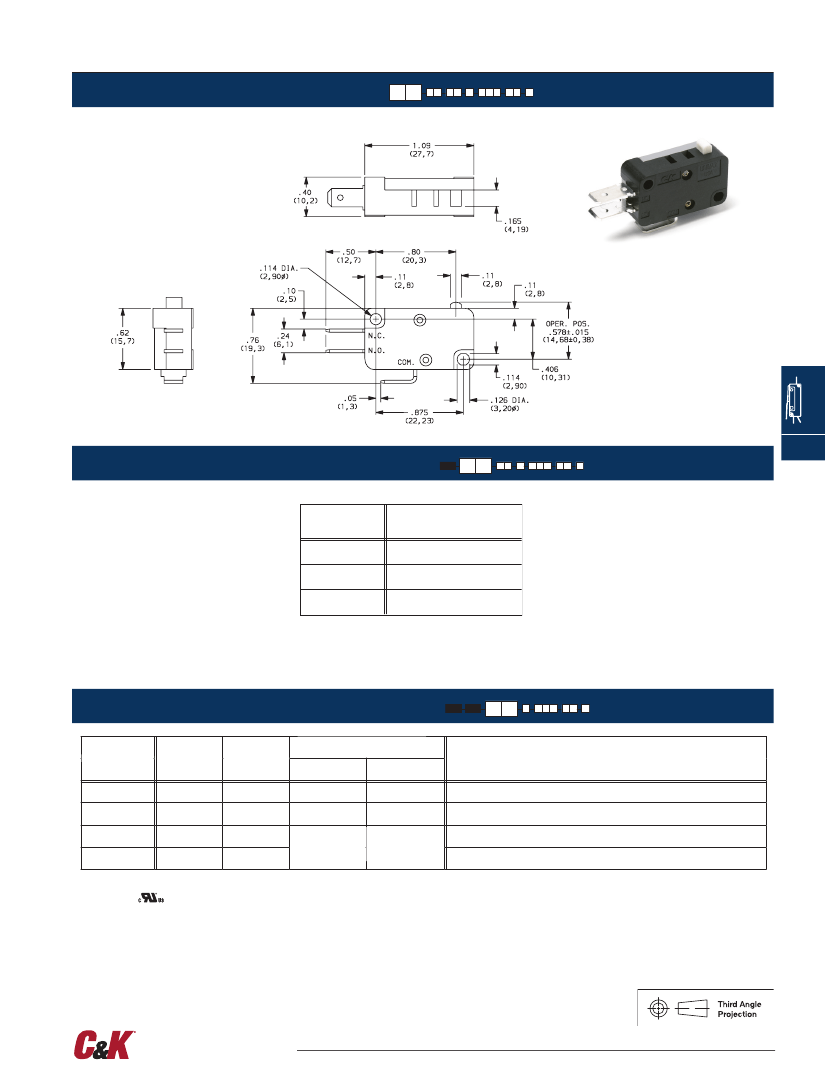

Specifications

CONTACT RATING: From low level* to 15 AMPS @ 250 V AC.

ELECTRICAL LIFE: 150,000 cycles at 15 AMPS @ 250 V AC, models

with 150 grams operating force. 350,000 cycles at 10 AMPS @

250 V AC, models with 75 grams operating force.

INSULATION RESISTANCE: 1,000 M ohms min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –67ºF to 302ºF (–55ºC to 150ºC).

OPERATING FORCE: 50, 75 and 150 grams at actuator available;

refer to chart for lever style forces.

MOUNTING: Torque screws 2-5 in/lbs.

Materials

SWITCH HOUSING: Thermoplastic or general purpose phenolic

(UL 94V-0).

ACTUATOR BUTTON: Thermoplastic (UL 94V-0).

SPRING: Copper alloy.

PIVOT: Brass alloy.

MOVABLE CONTACTS: Gold alloy for ratings 1 AMP @ 125 V AC

or less. Fine silver for ratings greater than 1 AMP @ 125 V AC.

STATIONARY CONTACTS: Gold alloy for ratings 1 AMP or less.

Fine silver for ratings greater than 1 AMP.

TERMINALS: Brass alloy for ratings up to 10 AMPS @ 250 V AC.

Copper alloy for 15 AMPS @ 250 V AC ratings.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Snap-acting

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @

20 V AC or DC max.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-26 through J-31. For additional options not shown in catalog, consult Customer Service Center.

Available extended electrical life per UL 1054, rated for 100,000 operations, consult factory.

T M

Series

SP, Mom.

Operating Force

2.65 oz./75 grams

5.29 oz.,/150 grams

1.76 oz./50 grams

Electrical Rating

1O A @ 125 & 250 V AC; 1/3 HP @ 125 & 25O V

AC;1/2 A @ 125 V DC; 1/4 A @ 250 V DC

15 A @ 125 & 250 V AC; 1/4 A @ 250 V DC;

1/2 A @ 125 V DC; 1/2 HP @ 125 & 250 V AC;

3 A @ 125 V AC “L”

1 A @ 125 V AC; 1 A @ 30 V DC

5 A @ 250 V AC; 1/6 HP @ 125 & 25O V AC

Mounting Style

Standard

Metric

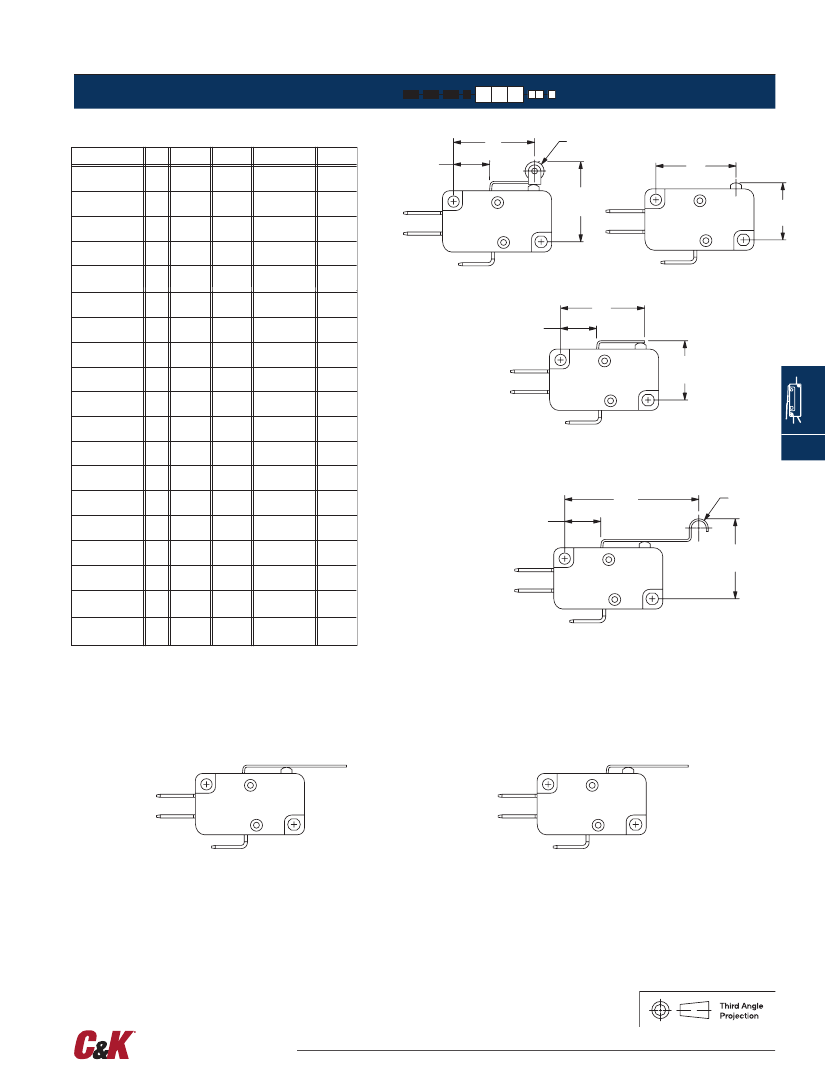

Actuator

P00

Pin plunger

A10

.81” lever roller, high force

A15

1.34” lever roller, high force

A20

1.02” lever roller, low force

A25

1.56” lever roller, low force

T10

.84” lever, high force

T13

1.34” simulated roller, high force

T14

1.29” simulated roller, high force

T15

1.40” lever, high force

T16

2.34” lever, high force

T17

2.00” lever, high force

T18

2.75” lever, high force

T20

1.06” lever, low force

T23

1.56” simulated roller, low force

T24

1.50” simulated roller, low force

T25

1.62” lever, low force

T26

2.56” lever, low force

T27

2.22” lever, low force

T28

2.97” lever, low force

Terminations

.187” quick connect

Solder

.250” quick connect

Screw

Circuitry

SPDT

SPST N.C.

SPST N.O.

* All models

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

J–26

www.ckswitches.com
