34DWMSP12B4M6RT datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 34DWMSP12B4M6RT

34DWMSP12B4M6RT: DescriptionToggle Switches Toggle Switch, Sub-Miniature, sealed, SPDT, ON-NONE-ON, right angle horizontal mount, non-threaded, RoHS Compliant; CategoryMechanical and electronic products switch; File Size365KB，3 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

34DWMSP12B4M6RT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34DWMSP12B4M6RT	-	-	View	Buy Now

34DWMSP12B4M6RT Overview

Toggle Switches Toggle Switch, Sub-Miniature, sealed, SPDT, ON-NONE-ON, right angle horizontal mount, non-threaded, RoHS Compliant

34DWMSP12B4M6RT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	8.13 mm
body height	5.08 mm
Body length or diameter	9.27 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

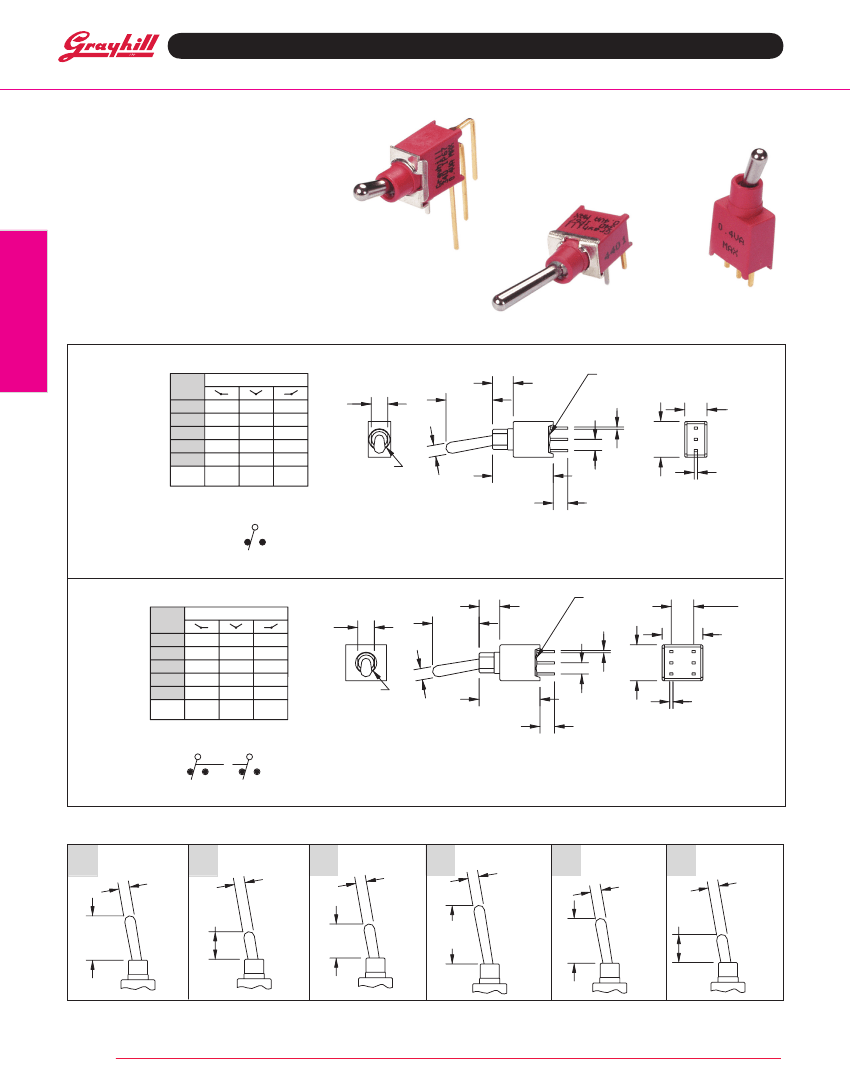

Series 34D: Sealed Sub-Miniature Toggle Switches

SerieS 34d

Sealed Sub-Miniature Toggle Switches

FeATUreS

• Save Space and Weight

• SPDT and DPDT Circuitry

• Choice of Actuators, Bushings, and

Terminations

• Sealed per IP67

Toggle Switches

ModelS

SPdT

in inches (and millimeters)

Model

No.

WMSP1

WMSP2

WMSP3

WMSP4

WMSP5

Term.

Comm.

Switching Position

(ON)

2-3

NONE

OFF

OPEN

(ON)

2-1

.148

(3.76)

.416

(10.57)

.185

(4.70)

EPOXY SEAL

.020

TYP.

(0.51)

.200

(5.08)

.320

(8.13)

Ø.180

(Ø4.58)

()=MOMENTARY

02COMM.

Ø.100

(Ø2.52)

.543

(13.80)

.100

(2.54)

.130

(3.30)

.029

(0.75)

SCHEMATIC

dPdT

Model

No.

WMDP1

WMDP2

WMDP3

WMDP4

WMDP5

Term.

Comm.

Switching Position

(ON)

2-3

5-6

NONE

OFF

OPEN

(ON)

2-1

5-4

.148

(3.76)

.416

(10.57)

.185

(4.70)

EPOXY SEAL

.020

TYP.

(0.51)

.200

(5.08)

.364

(5.08)

.320

(8.13)

.100

(2.54)

.130

(3.30)

.029

(0.75)

Ø.180

(Ø4.58)

Ø.100

(Ø2.52)

.543

(13.80)

()=MOMENTARY

02COMM.

05COMM.

3 4

SCHEMATIC

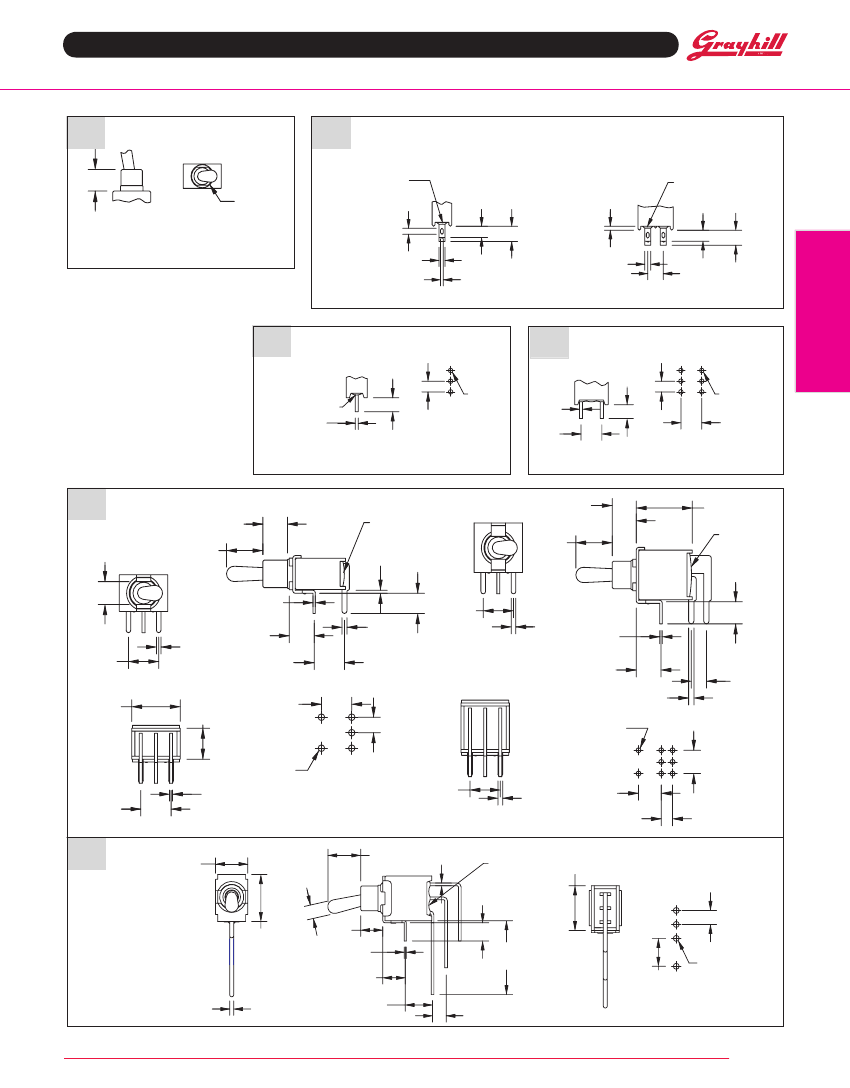

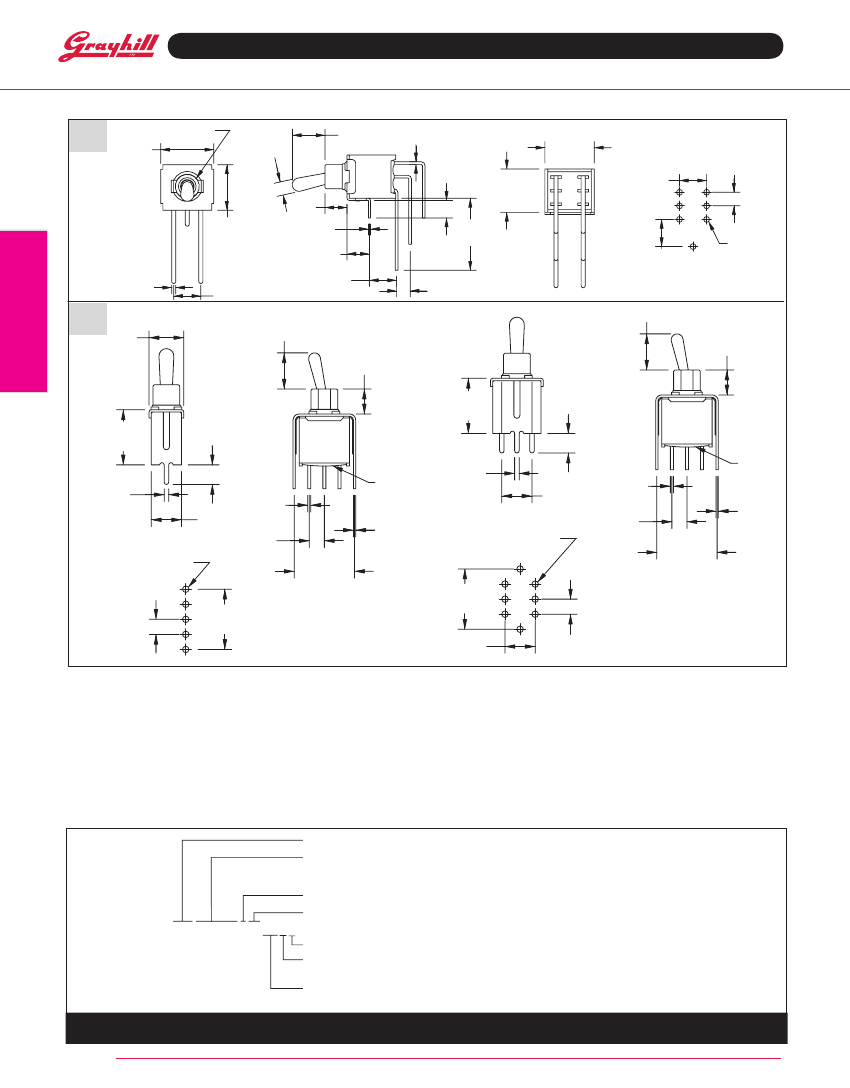

AcTUATor oPTioNS

Ø.100

(Ø2.52)

in inches (and millimeters)

Std

Ø.100

(Ø2.52)

Ø.100

(Ø2.52)

Ø.100

(Ø2.52)

ESD Resistant

Plastic Toggle

Ø.100

(Ø2.52)

ESD Resistant

Plastic Toggle

Ø.100

(Ø2.52)

.240

(6.10)

.421

(10.70)

.342

(8.70)

.550

(13.97)

.421

(10.70)

.264

(6.70)

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
