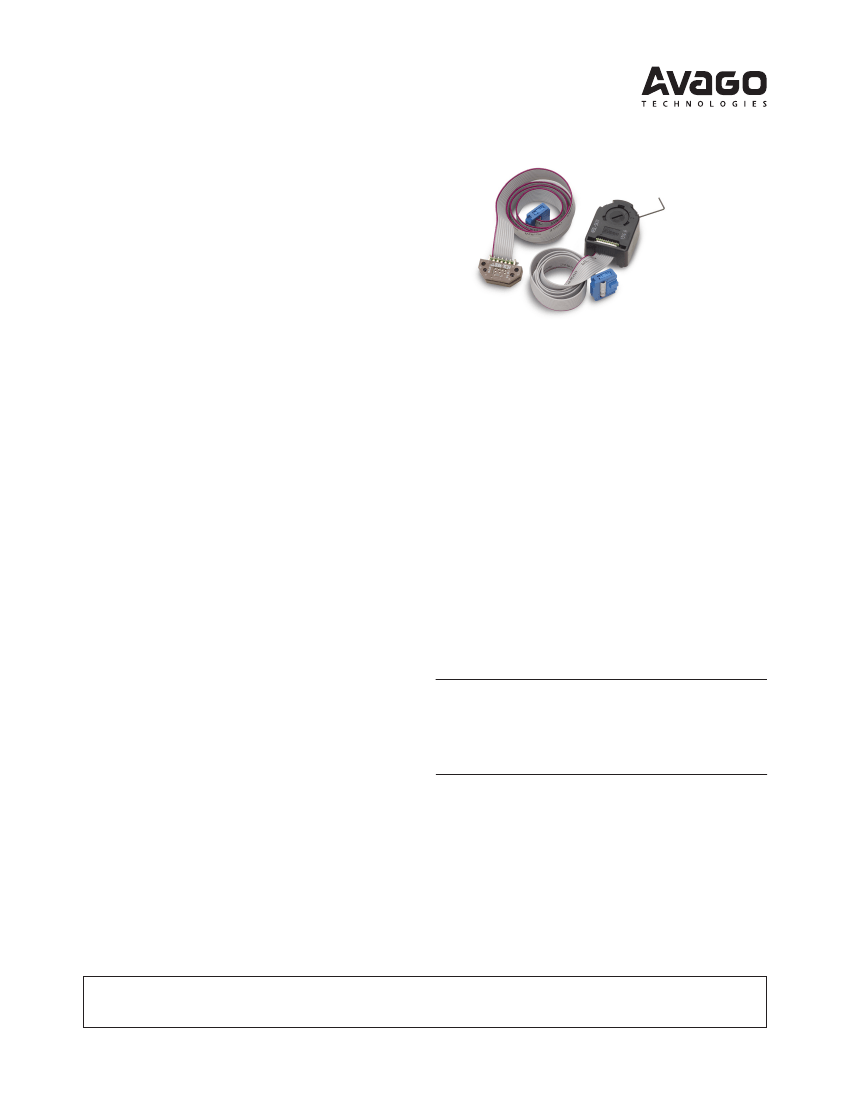

AEDL-5xxx & AEDL-981X
High Resolution Kit Encoders (AEDL-5xxx Series)
and Module Encoders (AEDL-981X Series)
Data Sheet
Description
Avago Technologies' AEDL-5xxx and AEDL-981x series
encoders are high performance, low cost, three channel
optical incremental encoders which offer line driver out-
puts. These encoders are designed with an emphasis on
high reliability, high resolution, and easy assembly.
Each encoder contains a LED source with lens, an ASIC with
integrated photo detector arrays, LED current regulation,
interpolator and output driver circuitry, and a code wheel
which rotates between the emitter and detector ASIC. The
outputs of the AEDL-5xxx and AEDL-981x are two square
waves in quadrature. In addition, a third channel offers
index signal, which is a 90 electrical degree, true index
pulse which is generated once for each full rotation of
the code wheel. The AEDL-5xxx series utilizes a film code
wheel allowing for resolutions to 5000 CPR.
The line driver output option offers enhanced perfor-
mance when the encoder is used in electronically noisy
environments, or when it is required to drive long distanc-
es. Both the AEDL-5xxx and AEDL-981x series utilize an in-
dustry standard line driver IC, AM26C31Q, which provides
complementary outputs for each encoder channel. Thus,
the output of the line driver encoder is A, A/, B, B/, I, I/. Sug-
gested line receivers are 26LS32 and 26LS33.
Standard resolutions between 2000 up to 5000 counts per
revolution are presently available. Please consult your lo-
cal Avago sales representatives for other resolutions.
For additional information, please refer to:
i) AEDT-981x Datasheet (AV02-4924EN)
ii) AM26C31Q datasheet
Features
•
Available with both
Encoder Modules (AEDL-981X
Series) and Encoder Kit Housing (AEDL-5xxx Series)
•
High resolution – up to 5000 CPR
•
High operating temperature – 115°C (AEDL-981X
series)
•
User friendly installation process (AEDL-5xxx Series)
•
Complementary Outputs with industry standard Line
Driver IC
•
Single 5 V Supply with ±10% tolerance
•
Onboard decoupling capacitor for enhance noise
immunity
Note: Avago Technologies encoders are not recommend-
ed for use in safety critical applications such as. ABS brak-
ing systems, power steering, life support systems and
critical care medical equipment. Please contact our sales
representative if clarification is needed.
CAUTION:
It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and/or degradation which may be induced by ESD.
Device Characteristics
Parameter
Termination
Electrical Outputs
Line Driver Components
Operating Temperature
Range
Storage Temperature
Characteristic
10 conductor ribbon cable with10 position IDC connector
Complementary outputs: A, A/, B, B/, I, I/
AM26C31QDR line driver IC, comes with decoupling capacitor on PC board.
-40°C to 85° C (AEDL-5xxx series)
-40°C to 115° C (AEDL-981x series)
-40°C to 85° C (AEDL-5xxx series)
-40°C to 125° C (AEDL-981x series)
Notes
See pinout diagram
Block Diagram
AEDT-981x
A
B
I
V
CC
GND
V
CC
G
GND
Pinout
AM26C31Q
A
A
B
B
I
I
10-PIN CONNECTOR
NO.
1
2
3
4
5
6
7
8
9
10
COLOR
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GREY
WHITE
BLACK
PARAMETER
NC
V
CC
(+ 5 V)
GND
NC
A
A
B
B
I (INDEX)
I (INDEX)
1
2
9
10
10 POSITION IDC CONNECTOR, CENTER POLARIZED.
Waveforms
A
A
AMPLITUDE
B
B
I
I
ROTATION
3
Ordering Information:
Module Encoder
A
E
D
L
-
9
8
1
X
-
X
0
0
Lead Termination
0
1
Straight Leads
Bent Leads
Resolution
(CPR)
B
J
L
T
U
W
N
R
Z
1000
1024
1250
2000
2048
2500
4000
4096
5000
Kit Encoder
A
E
D
L
-
5
X
1
X
-
X
Y
Y
Mounting Type
8
9
Standard
External Ear Mounting
Resolution
(CPR)
B
J
L
T
U
W
N
R
Z
1000
1024
1250
2000
2048
2500
4000
4096
5000
Shaft Diameter
01
02
03
04
05
06
11
12
13
14
2mm
3mm
1/8 in.
5/32 in.
3/16 in.
1/4 in.
4mm
6mm
8mm
5mm
Through Hole
0
5
None
8.9mm (0.35 inch)
DISCLAIMER:
Avago’s products and software are not specifically designed, manufactured or authorized for sale
as parts, components or assemblies for the planning, construction, maintenance or direct operation of a nucle-
ar facility or for use in medical devices or applications. Customer is solely responsible, and waives all rights to
make claims against Avago or its suppliers, for all loss, damage, expense or liability in connection with such use.
For product information and a complete list of distributors, please go to our web site:
www.avagotech.com
Avago Technologies, and the A logo are trademarks of Avago Technologies in the United States and other countries.
Data subject to change. Copyright © 2015-2016 Avago Technologies. All rights reserved.
AV02-4927EN - January 18, 2016
