Solid-state Timer
H3CR
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions
or comments. Refer to Warranty and Application Considerations (page 52), and Safety Precautions (page 22, 44, 51).
DIN 48
✕
48-mm Multifunctional Timer Series
• Conforms to EN61812-1 and IEC60664-1 4 kV/2 for Low
Voltage, and EMC Directives.
• Approved by UL and CSA.
• Lloyds/NK approvals.
• Six-language instruction manual provided.
■

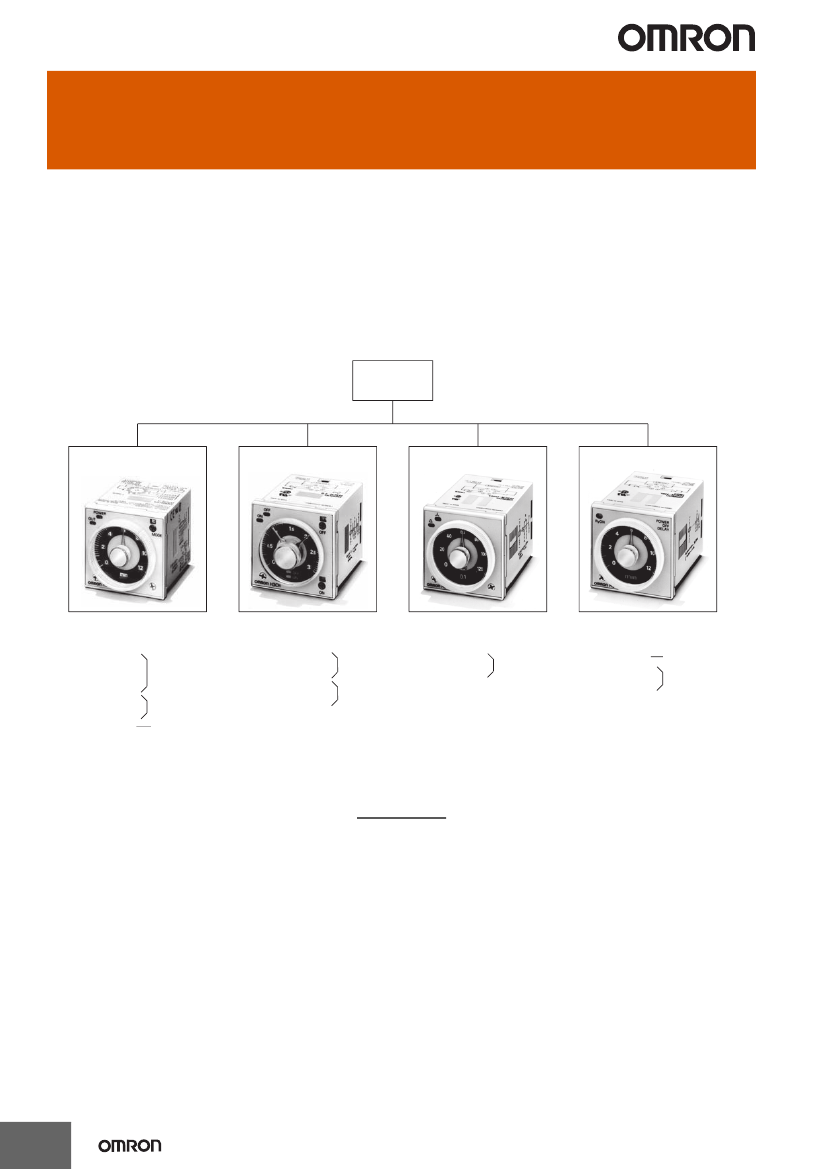

Broad Line-up of H3CR Series
H3CR
H3CR-A
H3CR-F
H3CR-G
H3CR-H
Multifunctional Timer
H3CR-A
H3CR-AS
H3CR-AP
H3CR-A8
H3CR-A8S
H3CR-A8E
11-pin model
8-pin model
8-pin with
instantaneous
contact output
model
Twin Timer
H3CR-F
H3CR-FN
H3CR-F8
H3CR-F8N
11-pin model
8-pin model
Star-delta Timer
H3CR-G8L
8-pin model
H3CR-G8EL
Power OFF-delay Timer
H3CR-HRL
11-pin model
H3CR-H8L
8-pin model
H3CR-H8RL
Note:
H3CR-AS, H3CR-A8S: Transistor output models
Contents
Solid-state Timer
H3CR-A ..........................................................................................................................................
H3CR-F...........................................................................................................................................
H3CR-G ..........................................................................................................................................
H3CR-H ..........................................................................................................................................
2
26
34
42
52
54
58
Common to ALL Timers
Operation ........................................................................................................................................
Accessories ....................................................................................................................................
Safety Precautions..........................................................................................................................
1
Solid-state Multi-functional Timers
H3CR-A
Multiple Operating Modes and Multiple Time
Ranges. DIN 48 x 48-mm Multifunctional
Timer.
• A wide AC/DC power supply range greatly reduces the number
of timer models kept in stock.
• A wide range of applications with multiple operating modes,
eight modes for 11-pin models and five modes for 8-pin models.
• Ecological design with reduced current consumption.
• Easy sequence checking with instantaneous outputs for a zero
set value.
• Length of 75 mm or less when panel-mounted with a P3G-08
Socket (H3CR-A8E, 100 to 240 VAC, 100 to 125 VDC)
• PNP input models available.
• Standards: UL, CSA, NK, LR, CCC, EN 61812-1, and CE
Marking.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.
Model Number Structure
■
Model Number Legend
Note:
This model number legend includes combinations that are not available. Before ordering, please check the
List of Models
on page 3 for avail-
ability.
H3CR-A@
@ @
-
@ @
1
2
3
4
5
1. Number of Pins
None: 11-pin models
8:
8-pin models
2. Input Type for 11-pin Models
None: No-voltage input (NPN type)
P:
Voltage input (PNP type)
3. Output
None: Relay output (DPDT)
S:
Transistor output (NPN/PNP universal use)
E:
Relay output (SPDT) with instantaneous relay output (SPDT)
4. Suffix
301: Double time scale (range) models (0.1 s to 600 h)
5. Supply Voltage
100-240AC/100-125DC: 100 to 240 VAC/100 to 125 VDC
24-48AC/12-48DC:
24 to 48 VAC/12 to 48 VDC
24-48AC/DC:
24 to 48 VAC/VDC (Only for H3CR-A8E)
2
H3CR-A
Ordering Information
■
List of Models
Note:
1. Specify both the model number and supply voltage when ordering.
Example: H3CR-A 100-240AC/100-125DC
Supply voltage
2. The operating modes are as follows
A:
ON-delay
D: Signal OFF-delay
B:
Flicker OFF start
E: Interval
B2: Flicker ON start
G: Signal ON/OFF-delay
C:
Signal ON/OFF-delay
J: One-shot
11-pin Models
Output
Contact
Supply voltage
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
Transistor
(Photocoupler)
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
0.05 s to 300 h
H3CR-AS
No-voltage input
0.1 s to 600 h
H3CR-A-301
Voltage input
Eight multi-modes: A, B, H3CR-AP
B2, C, D, E, G, J
Input type
No-voltage input
Time range
0.05 s to 300 h
Operating mode
(See note 2)
Model
(See note 1.)
Eight multi-modes: A, B, H3CR-A
B2, C, D, E, G, J
8-pin Models
Output
Contact
Supply voltage
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
100 to 240 VAC (50/60 Hz)/
100 to 125 VDC
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
Transistor
(Photocoupler)
24 to 48 VAC (50/60 Hz)/
12 to 48 VDC
0.05 s to 300 h
H3CR-A8S
H3CR-A8E
0.1 s to 600 h
Input type
Time range
Operating mode
(See note 2)
Model
(See note 1.)
No-input available 0.05 s to 300 h
Five multi-modes: A, B, H3CR-A8
B2, E, J
(Power supply start)
H3CR-A8-301
Time-limit contact and
100 to 240 VAC (50/60 Hz)/
instantaneous contact
100 to 125 VDC
24 to 48 VAC/VDC (50/60 Hz)
3
H3CR-A
■
Accessories (Order Separately)
Adapter, Protective Cover, Hold down Clip, Setting Ring and Panel Cover
Name/specifications
Flush Mounting Adapter
Y92F-30
Y92F-73
*1
Y92F-74
*1
Protective Cover
Hold-down Clip (Sold in sets of
two)
Setting Ring A
Setting Ring B and C
Panel Cover
Light gray (5Y7/1)
Black (N1.5)
For PF085A Socket
For PL08 or PL11 Sockets
Y92A-48B
*2
Y92H-8
Y92H-7
Y92S-27
*3
Y92S-28
*3
Y92P-48GL
*4
Y92P-48GB
*4
Models
*1
The Y92A-48B Protective Cover and the Y92P-48G@ Panel Cover can not be used at the same time with the Y92F-73/-74 Flush Mounting Adapter.
*2
The Y92A-48B Protective Cover is made from hard plastic. Remove the Protective Cover to change to set value. The Y92F-73/-74 Flush
Mounting Adapter and the Y92P-48G@ Panel Cover cannot be used at the same time with Y92A-48B Protective Cover.
*3
The Y92S-27/-28 Setting Ring cannot be used alone. It must be used together with the Y92P-48G@ Panel Cover.
*4
The Y92A-48B Protective Cover and the Y92F-73/-74 Flush Mounting Adapter cannot be used at the same time with the Y92P-48G@ Panel Cover.
Sockets
Timer
Pin
11-pin
Connection
Front Connecting
Round Sockets
Terminal
DIN track mounting
DIN track mounting
(Finger-safe type)
Back Connecting
Screw terminal
Solder terminal
Wrapping terminal
PCB terminal
8-pin
Front Connecting
DIN track mounting
DIN track mounting
(Finger-safe type)
DIN track mounting
Back Connecting
Screw terminal
Solder terminal
Wrapping terminal
PCB terminal
P2CF-11
P2CF-11-E
P3GA-11
PL11
PL11-Q
PLE11-0
P2CF-08
P2CF-08-E
PF085A
P3G-08
PL08
PL08-Q
PLE08-0
Models
Note: 1.
The P2CF-@@-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp terminals.
2.
The P3GA-11 and P3G-08 Socket can be used together with the Y92A-48G Terminal Cover to implement finger protection.
3.
For details, refer to your OMRON website.
Terminal Cover
Application
For back connecting socket
Note:
For details, refer to your OMRON website.
Y92A-48G
Model
Remarks
For P3G-08 and P3GA-11
4
H3CR-A
Specifications
■
General
Item
Operating mode
H3CR-A/-AS/-A-301
A: ON-delay
B: Flicker OFF start
B2: Flicker ON start
C: Signal ON/OFF-delay
D: Signal OFF-delay
E: Interval
G: Signal ON/OFF-delay
J: One-shot
11-pin
No-voltage input
Voltage input
H3CR-AP
H3CR-A8/-A8S/-A8-301
H3CR-A8E
A: ON-delay (power supply start)
B: Flicker OFF start (power supply start)
B2: Flicker ON start (power supply start)
E: Interval (power supply start)
J: One-shot (power supply start)
Pin type
Input type
Time-limit output type
8-pin
---
Relay output (SPDT)
Relay output (SPDT)
H3CR-A/-A8/-AP/-A-301/-A8-301: Relay output (DPDT)
H3CR-AS/-A8S: Transistor output (NPN/PNP universal)*
DIN track mounting, surface mounting, and flush mounting
UL508, CSA C22.2 No.14, NK, Lloyds, CCC
Conforms to EN61812-1 and IEC60664-1 (VDE0110) 4kV/2.
Output category according to EN60947-5-1 for Timers with Contact Outputs.
Output category according to EN60947-5-2 for Timers with Transistor Outputs.
Instantaneous output type
---
Mounting method
Approved standards
*
The internal circuits are optically isolated from the output. This enables universal application as NPN or PNP transistor.
For details, refer to your OMRON website.
■
Time Ranges
Note:
When the time setting knob is turned below “0” until the point where the time setting knob stops, the output will operate instantaneously at
all time range settings.
For details, refer to your OMRON website.
Standard (0.05-s to 300-h) Models
Time unit
Full scale
setting
1.2
3
12
30
s (sec)
0.05 to 1.2
0.3 to 3
1.2 to 12
3 to 30
10
s (10 sec)
1.2 to 12
3 to 30
12 to 120
30 to 300
min (min)
0.12 to 1.2
0.3 to 3
1.2 to 12
3 to 30
10
min (10 min)
1.2 to 12
3 to 30
12 to 120
30 to 300
h (hrs)
0.12 to 1.2
0.3 to 3
1.2 to 12
3 to 30
10
h (10 hrs)
1.2 to 12
3 to 30
12 to 120
30 to 300
Double (0.1-s to 600-h) Models
Time unit
Full scale
setting
2.4
6
24
60
s (sec)
0.1 to 2.4
0.6 to 6
2.4 to 24
6 to 60
10
s (10 sec)
2.4 to 24
6 to 60
24 to 240
60 to 600
min (min)
0.24 to 2.4
0.6 to 6
2.4 to 24
6 to 60
10
min (10 min)
2.4 to 24
6 to 60
24 to 240
60 to 600
h (hrs)
0.24 to 2.4
0.6 to 6
2.4 to 24
6 to 60
10
h (10 hrs)
2.4 to 24
6 to 60
24 to 240
60 to 600
5
