1914N: DescriptionPrecision Potentiometers 7/8"WW 10Kohms 0.25% 10turn; CategoryTopical application Mechanical and electrical/engineering/automation; File Size63KB，1 Pages; ManufacturerElectroswitch

Download Datasheet Parametric Compare View All

1914N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1914N	-	-	View	Buy Now

1914N Overview

Precision Potentiometers 7/8"WW 10Kohms 0.25% 10turn

1914N Parametric

Parameter Name	Attribute value
Product Category	Knobs & Dials
Manufacturer	Electroswitch
RoHS	Details
Product	Knobs
Type	Cylindrical Knob
Outside Diameter	20 mm
Design	Fluted
Indicator Style	Line on Top
Packaging	Bulk
Features	Length 0.75 in
Indicator Color	White
Factory Pack Quantity	1

Preview

Download Datasheet

View All

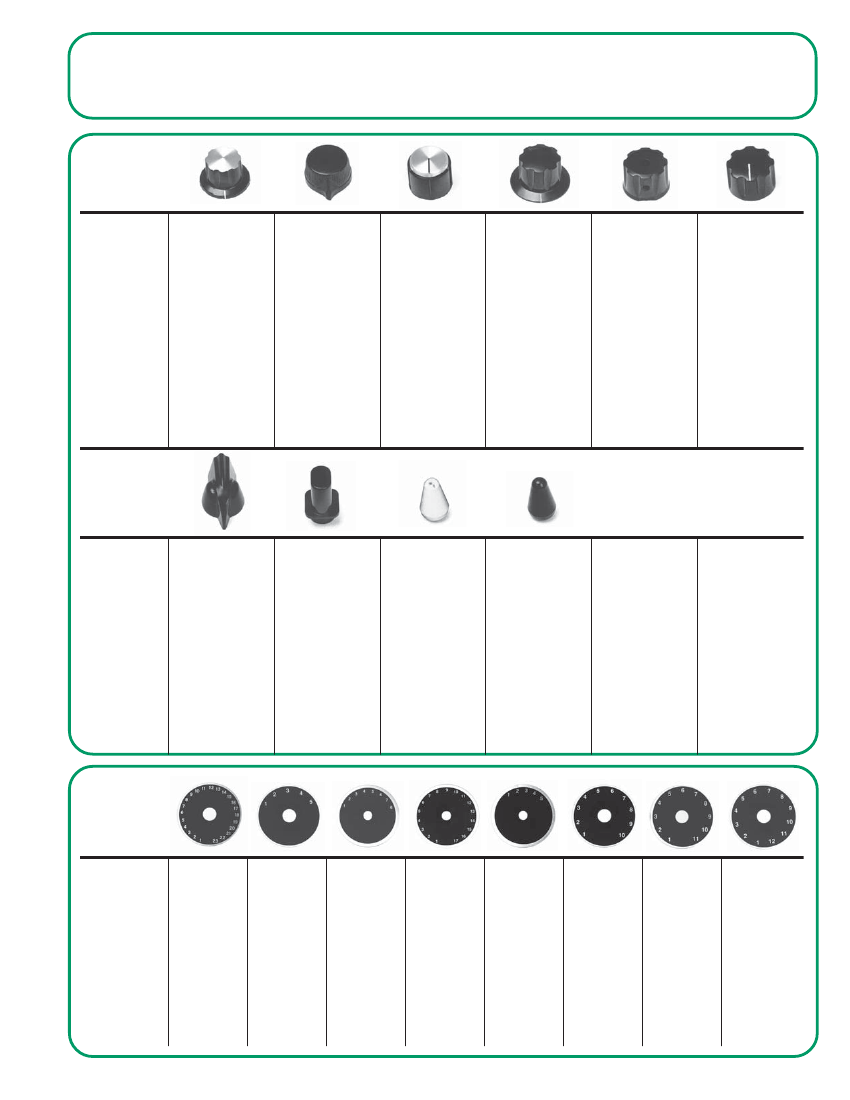

KNOBS AND DIAL PLATES

KNOBS

Part Number

Switch Type

Shaft Diameter

Description

1910DG

Rotary

0.125

Inner knob with

skirt and spun

silver color cap

1400R

Rotary

0.125

Pointer knob with

one set screw

1202BJ

Rotary

0.250

Round knob with

spun silver color

cap and one set

screw

0.75

1930BP

Rotary

0.250

Large round knob

with skirt and one

set screw

1922

Rotary

0.250

Outer knob for

dual concentric

designs

1914N

Rotary

0.250

Round knob with

brass insert and

one set screw

Overall Length

0.75

0.82

1.50

1.06

0.75

KNOBS

Part Number

Switch Type

Shaft Diameter

Description

P 2300

Rotary

0.250

Pointer knob with

one set screw

5149A

Lever

0.187x0.050

Oval knob push

on design

SSKW

Lever

0.187x0.060

Switch tip push on

design-white

SSKB

Lever

0.187x0.060

Switch tip push on

design-black

Overall Length

1.25

0.79

0.35 Dia.

DIAL

PLATES

Part Number

Switch Angle

Numbering

Description

Plate Diameter

P173

15°

1-23

P230

20°

1-5

P232

20°

1-8

P231*

20°

1-17

P115

30°

1-5

P117

30°

1-10

P118

30°

1-11

P112

30°

1-12

1.87

2.75

1.87

* D

ISCONTINUED

55

1914N Related Products

	1914N	1910DG	1202BJ	P232	1930BP	P173
Description	Precision Potentiometers 7/8"WW 10Kohms 0.25% 10turn		D-Sub Standard Connectors 9P SOCKET ZINC	Motor / Motion / Ignition Controllers u0026 Drivers	Knobs u0026 Dials LG.RND KNOB W/SKIRT	XLR Connectors 3C FEMALE BLACK
Product Category	Knobs & Dials	Knobs & Dials	Knobs & Dials	Knobs & Dials	Knobs & Dials	Knobs & Dials
Manufacturer	Electroswitch	Electroswitch	Electroswitch	Electroswitch	Electroswitch	Electroswitch
RoHS	Details	Details	Details	Details	Detailsavqaruevveeaasdwvwdqdefs	Details
Product	Knobs	Knobs	Knobs	Dials	Knobs	Dials
Type	Cylindrical Knob	Cylindrical Knob, Inner	Cylindrical Knob	Dial Plate	Cylindrical Knob with Skirt	Dial Plate
Outside Diameter	20 mm	20 mm	20 mm	70 mm	38 mm	48 mm
Indicator Style	Line on Top	Line on Skirt	Line on Top	Numbers, 1 to 8	Line on Skirt	Numbers, 1 to 23
Features	Length 0.75 in	Length 0.75 in	Length 0.75 in	Switch angle 20 degree	Length 1.5 in	Switch angle 15 degree
Indicator Color	White	White	Black	White	White	White
Factory Pack Quantity	1	1	1	1	1	1
Design	Fluted	Fluted	Ribbed	-	Fluted	-
Packaging	Bulk	-	Bulk	-	Bulk	Bulk
