T520T336M006ATE070 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T520T336M006ATE070

T520T336M006ATE070: DescriptionIMUs - Inertial Measurement Units 6-Axis 950uA; CategoryPassive components capacitor; File Size61KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T520T336M006ATE070 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520T336M006ATE070	-	-	View	Buy Now

T520T336M006ATE070 Overview

IMUs - Inertial Measurement Units 6-Axis 950uA

T520T336M006ATE070 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 1411
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	38 weeks
Samacsys Description	Tantalum Capacitors - Polymer SMD 6.3V 33uF 1311 20% ESR=7mOhms
capacitance	33 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	70 mΩ
high	1.2 mm
JESD-609 code	e3
leakage current	0.02079 mA
length	3.5 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	300 mA
size code	1411
surface mount	YES
Delta tangent	0.08
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
width	2.8 mm

Preview

Download Datasheet

View All

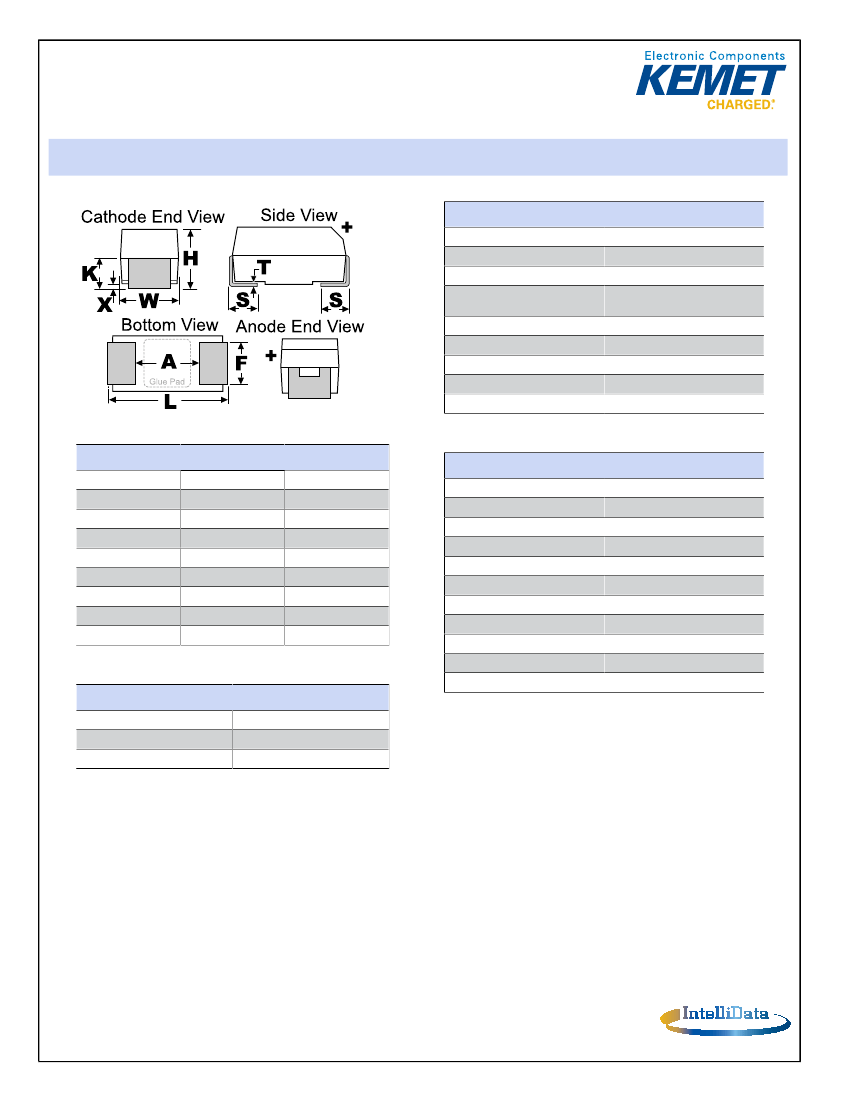

KEMET Part Number: T520T336M006ATE070

Capacitor, Tantalum, SMD, Polymer, Molded, Low Profile/ESR, Non-Combustible, 33 uF, 3528, +/-20% Tol, -55/+105C, 6.3 VDC

(105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

Profile/ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

3528

54.84 mg

Yes

Symbol

Dimensions (mm)

Dimension

3.5

2.8

1.1

2.2

0.8

0.05

0.13

1.9

Tolerance

+/-0.2

+/-0.1

+/-0.3

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

33 uF

+/-20%

6.3 VDC (105C)

-55/+105C

1200 mAmps (100kHz 45C)

840 mAmps (85C)

570 mAmps (105C)

70 mOhms (100kHz 25C)

N/A

20.8 uA

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

2500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/12/2017 - dad0e2bd-aeb7-4117-979a-1711bea41b70
