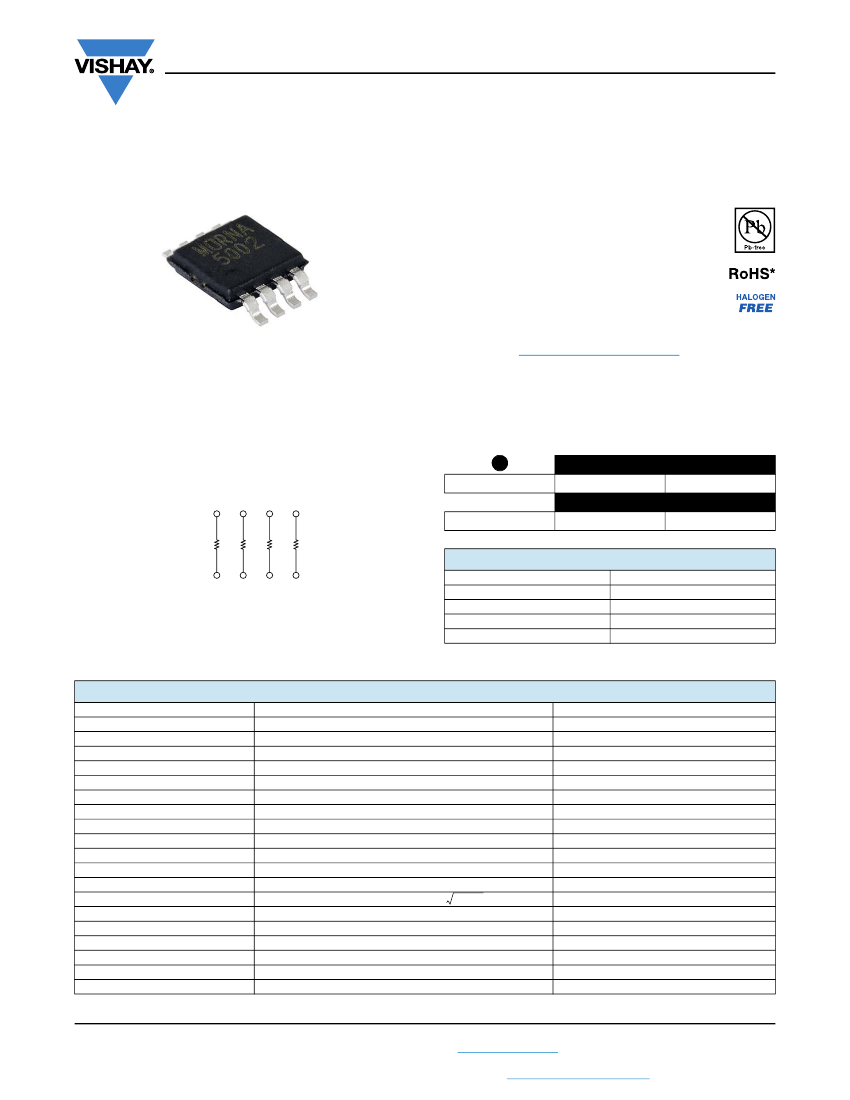

MORN
www.vishay.com
Vishay Dale Thin Film
Molded, Compact, 0.65 mm Pitch, Dual-In-Line Thin Film Resistor,
Surface-Mount Network
0.01 % Ratio Tolerance and 1 ppm/°C TCR Tracking
FEATURES
• Low TCR tracking of ± 1 ppm/°C and ratio
tolerance as low as ± 0.01 %
Available
• 1.10 mm (0.043 mil) maximum seated height
• Excellent long-term ratio stability, ± 0.015 %
Available
over 2000 h at 70 °C
• JEDEC
®
MO-187 variation AA package
(25 mil pitch, QSOP)
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
MORN series resistor networks feature four isolated
resistors with standard 0.65 mm (25.6 mil) pitch lead
spacing. The networks feature close TCR tracking and tight
ratio tolerance and are ideally suited for unity gain
operational amplifier circuitry. The standard resistance
offerings listed are available for immediate delivery.
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
TYPICAL PERFORMANCE
ABSOLUTE
TRACKING
1
RATIO
0.01
TCR
25
ABSOLUTE
TOL.
0.1
SCHEMATICS
8
7
6
5
R1
(Ref)
1
R1
R1
R1
STANDARD RESISTANCE OFFERING
(R
1
=)
2
3
4
500
1 k
2 k
4.99 k
5 k
10 k
20 k
25 k
50 k
100 k
Note
• Consult factory for additional values and schematics.
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
SPECIFICATIONS
Passivated nichrome
8
400
to 100 k per resistor
± 25 ppm/°C
± 1 ppm/°C (typical) ; ± 2 ppm/°C (max.)
± 0.05 % to ± 1.0 %
± 0.01 % to ± 0.5 %
50 mW
200 mW
R
± 0.05 %
R
± 0.015 %
0.1 ppm/V (typical)
50 V max. not to exceed
P
x
R
-55 °C to +125 °C
-55 °C to +155 °C
-30 dB
0.08 μV/°C
R
± 0.01 %
R
± 0.002 %
CONDITIONS
-
-
-
-55 °C to +125 °C
-55 °C to +125 °C
+25 °C
+25 °C
Maximum at +70 °C
Maximum at +70 °C
2000 h at +70 °C
2000 h at +70 °C
-
-
-
-
-
-
1 year at +25 °C
1 year at +25 °C
Revision: 09-Nov-15
Document Number: 60129
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MORN
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS AND IMPRINTING
in inches and millimeters
DIMENSION
INCHES
0.118
0.0118 ± 0.0086
0.0256
0.118 max.
0.006 ± 0.003
0.024 ± 0.008
0.193
0.043 max.
0.006 max.
0° to 8°
MILLIMETERS
3.00
0.3 ± 0.08
0.65
3.00
0.16 ± 0.08
0.60 ± 0.20
4.90
1.10
0.15 max.
0° to 8°
B
C
Resistance
Value Code
E
A
B
MORNA
F
G
Date
Code
C
D
E
A
D
Ø
F
G
H
I
Seating
Plane
H
I
Ø
Note
• Marking - Vishay symbol, part number from ordering information.
LAND PATTERN DIMENSIONS
MORN MSOP MO-187AA
(MORN-8)
0.0160
0.0400
DERATING CURVE
100
Precent of Rated Power
100 % = 0.20 W
80
60
40
20
0
0
70
125
155
0.1700
Ambient Temperature °C
0.0256
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Lead (Pb)-free Option
Tin Lead Option
Tin Lead and Lead (Pb)-free Finish
Passivated nichrome
Silicon
Molded epoxy
Copper alloy
100 % matte tin
Sn90
Plated
Revision: 09-Nov-15
Document Number: 60129
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MORN
www.vishay.com
Vishay Dale Thin Film
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: MORNA1002AUF
M
GLOBAL MODEL
(4 or 5 digits)
MORN
(Tin lead)
MORNT
(Lead (Pb)-free)
(e3)
O
R
N
T
A
1
0
0
2
A
U
F
SCHEMATIC
A
= 4 isolated
equal resistors
RESISTANCE
First 3 digits are significant
figures and the last digit
specifies the number of
zeros to follow.
R designates the
decimal point.
Example:
1002
= 10 k
1003
= 100 k
4991
= 4.99 k
5000
= 500
TOLERANCE AND
RATIO TOLERANCE
Abs. Tol.
Q
= ± 0.05 %
(1)
Z
= ± 0.1 %
(1)
A
= ± 0.1 %
B
= ± 0.1 %
C
= ± 0.25 %
D
= ± 0.5 %
F
=±1%
Ratio
± 0.01 %
± 0.025 %
± 0.05 %
± 0.1 %
± 0.1 %
± 0.1 %
± 0.5 %
PACKAGING
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
(2)
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel 300
TS
= 100 min., 1 mult
UF
= TUBED
Notes
(1)
Tolerance available 1K and up
(2)
Preferred packaging code
Revision: 09-Nov-15
Document Number: 60129
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
