530720-5

Description
MINI BX-RCPT ASSY 80 POS
CategoryThe connector    The connector

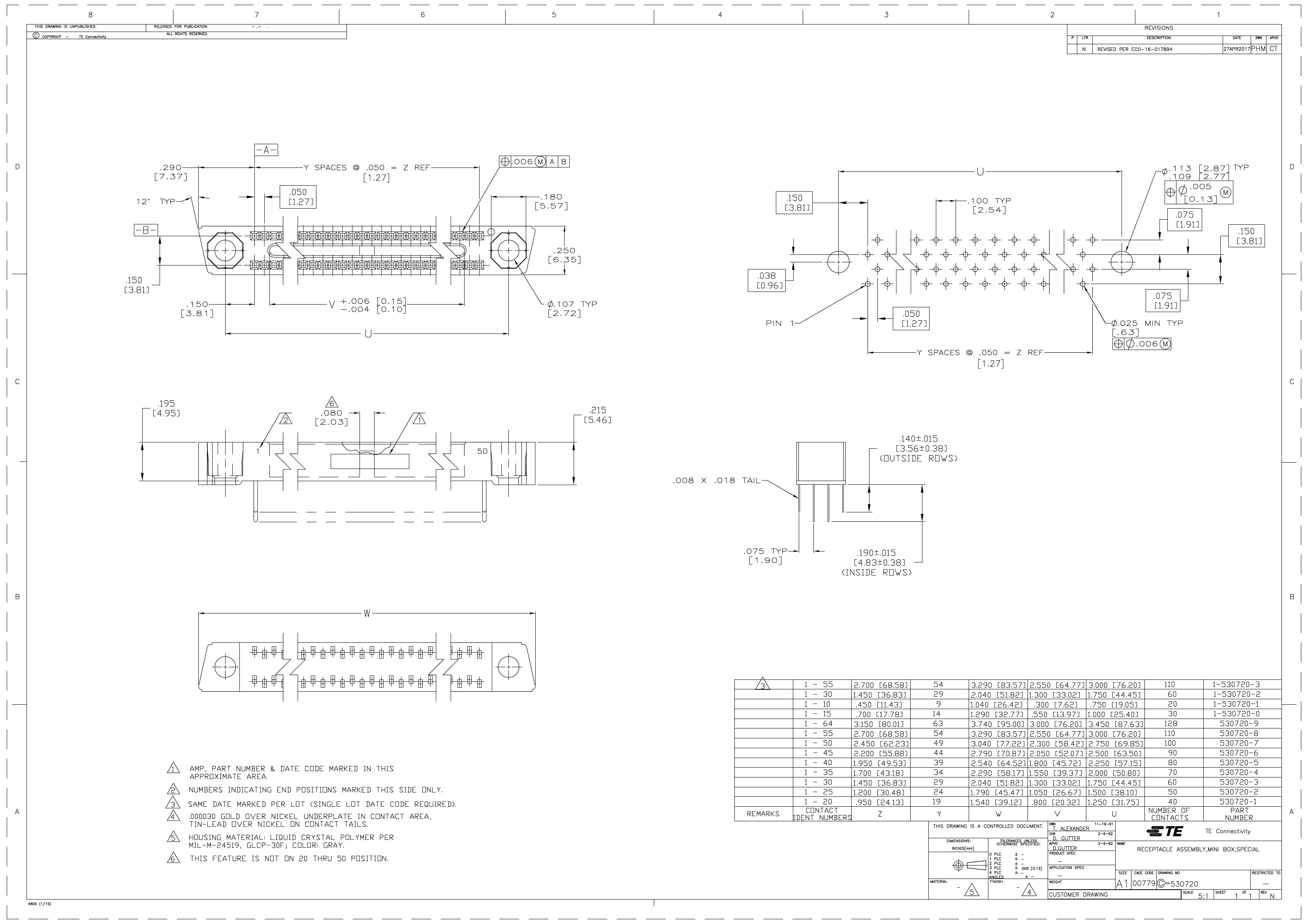

File Size108KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

530720-5 Online Shopping

Suppliers Part Number Price MOQ In stock
530720-5 - - View Buy Now

530720-5 Overview

MINI BX-RCPT ASSY 80 POS

530720-5 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1503009678
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
YTEOL9.15
Other featuresSTANDARD: MIL-C-55302
body width0.255 inch
subject depth0.215 inch
body length2.54 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage600VAC V
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
Insulator colorGRAY
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Power Connector Ratings1.5A
Plug contact pitch0.05 inch
Match contact row spacing0.15 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .099-.111
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of ports1
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Plating thickness30u inch
polarization keyPOLARIZED
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.14 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts80
UL Flammability Code94V-0
