Generated Part Number
K202XHT-E15S-N
Part Number Builder
LR78160

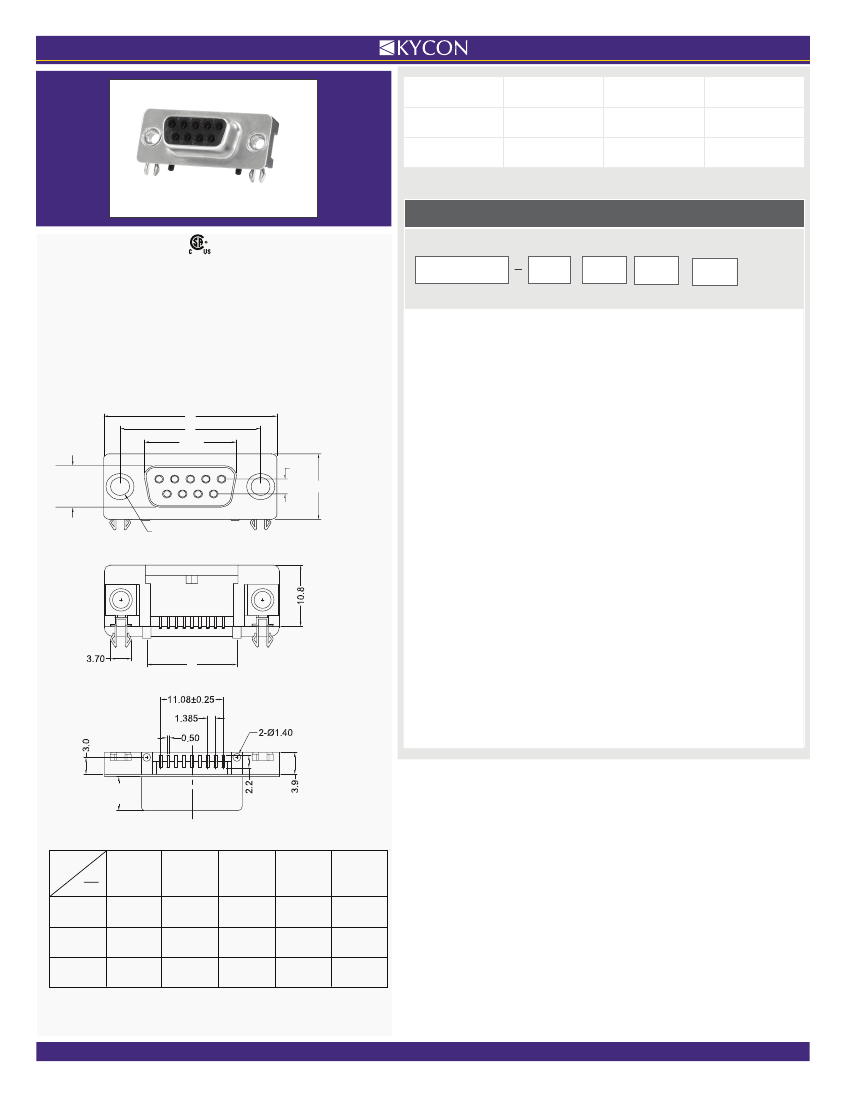

D-SUBMINIATURE CONNECTORS:
K202XHT
Series
Right Angle Surface Mount
Dimensions in mm
K202XHT
Series
E15
Shell Size
Contact
S
Contact
Type
N
Mounting
Option
Plating
Option
K202XHT
Series Dimensions
Series
K202XHT
-
D-Subminiature Connector, Right Angle,
Ultra Short Footprint, Surface Mount, Reflow Compatible
Shell Size-Contact Option
E
- 9 Contacts
B
- 25 Contacts
E
- 15 Contacts,
High Density (Socket only)
2.84
12.55
C
B
A, A1
8.36 Plug
Interior
7.90 Socket
Exterior
Contact Type
P
-
Pin Contact (Plug)
S
-
Socket Contact (Receptacle)
Mounting Option
N
-
With Boardlocks and #4-40 UNC Threaded Inserts
NJ
-
With Boardlocks and
JSX-1055
Jackscrews Installed
Plating Option
Blank
-
Gold Flash
15
-
15µ” Gold
30
-
30µ” Gold
#4-40 UNC
Threaded Inserts
D
Contact Kycon for Tape and Reel and Other Options
6.1 Plug
5.8 Socket
Shell
Size In
mm
9
(E)
15
(E)
25
(B)
A
±.010
±0.25
.643
16.33
.643
16.33
1.511
38.38
A1
±.010
±0.25
.666
16.92
B
±.005
±0.13
.984
24.99
.984
24.99
1.852
47.04
C
±.015
±0.38
1.213
30.81
1.213
30.81
2.088
53.04
D
±.005
±0.13
.626
15.90
.609
15.46
1.498
38.06
N/A
1.534
38.96
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
