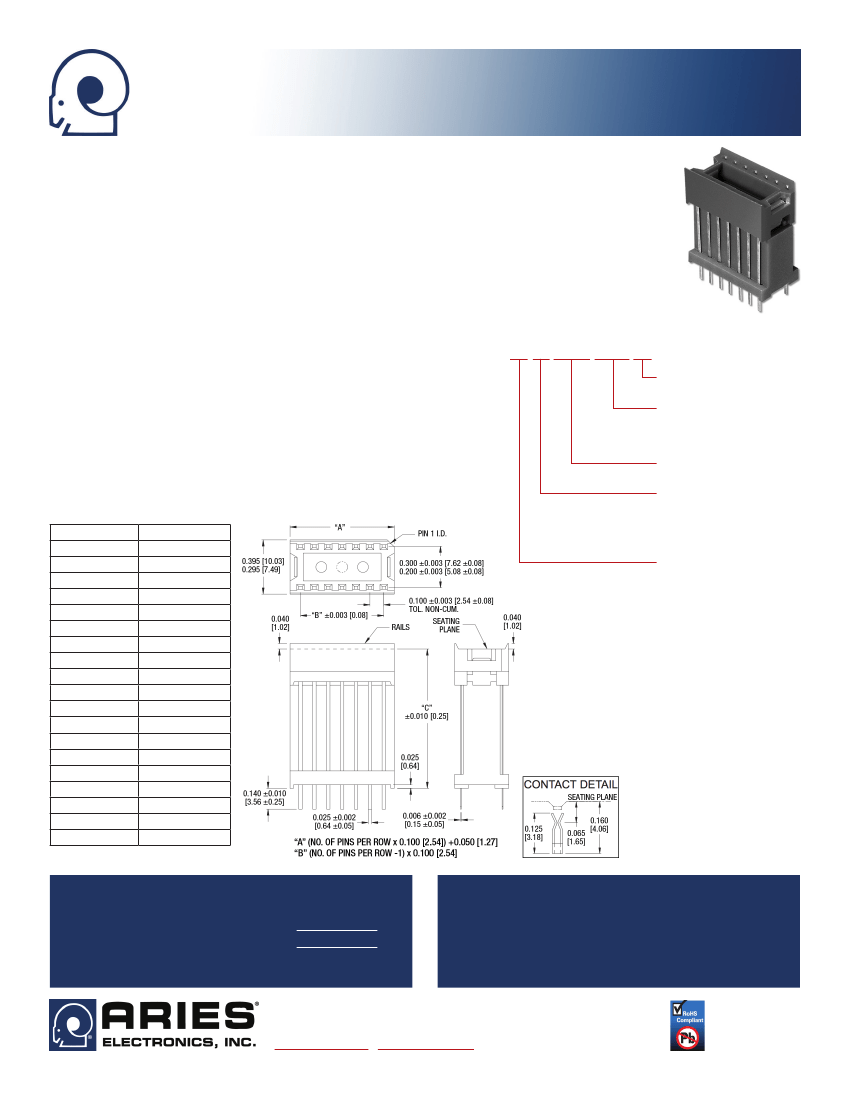

Series 8 Elevator Socket
w/Bifurcated Contacts & Solder Pin Tails
FEATURES
• Ideal for Elevating Devices (Displays, Switches, etc.) to Desired Level with 0.260 to 1.250 [6.60 to 31.75] Height
Extension
GENERAL SPECIFICATIONS
•
STANDARD SOCKET BODY & SPACER: black UL 94V-0 glass-filled 4/6 Nylon
•
BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
•
CONTACT PLATING: 50-130µ [1.27-3.30µ] matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] Ni per SAE
AMS-QQ-N-290B; –OR– 50-130µ [1.27-3.30µ] 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] Ni per SAE
AMS-QQ-N-290B; –OR– 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] Ni per SAE AMS-QQ-N-290B.
(Consult factory for availability)
ORDERING INFORMATION
•
CONTACT CURRENT RATING: 1 amp
•
INSERTION FORCE: 110g/pin average
XX-X8 XXXX-1XXX XX
•
WITHDRAWAL FORCE: 75g/pin average
Optional Rails
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn and Sn/Pb
WR = Without Rails
plating; -67°F to 257°F [-55°C to 125°C] Au plating
Plating
•
ACCEPTS: flat leads up to 0.014 thick x 0.020 wide [0.36-0.51], round leads up
10 = Sn
to 0.020 [0.51] dia.
10TL = Sn/Pb
•
SOCKET ACCEPTS: lead lengths from seating plane 0.075-0.160 [1.91-4.06]
11 = Au (Consult Factory)
•
SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.
Part No.
10-28440-10
14-8260-10
14-8350-10
14-8400-10
14-8435-10
14-8470-10
14-8510-10
14-8620-10
14-8770-10
14-8870-10
14-81000-10
14-81100-10
14-81187-10
14-81250-10
16-8430-10
16-8480-10
16-8700-10
16-8810-10
16-81250-10
Dim. "C"
0.440 [11.18]
0.260 [6.60]
0.350 [8.89]
0.400 [10.16]
0.440 [11.18]
0.470 [11.94]
0.510 [12.95]
0.620 [15.75]
0.770 [19.56]
0.870 [22.10]
1.000 [24.40]
1.100 [27.94]
1.180 [29.97]
1.250 [31.75]
0.430 [10.92]
0.480 [12.19]
0.700 [17.78]
0.810 [20.57]
1.250 [31.75]
MOUNTING CONSIDERATIONS
Seating Plane Height
(See Table, Dim “C”)
Row-to-Row Spacing
8 = 0.300 [7.62] centers
(14- & 16-pin)
28 = 0.200 [5.08] centers
(10-pin only)
No. of Pins
(10, 14, 16)
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR COLLET CONTACTS ON 0.200 [5.08] CENTERS, SEE DATA SHEET 13007
FOR COLLET CONTACTS ON 0.300 [7.62] CENTERS, SEE DATA SHEET 13008
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
13006
Rev. 1.2
1 of 1
