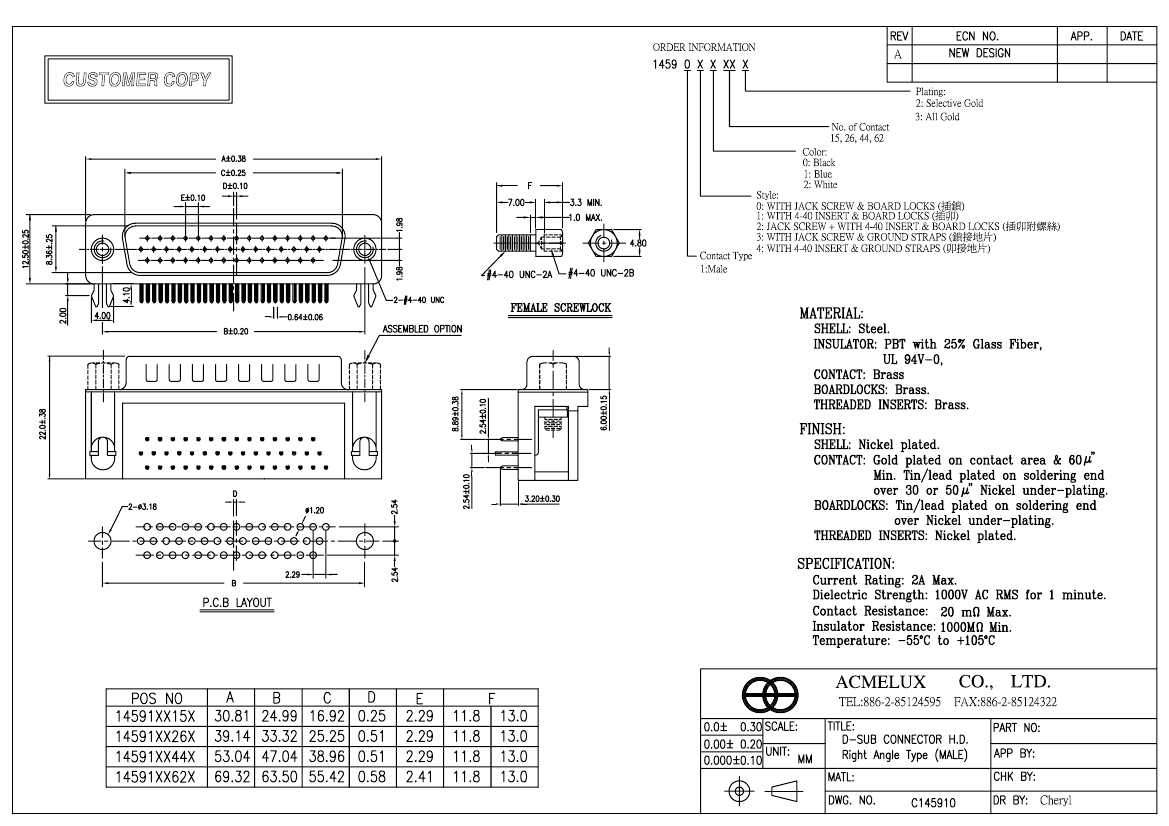

D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, Locking Mech, Receptacle
| Parameter Name | Attribute value |
| Reach Compliance Code | unknow |
| body width | 0.492 inch |
| subject depth | 0.63 inch |
| body length | 1.541 inch |
| Body/casing type | RECEPTACLE |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Insulation resistance | 1000000000 Ω |
| Insulator color | WHITE |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | 1459 |
| Plug contact pitch | 0.09 inch |
| Match contact row spacing | 0.078 inch |
| Installation option 1 | LOCKING MECH |
| Installation option 2 | JACKSCREW |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Rated current (signal) | 2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | STEEL |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 26 |
| Base Number Matches | 1 |
