809A060-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 809A060-1

Preview

809A060-1: DescriptionCircular MIL Spec Contacts; CategoryThe connector Connector bracket; File Size205KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

809A060-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	809A060-1	-	-	View	Buy Now

809A060-1 Overview

Circular MIL Spec Contacts

809A060-1 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Assembly name	SHRINK BOOT
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Maximum operating temperature	165 °C
Minimum operating temperature	-75 °C

Preview

Download Datasheet

View All

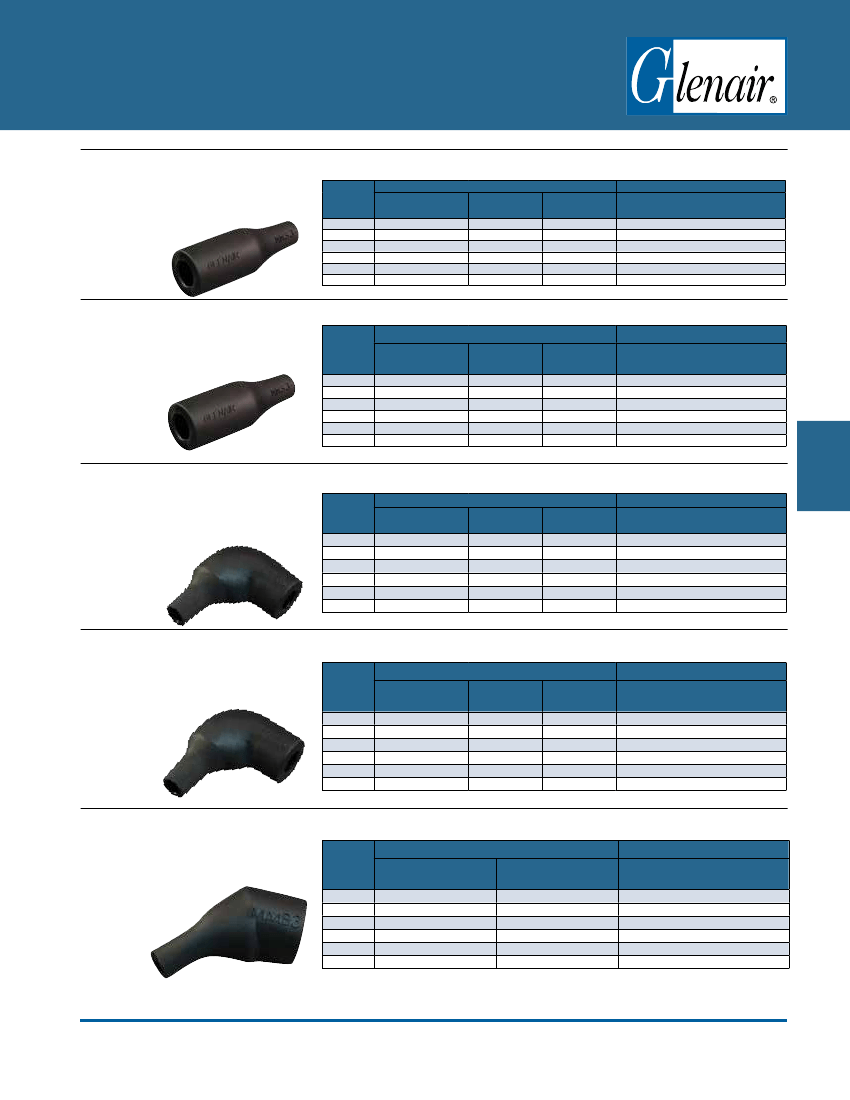

809S060, 809A060 and 809B060 Shrink Boots

Lipped straight shrink boots-Type 1 high performance elastomer

-75° C to +165° C

Excellent resistance to fuels, oils,

solvents and heat.

Boot

Size

1

2

3

4

5

6

Series 800, 801,

802, 803, 804

5/6

7

8, 9

10, 11, 12, 13

14, 15, 16, 17

19, 21

Shell Size

Series 805

8

9

10, 11

12, 15

18, 19

23

Series 811

5

6,7

8,9

N/A

Part Number

Pre-Coated with W1 Hi-Temp

Hot-Melt Adhesive

809S060-1

809S060-2

809S060-3

809S060-4

809S060-5

809S060-6

Fully recovered

boot shown. As

supplied part

will vary.

Lipped straight shrink boots- Type 2 zero halogen

Low Smoke, Zero Halogen

Meets U.S. and E.U. toxicity

requirements.

Boot

Size

1

2

3

4

5

6

Shell Size

Series 800, 801,

802, 803, 804

5/6

7

8, 9

10, 11, 12, 13

14, 15, 16, 17

19, 21

Series 805

8

9

10, 11

12, 15

18, 19

23

Series 811

5

6,7

8,9

N/A

Part Number

Pre-Coated with W1 Hi-Temp

Hot-Melt Adhesive

809S060-1H

809S060-2H

809S060-3H

809S060-4H

809S060-5H

809S060-6H

Fully recovered

boot shown. As

supplied part

will vary.

Lipped 90° right angle shrink boots- Type 1 high performance elastomer

-75° C to +165° C

Excellent resistance to fuels, oils,

solvents and heat.

Boot

Size

1

2

3

4

5

6

Series 800, 801,

802, 803, 804

5/6

7

8, 9

10, 11, 12, 13

14, 15, 16, 17

19, 21

Shell Size

Series 805

8

9

10, 11

12, 15

18, 19

23

Series 811

5

6,7

8,9

N/A

Part Number

Pre-Coated with W1 Hi-Temp

Hot-Melt Adhesive

809A060-1

809A060-2

809A060-3

809A060-4

809A060-5

809A060-6

Fully recovered

boot shown. As

supplied part

will vary.

Lipped 90° right angle shrink boots- Type 2 zero halogen

Low Smoke, Zero Halogen

Meets U.S. and E.U. toxicity

requirements.

Boot

Size

1

2

3

4

5

6

Shell Size

Series 800, 801,

802, 803, 804

5/6

7

8, 9

10, 11, 12, 13

14, 15, 16, 17

19, 21

Series 805

8

9

10, 11

12, 15

18, 19

23

Series 811

5

6,7

8,9

N/A

Part Number

Pre-Coated with W1 Hi-Temp

Hot-Melt Adhesive

809A060-1H

809A060-2H

809A060-3H

809A060-4H

809A060-5H

809A060-6H

Fully recovered

boot shown. As

supplied part

will vary.

Lipped 45° angle shrink boots- Type 1 high performance elastomer

-75° C to +165° C

Excellent resistance to fuels, oils,

solvents and heat.

Boot

Size

1

2

3

4

5

6

Shell Size

Series 800, 801, 802,

Series 805

803, 804

5/6

7

8, 9

10, 11,12, 13

14, 15, 16, 17

19, 21

8

9

10, 11

12, 15

18, 19

23

Part Number

Pre-Coated with W1 Hi-Temp

Hot-Melt Adhesive

809B060-1

809B060-2

809B060-3

809B060-4

809B060-5

809B060-6

Fully recovered

boot shown.

As supplied

part will vary.

Dimensions in Inches (millimeters) are subject to change without notice.

Series 80 Mighty Mouse

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

X-5

E-Mail: sales@glenair.com

Accessories

Series 80 Mighty Mouse

Backshells and Accessories

X

809A060-1 Related Products

	809A060-1	809S060-5	809A060-6	809A060-4	809S060-2H	809A060-2	809A060-1H	809A060-6H	809S060-6H
Description	Circular MIL Spec Contacts	Headers u0026 Wire Housings RECEPTACLE 4P DUAL ROW	Circular MIL Spec Connector COMMERCIAL		Headers u0026 Wire Housings 20-22AWG CRIMP TERM	Circular MIL Spec Contacts	Circular MIL Spec Strain Reliefs u0026 Adapters LIPPED RT ANGLE BOOT SHRK BOOT SEMI RIGID	Circular MIL Spec Connector COMMERCIAL	Circular MIL Spec Strain Reliefs u0026 Adapters LIPPED STRT SHRNK BOOT SEMI RIGID
Maker	Glenair	Glenair	-	Glenair	Glenair	Glenair	Glenair	-	-
Reach Compliance Code	compliant	compliant	-	compliant	compliant	compliant	compliant	-	-
Factory Lead Time	7 weeks	7 weeks	-	7 weeks	7 weeks	7 weeks	7 weeks	-	-
Assembly name	SHRINK BOOT	SHRINK BOOT	-	SHRINK BOOT	SHRINK BOOT	BOOT	SHRINK BOOT	-	-
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	-	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	-	-
DIN compliance	NO	NO	-	NO	NO	NO	NO	-	-
IEC compliance	NO	NO	-	NO	NO	NO	NO	-	-
MIL compliance	NO	NO	-	NO	NO	NO	NO	-	-
