Pin Grid Array Socket/Header on
0.100 [2.54] Centers w/Solder Pin Tails
FEATURES
• Aries offers a wide number of pin grid array configurations from which to choose.
• Low-insertion-force contacts standard.
GENERAL SPECIFICATIONS
• PGM SERIES SOCKET BODY: black UL 94V-0 glass-filled 4/6 Nylon
• PGG SERIES SOCKET BODY: FR-4, 0.062 [1.57] thick
• PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
• PIN BODY PLATING: either 200µ [5.08µ] min. Sn per ASTM B545 Type 1 or
200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545
or
10µ [0.254µ] min. Au per
MIL-G-45204 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290
• 6-FINGERED COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-01 (not
CUSTOMIZATION:
In addition to the standard products shown
applicable to Post Style Pin)
on this page, Aries specializes in custom design and production.
• CONTACT PLATING: either 100µ [2.54µ] min. Sn per ASTM B545 Type 1
or
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
100µ [2.54µ] min. 93/7 Sn/Pb per ASTM B545 or 10µ [0.254µ] min. Au per
right to change product general specifications without notice.
MIL-G-45204
or
30µ [0.762µ] min. heavy Au plating also available
• CONTACT CURRENT RATING: 3 amps
• OPERATING TEMPERATURE : -67°F to 221°F [-55°C to 105°C] Sn plating
ORDERING INFORMATION
: -67°F to 257°F [-55°C to 125°C] Au plating
Consult Factory – Aries will assign a
• STANDARD CONTACT INSERTION FORCE : 67g/pin
special P/N
WITHDRAWAL FORCE : 30g/pin
NORMAL FORCE : 45g/pin; based on a 0.018 [0.46] dia. test lead
• SPECIAL ULTRA-LOW INSERTION FORCE : 22g/pin
WITHDRAWAL FORCE : 11g/pin
NORMAL FORCE : 12g/pin; based on a 0.018 [0.46] dia. test lead
• ACCEPTS LEADS: 0.015-0.026 [0.38-0.66] in dia., from 0.110 [2.79] long min.
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE : SOLDER TAIL : 0.030 ±0.002 [0.76 ±0.05] dia.
: POST STYLE : 0.028 ±0.002 [0.71 ±0.05] dia.
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

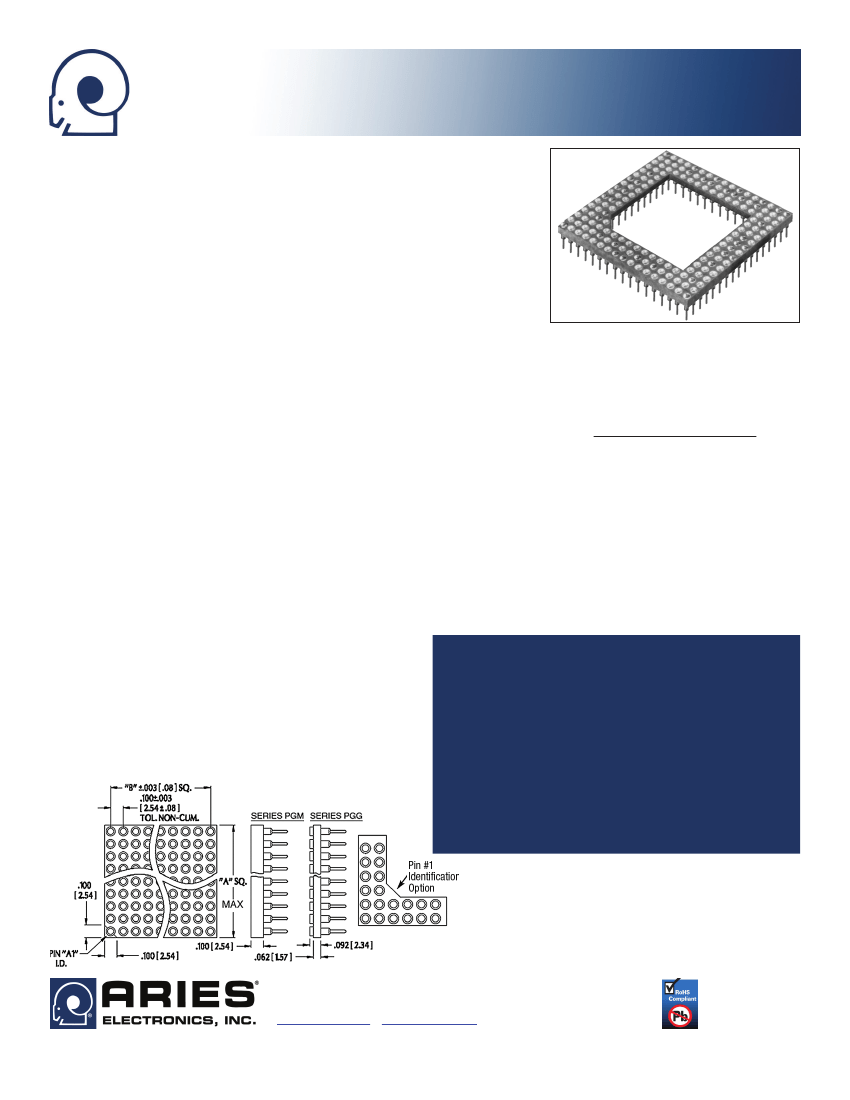

BASIC DIMENSIONS :
“A SQ MAX” # PINS PER ROW x 0.100 [2.54]
“B” (# PINS PER ROW -1) x 0.100 [2.54]
ADDITIONAL CONFIGURATION OPTIONS INCLUDE A CUT-OUT
WINDOW FOR MORE EFFICIENT UTILIZATION OF BOARD SPACE AND
BETTER COOLING – AVAILABLE WITH OR WITHOUT PIN NUMBER ONE
IDENTIFICATION SHOWN BELOW.
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
14033
1 of 2
Rev. AA
Pin Grid Array Socket/Header on
0.100 [2.54] Centers w/Solder Pin Tails
ORDERING INFORMATION
XXX-PXX XX XXX-X X
No. of Pins
Series Designator
PGM = Molded Housing
(7x7 thru 18x18)
PGG = FR-4 Housing
(3x3 thru 6x6, 19x19 and above)
Grid Size
Footprint Number
(assigned by factory)
Optional Plating
0 = Au Contact/Sn Shell
(Post style all Sn)
0T = Sn Contact/Sn Shell
0H = Heavy Au Contact/Sn Shell
1 = Au Contact/Au Shell
(Post style all Au)
1H = Heavy Au Contact/Au Shell
* 1U = Au-plated Ultra-low Insertion Force Contact/Au Shell
* OTL = Au Contact/Sn/Pb Shell
* OTLTL = Sn/Pb Contact & Shell
* OHTL = Sn/Pb Shell
* Special Order, Consult Factory

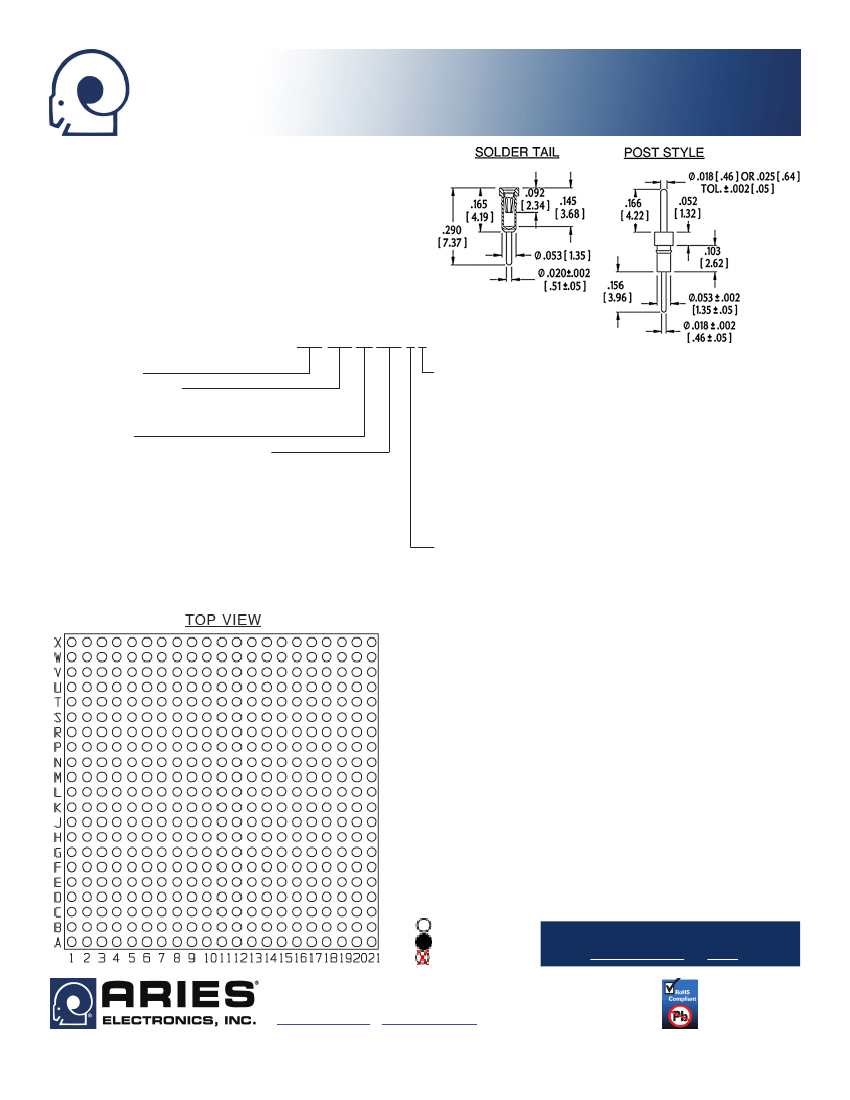

Pin Style
1 = Solder Pin Tail
4 = Post Style - 0.025 [0.64] diameter
5 = Post Style - 0.018 [0.46] diameter
SPECIAL FOOTPRINT INSTRUCTIONS:
1. Make a copy of this sheet.
2. Fill in circles for footprint desired using the key below.
3. Fill in the information below, including Style and Plating options.
4. Send to Aries for a prompt quotation.
COMPANY NAME _________________________________________
ADDRESS _______________________________________________
CITY ___________________________________________________
REQUESTED BY __________________________________________
PHONE _________________________________________________
DATE __________________________________________________
PIN STYLE ______________________________________________
PIN PLATING ____________________________________________
= No pins
= Pins
= Plugged holes*
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
* Plugged holes are for PGA ZIF sockets only.
Consult
Data Sheets 10004
and
10005
for details.
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
14033
2 of 2
Rev. AA
