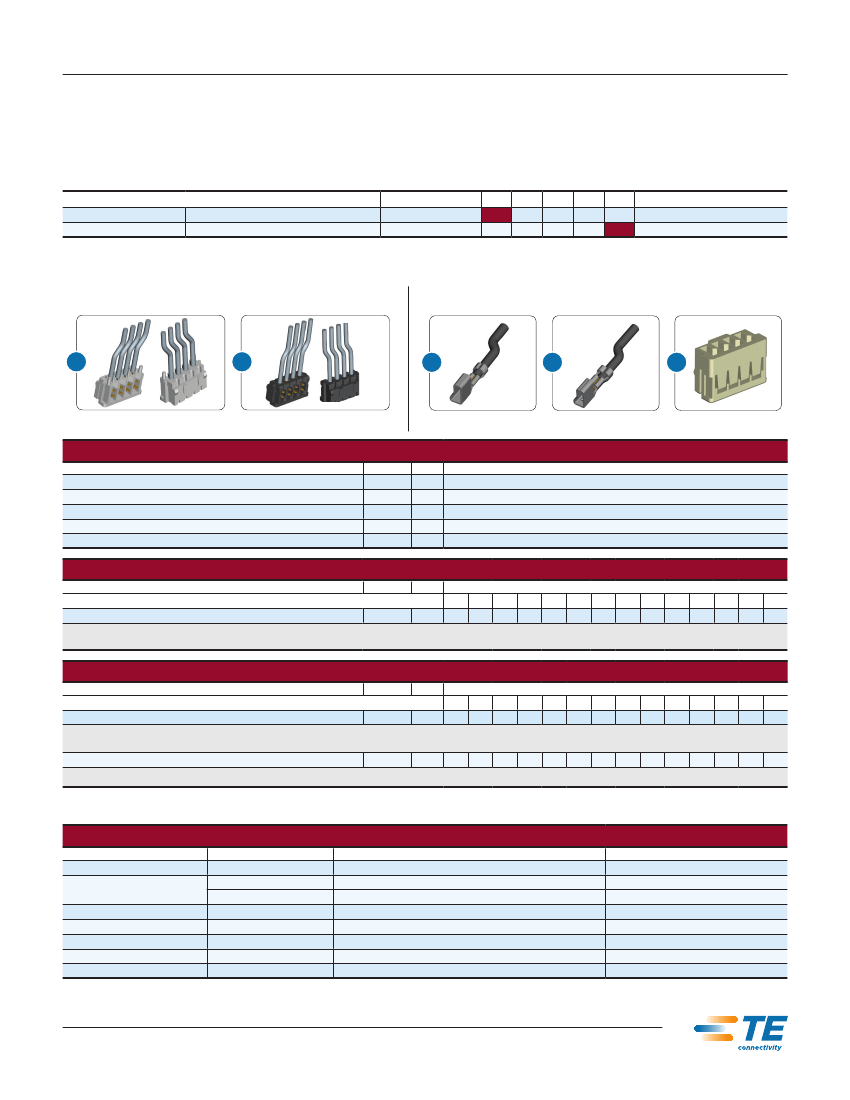

* Applicators listed are used in the AMP-O-LECTRIC Model G, AMP 3K/40 and AMP 5K/40 Terminators. Call the Tooling Assistance Center at 800-722-1111 for applicator numbers for Automatic Cut, Strip and Terminate Leadmakers.
** Power tooling options are also available. Call Tooling Sales at 888-777-5917 (717-810-2080) for more information
te.com/products/ct
TE Connectivity
AMP CT Connector Series

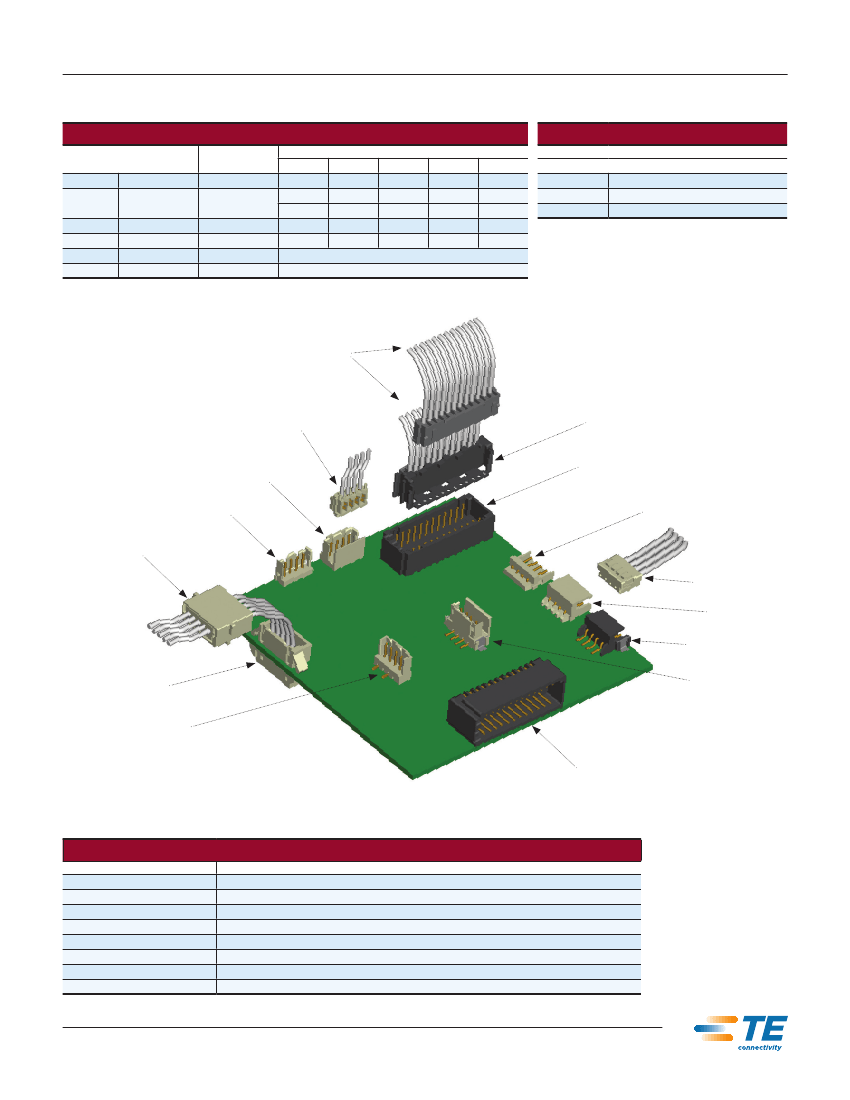

PCB Side Connectors (Single Row + Dual Row)

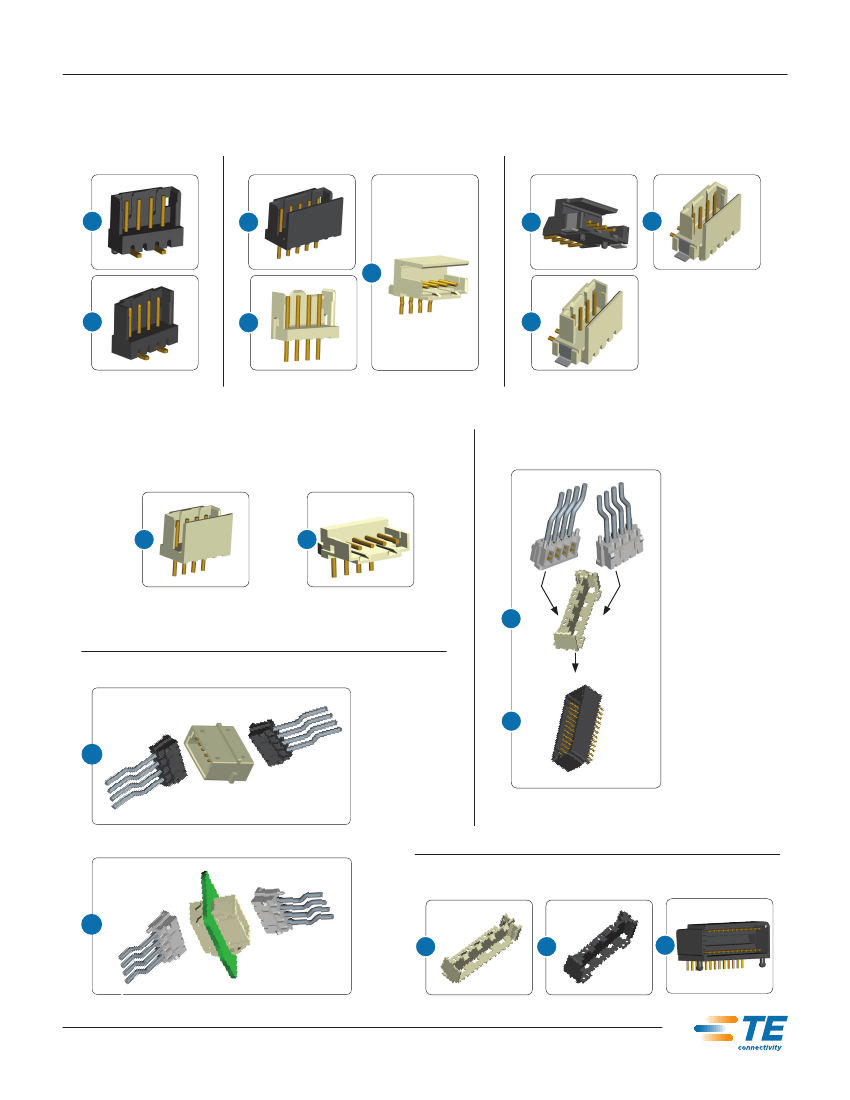

Common AMP CT Terminology
Locating Boss
Without Kinked Leg
With Kinked Leg
Solder Tabs
N
I
H
K
M
O
G
L
A boss is a mechanical
feature that helps
orientate the headers
onto the PCB.
Kinked legs are designed to secure the
T/H headers onto the PCB.
Solder tabs are designed to secure
the SMT headers onto the PCB.
Header Styles
Box
Standard
Dual Row Assemblies
J
F
Two Single
Row Housings
Box headers offer a
front and back wall
for polarization
of the connector.
Standard headers offer
only a single wall
for polarization
of the connector.
S
Captivating Holder
Free Hanging
V
Q
Requires a holder to
be used along with two
single row housings.
Dual Row Header
Panel Mount
Additional Parts
P
R
T
U
te.com/products/ct
TE Connectivity
AMP CT Connector Series
SINGLE ROW POST HEADER ASSEMBLIES BOARD-MOUNT
Description
TH Std Type - Horizontal Mount w/ Kink
TH Std Type - Vertical Mount w/ Kink
TH Box Type - Horizontal Mount w/ Kink
TH Box Type - Vertical Mount w/o Kink
TH Box Type - Vertical Mount w/ Kink
SMT Box Type - Horizontal Mount Type w/ Solder Tab, w/o Boss
SMT Box Type - Horizontal Mount Type w/ Solder Tab, w/ Boss
SMT Box Type - Vertical Mount Type w/ Solder Tab, w/o Boss
SMT Box Type - Vertical Mount Type w/ Solder Tab, w/ Boss (Natural)
SMT Box Type - Vertical Mount Type w/ Solder Tab, w/ Boss (Black)
