5-917687-1 datasheet, PDF - EEWORLD Datasheet

5-917687-1: Description2.5 SIGNAL D/LOCK PLUG HSG 3P(GWT); CategoryThe connector; File Size154KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-917687-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-917687-1	-	-	View	Buy Now

2.5 SIGNAL D/LOCK PLUG HSG 3P(GWT)

Parameter Name	Attribute value
Connector System	wire to board
insertion force	5.88 Newtons
Line spacing	2.5 mm [ .0098 in ]
Connector type	plug
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Connector type	jacket
Number of Positions	3
Rows	1
Pre-installed	no
Operating voltage (VAC)	50
Terminal type	socket
Contact Current Rating (Max) (A)	3
Shunt/short-circuit bar	Without
Multiple terminal type	Without
Connector mounting type	Cable installation
Terminal positioning force	Without
Centerline (Pitch)	2.5 mm [ .098 in ]
Shell material	Nylon 66
Shell color	nature
length	10 mm [ .393 in ]
Height (mm)	11
Working group temperature range	-30 – 105 °C [ -22 – 221 °F ]
Circuit Application	Signal
Component integration features	Without
Circuit identification characteristics	Without
Tested by VDE	yes
CSA file number	LR7189
UL rating	Recognized
Agencies/Standards	CSA, UL
Obtain CSA certification	yes
UL file number	E28476
CSA rating	verified
Package quantity	400
Encapsulation method	bag

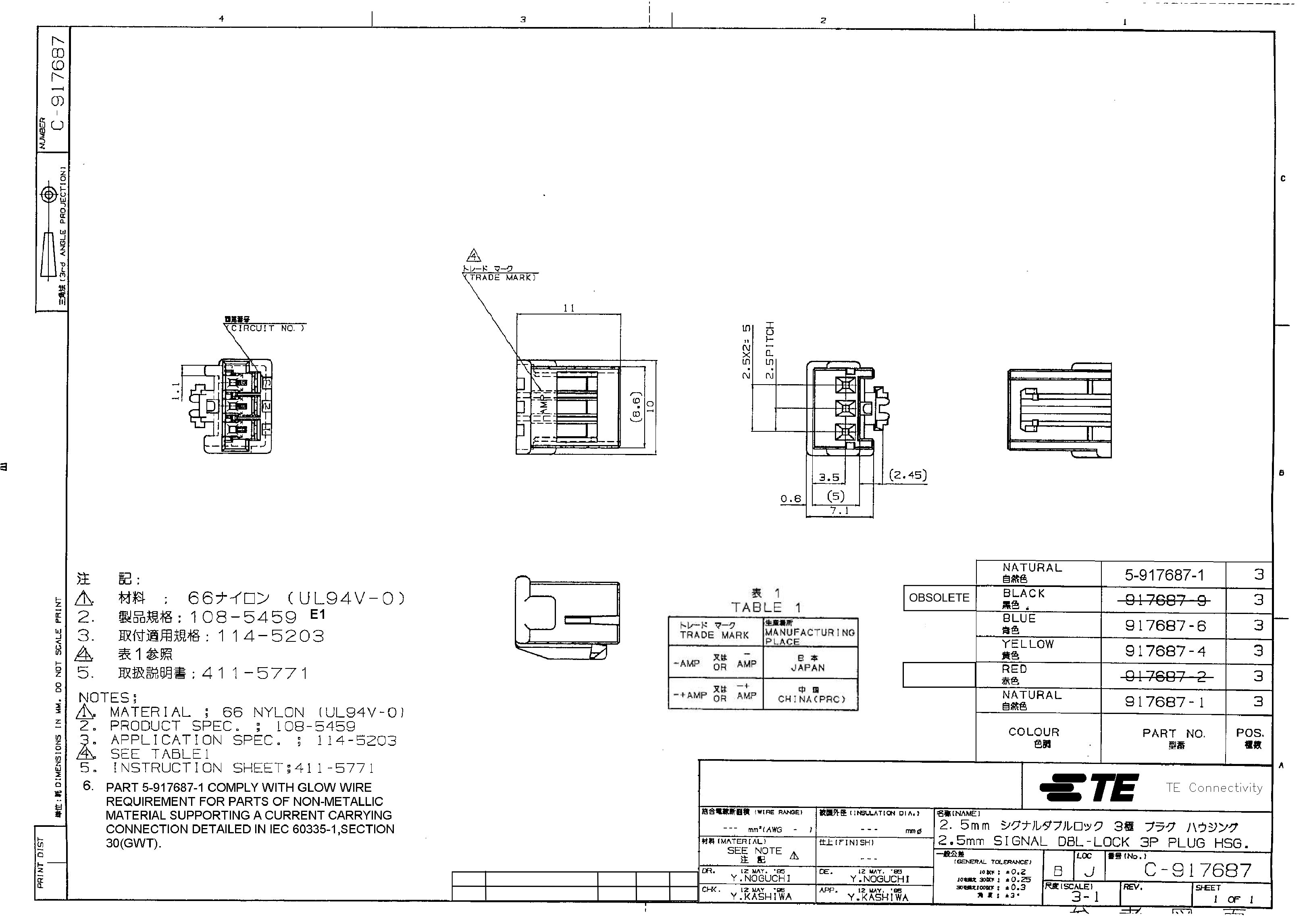

OBSOLETE

REV

ECR-16-008042

REVISED PER ECR-15-018479

11AUG2016

31MAR2016

DWN

APVD

DESCRIPTION

DATE
