8-2232357-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 8-2232357-7

Preview

8-2232357-7: DescriptionPTL 3X5 PLUG HSG GLW WIRE KEY D ORA; CategoryThe connector; File Size518KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

8-2232357-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-2232357-7	-	-	View	Buy Now

8-2232357-7 Overview

PTL 3X5 PLUG HSG GLW WIRE KEY D ORA

8-2232357-7 Parametric

Parameter Name	Attribute value
Housing type	plug
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	female end
Number of Positions	15
Number of power supply locations	15
Rows	3
Line spacing	8.1 mm [ .319 in ]
keying	D
Operating voltage (VAC)	600
Operating voltage (VDC)	600
Terminal retention	Without
Terminal layout	matrix
Cable termination method	crimp
Panel mount features	Without
Connector mounting type	Cable installation
Centerline (Pitch)	6 mm [ .236 in ]
UL fire rating	UL 94V-0
Shell color	orange color
Shell material	NylonGF
Outgoing angle	Straight
Working group temperature range	-55 – 140 °C [ -67 – 284 °F ]
Circuit Application	Power
Circuit identification characteristics	with
Glow Wire Ratings	GWT 750°C (without flame) according to IEC 60335-1 Edition 06/2001
Agencies/Standards	UL
Organization/Standard Number	E28476
UL rating	Recognized
Encapsulation method	carton
Applicable to	CPA, receptacle housing, receptacle (socket) terminal, terminal locking tab

Preview

Download Datasheet

View All

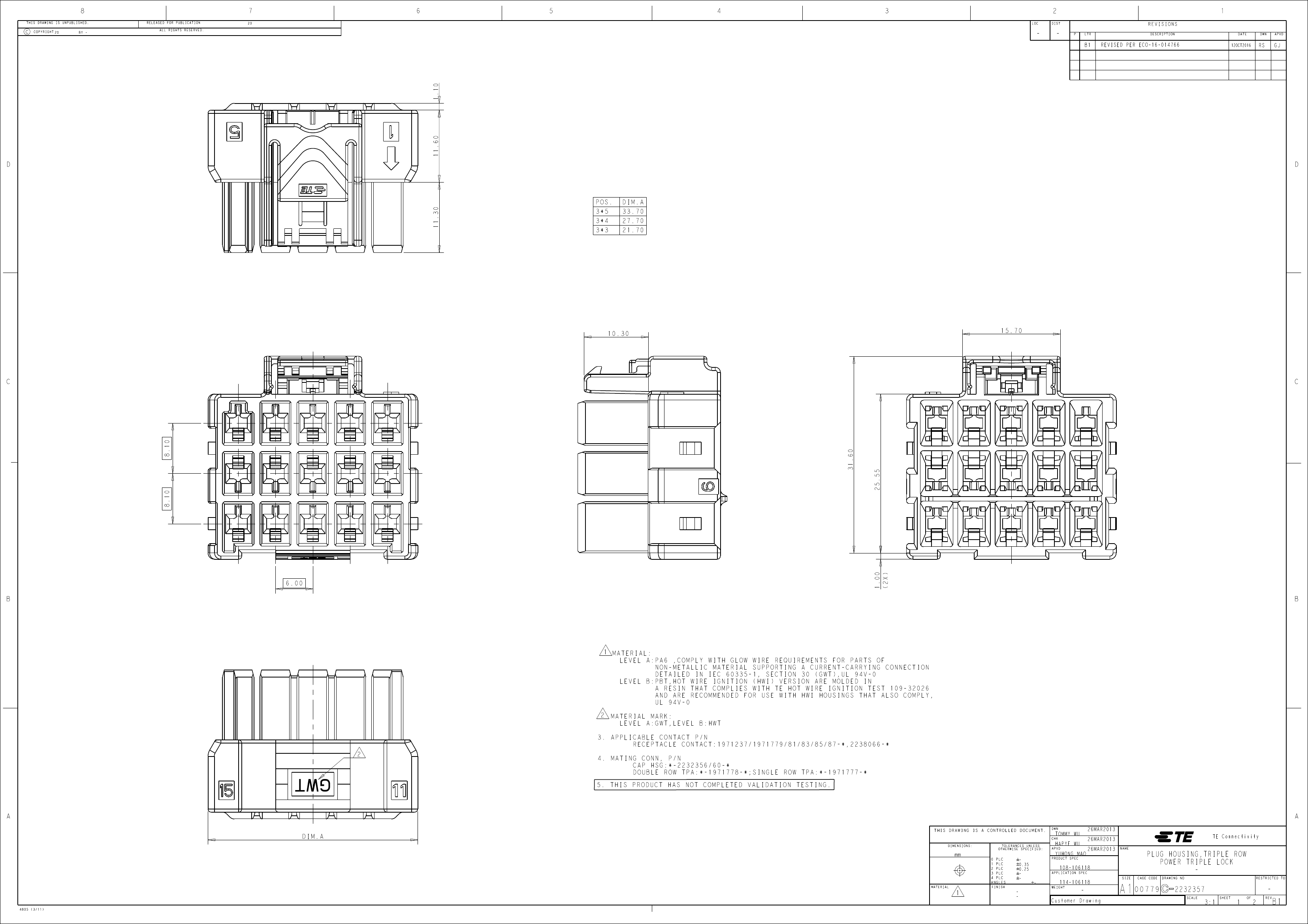

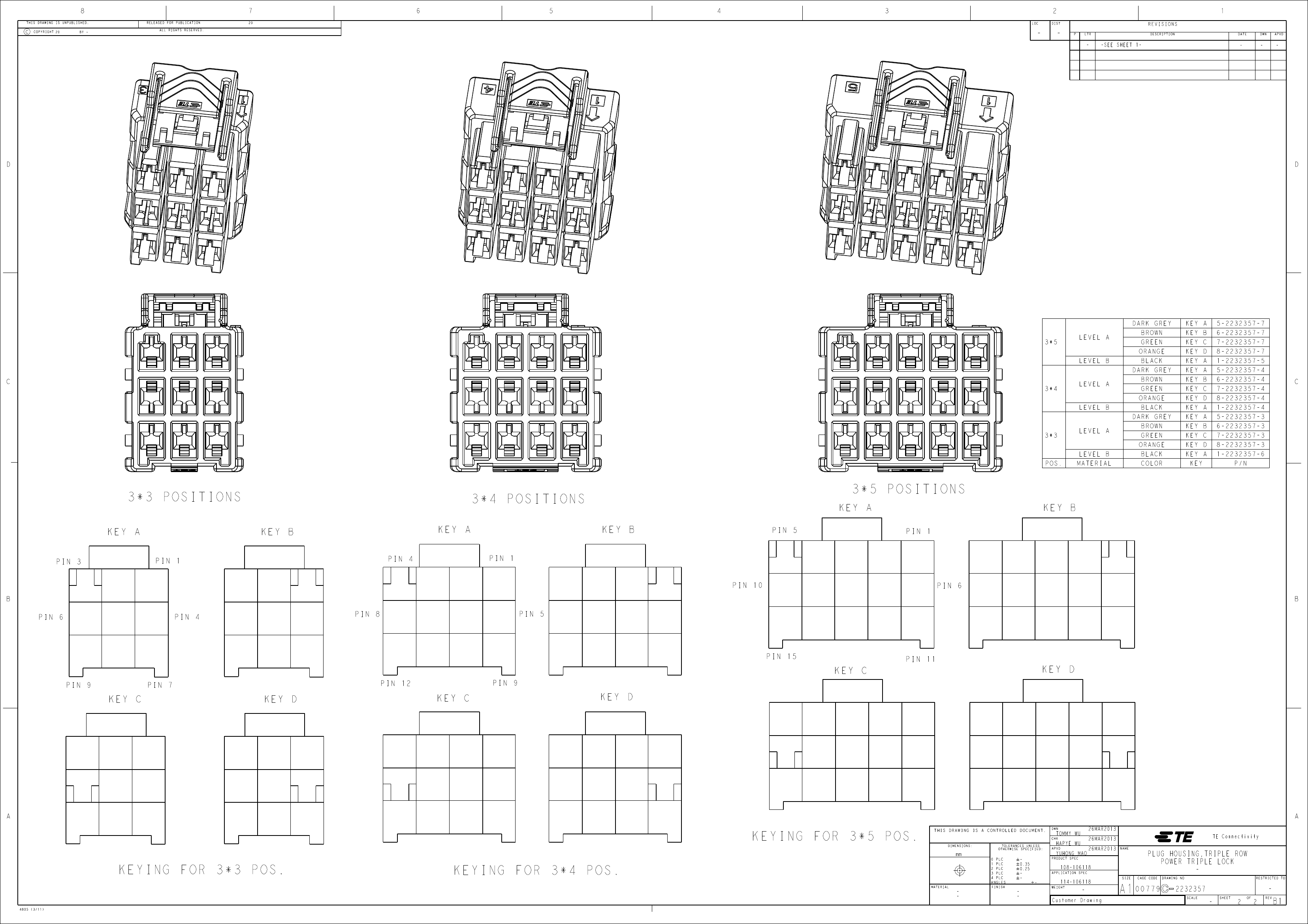

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

-

B1

REVISED PER ECO-16-014766

12OCT2016

RS

GJ

D

11.60

1.10

D

POS.

11.30

3*5

3*4

3*3

DIM.A

33.70

27.70

21.70

10.30

15.70

C

8.10

31.60

8.10

6.00

B

1.00

(2X)

25.55

B

1 MATERIAL:

LEVEL A:PA6 ,COMPLY WITH GLOW WIRE REQUIREMENTS FOR PARTS OF

NON-METALLIC MATERIAL SUPPORTING A CURRENT-CARRYING CONNECTION

DETAILED IN IEC 60335-1, SECTION 30 (GWT),UL 94V-0

LEVEL B:PBT,HOT WIRE IGNITION (HWI) VERSION ARE MOLDED IN

A RESIN THAT COMPLIES WITH TE HOT WIRE IGNITION TEST 109-32026

AND ARE RECOMMENDED FOR USE WITH HWI HOUSINGS THAT ALSO COMPLY,

UL 94V-0

2 MATERIAL MARK:

LEVEL A:GWT,LEVEL B:HWT

3. APPLICABLE CONTACT P/N

RECEPTACLE CONTACT:1971237/1971779/81/83/85/87-*,2238066-*

4. MATING CONN, P/N

CAP HSG:*-2232356/60-*

DOUBLE ROW TPA:*-1971778-*;SINGLE ROW TPA:*-1971777-*

5. THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING.

2

A

DIM.A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

4805 (3/11)

GWT

A

TOMMY WU

HAPYE WU

YUHONG MAO

108-106118

114-106118

SIZE

26MAR2013

NAME

TE Connectivity

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.35

0.25

-

PRODUCT SPEC

APPLICATION SPEC

-

1

-

WEIGHT

-

Customer Drawing

A1

00779

CAGE CODE

PLUG HOUSING,TRIPLE ROW

POWER TRIPLE LOCK

-

DRAWING NO

RESTRICTED TO

2232357

SCALE

3:1

SHEET

1

OF

2

REV

-

B1
