Amphenol
®
PT Series
12-070-17
Miniature Cylindrical Connectors
www.amphenol-industrial.com
Amphenol
®
97 Series Connectors are UL recognized and CSA recognized.
Table of Contents
Introduction, Amphenol Miniature Cylindrical
®
Page
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
. 1, 2
. .3
4, 5
. .6
7-10
General Information, Design Flexibility . . . . .
Connector Selection Guide . . . . . . . . . . .
Insert availability . . . . . . . . . . . . . . . . . . .
Alternate positioning . . . . . . . . . . . . . . . . .
Insert arrangement patterns. . . . . . . . . . . . . .
PT, SP, MS/PT Proprietary/MIL-DTL-26482, Series 1
Bayonet Coupling, Solder Contacts
If more information is needed concerning the
connectors covered in this publication, or if there
are special application needs, please contact:
Amphenol Corporation
Amphenol Industrial Operations
191 Delaware Avenue
Sidney, New York 13838-1395
Telephone: 888-364-9011
Fax: 520-397-7169
Please go to the Amphenol websites to view,
download and save this catalog and most all of
Amphenol interconnection product literature.
www.amphenol-industrial.com
General Information, Specifications, Service Class . . . . .
PT00 (MS3110), SP00 wall mounting receptacle . . . . . .
PT01 (MS3111) cable connecting receptacle . . . . . . . .
PT02 (MS3112) SP02 box mounting receptacle . . . . . . .
PT06 (MS3116) SP06 straight plug . . . . . . . . . . . . .
PT07 (MS3114) SP07 jam nut receptacle . . . . . . . . . .
PT08E, SP08E 90 degree plug . . . . . . . . . . . . . . .
PT Connectors with Printed Circuit Board Contacts -
box mount receptacle, jam nut receptacle . . . . . . . . . .
PTB, SPB thru bulkhead receptacle . . . . . . . . . . . . .
General Information, Specifications - PT hermetic. . . . . .
PTIH (MS3113H) hermetic solder mounting receptacle . . .
PT02H hermetic box mounting receptacle . . . . . . . . . .
PT07H (MS3114H) hermetic jam nut receptacle. . . . . . .
PT, SP, MS/PT how to order . . . . . . . . . . . . . . . . .
PT-SE, SP-SE, MS/PT-SE Proprietary/MIL-DTL-26482, Series 1
Bayonet Coupling, Crimp Contacts
11, 12
. . 13
. . 14
. . 15
. . 16
. . 17
. . 18
.
.
.
.
.
.
.
.
.
.
.
.
.
.
19
20
21
22
23
24
25
Some miniature connector styles are available
in RoHS Compliant versions. Please contact
Amphenol Industrial Operations for more
information.
General Information, Specifications, Service Class . . . .
PT00SE (MS3120), SP00SE wall mounting receptacle . .
MF00SE (MS3128) wall mounting receptacle . . . . . . .
PT01SE (MS3121) SP01SE cable connecting receptacle .
PT02SE (MS3122) SP02SE box mounting receptacle . .
MF02SE (MS3127) box mounting receptacle . . . . . . .
PT06SE (MS3126), SP06SE straight plug. . . . . . . . .
PT07SE (MS3124) SP07SE jam nut receptacle . . . . . .
PT08SE, SP08SE 90 degree plug . . . . . . . . . . . . .
PT-SE, SP-SE, MS/PT-SE how to order . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glands . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application tools. . . . . . . . . . . . . . . . . . . . . . . . .
Contacts, Power and Thermocouple Crimp . . . . . . . . . . .
Contacts, Shielded Coax . . . . . . . . . . . . . . . . . . . .
Mounting Recommendations . . . . . . . . . . . . . . . . . .
Other Amphenol Miniature Cylindrical Connectors . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
26, 27
. . 28
. . 29
. . 30
. . 31
. . 32
. . 33
. . 34
. . 35
. . 36
37-40
. . 41
. . 42
. . 43
44-48
. . 49
. . 50
Amphenol operates Quality Systems that are
certified to ISO9001: 2008 by third party registrars.
NOTE:
The connector products in this brochure were formerly
known as Bendix
®
products. These products are now
manufactured and sold under the Amphenol
®
brand
name. The name “Amphenol” will replace the name
“Bendix” on products and literature in the future.
NOTE:
The Miniature MIL-DTL-26482, Series 2 connectors
PTS-DR and MS/PTS-DR (formerly in this catalog) are
no longer supplied with these designations. Amphenol
now supplies the Amphenol
®
/Matrix
®
MIL-DTL-26482,
Series 2. (Military numbers include MS3470 - MS3472,
MS3474, - MS3476).
Proprietary/MIL-DTL-26482 Series 1 connectors covered in this
catalog are widely used in general duty and environmental
applications, both industrial and military.
Markets that use this family of connectors include:
• Instrumentation
• Monitoring Equipment
• Machine Tool, Factory Automation
• Communications
• Geophysical
• Industrial Controls and Robotics
• Oil and Petrochemical Industries
• Rail/Mass Transit
• Military/Aerospace
Amphenol
®
Miniature Cylindrical Connectors
Proprietary/MIL-DTL-26482, Series 1
Amphenol
®
Miniature Cylindrical connectors offer twice the number of contacts in just half the size of a Standard connector. These
miniature connectors, are available in several series, each with varying design characteristics and customer options to meet cost
considerations and provide maximum design flexibility. There are two styles within the family that are MS approved and qualified to
MIL-DTL-26482, Series 1, and in addition there are several proprietary styles.
Common features of all styles:
• All are for general duty applications and environmental sealing is achieved with the grommet and clamp design.
• Operating temperature is from –55°C to +125°; Operating voltage to 1000 VAC (RMS) at sea level.
• Pin and socket contacts are machined from low loss copper alloy and gold plated to eliminate contact corrosion and provide an
indefinite shelf life.
• All have resilient inserts which provide high dielectric strength and moisture barrier.
• A variety of shell finishes (including non-cadmium) and a variety of backend accessories are available within the styles.

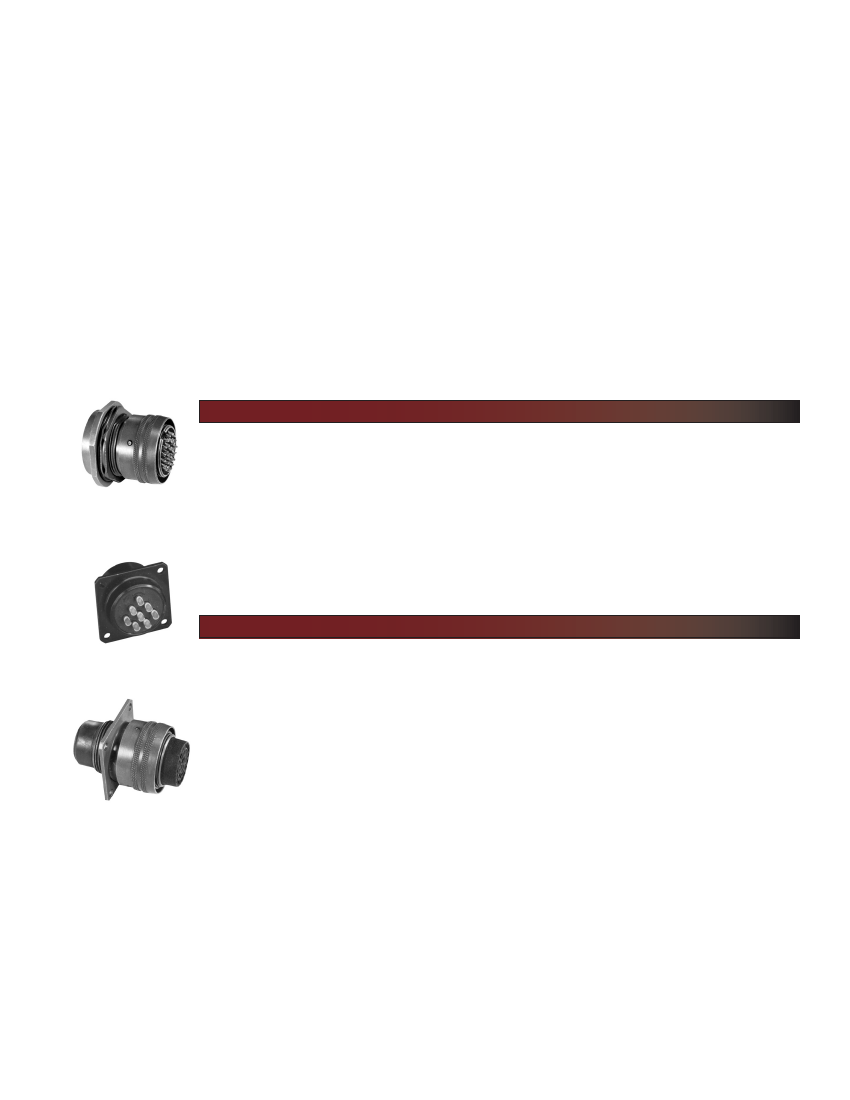

Bayonet Coupling with Solder Contact Termination
PT, MS/PT (solder)
• MS and proprietary versions
• Factory installed solder contacts
• 3 point bayonet coupling and 5 key/keyway mating.
• Intermateable with all miniature series connectors.
• MS/PT meets MIL-DTL-26482 Series 1, service classes E, F and P.
• MS/PT is UL recognized.
SP (solder)
• SP Series is a modification of the PT with same features except a
wider flange for back panel mounting
Options
PT Solder
jam nut receptacle and
mated straight plug
• 7 shell styles with 60 insert patterns
• Hermetic seal (glass fusion)
receptacle styles available
• Pressurized thru bulkhead
receptacle style available
• Pre-installed coax solder contacts
are available
• Printed circuit board contacts
are available
Bayonet Coupling with Crimp Contact Termination
PT Solder
wall mount receptacle
PT-SE, MS/PT-SE (crimp)
• MS and proprietary versions
• Crimp rear insertable/front release contact termination. (closed entry
socket insert prevents probe damage).
• 3 point bayonet coupling and 5 key/keyway mating.
• Intermateable with all miniature series connectors.
• MS/PT-SE meets MIL-DTL-26482 Series 1, service classes E, F, P.
SP-SE (crimp)
• Modification of the PT-SE with wider flange for back panel mounting
Options
• 6 shell styles with 47 insert patterns
• Coax and thermocouple contacts
are available
PT-SE Crimp
wall mount receptacle
and mated straight plug
1
Amphenol
®
Miniature Cylindrical
design flexibility
The large family of miniature proprietary and MS style connectors provides for
many optional features and designs. In addition to the choices of bayonet or
threaded shells, solder or crimp termination within the style variations, there are
additional options that are shown here.
Hermetics
Hermetically sealed receptacles have fused compression glass sealed
inserts which provide envionrmental moisture sealing. There are three
hermetic styles within the PT bayonet series.
Coaxial Contacts
Amphenol Miniature connectors can incorporate shielded coax
contacts. Size 8 and 12 crimp coax contacts are available in PT-SE,
SP-SE, MS/PT-SE. Factory installed size 8 and 12 solder type coax
contacts are available in PT, SP,MS/PT connectors. See coax contact
information pages at the end of this catalog.

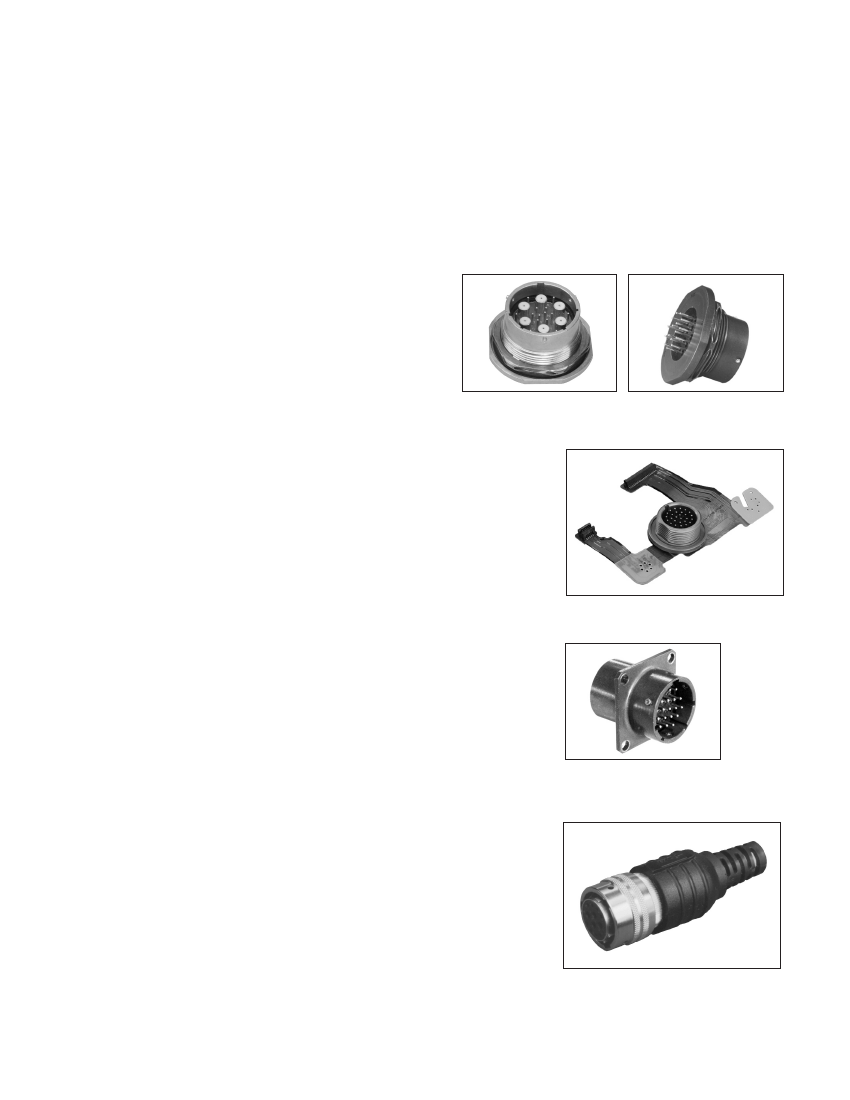

PT Connector with Hermetic
Seal Insert and Coax Contacts
PT Connector with PC Tail
Contacts
Printed Circuit Board Tail Contacts
PT bayonet connectors in box mounting receptacle and jam nut receptacle styles are
available with printed circuit board contacts. Standard PCB tails for MIL-DTL-26482
connectors have gold plating, .0050 inches over nickel. See page 20 and call Amphenol
for further information.
Flex Circuitry
Flex termination assemblies for attaching cylindrical connectors to printed circuit boards
are available through the Amphenol division ACT, Advanced Circuit Technology. Flex can
be used with miniature 26482 connectors and it can be designed to meet specific length,
current carrying capacity and to fit the precise geometric shape of the connector to board
package. Flex circuity plugs into a printed circuit board and creates a self-locking terminal
pad which eliminates the need for an additional interconnect to the PCB.
PT Connector with Flex
Filter Protection
Amphenol offers the FPT Series which combines the miniature PT series with an EMI
filter. Designed to provide EMI protection for sensitive circuits, each circuit is individually
filtered within the connector, eliminating the need for costly and bulky exterior network
filters. Filter contacts are available in MF, HF, VHF, and UHF ranges and are
intermateable and intermountable with MIL-DTL-26482 connectors. For further
information see catalog 12-120, Amphenol EMI Filter Transient Protection Connectors.
PT Connector with EMI
Filter Protection
Overmolded Cable
Overmold seals and cables can be designed for almost any industrial application.
A variety of materials are available: neoprene, hypalon and others; and a variety of
lengths can be designed to meet customer specifications. Overmold seals to the rear of
the connector and to the cable jacket providing moisture sealing.
PT Connector with Overmolded Cable
2
Amphenol
®
Miniature Cylindrical
connector selection guide
The accompanying chart is provided to assist the user in selecting
the appropriate type of miniature connector to meet the application
requirements. Further information can be found in specific sections
of this catalog.
Solder
CHARACTERISTICS
PT
MS/PT
SP
Crimp
MS/
PT-SE
PT-SE
Intermateable†
Contacts
Contact Retention
System
Coupling
Standard Finishes††
Temperature Range
Wide Mounting Flange
Hermetic Seal
o
Solder
Crimp RI/FR
Non-Removable
Removable
Bayonet
Olive Drab Cadmium (003)
Anodic Coated (005)
Resilient Dielectric (–55°C to +125°C)
•
•
•
•
•
•
o
•
•
•
•
•
•
o
•
•
•
•
•
•
•
o
o
•
•
•
•
•
•
•
•
•
•
SHELL STYLE AVAILABILITY
Wall Mounting Receptacle “00”
Cable Connecting Receptacle “01” ***
Box Mounting Receptacle “02”
Straight Plug “06”
Jam Nut Receptacle “07”
Thru-bulkhead Receptacle “TB”
Solder Mount Receptacle “I”
90° Plug “08”
•
•
*•
•
*•
•
*•
•
•
•
•
•
*•
*•
•
•
•
•
•
•
•
•
•
•
•
**•
•
**•
•
•
•
RI/FR = Rear Insertion/Front Releasable
† o intermates with o
†† Optional finishes available. See “how to order” sections.
* Available in hermetic version
** Dual mounting holes
*** This connector style is sometimes referred to as a cable connecting “plug.”
It does, however, mate with either a straight or 90 degree plug.
3
