1456471-1: Description8p Hybrid 0.64/2.8 Unsealed Pl; CategoryThe connector; File Size287KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1456471-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1456471-1	-	-	View	Buy Now

1456471-1 Overview

8p Hybrid 0.64/2.8 Unsealed Pl

1456471-1 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	Wire to board, wire to device
Sealable	no
Hybrid connector	yes
Main locking features	Housing integration
strain relief	no
Line spacing	4.5 mm [ .177 in ]
Number of Positions	8
Rows	2
color	black
Cable exit angle	180°
Main material	PA GF
Butt male end width (mm)	.64, 2.8
Butt nipple width (in)	.025, .11
Installation features	Without
Terminal position guarantee	yes
polarization	yes
Centerline (Pitch) (mm)	2.54, 13.92
Centerline (Pitch) (in)	.1, .548
width	24.7 mm [ .972 in ]
high	21 mm [ 0.827 in ]
length	21.42 mm [ .843 in ]
Working group temperature range	-40 – 85 °C [ -40 – 185 °F ]
Circuit Application	Signal
Encapsulation method	Package
Package quantity	1
Able to ensure connector position	yes
Repairable	yes

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

IN

00

A1

A2

A3

A4

RELEASED PER ECO-07-006875

REVISED PER ECO-11-011498

REVISED PER ECO-13-000026

REVISED PER ECO-13-005761

23JAN2008

06JUN2011

07JAN2013

05APR2013

AJV

DLD

AJV

CJS

CPA

(OPTIONAL)

PLUG

HOUSING

4

1. MATERIAL:

PLUG HOUSING: NYLON 35% GLASS FILLED, COLOR - SEE TABLE

TPA: PBT 15% GLASS FILLED, COLOR - NATURAL

CPA (OPTIONAL): PBT 20% GLASS FILLED, COLOR - RED

2. TPA SHOWN IN SHIPPING POSITION.

D

TPA

3. OPTIONAL CPA AVAILABLE.

4

MARK DATE CODE IN APPROXIMATE LOCATION.

D

5. MATING RECEPTACLES:

1326030 TIN PLATING, 2.8 CONTACT

1924955 TIN PLATING, 0.64 CONTACT

TPA SHOWN IN SHIPPING POSITION

WITH OPTIONAL CPA SHOWN

C

27.7

0.4

C

( 21 )

B

( 21.42 )

(3)

TPA TRAVEL

B

YES

NO

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

D

C

B

D

C

B

KEYING

OPTION

BLACK

KEYING

OPTION

GRAY

1456471-8

1456471-7

1456471-6

1456471-5

1456471-4

1456471-3

1456471-2

1456471-1

TE

PART NUMBER

A

CPA

M. HITCHCOCK

A. VASBINDER

-

A

16MAY2006

NAME

TE Connectivity

mm

APVD

KEYING OPTION "B"

1456471-2

4805 (3/11)

KEYING OPTION "C"

1456471-3

KEYING OPTION "D"

1456471-4

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.3

0.10

-

PRODUCT SPEC

APPLICATION SPEC

4 $

-

WEIGHT

-

Customer Drawing

A1

00779

SIZE

CAGE CODE

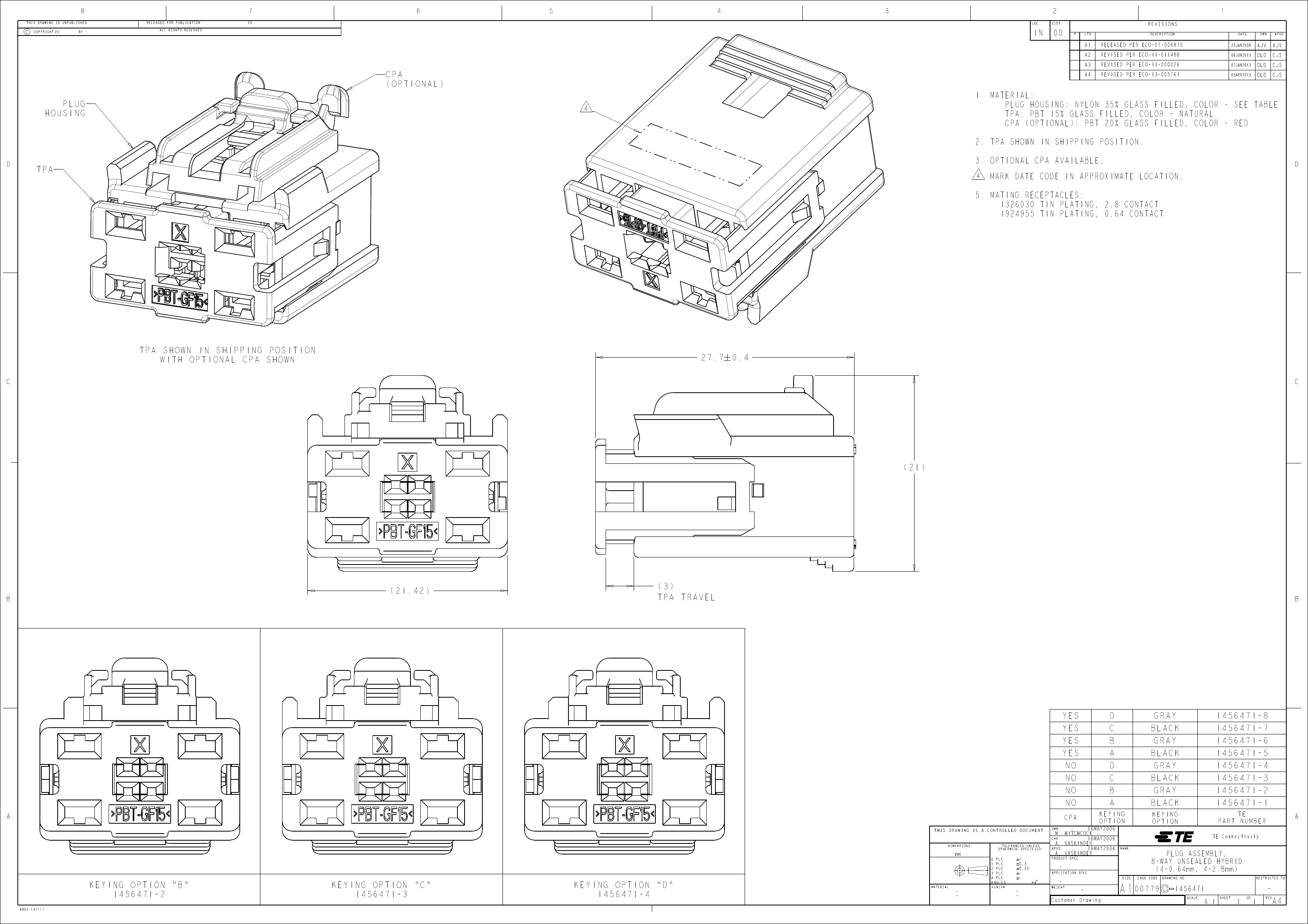

PLUG ASSEMBLY,

8-WAY UNSEALED HYBRID

(4-0.64mm, 4-2.8mm)

DRAWING NO

RESTRICTED TO

1456471

SCALE

6:1

SHEET

1

OF

1

REV

-

A4
