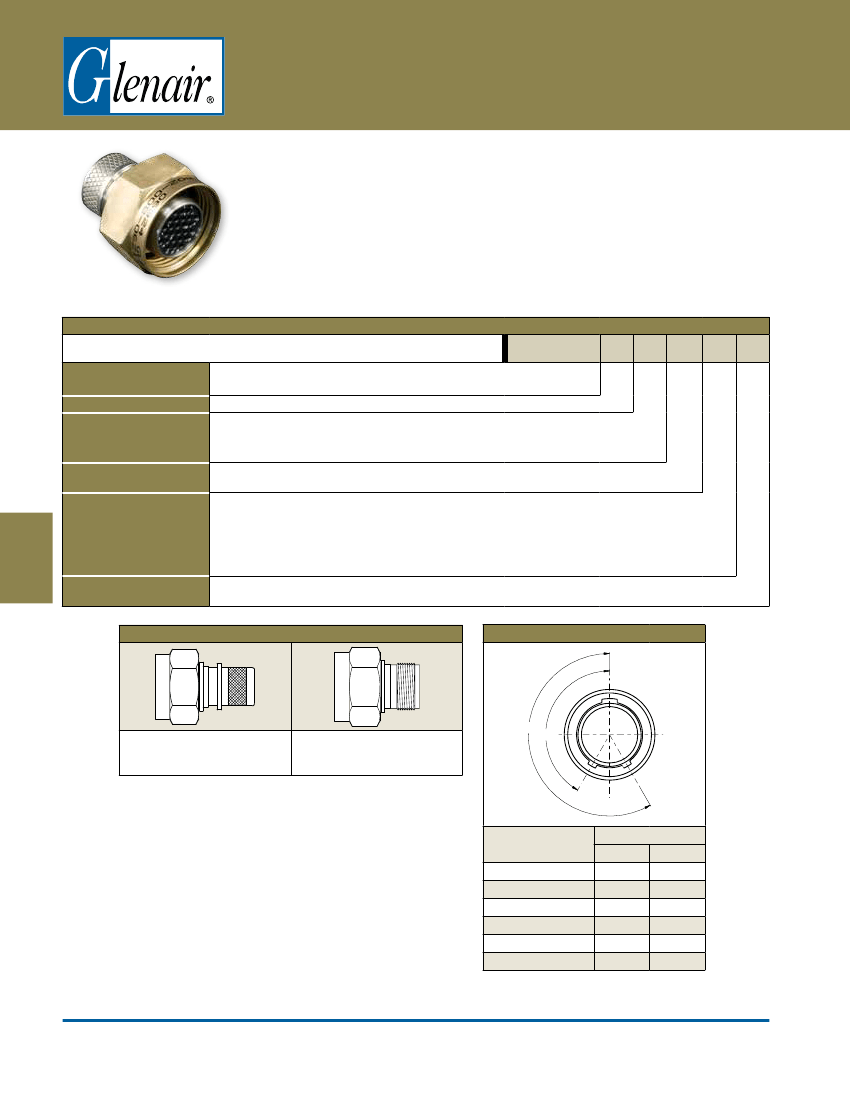

Series 802 AquaMouse™ Submersible Plug
802-008 and 802-009 Ordering Information
E
Series 802
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
A
= Normal
802-008
Hex Plug with Banding/Molding
Platform
© 2014 Glenair, Inc.
Stainless Steel
or
Marine Bronze Shell
withstands corrosion in the most hostile
environments. Rated for 3500 PSI when
mated, these connectors are suitable
for the most demanding geophysical
and underwater applications.
Gold-Plated Contacts
attach to wire
with standard mil spec crimp tools.
Contacts are packaged with connectors.
Two Shell Styles:
Integral platform for
direct shield attachment using Band-
Master™ ATS termination system,
or accessory thread for attaching
accessories.
How To Order
802-009
802-008
= Plug with Banding/ Molding Platform
802-009
= Plug with Accessory Thread
-06
= Plug
Z1
= Stainless Steel/Passivated RoHS Compliant
ZM
= Stainless Steel/ Electroless Nickel Plated
AB
= Marine Bronze
See Contact Arrangements page E-2
Connector supplied with contacts
P
= Pin
S
= Socket
Connector supplied without contacts
A
= Pin Connector, less contacts
B
= Socket Connector, less contacts
-06
Z1
9-19
S
A
Connectors with contacts are supplied with signal and/or power crimp contacts. These contacts are not installed.
Coaxial contacts and non-standard signal contacts are ordered separately.
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
Table I: Series
Table II: Key Positions
B°
802-009
Hex Plug with Accessory Thread
A°
Key Position
Normal (A)
B
C
D
E
F
Dimensions in Inches (millimeters) are subject to change without notice.
Key Rotation
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-6
