Axial Aluminum Electrolytic Capacitors
PEG225 Series, +125°C and +150°C
Overview
KEMET's PEG225 is an electrolytic capacitor with
outstanding electrical performance. The device has a
polarized all-welded design, tinned copper wire leads, and a
negative pole connected to the case. The PEG225 winding
is housed in a cylindrical aluminum can with a high purity
aluminum lid and high quality rubber gasket. Low ESR is
the result of a low resistive electrolyte/paper system and
an all-welded design. Thanks to its mechanical robustness,
the PEG225 is suitable for use in mobile and aircraft
installations with operation up to +150°C.
Applications
KEMET's PEG225 is a new generation of high performance
axial electrolytic capacitors. It is designed for automotive
applications with extremely high demands.
Benefits
•
•
•
•
•
•
•
2,000 hours at +150°C
High CV
Extremely high ripple current
Up to 28 A ripple, RMS, continuous load
High vibration resistance
Polarized all-welded design
Outstanding electrical performance
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
PEG225
Series
Axial Aluminum
Electrolytic
H
Rated Voltage (VDC)
H = 25
K = 40
M = 63
F
Size Code
See Dimension
Table
422
Capacitance Code
(µF)
The last two
digits represent
significant figures.
The first digit
indicates the total
number digits.
0
Version
0 = Standard
M
Capacitance
Tolerance
Q = −10 +30%
M = ±20%
E1
Packaging
E1 = Bulk
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4015_PEG225 • 2/6/2017
1
Axial Aluminum Electrolytic Capacitors – PEG225 Series, +125°C and +150°C
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operating Temperature
Capacitance Tolerance
Shelf Life
Leakage Current
470 – 6,300 µF
25 – 63 VDC
−40 to +125°C (−40 to +150°C at derated voltage)
−10/+30%, (±20% select values) at 100 Hz/+20°C
5,000 hours at +105°C or 10 years at +40°C 0 VDC
I = 0.003 CV + 4.0 (µA)
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
Vibration Test Specifications
1.5 mm displacement amplitude or 20 g maximum
acceleration. Vibration applied for three 22-hour
sessions at 10 – 2,000 Hz (capacitor clamped by body).
IEC 60384–4 long life grade 40/125/56, AEC–Q200
Requirements
No leakage of electrolyte or other visible
damage. Deviations in capacitance from initial
measurements must not exceed: Δ C/C < 5%
Performance Characteristics
Standards
Compensation Factor of Ripple Current (RC) vs. Frequency
Frequency
Coefficient
100 Hz
0.35
300 Hz
0.57
1 kHz
0.80
5 kHz
1.00
100 kHz
1.04
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+150°C
1,500 hours (D = 16 mm)
2,000 hours (D = 20 mm)
Maximum ripple current specified in table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
Within 15% of the initial value
Does not exceed 200% of the initial value
Does not exceed leakage current limit
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4015_PEG225 • 2/6/2017
2
Axial Aluminum Electrolytic Capacitors – PEG225 Series, +125°C and +150°C
Ordering Options Table
Packaging Kind
Lead Length (mm)
Standard Packaging Option
Bulk (box)
40±2
(E1)
Lead and
Packaging Code
Dimensions – Millimeters
END VIEW (+)
D
LL
SIDE VIEW
Polarity Indicators
−
+
LL
d
L
Length to Lead Bend
L1
Size
Code
F
G
H
J
L
D
±0.5
16
16
20
20
20
Dimensions in mm
L
L1
d
±1
26.5
34.5
26.5
34.5
42.5
Minimum
33
41
33
41
49
±0.03
1.0
1.0
1.0
1.0
1.0
LL
±2
40
40
40
40
40
Approximate
Weight
Grams
8
11
13
20
24
Note: L1 is KEMET's recommendation for minimum distance between symmetrical Lead bend. Available
only for Customer specific part numbers. Lead bend dimensions must be specified and confirmed per
article.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4015_PEG225 • 2/6/2017
3
Axial Aluminum Electrolytic Capacitors – PEG225 Series, +125°C and +150°C
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however the
leakage current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of ten years
at 40°C. See sectional specification under each product series for specific data.
Failure Rate
Estimated field failure rate: ≤ 0.15 ppm (failures per year/produced number of capacitors per year).
The expected failure rate for this capacitor range is based on field experience for capacitors with structural similarity.
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental
effects of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like
China, legislation has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic
equipment. All products in this catalog are produced to help our customers’ obligations to guarantee their products and fulfill
these legislative requirements. The only material of concern in our products has been lead (Pb), which has been removed
from all designs to fulfill the requirement of containing less than 0.1% of lead in any homogeneous material. KEMET will
closely follow any changes in legislation world wide and makes any necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode
coatings. To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels
for RoHS compatible capacitors.
Because of customer requirements, there may appear additional markings such as LF = Lead Free or LFW = Lead Free Wires
on the label.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
A4015_PEG225 • 2/6/2017
4
Axial Aluminum Electrolytic Capacitors – PEG225 Series, +125°C and +150°C
Table 1 – Ratings & Part Number Reference
VDC
(150ºC)
25
25
25
25
25
40
40
40
40
40
63
63
63
63
63
18
18
18
18
18
32
32
32
32
32
54
54
54
54
54
VDC
Rated
Capacitance
100 Hz
20°C (µF)
2200
3000
3600
4800
6300
1200
1800
2000
3000
3900
470
680
900
1400
1800
Size
Code
F
G
H
J
L
F
G
H
J
L
F
G
H
J
L
Case
Size
DxL
(mm)
16 x 27
16 x 35
20 x 27
20 x 35
20 x 43
16 x 27
16 x 35
20 x 27
20 x 35
20 x 43
16 x 27
16 x 35
20 x 27
20 x 35
20 x 43
≥ 5 kHz
125°C
(A)
1
17.3
19.7
23.5
26.7
28.3
16.6
19.3
22.8
25.8
27.7
12.1
13.8
18.0
20.9
22.8
Ripple Current
Maximum
≥ 5 kHz
140°C
(A)
2
11.0
12.5
14.9
16.9
17.9
10.5
12.2
14.4
16.3
17.5
7.7
8.7
11.4
13.2
14.4
≥ 5 kHz
150°C
(A)
2
4.9
5.6
6.7
7.6
8.0
4.7
5.5
6.5
7.3
7.8
3.4
3.9
5.1
5.9
6.5
Rated
Maximum
(Reduced
Voltage)
ESR Maximum
5 – 100 kHz
100 kHz
125 – 150°C
20°C (mΩ)
(mΩ)
34
11.9
25
9.2
22
9.4
16
7.3
14
6.5
36
13
25
9.6
23
10
17
7.8
14
6.8
52
24.3
37
18.7
31
16.1
22
11.9
18
10
Part Number
≥ 5 kHz ≥ 5 kHz
100 Hz
125°C (A) 125°C (A) 20°C (mΩ)
6.1
7.4
7.6
9.2
10.2
5.8
7.2
7.3
8.9
10.0
4.2
5.3
5.8
7.3
8.3
7.7
9.4
9.6
11.7
12.9
7.4
9.2
9.3
11.3
12.7
5.3
6.7
7.3
9.2
10.5
60
44
38
28
24
80
55
50
35
28
156
109
86
57
45
PEG225HF4220ME1
PEG225HG4300ME1
PEG225HH4360QE1
PEG225HJ4480QE1
PEG225HL4630QE1
PEG225KF4120ME1
PEG225KG4180ME1
PEG225KH4200QE1
PEG225KJ4300QE1
PEG225KL4390QE1
PEG225MF3470QE1
PEG225MG3680QE1
PEG225MH3900QE1
PEG225MJ4140QE1
PEG225ML4180QE1
VDC
1
2
VDC
(150ºC)
Rated
Capacitance
Size Code
Case
Size
Ripple Current
ESR
Part Number
Capacitor-mounted with low thermal resistance path (heat-sink).
Valid for capacitor supplied with reduced DC voltage, capacitor-mounted with low thermal resistance path.
Packaging Quantities
Size Code
F
G
H
J
L
Packaging Quantities
Bulk
100
75
125
100
75

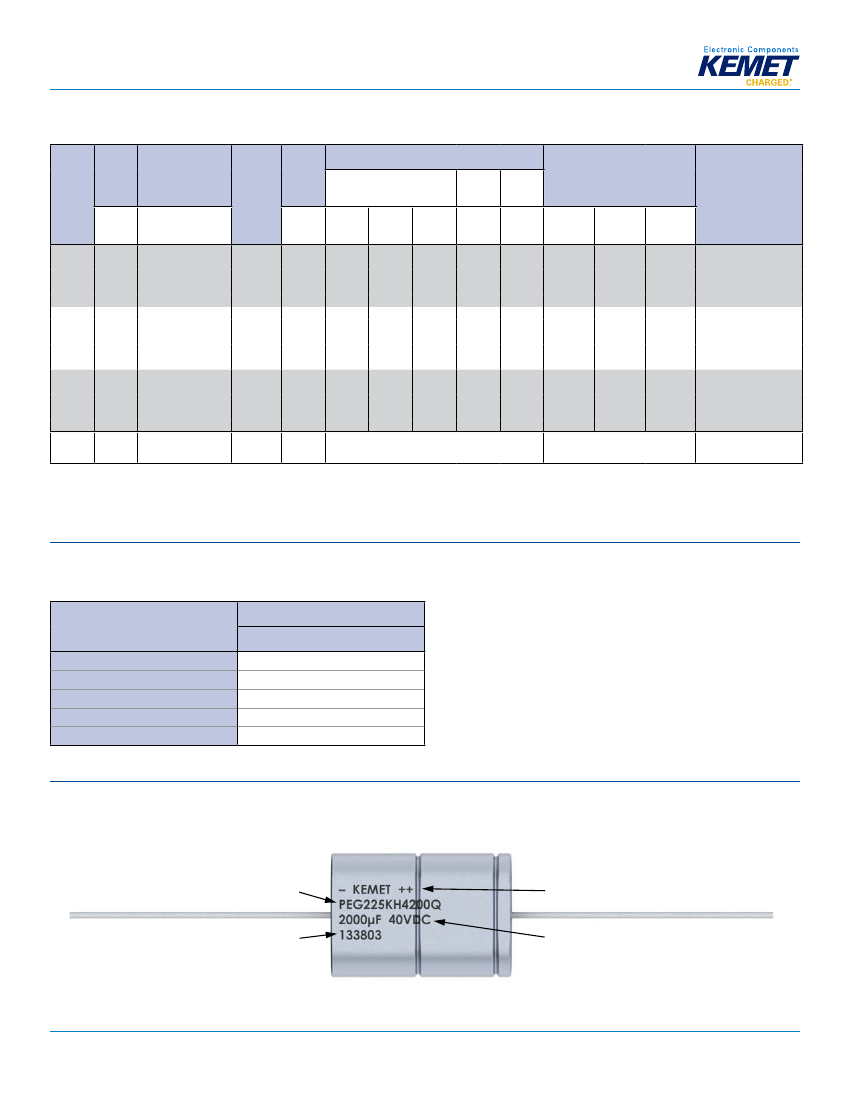

Marking
Part Number
4 Digit Date Code
(Year, Week),
Batch Number
KEMET Logo, Polarity Marks
Capacitance, Rated Voltage (VDC)
