AVES336M25D16T-F datasheet, PDF

Datasheet> All Categories > Passive components> AVES336M25D16T-F

AVES336M25D16T-F: DescriptionAluminum Electrolytic Capacitors - SMD 33uF 25V 105C Case 6.3 x 5.3; CategoryPassive components; File Size245KB，5 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric Compare View All

AVES336M25D16T-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AVES336M25D16T-F	-	-	View	Buy Now

AVES336M25D16T-F Overview

Aluminum Electrolytic Capacitors - SMD 33uF 25V 105C Case 6.3 x 5.3

AVES336M25D16T-F Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - SMD
Manufacturer	Cornell Dubilier
RoHS	Details
Capacitance	33 uF
Voltage Rating DC	25 VDC
Tolerance	20 %
ESR	8 Ohms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	6.3 mm
Length	5.3 mm
Height	6.6 mm
Lead Spacing	2 mm
Life	1000 Hour
Ripple Current	44 mA
Packaging	MouseReel
Packaging	Cut Tape
Packaging	Reel
Dissipation Factor DF	0.16
Leakage Current	8.3 uA
Product	Aluminum Electrolytic Capacitors
Factory Pack Quantity	1000
Termination Style	SMD/SMT
Type	SMT Aluminum Electrolytic Capacitors

Preview

Download Datasheet

View All

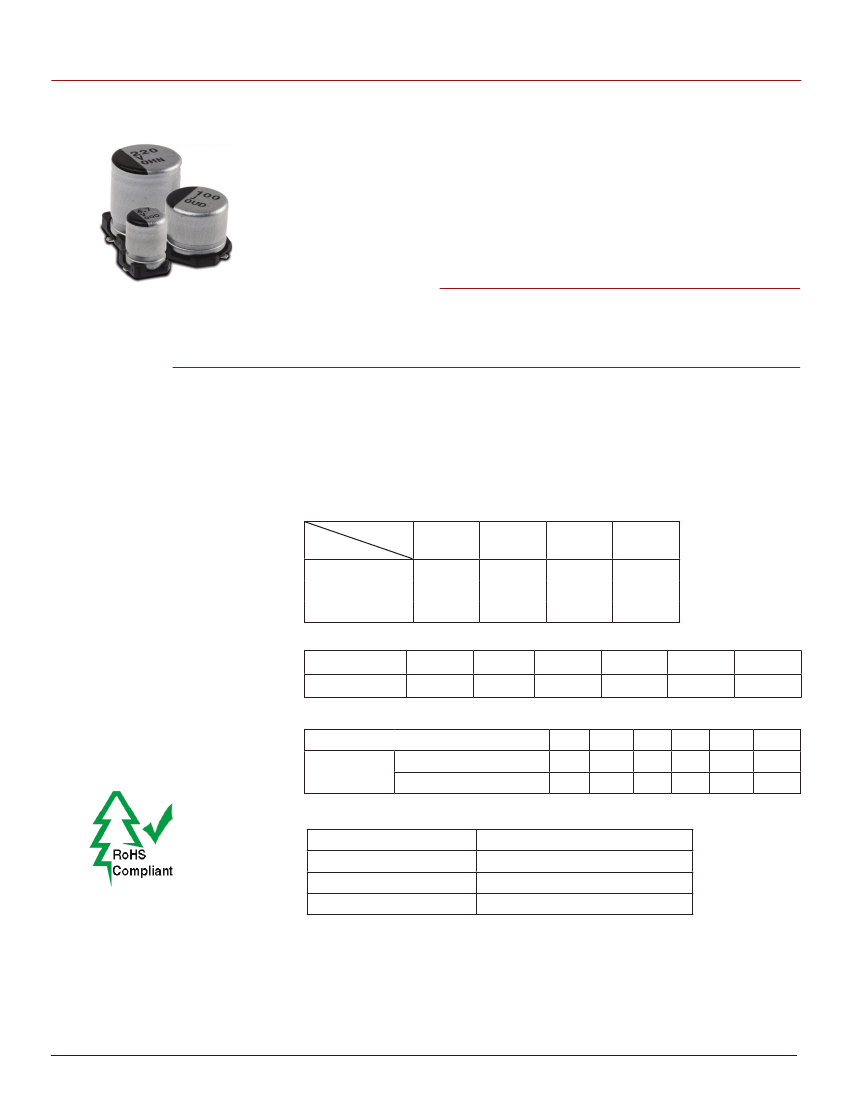

Type AVES

–55 °C to +105 °C

Low Profile SMT Aluminum Electrolytic Capacitors

For Filtering, Bypassing and Power Supply Decoupling

Type AVES Capacitors are rated for 1000 hours at 105 ºC with low

impedance characteristics. They are ideal for high density PC board

packaging. The Type AVES offers a low in-place-cost for a high

quality performer. The vertical cylindrical cases facilitate automatic

mounting and reflow soldering into the same footprint of like-rated

tantalum capacitors except without the need for voltage derating.

Type AVES is RoHS compliant.

Highlights

•

+105

°C,

Up to 1000 Hours Load Life

•

Capacitance Range: 0.1 µF to 100 µF

•

Voltage Range: 6.3 Vdc to 50 Vdc

–55 °C to +105 °C

6.3, 10, 16, 25, 35, 50 Vdc

0.1µF to 100

µF

±20% @ 120 Hz and +20 °C

I = 0.01 CV or 3 (µA) whichever is greater after 2 minutes

C = rated capacitance in µF, V = rated DC working voltage

Vdc

Freq. (Hz)

Under 16

25 ~ 35

50, 60

0.8

6.3

0.30

120

1.00

0.26

1.15

1.25

1.35

0.22

6.3

10 k up

1.25

1.40

1.50

0.16

0.13

0.12

Specifications

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

Leakage Current:

Ripple Current Multiplier:

Dissipation Factor:

(Tan

at 120 Hz, 20 ºC)

Low Temperature

Characteristic (at 120 Hz):

Rated Voltage

Tan δ Max

Rated Voltage

Impedance

Ratio

Z(–25 ºC) / Z(+20 ºC)

Z(–40 ºC) / Z(+20 ºC)

Load Life Test:

Complies with the EU Directive

2002/95/EC requirement restricting

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

(Cr(VI)), PolyBrominated Biphenyls

(PBB) and PolyBrominated Diphenyl

Ethers (PBDE).

Test Time

Capacitance Change

Dissipation Factor

Leakage Current

1,000 Hours

Within ±20% of initial value

Less than 200% of specified value

Within specified value

* The above specifications shall be satisfied when the

capacitors are restored to 20 ºC after the rated voltage is

applied for 1,000 hrs at 105 ºC

Shelf LifeTest:

Test time: 1000 hours; other items are the same as those for life test.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com

Type AVES

–55 °C to +105 °C

Low Profile SMT Aluminum Electrolytic Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and data

(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer

is responsible for checking, confirming and verifying the extent to which the Information contained in this

datasheet or other publication is applicable to an order at the time the order is placed. All Information given

herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation

or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based

on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has

of operating conditions that such Cornell Dubilier company regards as typical for such applications, but

are not intended to constitute any guarantee, warranty or representation regarding any such matter – and

Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning

the suitability for a specific customer application, use, storage, transportation, or operating environment.

The Information is intended for use only by customers who have the requisite experience and capability to

determine the correct products for their application. Any technical advice inferred from this Information or

otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given

gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability

for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality

and safety standards regarding the design and manufacturing of its products, in light of the current state

of the art, isolated component failures may still occur. Accordingly, customer applications which require a

high degree of reliability or safety should employ suitable designs or other safeguards (such as installation

of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the

failure of an electrical component does not result in a risk of personal injury or property damage. Although

all product-related warnings, cautions and notes must be observed, the customer should not assume that all

safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be

required.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8564 • Fax: (508)996-3830 • www.cde.com
