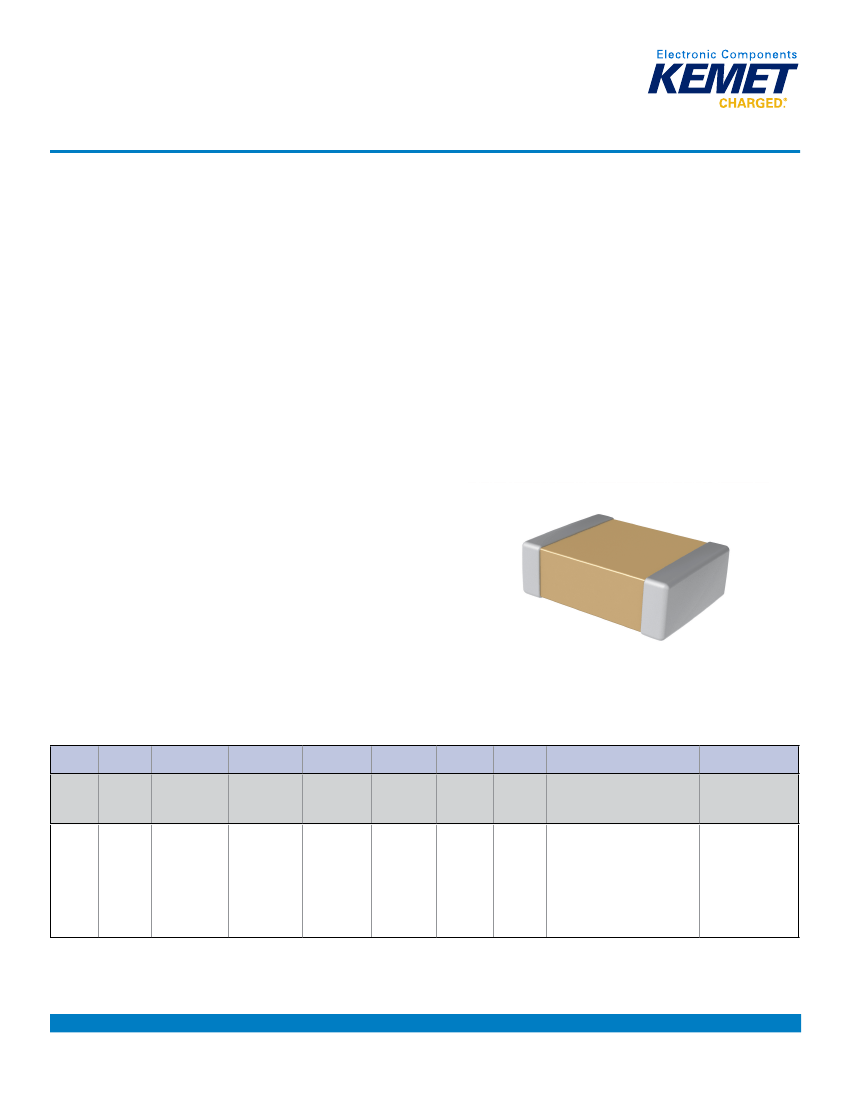

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C, X8L Dielectric, 10 – 50 VDC

(Commercial & Automotive Grade)

Overview

KEMET’s X8L dielectric features a 150°C maximum

operating temperature and is considered “general

purpose high temperature.” These components are

fixed, ceramic dielectric capacitors suited for high

temperature bypass and decoupling applications or

frequency discriminating circuits where Q and stability of

capacitance characteristics are not critical. X8L exhibits a

predictable change in capacitance with respect to time and

voltage and boasts a minimal change in capacitance with

reference to ambient temperature up to 125°C. Beyond

125°C X8L displays a wider variation in capacitance.

Capacitance change is limited to ±15% from −55°C to

+125°C and +15, −40% from 125°C to 150°C.

Driven by the demand for a more robust and reliable

component, X8L dielectric capacitors were developed for

critical applications where reliability at higher operating

temperatures are a concern. These capacitors are widely

used in automotive circuits as well as general high

temperature applications. Concerned with flex cracks

resulting from excessive tensile and shear stresses

produced during board flexure and thermal cycling?

These devices are available with KEMET's Flexible

termination technology which inhibits the transfer of board

stress to the rigid ceramic body, therefore mitigating flex

cracks which can result in low IR or short circuit failures.

Although flexible termination technology does not eliminate

the potential for mechanical damage that may propagate

during extreme environmental and handling conditions,

it does provide superior flex performance over standard

termination systems.

In addition to commercial grade, automotive grade

devices are available and meet the demanding Automotive

Electronics Council's AEC–Q200 qualification requirements.

Click image above for interactive 3D content

Ordering Information

C

Ceramic

Open PDF in Adobe Reader for full functionality

1210

X

106

K

8

Rated

Voltage

(VDC)

8 = 10

4 = 16

3 = 25

5 = 50

N

Dielectric

N = X8L

A

Failure

Rate/

Design

A = N/A

C

Termination Finish

2

C = 100% Matte Sn

L = SnPb (5% Pb minimum)

TU

Packaging/Grade

(C-Spec)

See "Packaging

C-Spec Ordering

Options Table"

below

Case Size

Specification/

Capacitance Capacitance

Code (pF)

(L" x W")

Series

1

Tolerance

0402

0603

0805

1206

1210

C = Standard

X = Flexible

Termination

Two

significant

digits +

number of

zeros

J = ±5%

K = ±10%

M = ±20%

The flexible termination option is not available on EIA 0402 case size product. "C" must be used in the 6th character position when ordering this case

size.

2

Additional termination finish options may be available. Contact KEMET for details.

2

SnPb termination finish option is not available on Automotive Grade product.

1

One world. One KEMET

C1008_X8L_150C_SMD • 11/29/2017

1

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C, X8L Dielectric, 10 – 50 VDC (Commercial & Automotive Grade)

Packaging C-Spec Ordering Options Table

Packaging Type

Commercial Grade

1

Bulk Bag

7" Reel/Unmarked

13" Reel/Unmarked

7" Reel/Marked

13" Reel/Marked

7" Reel/Unmarked/2 mm pitch

2

13" Reel/Unmarked/2 mm pitch

2

7" Reel

13" Reel/Unmarked

7" Reel/Unmarked/2 mm pitch

2

13" Reel/Unmarked/2 mm pitch

2

1

Packaging/Grade

Ordering Code (C-Spec)

Not Required (Blank)

TU

7411 (EIA 0603 and smaller case sizes)

7210 (EIA 0805 and larger case sizes)

TM

7040 (EIA 0603 and smaller case sizes)

7215 (EIA 0805 and larger case sizes)

7081

7082

Automotive Grade

3

AUTO

AUTO7411 (EIA 0603 and smaller case sizes)

AUTO7210 (EIA 0805 and larger case sizes)

3190

3191

Default packaging is "Bulk Bag". An ordering code C-Spec is not required for "Bulk Bag" packaging.

The terms "Marked" and "Unmarked" pertain to laser marking option of capacitors. All packaging options labeled as "Unmarked" will contain capacitors

that have not been laser marked.

2

The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case

size devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information".

3

Reeling tape options (Paper or Plastic) are dependent on capacitor case size (L" x W") and thickness dimension. See "Chip Thickness/Tape & Reel

Packaging Quantities" and "Tape & Reel Packaging Information".

3

For additional Information regarding "AUTO" C-Spec options, see "Automotive C-Spec Information".

3

All Automotive packaging C-Specs listed exclude the option to laser mark components. Please contact KEMET if you require a laser marked option. For

more information see "Capacitor Marking".

Benefits

•

−55°C to +150°C operating temperature range

Lead (Pb)-free, RoHS and REACH compliant

EIA 0402, 0603, 0805, 1206, and 1210 case sizes

DC voltage ratings of 10 V, 16 V, 25 V, and 50 V

Capacitance offerings ranging from 0.012 μF to 10 μF

Available capacitance tolerances of ±5%, ±10%, and ±20%

Commercial & Automotive (AEC–Q200) grades available

• Non-polar device, minimizing installation concerns

• 100% pure matte tin-plated termination finish allowing for

excellent solderability

• SnPb termination finish option available upon request

(5% Pb minimum)

• Flexible termination option available upon request

Applications

Typical applications include use in extreme environments such as down-hole oil exploration, under-hood automotive, military

and aerospace.

C1008_X8L_150C_SMD • 11/29/2017

2

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C, X8L Dielectric, 10 – 50 VDC (Commercial & Automotive Grade)

Automotive C-Spec Information

KEMET Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council.

Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. These products are supported by a Product Change Notification (PCN) and Production Part Approval Process

warrant (PPAP).

Automotive products offered through our distribution channel have been assigned an inclusive ordering code C-Spec, “AUTO.”

This C-Spec was developed in order to better serve small and medium-sized companies that prefer an automotive grade

component without the requirement to submit a customer Source Controlled Drawing (SCD) or specification for review by a

KEMET engineering specialist. This C-Spec is therefore not intended for use by KEMET’s OEM Automotive customers and are

not granted the same “privileges” as other automotive C-Specs. Customer PCN approval and PPAP request levels are limited

(see details below).

Product Change Notification (PCN)

The KEMET Product Change Notification system is used to communicate primarily the following types of changes:

• Product/process changes that affect product form, fit, function, and/or reliability

• Changes in manufacturing site

• Product obsolescence

KEMET Automotive

C-Spec

KEMET assigned

1

AUTO

1

Customer Notification due to:

Process/Product change

Yes (with approval and sign off)

Yes (without approval)

Obsolescence*

Yes

Days prior to

implementation

180 days minimum

90 days minimum

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

Production Part Approval Process (PPAP)

The purpose of the Production Part Approval Process is:

• To ensure that supplier can meet the manufacturability and quality requirements for the purchased parts.

• To provide the evidence that all customer engineering design record and specification requirements are properly

understood and fulfilled by the manufacturing organization.

• To demonstrate that the established manufacturing process has the potential to produce the part.

KEMET Automotive

C-Spec

KEMET assigned

1

AUTO

1

PPAP (Product Part Approval Process) Level

1

●

○

2

●

3

●

○

4

●

5

●

KEMET assigned C-Specs require the submittal of a customer SCD or customer specification for review. For additional information contact KEMET.

●

Part number specific PPAP available

○

Product family PPAP only

C1008_X8L_150C_SMD • 11/29/2017

3

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C, X8L Dielectric, 10 – 50 VDC (Commercial & Automotive Grade)

Dimensions – Standard Termination – Millimeters (Inches)

W

L

T

B

S

EIA Size Code

0402

0603

0805

1206

1210

Metric Size

Code

1005

1608

2012

3216

3225

L

Length

1.00 (0.040)

±0.05 (0.002)

1.60 (0.063)

±0.15 (0.006)

2.00 (0.079)

±0.20 (0.008)

3.20 (0.126)

±0.20 (0.008)

3.20 (0.126)

±0.20 (0.008)

W

Width

0.50 (0.020)

±0.05 (0.002)

0.80 (0.032)

±0.15 (0.006)

1.25 (0.049)

±0.20 (0.008)

1.60 (0.063)

±0.20 (0.008)

2.50 (0.098)

±0.20 (0.008)

T

Thickness

B

Bandwidth

0.30 (0.012)

±0.10 (0.004)

0.35 (0.014)

±0.15 (0.006)

0.50 (0.02)

±0.25 (0.010)

0.50 (0.02)

±0.25 (0.010)

0.50 (0.02)

±0.25 (0.010)

S

Separation

Minimum

0.30 (0.012)

0.70 (0.028)

0.75 (0.030)

N/A

Mounting

Technique

Solder Reflow

Only

Solder Wave or

Solder Reflow

Only

See Table 2 for

Thickness

Dimensions – Flexible Termination – Millimeters (Inches)

EIA Size Code

0603

0805

1206

1210

Metric Size

Code

1608

2012

3216

3225

L

Length

1.60 (0.063)

±0.17 (0.007)

2.00 (0.079)

±0.30 (0.012)

3.30 (0.130)

±0.40 (0.016)

3.30 (0.130)

±0.40 (0.016)

W

Width

0.80 (0.032)

±0.15 (0.006)

1.25 (0.049)

±0.30 (0.012)

1.60 (0.063)

±0.35 (0.013)

2.60 (0.102)

±0.30(0.012)

T

Thickness

B

Bandwidth

0.45 (0.018)

±0.15 (0.006)

0.50 (0.020)

±0.25 (0.010)

0.60 (0.024)

±0.25 (0.010)

0.60 (0.024)

±0.25 (0.010)

S

Separation

Minimum

0.58 (0.023)

0.75 (0.030)

N/A

Mounting

Technique

Solder Wave

or

Solder Reflow

Only

See Table 2 for

Thickness

C1008_X8L_150C_SMD • 11/29/2017

4

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 150°C, X8L Dielectric, 10 – 50 VDC (Commercial & Automotive Grade)

Qualification/Certification

Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are

referenced in Table 4, Performance & Reliability.

Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details

regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive

Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their

website at www.aecouncil.com.

Environmental Compliance

Lead (Pb)-free, RoHS, and REACH compliant without exemptions (excluding SnPb termination finish option).

Electrical Parameters/Characteristics

Item

Operating Temperature Range

Capacitance Change with Reference to

+25°C and 0 VDC Applied (TCC)

1

Parameters/Characteristics

−55°C to +150°C

±15% (−55ºC to 125ºC), +15, −40% (125ºC to 150ºC)

3.0%

250% of rated voltage

(5±1 seconds and charge/discharge not exceeding 50 mA)

3.5% ( ≤ 16V) and 2.5% ( ≥ 25V)

500 megohm microfarads or 10 GΩ

(Rated voltage applied for 120±5 seconds at 25°C)

Aging Rate (Maximum % Capacitance Loss/Decade Hour)

2

Dielectric Withstanding Voltage (DWV)

3

Dissipation Factor (DF) Maximum Limit at 25°C

4

Insulation Resistance (IR) Minimum Limit at 25°C

Regarding Aging Rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours.

DWV is the voltage a capacitor can withstand (survive) for a short period of time. It exceeds the nominal and continuous working voltage of the

capacitor.

3

Capacitance and dissipation factor (DF) measured under the following conditions:

1kHz ± 50Hz and 1.0 ± 0.2 Vrms if capacitance ≤10µF

120Hz ± 10Hz and 0.5 ± 0.1 Vrms if capacitance >10µF

4

To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.

Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as

Automatic Level Control (ALC). The ALC feature should be switched to "ON".

1

2

Post Environmental Limits

High Temperature Life, Biased Humidity, Moisture Resistance

Dielectric

X8L

Rated DC

Voltage

≥ 25

≤ 16

Capacitance

Value

All

Dissipation Factor

(Maximum %)

3.0

5.0

Capacitance

Shift

±20%

Insulation

Resistance

10% of Initial

Limit

C1008_X8L_150C_SMD • 11/29/2017

5

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	KEMET
Capacitance	0.47 uF
Voltage Rating DC	50 VDC
Dielectric	X7R
Tolerance	5 %
Case Code - in	0805
Case Code - mm	2012
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Termination	Flexible (Soft)
Product	General Type MLCCs
Capacitance - nF	470 nF
Capacitance - pF	470000 pF
Class	Class 2
Package / Case	0805 (2012 metric)
Factory Pack Quantity	1
Termination Style	SMD/SMT
Voltage Rating AC	-
Unit Weight	0.000194 oz

C0805X474J5RAC

C0805X474J5RAC Online Shopping

C0805X474J5RAC Overview

C0805X474J5RAC Parametric

Preview

Recommended Resources
