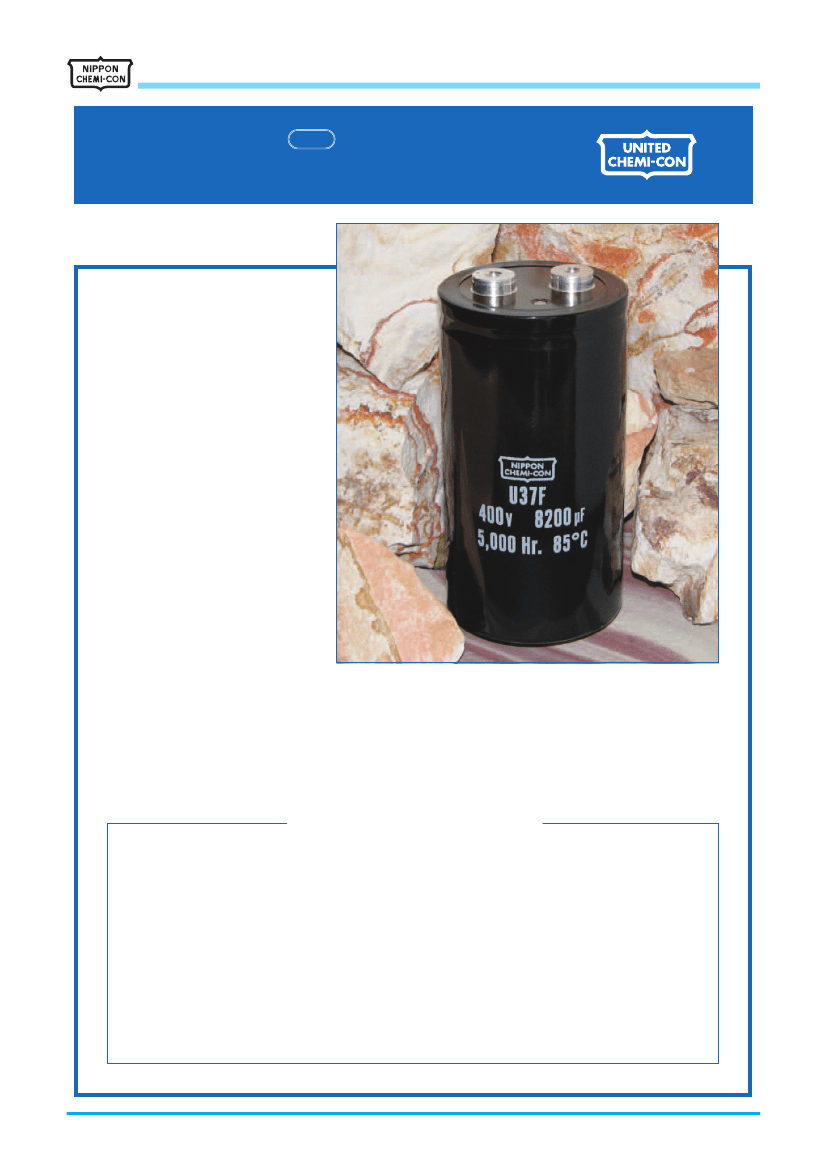

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
U37F
Series
New!
Large Can
Screw Terminals
General Purpose
U37 Grade
High Ripple
350 to 500VDC
Ratings
RoHS Compliant
5,000 Hours
Lifetime at 85 C
Up to 150,000 Hours
Useful Life
L ARGE CAN 85 C
U37F
The U37F series is a general purpose, screw mount U37 grade series specifically designed to provide
the ripple current capability and long life required for high reliability inverter applications.The U37F
has an endurance rating of 5,000 hours at 85 C with the rated ripple current applied. The useful life
can exceed 150,000 hours at 40 C and 1.5x the ripple current. These capacitors are available in a
variety of high current English or Metric thread terminals. Mounting options include a three-footed
clamp or bottom threaded stud. Custom designs are also available.
Summary of Specifications
Screw terminals: high and low post, English and Metric thread.
Capacitance range: 1,500 to 22,000µF.
Voltage range: 350 to 500VDC.
Category temperature range: 40 C to
85 C.
25 C.
Leakage current: 0.02CV(µA) or 5mA, whichever is smaller, after 5 minutes at
Standard capacitance tolerance: 20%
Nominal case size (D L): D = 50mm (2.000”) to 89mm (3.500”); L = 92mm (3.625”)
to 219mm (8.625”).
Rated lifetime: 5,000 hours at 85 C with rated ripple current applied.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
3
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
326
CAT. No. E1001O
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
U37F Series
U37F
Series
New!
Engineering Bulletin Mar 2013
U37F Specifications - Screw Terminals
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Rated Ripple Current Multipliers
I
40 to
85 C
Characteristics
350 to 500VDC
1,500 to 22,000 F at
20% ( M ) at
25 C, 120Hz
25 C, 120Hz
25 C.
0.02CV ( A ) or 5mA, whichever is smaller, after 5 minutes at
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Ambient Temperature ( C )
45 C
2.82
65 C
1.73
85 C
1.00
L ARGE CAN 85 C
U37F
Frequency (Hz )
DC Rated Voltage
350 -500V
50Hz
0.80
120Hz
1.00
300Hz
1.20
1kHz
1.30
3kHz
1.40
10kHz
1.41
To determine maximum ripple current at a specified temperature and frequency, use the appropriate
multiplier shown.
Endurance
(Load Life)
The following specifications shall be satisfied when the capacitors are restored to 25 C after
subjecting them to DC voltage for 5,000 hours at 85 C with the rated ripple current applied.
The sum of the DC voltage and peak AC voltage must not exceed the full rated voltage of
the capacitors.
Capacitance change:
≤
20% from initial measurement
ESR change
:
≤
200% of initial specified limit
Leakage current
:
≤
initial specified limit
Useful Life
With specified standard voltage and ripple current applied, typical life as function of ambient
temperature is listed below.
85 C
65 C
45 C
6,500 hours max.
23,800 hours max.
124,700 hours max.
Capacitance change:
≤
30% from initial measurement
ESR change
:
≤
300% of initial specified limit
Leakage current
:
≤
initial specified limit
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 25 C after
exposing them for 500 hours at 85 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Capacitance change:
≤
20% from initial measurement
ESR change
:
≤
200% of initial specified limit
Leakage current
:
≤
initial specified limit
Vibration Rating
Maximum Tightening Torque
10 -55Hz, 10g sinusoidal in three axes, 2 hours per axis.
Terminal Code
Thread Size
3 Threads Engaged
6 Threads Engaged
HP
10 - 32 NF- 2B
HL
CD
CP
1
/
4
- 28
CH
NF- 2B
CA
CS
M5x0.8 - 6H
M6x1- 6H
2.0 N
·
m ( 18.0 in
·
lb)
2.8 N
·
m ( 25.0 in
·
lb)
4.0 N
·
m ( 35.0 in
·
lb)
6.2 N
·
m ( 55.0 in
·
lb)
Typical Inductance (nH)
at 1MHz
Case Diameter
(mm )
Ø
50.8
Ø
63.5
Ø
76.2
Ø
89.0
Terminal Code
HP
—
—
30
30
HL
—
—
30
30
CD
NA
—
25
25
CP
NA
—
20
20
CH
NA
—
25
25
CA
NA
—
20
20
CS
NA
—
25
25
Custom Designs
Custom CV values per case size and termination type may be available upon request.
Contact appropriate representative with specific requirements.
Product specifications are subject to change without notice.
Ask for UCC product bulletins and review specifications before purchase and/or use. Please use our products based on parameters specified in our bulletins.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
4
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
327
CAT. No. E1001O
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
U37F Series
U37F
Series
New!
Engineering Bulletin Mar 2013
U37F Useful Life
Useful Life: 6,500 Hours at
The life expectancy of a capacitor is shown
as a function of ambient temperature and
ripple current load.
Ir/ Ir
(rated) ratio
85 C
3.0
2.5
2.0
1.5
1.0
0.5
0.0
6 ,5
00
hrs
0
100,
00 h
rs
0
150,
00 h
rs
40
45
50,
000
hrs
0
10,
25
,00
0h
rs
00
hrs
L ARGE CAN 85 C
50
55
60
65
70
75
80
85
Ambient temperature (°C)
U37F

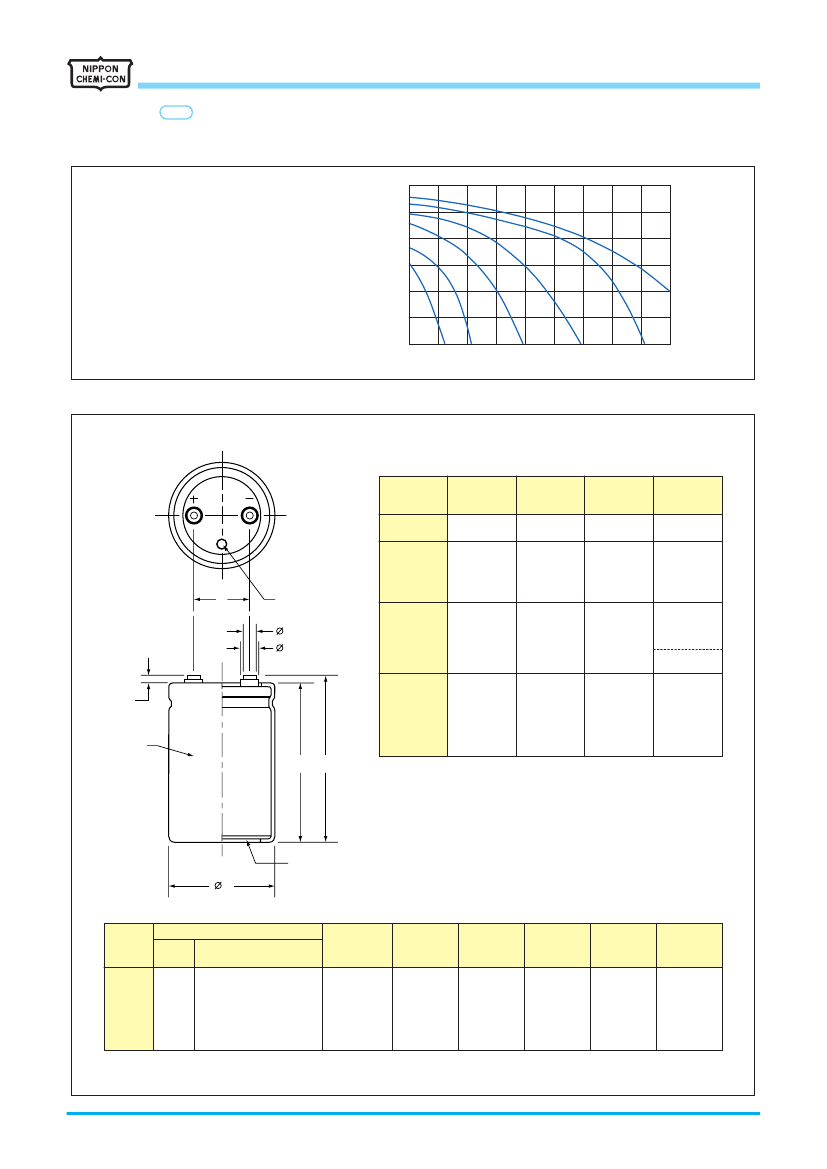

Diagram of Dimensions - Screw Terminals
Large Can / Screw Terminals
Case Dimensions and Standard Box Quantities
Case
Size
Code
CB7
CD0
D92
DA5
DB7
DD0
DE3
E92
EA5
EB7
EE3
EJ1
EM9
F92
FA5
FB7
FE3
FF5
FK0
FM9
L
H
2.0 (0.080)
50.8 (2.000)
Ø
D
Unit: mm (inches)
L
1.0 (0.040)
117 (4.625)
130 (5.125)
92 (3.625)
105 (4.125)
117 (4.625)
130 (5.125)
143 (5.625)
0092
(3.625)
105 (4.125)
117 (4.625)
143 (5.625)
181 (7.125)
219 (8.625)
92 (3.625)
105 (4.125)
117 (4.625)
143 (5.625)
155 (6.125)
190 (7.500)
219 (8.625)
F
0.25 (0.010)
22.2 (0.875)
Standard
Box
Quantity
49
63.5 (2.500)
28.6 (1.125)
20
F
Vent
S
T
76.2 (3.000)
31.8 (1.250)
16
09
J
89.0 (3.500)
31.8 (1.250)
05
Black
Insulating
Sleeve
(see note)
Insulating
End Disk
D
Note:
In some cases, the color of the sleeve may change slightly due to the operating
conditions, however, the discoloration will not impair capacitor function.
Terminal Specifications
Terminal
Code
HP
HL
CD
CP
CH
CA
CS
Available Case Diameter
Code
C
C
D–E
D–F
D–F
D–F
D–F
Ø
D
Ø
D
mm (inches)
50.8 (2.000)
50.8 (2.000)
63.5 – 76.2 (2.500 – 3.000)
63.5 – 89.0 (2.500 – 3.500)
63.5 – 89.0 (2.500 – 3.500)
63.5 – 89.0 (2.500 – 3.500)
63.5 – 89.0 (2.500 – 3.500)
Thread
Size
10 - 32 NF- 2B
M5x0.8 - 6H
M5x0.8 - 6H
1
/
4
- 28 NF- 2B
1
/ - 28 NF- 2B
4
M6x1- 6H
M6x1- 6H
Minimum
Thread
Depth
9.5 (0.375)
09.5
(0.375)
08.5
(0.335)
08.7
(0.344)
11.9 (0.468)
08.7
(0.344)
11.9 (0.468)
J
0.5 (0.020)
6.4 (0.250)
6.4 (0.250)
5.0 (0.200)
2.4 (0.093)
6.4 (0.250)
2.4 (0.093)
6.4 (0.250)
H
2.0 (0.080)
L
L
L
L
L
L
L
J
J
J
J
J
J
J
Ø
S
0.25 (0.010)
Ø
T
0.25 (0.010)
08.0
(0.313)
8.0 (0.313)
13.0 (0.512)
17.5 (0.689)
17.5 (0.689)
17.5 (0.689)
17.5 (0.689)
11.1 (0.438)
11.1 (0.438)
18.8 (0.740)
—
—
—
—
Mounting Hardware is optional. Refer to hardware specifications on the following page.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
328
CAT. No. E1001O
5
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
U37F Series
U37F
Series
New!
Engineering Bulletin Mar 2013

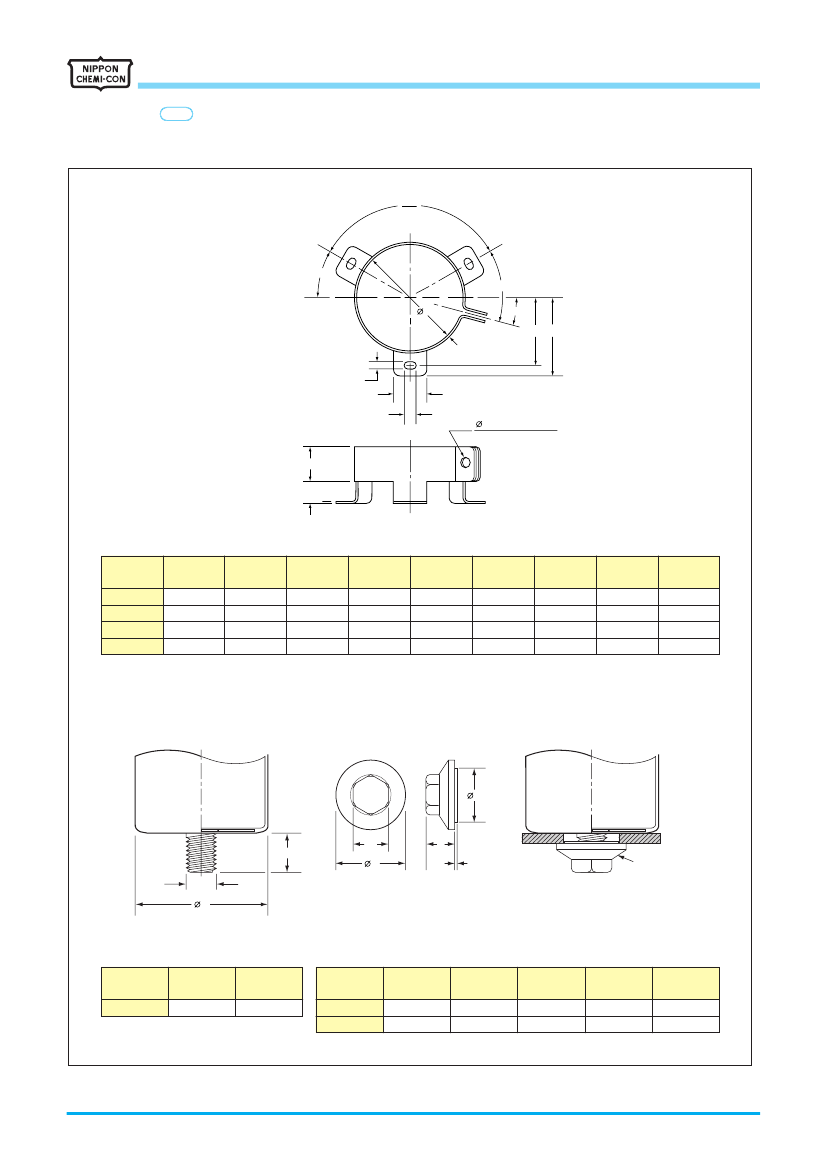

Mounting Hardware - Screw Terminals
Type C: Three-Footed Clamp
Unit: mm (inches)
360
3
30
45
D
5
15
A
T
J
G
K
5.1 0.5 (2 holes)
(0.201 0.020)
B
L ARGE CAN 85 C
U37F
R
S
Clamp: Zinc with silver trivalent
chromate post treatment.
Hardware: Screw, washer and hexagon
nut included with each clamp.
Type C: Clamp Dimensions
Mounting
Code
C
C
C
C
Case
Ø
D
50.8 (2.000)
63.5 (2.500)
76.2 (3.000)
89.0 (3.500)
A
1.0 (0.040)
31.8 (1.250)
38.1 (1.500)
44.5 (1.750)
50.8 (2.000)
B
1.0 (0.040)
36.5 (1.437)
42.9 (1.689)
49.2 (1.937)
56.5 (2.224)
G
1.0 (0.040)
13.3 (0.524)
13.3 (0.524)
13.3 (0.524)
16.0 (0.630)
J
0.5 (0.020)
4.5 (0.177)
4.5 (0.177)
4.5 (0.177)
4.5 (0.177)
K
0.5 (0.020)
7.1 (0.280)
7.1 (0.280)
7.1 (0.280)
8.0 (0.313)
R
1.0 (0.040)
19.1 (0.751)
19.1 (0.751)
19.1 (0.751)
21.0 (0.827)
S
1.0 (0.040)
9.5 (0.374)
9.5 (0.374)
9.5 (0.374)
9.0 (0.354)
T
0.5 (0.020)
0.8 (0.032)
0.8 (0.032)
1.0 (0.040)
1.0 (0.040)
Type S: Stud Mounting
Q
P
T
D
M
K
N
R
Insulated
Plastic Hex Nut
Mounting Nut - Order Separately
The insulated plastic mounting nut is not included with stud mount capacitor orders.
It must be ordered separately. See available part numbers below.
Type S: Stud Dimensions
Mounting
Code
S
P
1.0 (0.040)
16.0 (0.630)
T
Thread Size
M12
Mounting Nut Dimensions
Part
Number
50-8D
50-8E
Ø
K
2.0 (0.080)
M
1.0 (0.040)
19.0 (0.748)
19.0 (0.748)
N
1.0 (0.040)
18.0 (0.709)
18.0 (0.709)
Ø
Q
1.0 (0.040)
R
1.0 (0.040)
1.40 (0.055)
1.40 (0.055)
30.0 (1.181)
38.0 (1.496)
22.0 (0.866)
30.0 (1.181)
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
6
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
329
CAT. No. E1001O
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Inverter-use screw terminal, 85℃
U37F Series
U37F
Series
New!
Engineering Bulletin Mar 2013
When ordering, always specify complete 18-field global part number.
Part Numbering System for U37F Series
18 Fields
1
2
3
4
5
6
7
8
9
10 11
12
13 14
15
16 17
18
E 3 7 F 4 0 1 C P N 1 0 3 M E J 1 M
9
8
7
6
5
4
3
2
1
Supplement Code.
Field 18.
C = PET insulation with end disk (
Ø
50.8mm only).
M = Pb-free PVC insulation with end disk.
S = Polyolefin insulation with end disk.
Case Size.
Fields 15, 16 and 17.
The single letter diameter code is inserted in field 15.
C =
Ø
50.8mm (
Ø
2.000”)
D =
Ø
63.5mm (
Ø
2.500”)
E =
Ø
76.2mm (
Ø
3.000”)
F =
Ø
89.0mm (
Ø
3.500”)
The double character length code is inserted in fields 16 and 17.
For lengths
≤
99mm, insert the actual length rounded to nearest
millimeter. For lengths of 100mm or more, insert the appropriate
alpha numeric code as indicated below.
92 = 92mm (3.625”)
A5 = 105mm (4.125”)
B7 = 117mm (4.625”)
D0 = 130mm (5.125”)
E3 = 143mm (5.625”)
F5 = 155mm (6.125”)
J1 = 181mm (7.125”)
K0 = 190mm (7.500”)
M9 = 219mm (8.625”)
Capacitance Tolerance.
Field 14.
M = 20%
Capacitance.
Fields 11, 12 and 13.
Expressed in Microfarads. The first two digits are significant
figures inserted in fields 11 and 12, and the third digit inserted
in field 13 indicates the number of zeros for capacitance of
10 F or more. R indicates the decimal point for capacitance
less than 10 F (e.g. 1R0 = 1.0 F; 100 = 10 F; 101 = 100 F;
102 = 1,000 F; 103 = 10,000 F ).
Mounting Hardware.
Field 10.
N = None.
C = Three-footed clamp.
S = Stud mount.
The mounting nut is not included with
stud mount orders. It must be ordered separately.
Terminal Type.
Fields 8 and 9.
HP = High post 10-32 NF- 2B screw thread.
HL = High post M5x0.8 screw thread.
CD = M5x0.8 screw thread.
CP = Low post
1
/
4
-28 NF-2B screw thread.
CH = High post
1
/
4
-28 NF-2B screw thread.
CA = Low post M6x1 screw thread.
CS = High post M6x1 screw thread.
DC Rated Voltage.
Fields 5, 6 and 7.
Expressed in Volts. The first two digits are significant figures
inserted in fields 5 and 6, and the third digit inserted in field 7
indicates the number of zeros for rated voltage of 10VDC or
more. R indicates the decimal point for rated voltage less than
Enter the 3-letter/digit series name in fields 2, 3 and 4. If the
series name is only 2 letters/digits, place a dash in field 4.
For a series name with more than 3 letters/digits, refer to the
individual series for the appropriate 3-field series name.
Capacitor Type.
Field 1.
Aluminum Electrolytic Capacitor (Polar).
L ARGE CAN 85 C
U37F
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
1. Circuit diagram of using transistor/triode to drive fan with PWM waveformThere are two examples of such ICs, one with DC drive and the other with PWM drive, as shown in Figures 1 and 2. The IC in F...
2009 IC Industry Analysis Report. Analysis and Prospect of China's IC Industry under the Economic Crisis~~ 1. Analysis of the Operation Characteristics of the IC Industry in 2008 (I) Both the Supply a...
Please help me look at the code, the syntax is wrong, the for loop can't be implemented? Python syntax and writing format really waste debugging time. In addition, how can I call the len() function? ?...
[table=98%,rgb(238, 238, 238)] [tr][td]stm32 TIM3 works in PWM1 and counts up. In software simulation: change the value of CCR1 in the interrupt function, and then set the UG bit in software to genera...
Today's computer peripherals are pursuing high speed and high versatility. In order to meet user needs, seven companies led by Intel launched the USB (Universal Serial Bus) bus protocol in 1994, wh...[Details]
The solidification and modularization of intelligent video analysis algorithms are the current trends in the application of intelligent video analysis technology. It perfectly combines intelligent ...[Details]
Editor's note: In order to help technicians or engineers who have knowledge of PIC microcontroller assembly language quickly master the method of using C language to program PIC microcontrollers, t...[Details]
LED lamps and bulbs are now rapidly replacing incandescent, halogen and CFL (compact fluorescent lamp) light sources in many general lighting applications. Flyback DC/DC converters are the power su...[Details]
At present, how various communication technologies will evolve after 3G is a focus of great concern in the industry. Especially for TD-SCDMA, whether it can achieve smooth evolution to the next gen...[Details]
Among the uses of electrical energy, lighting accounts for a considerable proportion. Compared with the earlier ordinary incandescent lamps, the fluorescent lamps and energy-saving lamps we commonl...[Details]
Movpower is a portable power bank. It can charge most mobile phones and digital products, such as digital cameras, PDAs, and mobile phones such as Apple, iPod, Blackberry, Motorola, Samsung, Nokia,...[Details]
In order to prevent the lithium battery from being damaged by abnormal conditions such as overcharge, over discharge, and overcurrent, a lithium battery protection device is usually used to prevent...[Details]
At present, single-chip microcomputers have been widely used in home appliances, medical treatment, instrumentation, industrial automation, aerospace and other fields. The more popular types of sin...[Details]
1. Electromagnetic compatibility design
Electromagnetic compatibility refers to the ability of electronic equipment to work in a coordinated and effective manner in various electromagnetic env...[Details]
Modern communication equipment, portable electronic products, laptops, electric vehicles, small satellites, etc. generally use batteries as power sources and are widely used. However, the batteries...[Details]
Hollysys' LM series PLC products fully consider the difficulties in integrating machines, equipment and subsystems in large control systems, and provide a variety of open communication protocols and i...[Details]
introduction
As the application of single-chip microcomputers in various fields becomes more and more extensive, the requirements for their reliability are also getting higher and higher. The ...[Details]
Traditional UPS uses analog circuit control. For manufacturers and users, analog control has many limitations, whether it is phase control technology or SPWM technology. With the development of inf...[Details]
Central topic:
Basic concepts of GSM mobile phones.
Considerations in design and debugging of mobile phone power amplifiers. Considerations in mass production testing of mobile ...[Details]
Analogue and Mixed Signal
京公网安备 11010802033920号
EEWORLD
