PM5022S-102M-RC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> PM5022S-102M-RC

PM5022S-102M-RC: DescriptionFixed Inductors 270uH 30% 0.8A shdSMD AEC-Q200; CategoryPassive components inductor; File Size200KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM5022S-102M-RC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM5022S-102M-RC	-	-	View	Buy Now

PM5022S-102M-RC Overview

Fixed Inductors 270uH 30% 0.8A shdSMD AEC-Q200

PM5022S-102M-RC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
uppercase and lowercase codes	7255
structure	Rectangular
core material	Ferrite
DC Resistance	2.16 Ω
Nominal inductance(L)	1000 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	6.8 mm
Package length	18.3 mm
Package form	SMT
Package width	14.1 mm
method of packing	TR, EMBOSSED, 13 INCH
Minimum quality factor (at nominal inductance)	46
Maximum rated current	0.45 A
self resonant frequency	1.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE, Q IS MEASURED AT 0.796 MHZ
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

Available in E12 series

■

Unit height of 6.8 mm

■

Current up to 8 A Isat

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

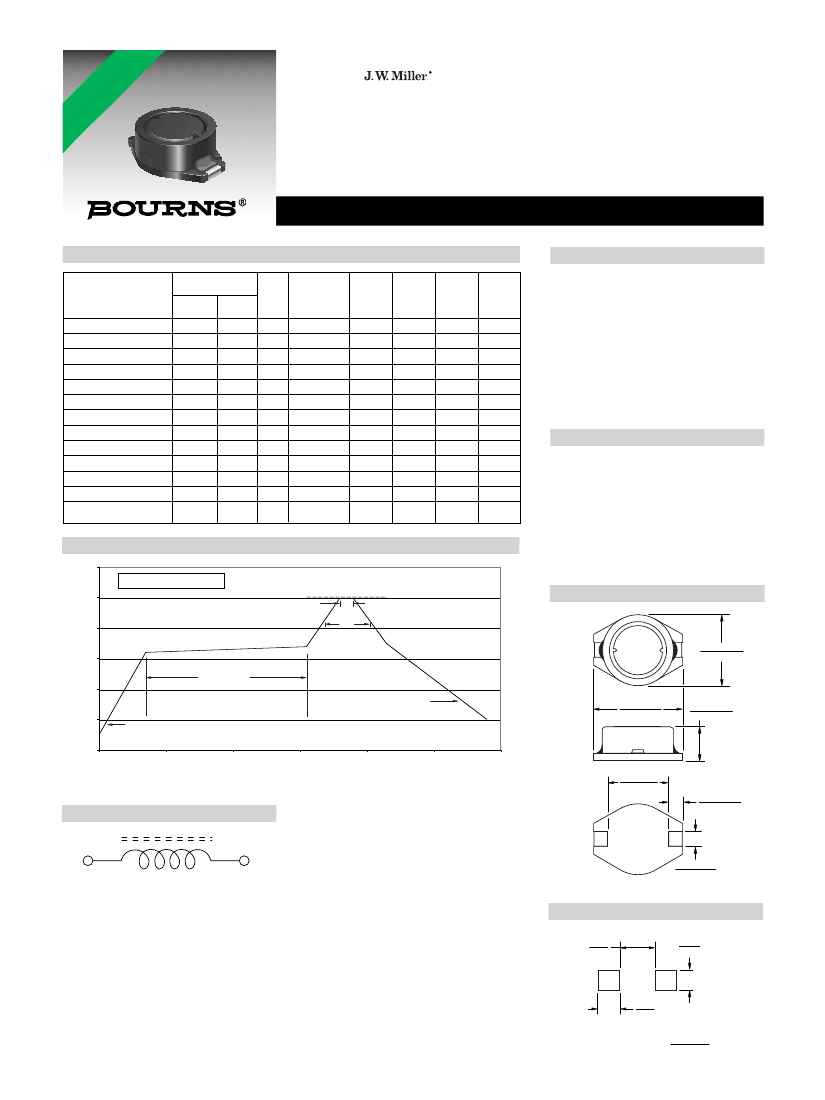

PM5022S Series - Shielded Power Inductor

Electrical Speciﬁcations

Inductance 100 kHz

General Speciﬁcations

Test

Q Frequency

Ref.

(MHz)

2.52

0.796

SRF

Typ.

(MHz)

19.0

17.5

16.0

10.0

8.0

6.0

4.6

4.3

3.5

3.0

2.4

2.1

1.5

RDC

-20 %

(Ω)

0.033

0.039

0.053

0.083

0.110

0.170

0.270

0.400

0.510

0.790

1.000

1.470

2.160

I rms

Max.

(A)

4.00

3.60

3.00

2.50

2.00

1.60

1.30

1.05

1.00

0.80

0.64

0.54

0.45

I sat

Typ.

(A)

8.20

7.20

6.20

5.00

4.20

3.40

2.60

2.30

1.90

1.40

1.30

1.10

0.90

Bourns Part No.

PM5022S-100M-RC

PM5022S-150M-RC

PM5022S-220M-RC

PM5022S-330M-RC

PM5022S-470M-RC

PM5022S-680M-RC

PM5022S-101M-RC

PM5022S-151M-RC

PM5022S-221M-RC

PM5022S-331M-RC

PM5022S-471M-RC

PM5022S-681M-RC

PM5022S-102M-RC

(µH)

100

150

220

330

470

680

1000

Tol. %

± 20

Test Voltage ....................................0.1 V

Reﬂow soldering .... 250 °C; 10 sec max.

(In compliance with JEDEC,

J-STD-020C, Table 4-2)

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature

................................-45 °C to +125 °C

Resistance to Soldering Heat

.......................... 250 °C, 10 sec. max.

Materials

Core ......................................Ferrite core

Wire ............................Enameled copper

Base .....................................LCP E4008

Terminal ....................................Cu/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise

.....................40 °C max. at rated Irms

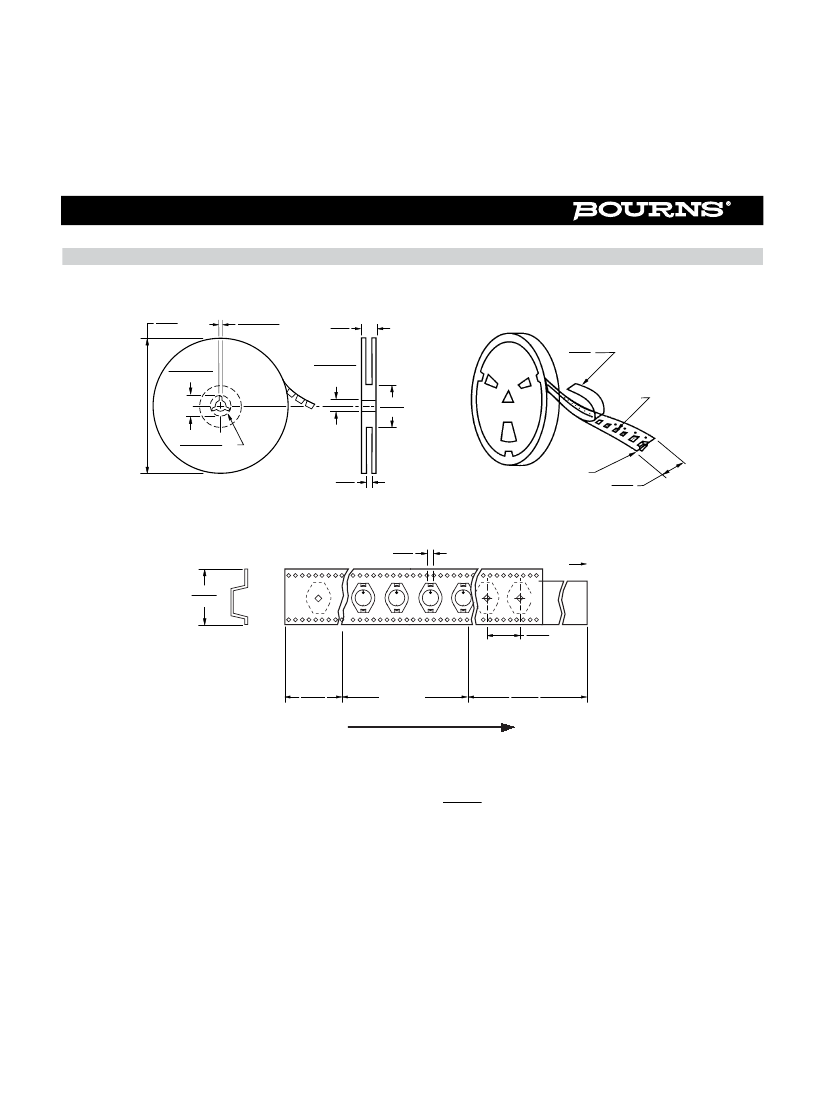

Packaging .................... 250 pcs. per reel

Product Dimensions

Soldering Proﬁle

300

<1> Max. of 10 seconds at 250 °C

<2> Max. of 30 seconds > 220 °C

250

250 °C

<1>

200

<2>

Temperature (°C)

101

150

120 - 150 seconds

100

14.0

0.3

(.551

.012)

Ramp-down

5 °C/second maximum

18.3

0.3

(.720

.012)

6.8

0.3

(.268

.012)

Ramp-up

4 °/second maximum

100

150

Time

(seconds)

200

250

300

13.0

0.3

(.512

.012)

Electrical Schematic

2.5

0.2

(.098

.008)

2.6

0.2

(.102

.008)

Recommended Layout

REF.

12.7

(.500)

2.9

REF.

(.114)

3.0

REF.

(.118)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

DIMENSIONS:

(INCHES)

PM5022S-102M-RC Related Products

	PM5022S-102M-RC	PM5022S-681M-RC	PM5022S-101M-RC
Description	Fixed Inductors 270uH 30% 0.8A shdSMD AEC-Q200	Fixed Inductors 680uH 20%	Headers u0026 Wire Housings SOCKET 24-18AWG BULK
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	Bourns	Bourns	Bourns
package instruction	CHIP	CHIP	CHIP
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	12 weeks	12 weeks
uppercase and lowercase codes	7255	7255	7255
structure	Rectangular	Rectangular	Rectangular
core material	Ferrite	Ferrite	Ferrite
DC Resistance	2.16 Ω	1.47 Ω	0.27 Ω
Nominal inductance(L)	1000 µH	680 µH	100 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package height	6.8 mm	6.8 mm	6.8 mm
Package length	18.3 mm	18.3 mm	18.3 mm
Package form	SMT	SMT	SMT
Package width	14.1 mm	14.1 mm	14.1 mm
method of packing	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH	TR, EMBOSSED, 13 INCH
Minimum quality factor (at nominal inductance)	46	19	40
Maximum rated current	0.45 A	0.54 A	1.3 A
self resonant frequency	1.5 MHz	2.1 MHz	4.6 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES
special characteristics	DCR IS MEASURED AT 20% TOLERANCE, Q IS MEASURED AT 0.796 MHZ	DCR IS MEASURED AT 20% TOLERANCE, Q IS MEASURED AT 0.796 MHZ	DCR IS MEASURED AT 20% TOLERANCE, Q IS MEASURED AT 0.796 MHZ
surface mount	YES	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	20%	20%	20%
