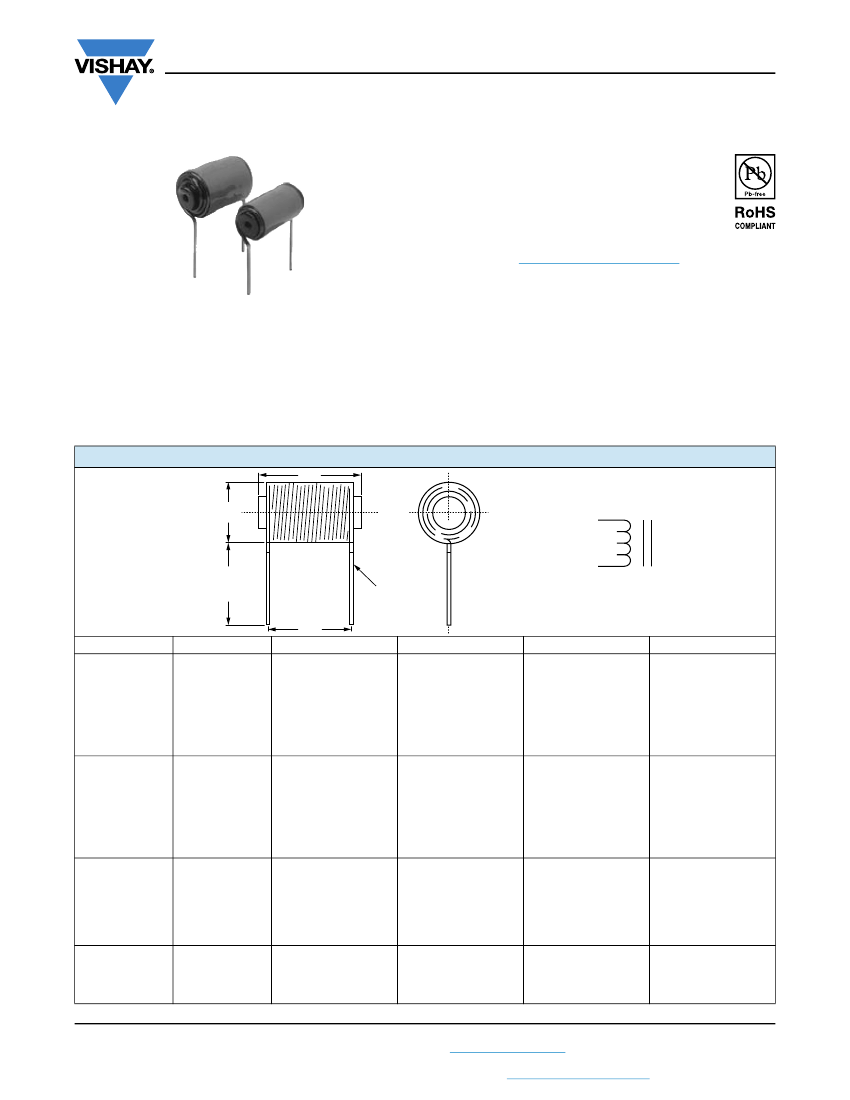

IH
www.vishay.com
Vishay Dale
Filter Inductors, High Current, Radial Leaded
FEATURES
• Printed circuit mounting
• Pre-tinned leads
• Protected by polyolefin tubing - flame retardant
UL type VW-1 per MIL-I-23053/5, class 3
requirements
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
ELECTRICAL SPECIFICATIONS
Inductance:
Measured at 1.0 V with zero DC current
Incremental Current:
The typical current at which the
inductance will be decreased by 5 % from its initial zero DC
value
Operating Temperature:
-55 °C to +125 °C (no load),
-55 °C to +75 °C (at full rated current)
Noise filtering for switching regulators, power amplifiers,
power supplies and SCR and Triac control circuits
Current Rating:
Maximum continuous operating current
(DC or RMS) based on a 50 °C temperature rise
MECHANICAL SPECIFICATIONS
Wire:
Solid soft copper
Terminals:
Extensions of the winding
Core Material:
Ferrite
Coating:
Polyolefin tubing
DIMENSIONS
in inches [millimeters]
A
B
1.0 ± 0.125
[25.40 ± 3.18]
D
Leads tinned
to within
0.125 [3.18]
C
Schematic
MODEL
IH-3
IH-3
IH-3
IH-3
IH-3
IH-3
IH-3
IH-5
IH-5
IH-5
IH-5
IH-5
IH-5
IH-5
IH-10
IH-10
IH-10
IH-10
IH-10
IH-10
IH-15
IH-15
IH-15
IH-15
Revision: 08-Aug-14
IND. (μH)
5
10
27
50
100
150
250
5
10
27
50
68
100
150
5
10
27
50
68
100
5
10
27
50
A (MAX.)
0.875 [22.23]
1.125 [28.58]
0.875 [22.23]
0.875 [22.23]
1.125 [28.58]
1.375 [34.93]
1.625 [41.28]
0.875 [22.23]
1.125 [28.58]
0.875 [22.23]
1.125 [28.58]
1.125 [28.58]
1.375 [34.93]
1.625 [41.28]
1.125 [28.58]
1.375 [34.93]
1.125 [28.58]
1.375 [34.93]
1.375 [34.93]
1.625 [41.28]
1.375 [34.93]
1.687 [42.85]
1.375 [34.93]
1.625 [41.28]
B (MAX.)
0.600 [15.24]
0.625 [15.88]
0.800 [20.32]
0.800 [20.32]
0.800 [20.32]
0.800 [20.32]
0.800 [20.32]
0.625 [15.88]
0.625 [15.88]
0.840 [21.34]
0.840 [21.34]
0.860 [21.84]
0.860 [21.84]
0.860 [21.84]
0.635 [16.13]
0.635 [16.13]
0.935 [23.75]
0.935 [23.75]
0.935 [23.75]
0.935 [23.75]
0.700 [17.78]
0.700 [17.78]
1.000 [25.40]
1.000 [25.40]
C ± 0.062 [± 1.57]
0.500 [12.70]
0.687 [17.45]
0.437 [11.10]
0.750 [19.05]
0.937 [23.80]
1.062 [26.97]
1.312 [33.32]
0.750 [19.05]
1.000 [25.40]
0.562 [14.27]
0.750 [19.05]
0.875 [22.23]
1.000 [25.40]
1.250 [31.75]
0.812 [20.62]
1.218 [30.94]
0.687 [17.45]
0.937 [23.80]
1.125 [28.58]
1.312 [33.32]
0.937 [23.80]
1.500 [38.10]
0.937 [23.80]
1.125 [28.58]
D ± 0.005 [± 0.127]
0.042 [1.067]
0.042 [1.067]
0.042 [1.067]
0.042 [1.067]
0.042 [1.067]
0.042 [1.067]
0.042 [1.067]
0.053 [1.35]
0.053 [1.35]
0.053 [1.35]
0.053 [1.35]
0.053 [1.35]
0.053 [1.35]
0.053 [1.35]
0.065 [1.65]
0.065 [1.65]
0.065 [1.65]
0.065 [1.65]
0.065 [1.65]
0.065 [1.65]
0.082 [2.08]
0.082 [2.08]
0.082 [2.08]
0.082 [2.08]
Document Number: 34013
1
