52207-2152: DescriptionFFC u0026 FPC Connectors 1.0 FPC Hsg Assy ZIF S MT 21Ckt EmbsTpPkg; CategoryThe connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52207-2152 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52207-2152	-	-	View	Buy Now

52207-2152 Overview

FFC u0026 FPC Connectors 1.0 FPC Hsg Assy ZIF S MT 21Ckt EmbsTpPkg

52207-2152 Parametric

Parameter Name	Attribute value
Product Category	FFC & FPC Connectors
Manufacturer	Molex
RoHS	Details
Product	Board Mount
Pitch	1 mm
Termination Style	SMD
Mounting Angle	Right Angle
Current Rating	1 A
Mounting Style	Cable
Factory Pack Quantity	1000
Voltage Rating	125 V
Unit Weight	0.026618 oz

Preview

Download Datasheet

View All

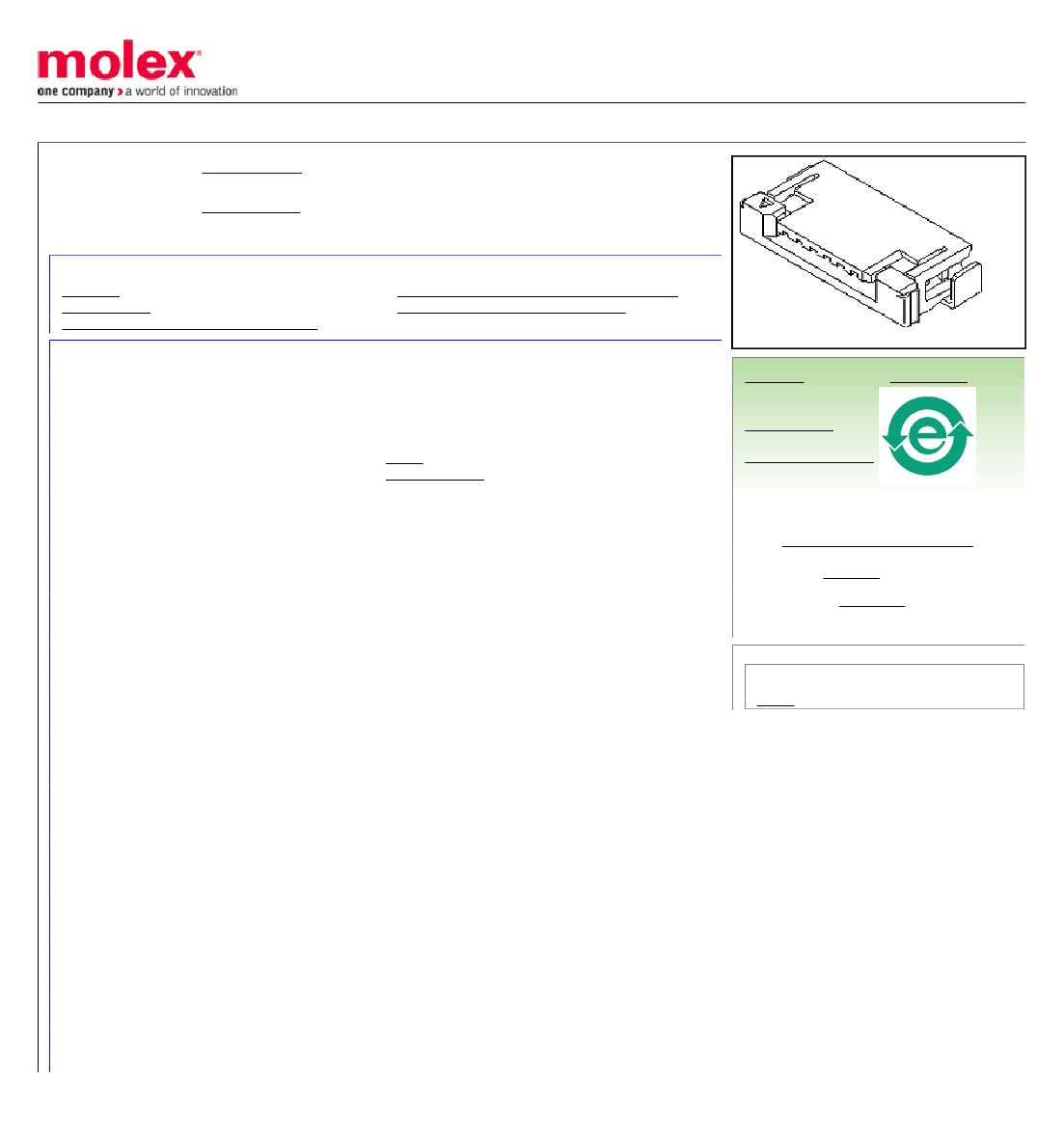

This document was generated on 03/08/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

52207-0385

Active

FFC-FPC (SMT)

1.00mm Pitch FFC/FPC Connector, SMT, Right Angle, ZIF, Top Contact Style

Receptacle, 3 Circuits, Lead-Free, High Barrier Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52207-047 (PDF)

Packaging Specification SPK-52207-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Agency Certification

CSA

UL

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Overview

Product Name

UPC

FFC/FPC Connectors

52207

FFC-FPC (SMT)

N/A

822348117857

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

3

Natural

Top

30

90° Angle

94V-0

2.70mm

Phosphor Bronze

Tin-Bismuth

Nylon

222.900/mg

1

Right Angle

2.00mm

No

Yes

Embossed Tape on Reel

1.00mm

Yes

No

-30°C to +85°C

Surface Mount

FFC/FPC

Search Parts in this Series

52207Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A

125V

Material Info

Reference - Drawing Numbers

Packaging Specification

SPK-52207-002
