THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
20
6
5
4
3
LOC
2
DIST
1
REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
20
CM
00
Y2
Y3
REVISED PER ECR-12-011660
REVISED PER ECR-13-019507
24JAN2013
02JAN2014
KH
AV
TM
KD
1. MATES WITH HOUSING 480710.
2. PARTS COMPLY TO TE SOLDERABILITY SPECIFICATION 109-11-3.
3
D
HOUSING
4
5
CONTACT IS PLATED OVERALL WITH 0.00127 [.000050] NICKEL, THEN
0.00076 [.000030] GOLD OVER CONTACT LENGTH INDICATED AND TIN
LEAD ON SOLDER TAIL END.
CIRCUIT IDENTIFICATION CHARACTERS ARE ADJACENT TO THE INDICATED
CAVITIES, BUT LOCATION AND ORIENTATION MAY DIFFER FROM PRINT.
CONTACT IS PLATED OVERALL WITH 0.00127 [.000050] NICKEL, THEN
0.00076 [.000030] GOLD OVER CONTACT LENGTH INDICATED AND MATTE
TIN ON SOLDER TAIL END.
D
6. DIMENSIONS IN BRACKETS ARE IN INCHES.
7
SUPERSEDED BY 350434-4
33.02
[ 1.300 ]
CONTACT
15 REQ'D
C
C
0.76
TYP
[ .030 ]
13.97
[ .550 ]
20.32
[ .800 ]
B
6.35
[ .250 ]
1.78 0.07
[ .070 .003 ]
15 PLC
1.86 -1.98
[ .073 -.078 ]
3 DIMENSIONAL MODEL
SCALE
4:1
B
SECTION
A-A
SCALE
10:1
0.26 -0.63
[ .010 -.025 ]
0.13
[ .005 ]
CUT-OFF TAB
1.52
[ .060 ]
3
4.57
[ .180 ]
5
2.11 -2.23
[ .083 -.088 ]
PHOSPOR BRONZE, GOLD
7
5
3
NYLON, UL94V-2, NATURAL
NYLON, UL94V-2, NATURAL
NYLON, UL94V-2, NATURAL
HOUSING MATERIAL AND COLOR
DWN
CHK
350434 -4
350434 -2
350434 -1
PART NUMBER
TE Connectivity
PHOSPOR BRONZE, GOLD
PHOSPOR BRONZE, PRE-TIN
A
6.35
[ .250 ]
RECOMMENDED MOUNTING HOLE PATTERN
FOR 1.57 [.062] THICK P.C. BOARD
HOLE THAT CORRESPONDS TO REMOVED
CONTACT CAN BE OMITTED
4805 (3/11)
3.94 -4.69
[ .155 -.185 ]
SECTION
PIN CONTACT MATERIAL AND FINISH
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
A
K. WHITAKER
S. RIDGILL
S. RIDGILL
-
-
04MAY2005
B-B
04MAY2005
04MAY2005
NAME
mm[INCHES]
APVD
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
-
0.13[.005]
-
-
0 $ 30'
PRODUCT SPEC
APPLICATION SPEC
SIZE
SEE TABLE
-
SEE TABLE
-
WEIGHT
-
CUSTOMER DRAWING
A1
00779
CAGE CODE

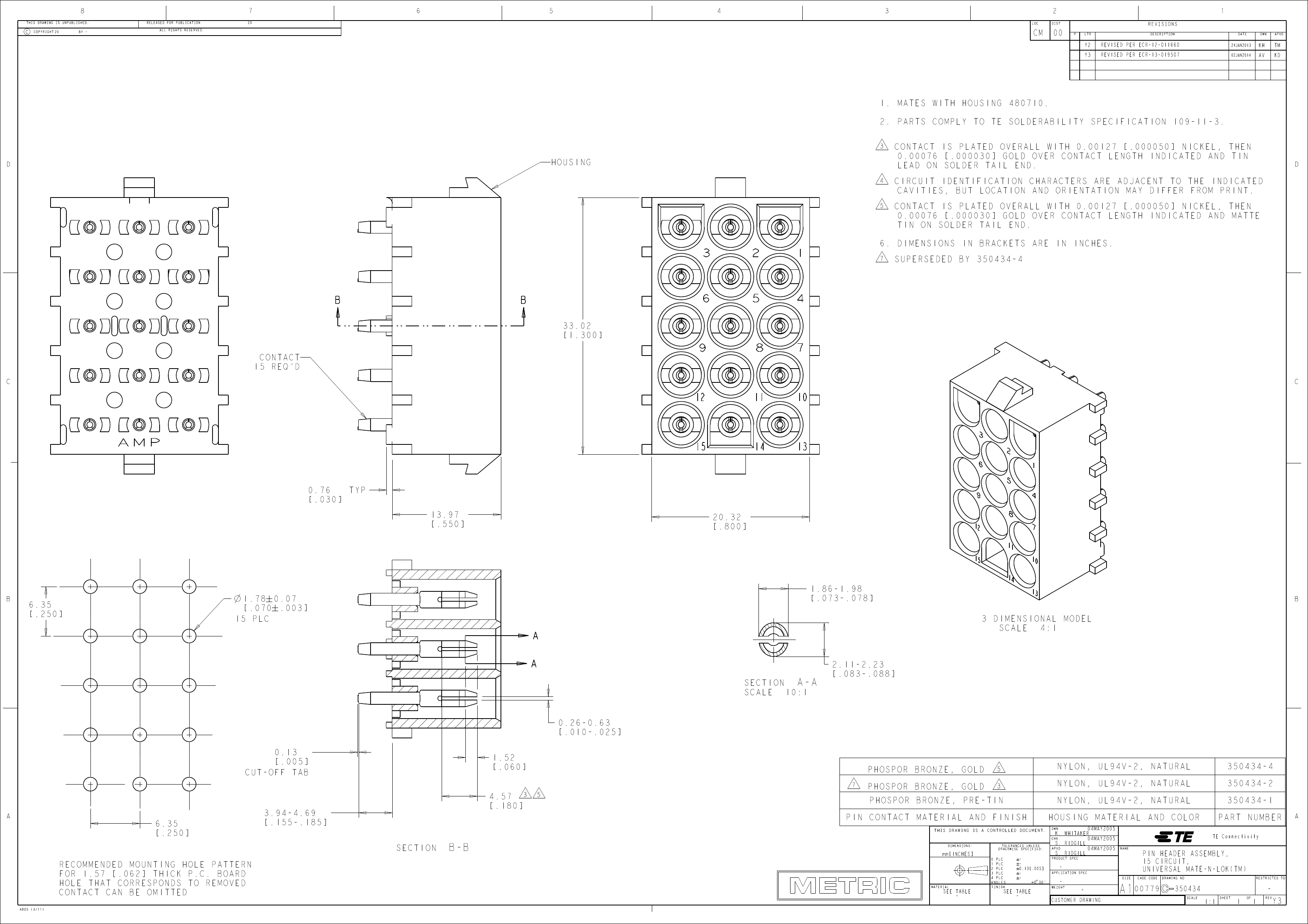

PIN HEADER ASSEMBLY,
15 CIRCUIT,
UNIVERSAL MATE-N-LOK(TM)
DRAWING NO
RESTRICTED TO
350434
SCALE
1:1
SHEET
1
OF
1
REV
-
Y3
