500334-0160 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 500334-0160

500334-0160: DescriptionInfrared Emitters - High Power Infrared 940nm OSLON Black; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

500334-0160 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	500334-0160	-	-	View	Buy Now

500334-0160 Overview

Infrared Emitters - High Power Infrared 940nm OSLON Black

500334-0160 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SOLDER HOLDING POSTS
body width	0.115 inch
subject depth	0.098 inch
body length	0.215 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.5908 mm
Plating thickness	9.8u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

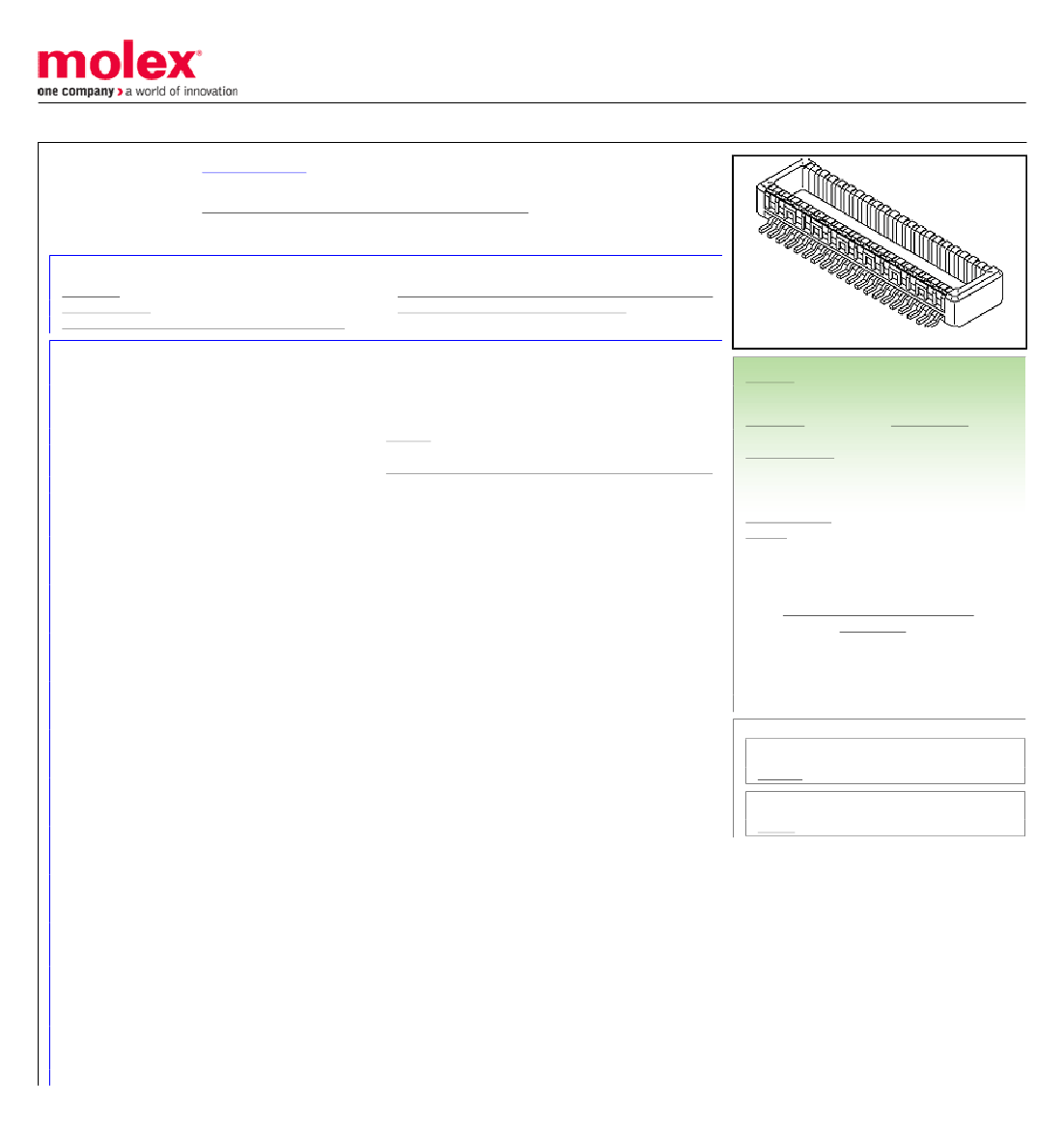

Preview

Download Datasheet

View All

This document was generated on 12/08/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5003340160

Active

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 2.50mm Stack

Height, 16 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-54102-010-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Packaging Specification SPK-500334-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

PCB Headers

500334

Board-to-Board, Signal

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

SlimStack

756054527047

Black

None

Yes

2.50mm

Brass

Gold

522.704/mg

Vertical

None

Embossed Tape on Reel

0.50mm

-40°C to +105°C

Surface Mount

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

500334 Series

Mates With

54102 SlimStack Receptacle

SPK-500334-001-001

PS-54102-010-001
