801-43-002-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-43-002-20-001000

801-43-002-20-001000: DescriptionHeaders u0026 Wire Housings; CategoryThe connector The connector; File Size481KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

801-43-002-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	801-43-002-20-001000	-	-	View	Buy Now

801-43-002-20-001000 Overview

Headers u0026 Wire Housings

801-43-002-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	801
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

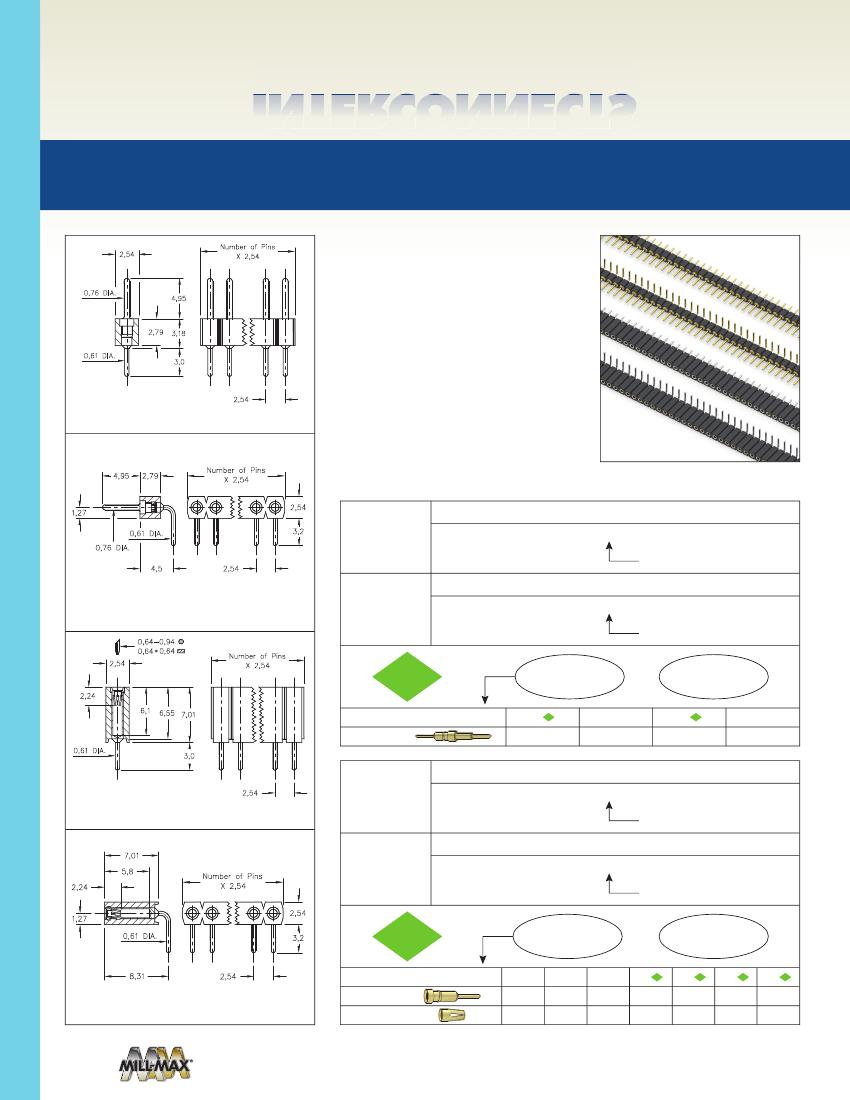

SERIES 800 & 801 • 2,54 GRID (0,76 DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • SINGLE ROW STRIPS

Number of Pins

X 2,54

2,54

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005 solder tails.

See page 215 for details

0,76 DIA.

4,95

•

Sockets are available with straight MM #1304

or right angle MM #1305 soldertails. See

pages 177 and 179 for details

2,79

0,61 DIA.

3,18

3,0

•

MM #1304 and MM #1305 receptacles use

2,54

FIG. 1

4,95

2,79

Number of Pins

X 2,54

Hi-Rel, 6- nger BeCu #47 contact rated at 4.5

amps. Receptacles accept 0,76 diameter and

0,64 square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

2,54

1,27

0,61 DIA.

0,76 DIA.

4,5

2,54

Series 800...10-001

Straight Pin Header

01-64

3,2

FIG. 1

800 XX 0_ _ 10 001000

Specify number of pins

Series 800...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

0,64-0,94

0,64 * 0,64

2,54

Number of Pins

X 2,54

FIG. 2

RoHS - 2

800 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

0,25µm Au

2011/65/EU

2,24

6,1

6,55 7,01

SPECIFY PLATING CODE XX=

Pin Plating

5,08µm Sn/Pb

5,08µm Sn

0,61 DIA.

3,0

Series 801...10-001

2,54

FIG. 3

7,01

FIG. 3

801 XX 0_ _ 10 001000

Specify number of pins

01-50

Series 801...20-001

Number of Pins

X 2,54

2,54

Straight Socket

Right Angle Socket

01-50

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 54 | INTERCONNECTS

5,8

2,24

FIG. 4

RoHS - 2

801 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

1,27

0,61 DIA.

3,2

2011/65/EU

8,31

2,54

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

Au Flash

5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn/Pb

5,08µm Sn 5,08µm Sn 5,08µm Sn 5,08µm Sn

FIG. 4

0,25µm Au 0,76µm Au

2,54µm Sn/Pb

0,25µm Au 0,76µm Au 2,54µm Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
