3690-2: DescriptionPCI Express / PCI Connectors 11.0" .1" centers 36 contacts per side; CategoryThe connector; File Size106KB，2 Pages; ManufacturerVECTOR ELECTRONICS AND TECHNOLOGY, INC.; Websitehttps://www.vectorelect.com/

Download Datasheet Parametric View All

3690-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3690-2	-	-	View	Buy Now

3690-2 Overview

PCI Express / PCI Connectors 11.0" .1" centers 36 contacts per side

3690-2 Parametric

Parameter Name	Attribute value
Product Category	PCI Express / PCI Connectors
Manufacturer	VECTOR ELECTRONICS AND TECHNOLOGY, INC.
RoHS	No
Product	Extender Cards
Number of Positions	36 Position
Mounting Style	-
Mounting Angle	-
Termination Style	-
Contact Material	Phosphor Bronze
Contact Plating	Gold
Accessory Type	-
Board Thickness	-
Cable Type	-
Current Rating	5 A
Description/Function	Test extender
Height	-
Housing Material	-
Insulation Resistance	-
Factory Pack Quantityywewezsu	1
Tail Length	-
Temperature Range	-
Voltage Rating	200 V

Preview

Download Datasheet

View All

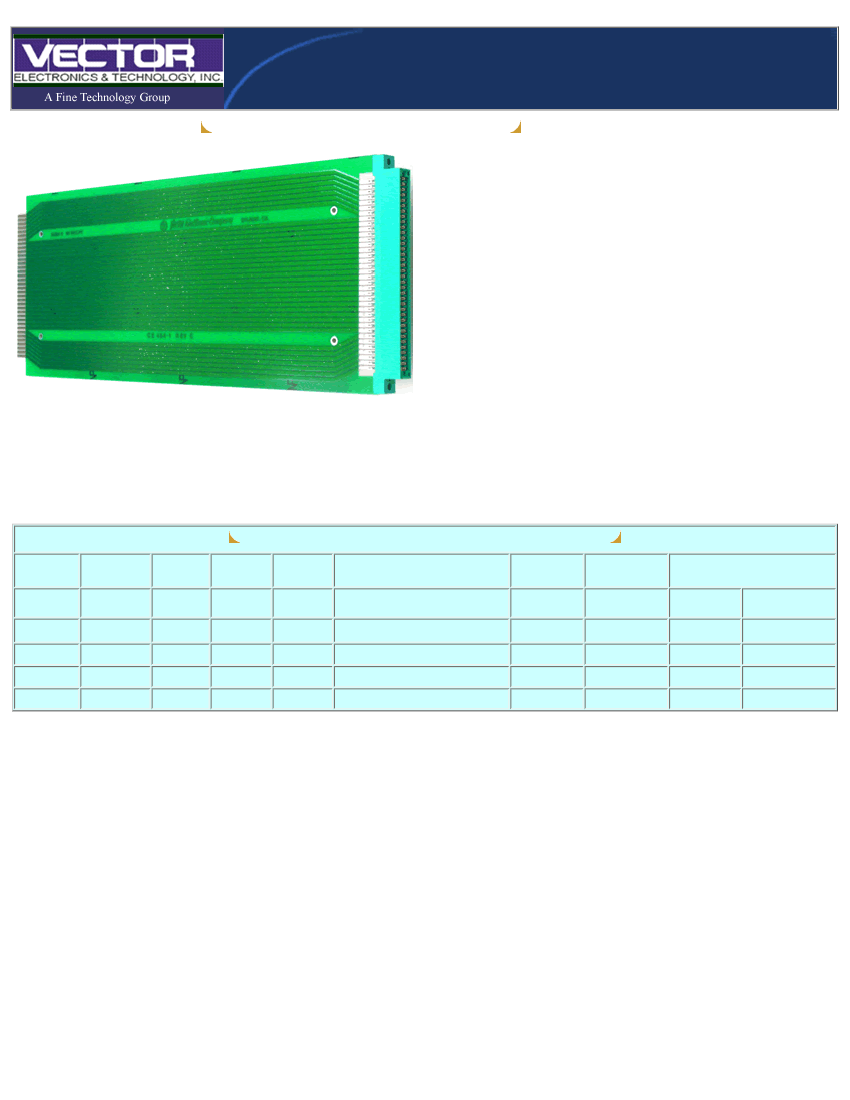

General Purpose Test Extender .... Part No. :

3690-2

Length :

Height :

Toung Height :

Contacts :

Current Rating :

Voltage Rating :

Receptacle Contacts :

Material :

NEMA Grade :

UL Flammibility Class :

11.00"

4.5"

3.7"

Ni / Gold 36 ea. Side, 0.100" Ctrs

5 amps at 10F'. Rise

200 VDC or AC Peak

Ni / Gold Plated

FR4 Epoxy Glass, 2 oz. Copper

FR4

94V - 0

Description :

Contact fingers at the other end of extender card are gold plated provides low insertion force and positive contact with printed circuit boards

eceptacles have double action phosphor bronze contacts with high quality, long life mounted on top of the extender

Appropriate polarizing keys are supplies with the receptacle

Probe hooks may be attached to tips on receptacles

These also make useful experimental Plugbords

Vector Part No. & Detailed Chart for 3690 Series Test Extenders

Part No.

3690

3690-2

3690-6

3690-8

3690-16

Length

6.5"

11.0"

5.5"

6.5"

Height

4.5"

2.73"

4.5"

Toung

Height

3.6"

3.7"

3.6"

2.3"

3.6"

DIM.

0.46"

0.40"

0.46"

0.22"

0.46"

Contact Strips

22 ea. Side, 0.156" Ctrs

36 ea. Side, 0.100" Ctrs

22 ea. Side, 0.156" Ctrs

22 ea. Side, 0.100" Ctrs

28 ea. Side, 0.125" Ctrs

Width of

Strip

0.092"

0.062"

0.092"

0.062"

Receptacle

Supplied

R644

R636

R644

R644-2

R656

Capacitance Between Front

Strip to Back

9.0 pf

18.0 pf

15.0 pf

9.0 pf

4.5 pf

6.3 pf

8.0 pf

3.2 pf

4.5" pf

email us your requirements

inquire@vectorelect.com

11115 Vanowen St., North Hollywood, CA 91605, USA

Tel.: ( 818 ) 985 8208, ( 800 ) 423 5659; Fax : ( 818 ) 985 7708

Circbord®, Vectorbord® and VectorPak® are registered trademarks of Vector Electronics & Technology, Inc.
