HDP26-24-47SE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HDP26-24-47SE

HDP26-24-47SE: DescriptionPLUG ASM; CategoryThe connector The connector; File Size227KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

HDP26-24-47SE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDP26-24-47SE	-	-	View	Buy Now

HDP26-24-47SE Overview

PLUG ASM

HDP26-24-47SE Parametric

Parameter Name	Attribute value
Brand Name	DEUTSCH
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	9 weeks 6 days
Samacsys Description	PLG, 47P, BLK, E, 16/20, S
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED

Preview

Download Datasheet

View All

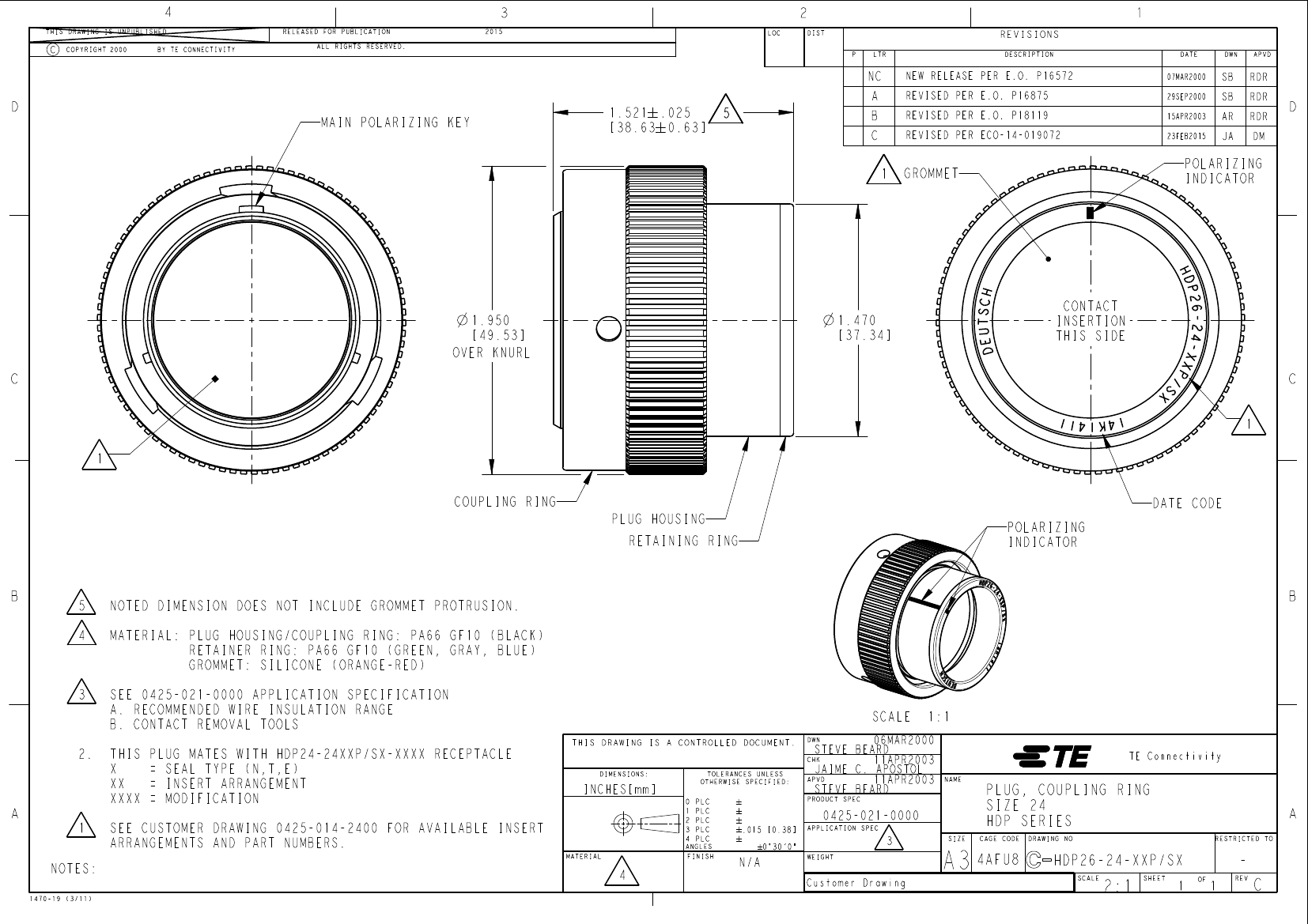

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2015

LOC

DIST

LTR

REVISIONS

DESCRIPTION

DATE

DWN

APVD

BY TE CONNECTIVITY

NEW RELEASE PER E.O. P16572

REVISED PER E.O. P16875

REVISED PER E.O. P18119

REVISED PER ECO-14-019072

07MAR2000

29SEP2000

15APR2003

23FEB2015

RDR

MAIN POLARIZING KEY

1.521 .025

[38.63 0.63 ]

GROMMET

POLARIZING

INDICATOR

1.950

[49.53 ]

OVER KNURL

1.470

[37.34 ]

CONTACT

INSERTION

THIS SIDE

COUPLING RING

DATE CODE

POLARIZING

INDICATOR

PLUG HOUSING

RETAINING RING

NOTED DIMENSION DOES NOT INCLUDE GROMMET PROTRUSION.

MATERIAL: PLUG HOUSING/COUPLING RING: PA66 GF10 (BLACK)

RETAINER RING: PA66 GF10 (GREEN, GRAY, BLUE)

GROMMET: SILICONE (ORANGE-RED)

SEE 0425-021-0000 APPLICATION SPECIFICATION

A. RECOMMENDED WIRE INSULATION RANGE

B. CONTACT REMOVAL TOOLS

THIS

XXXX

PLUG MATES WITH HDP24-24XXP/SX-XXXX RECEPTACLE

= SEAL TYPE (N,T,E)

= INSERT ARRANGEMENT

= MODIFICATION

THIS DRAWING IS A CONTROLLED DOCUMENT.

SCALE

DWN

1:1

TE Connectivity

NAME

DIMENSIONS:

INCHES[mm]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

NOTES:

1470-19 (3/11)

SEE CUSTOMER DRAWING 0425-014-2400 FOR AVAILABLE INSERT

ARRANGEMENTS AND PART NUMBERS.

MATERIAL

ANGLES

PLC

06MAR2000

STEVE BEARD

CHK

11APR2003

JAIME C. APOSTOL

APVD

11APR2003

STEVE BEARD

PRODUCT SPEC

APPLICATION SPEC

.015 [0.38]

0425-021-0000

SIZE

FINISH

N/A

0°30'0"

WEIGHT

Customer Drawing

4AFU8

CAGE CODE

PLUG, COUPLING RING

SIZE 24

HDP SERIES

DRAWING NO

RESTRICTED TO

HDP26-24-XXP/SX

SCALE

2:1

SHEET

REV
