503480-0600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 503480-0600

503480-0600: DescriptionFFC u0026 FPC Connectors .5mm FPC 4P CONN RA SMT B-FLIP DUAL; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

503480-0600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	503480-0600	-	-	View	Buy Now

503480-0600 Overview

FFC u0026 FPC Connectors .5mm FPC 4P CONN RA SMT B-FLIP DUAL

503480-0600 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	306118
Samacsys Pin Count	6
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	503480-0600
Samacsys Released Date	2017-07-18 14:16:08
Is Samacsys	N
Board mount options	FITTING NAIL
body width	0.039 inch
subject depth	0.142 inch
body length	0.185 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Nickel/Gold (Ni/Au)
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	100 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
Durability	10 Cycles
Insulation resistance	50000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	4u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

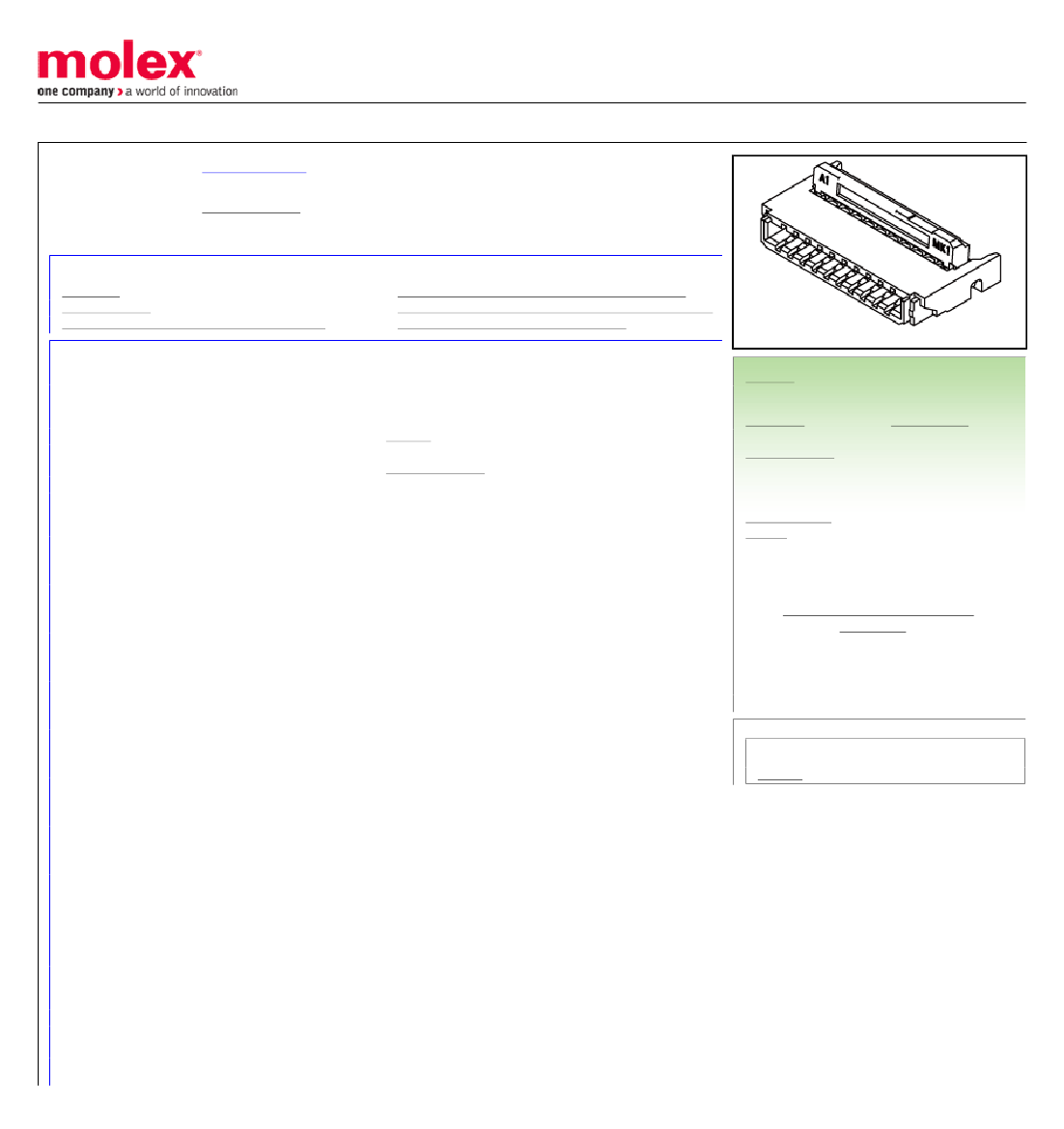

Preview

Download Datasheet

View All

This document was generated on 10/10/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5034800600

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On BackFlip Type FPC Connector, 1.00mm Height, Right Angle,

Surface Mount, Dual Contact Style, 6 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-503480-001 (PDF)

Agency Certification

General

Product Family

Series

Comments

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Material Info

Packaging Specification SPK-503480-001 (PDF)

Packaging Specification SPK-503480-001-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

503480

Black Actuator

FFC-FPC (SMT)

BackFlip, Easy-On

884982040830

Natural (White)

Dual

90° Angle

94V-0

1.00mm

Phosphor Bronze

Gold over Nickel

Liquid Crystal Polymer

27.581/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FPC only

0.5A

50V AC (RMS)/DC

003

REFLOW

002

250

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

503480 Series
