30700-4081

Description
Schottky Diodes u0026 Rectifiers 60V 3A
CategoryThe connector    The connector
File Size30KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

30700-4081 Online Shopping

Suppliers Part Number Price MOQ In stock
30700-4081 - - View Buy Now

30700-4081 Overview

Schottky Diodes u0026 Rectifiers 60V 3A

30700-4081 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Other featuresPOLARIZED
Board mount optionsPEG
body width0.735 inch
subject depth0.854 inch
body length0.714 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialG.F. SYNDIOTACTIC POLYSTYRENE (SPS)
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1GUIDE PIN
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
reliabilityCOMMERCIAL
Shell materialGLASS FILLED SYNDIOTACTIC POLYSTYRENE
Terminal length0.144 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts8
Base Number Matches1
This document was generated on 12/05/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:

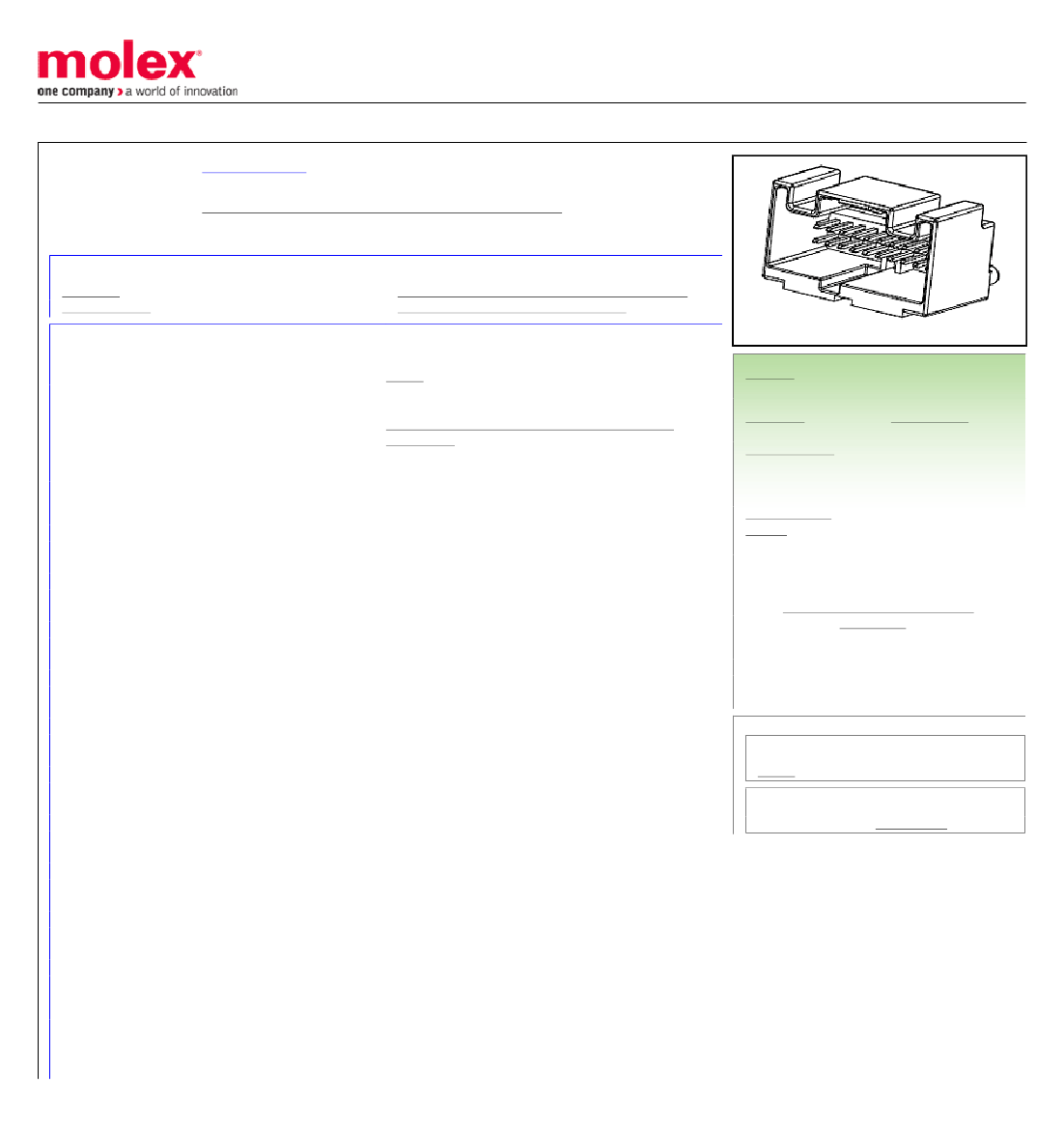

0307004081
Active
H-DAC 64™ Dual-Row High Density Automotive Connectors
2.54mm Pitch, H-DAC 64 High Density Automotive Header, Dual Row, Vertical, 8
Circuits, Polarization Option 2, Black, Tray
Documents:
3D Model
Drawing (PDF)
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Solder Process Data
Product Specification PS-30700-0001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Headers
30700
Power, Wire-to-Board
Polarization Option 2
H-DAC 64™ Dual-Row High Density Automotive
Connectors
H-DAC 64
800756066660
No
8
8
Black
10
No
No
No
None
Yes
Copper
Tin
Nickel
Modified Polystyrene
3.860/g
2
Vertical
3.69mm
Yes
Yes
1.57mm
Tray
2.54mm
Yes
Yes
Fully
No
No
-40°C to +100°C
Through Hole
7.0A
500V DC
EU ELV
Compliant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Relevant
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Not Relevant
Compliant
Not Contained
Search Parts in this Series
30700 Series
Mates With
H-DAC 64 Housing 30700-1081
