8001-4103 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 8001-4103

8001-4103: DescriptionRF Connectors / Coaxial Connectors NSME Socket D38999 Cont Sz8 for .141Cbl; CategoryThe connector; File Size409KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8001-4103 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8001-4103	-	-	View	Buy Now

8001-4103 Overview

RF Connectors / Coaxial Connectors NSME Socket D38999 Cont Sz8 for .141Cbl

8001-4103 Parametric

Parameter Name	Attribute value
Product Category	RF Connectors / Coaxial Connectors
Manufacturer	Amphenol
RoHS	Details
Product	Contacts
RF Series	Size 8
Gender	Socket (Female)
Impedance	50 Ohms
Maximum Frequency	3 GHz
Termination Style	Cable
Orientation	Straight
Mounting Type	Cable
Cable Type	0.141 Conformable
Packaging	Bag
Body Finish	Gold
Body Material	Brass
Contact Material	Beryllium Copper
Contact Plating	Gold
Factory Pack Quantity	50

Preview

Download Datasheet

View All

EXPIRED

MATERIALS:

INSULATORS:

BODY:

BODY &

CONTACT:

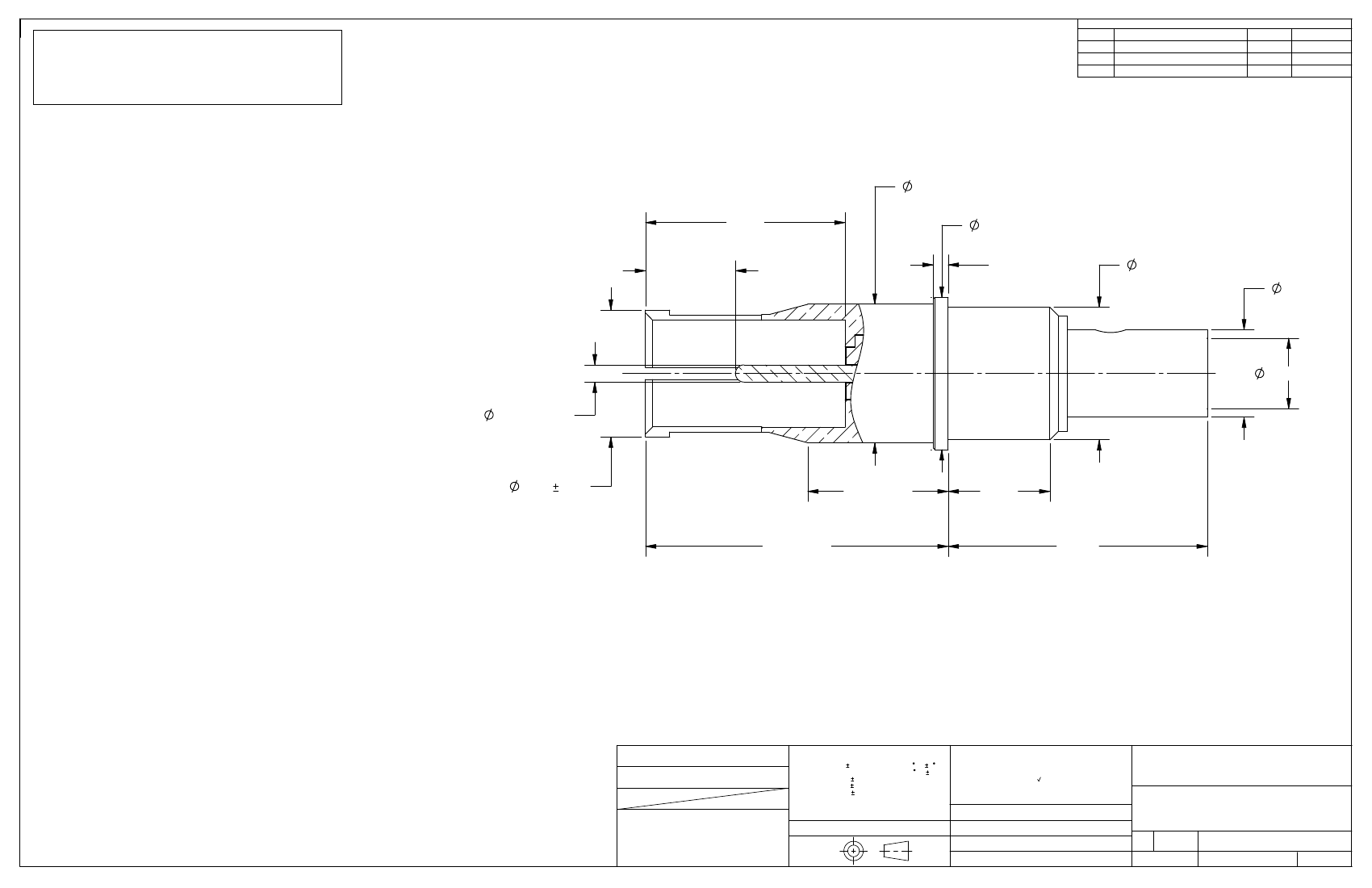

PRODUCT DATA DRAWING

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

REV. DCN 32852

03/05

VMJ

.286±.002

.405

MIN.

+.001

.315

- .002

.031±.002

+.002

.274

- .003

.180

PTFE PER ASTM D1710, TYPE 1,

GRADE 1, CLASS B.

BRASS PER ASTM B16,

ALLOY UNS C36000, H02

BERYLLIUM COPPER PER ASTM B196,

ALLOY C17300, COND. TD04

.0355±.0010

.186±.019

.146±.001

SHRINK TUBING: POLYEFIN PER SAE AMS-DTL-23053/5-106-0

FINISHES:

BODIES &

CONTACT:

GOLD PER ASTM B488, TYPE II,

GRADE C, CLASS 1.27 OVER NICKEL

PER AMS-QQ-N-290 CLASS 1, .00005" MIN.

.263 .002

.290±.020

.198

MIN.

.562

MAX.

ELECTRICAL:

IMPEDANCE:

FREQ. RANGE:

INSUL. RES.:

D.W.V:

VSWR:

INSERTION LOSS:

50 OHMS

DC TO 3 GHz

5,000 MEGOHMS MIN.

1,000 VRMS MIN.

1.20 + .04 X F IN GHz

.11 X SQUARE ROOT OF F(GHz)

.625±.006

(MAX FREQ. CAN BE LIMITED BY CABLE)

REF. AS39029/59 &

MIL-DTL-38999 SERIES III

MATERIAL:

FINISH:

SEE ABOVE

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE AFTER PLATING.

2) BREAK CORNERS & EDGES .005 R. MAX.

3) CHAM. 1ST & LAST THREADS.

4) SURFACE ROUGHNESS 63 MIL-STD-10.

5) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

6) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

PROPRIETARY

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

DRAWN:

CHECKED:

APPROVED:

VMJ 11/30/04

JMC 11/30/04

SIZE 8 SOCKET FOR

T-FLEX 402 CABLE

95077

THIRD ANGLE PROJECTION

SIZE CAGE CODE DWG. NO.

8001-4103

SHEET 1 OF 1

E.M. SIMULATION: N/A

SCALE: 6:1
