55482-1619 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 55482-1619

Preview

55482-1619: DescriptionI/O Connectors Mini Mi2 1RowRelayWa ferAssyW/PnlMut16Ckt; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

55482-1619 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55482-1619	-	-	View	Buy Now

55482-1619 Overview

I/O Connectors Mini Mi2 1RowRelayWa ferAssyW/PnlMut16Ckt

55482-1619 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PANEL MOUNT
Connector type	BOARD CONNECTOR ADAPTER
Contact to complete cooperation	TIN (40)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE-MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
触点数量:侧 1	16
触点数量:侧 2	16
Number of rows loaded	1
Options	GENERAL PURPOSE
direct connection	YES
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

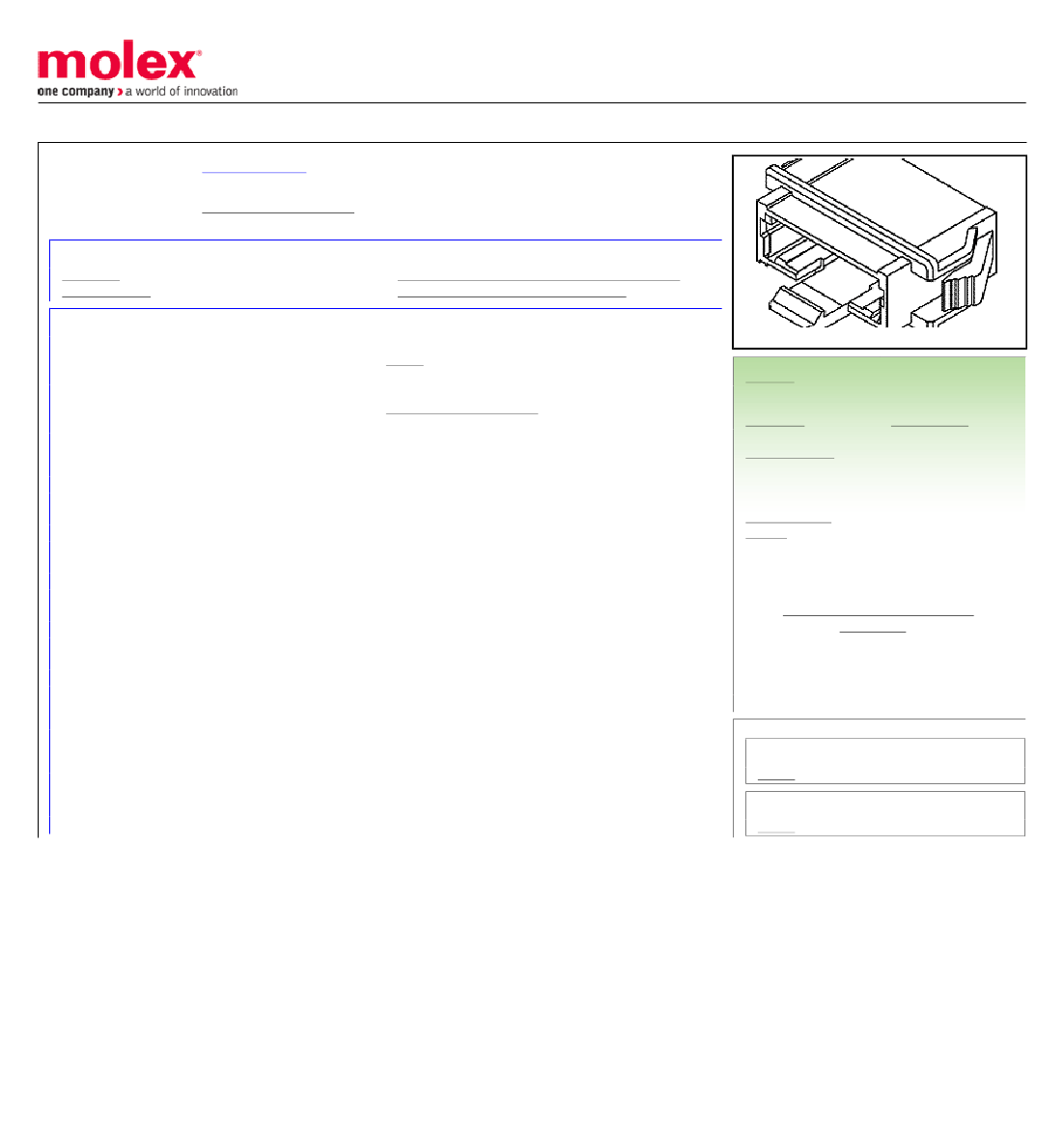

This document was generated on 11/17/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Packaging Type

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Electrical

Current - Maximum per Contact

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-55482-006-001

SD-55482-004

0554821619

Active

Mini Mi II™ Wire Harness

1.25mm Pitch Mini Mi II Wire-to-Wire Adapter, 16 Circuits

Product Specification PS-55482-006-001 (PDF)

RoHS Certificate of Compliance (PDF)

Accessories

55482

For Panel Mounting

Adapter

Mini Mi II™ Wire Harness

Mini Mi II

822348171064

16

Natural

Male

Brass

Tin

Nylon

967.500/mg

1

Bag

1.016µm

-20°C to +80°C

1.5A

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

55482 Series

Use With

54596

This document was generated on 11/17/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
