TX6000
™
Category 6 Copper Cable – UTP
specifications
Category 6 U/UTP cable shall exceed ANSI/TIA-568-C.2
and IEC 61156-5 Category 6 component standards.

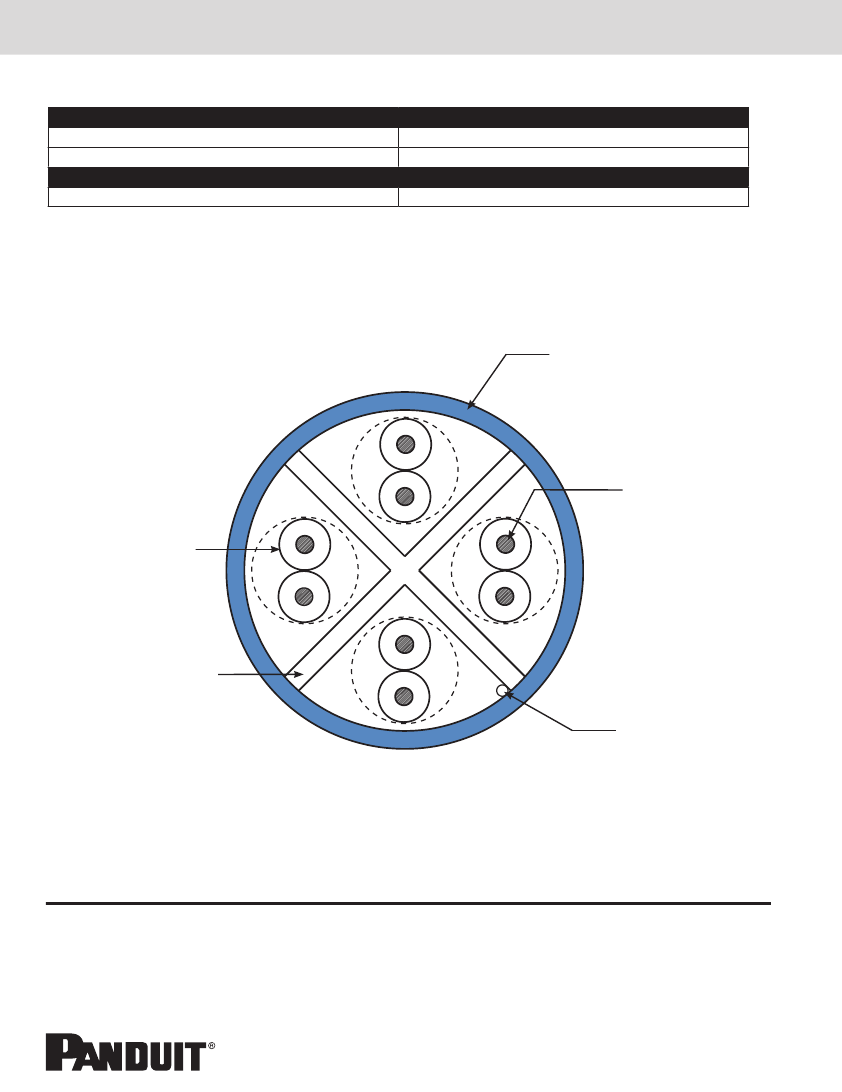

The conductors shall be 23 AWG copper insulated with
HDPE. The copper conductors shall be twisted in pairs,
separated by a cross-divider and covered by a low
smoke zero halogen (LSZH) jacket.
S P e C i f i C aT i o n S H e e T
TX6000
™
UTP
Copper Cabling System
TX6000
™
UTP Copper Cable
LSZH:
PUZ6004*-CEG
Mini-Com
®
TX6
™
PLUS UTP Jack Module
Jack module:
CJ688TGIW**
TX6
™
PLUS
UTP Patch Cords – LSZH
Meter lengths:
UTPSPL^MY
DP6
™
PLUS
Angled Punchdown Patch Panels
24-port, 1 RU:
48-port, 2 RU:
DPA24688TGY
DPA48688TGY
technical information
Electrical
performance:
Certified channel performance in a 4-connector configuration up to
100 meters and exceeds the requirements of ISO 11801 Class E
and ANSI/TIA-568-C.2 Category 6 standards at swept frequencies
up to 250 MHz
Certified component performance up to 100 meters and exceeds the
component requirement of the IEC 61156-5 and ANSI/TIA-568-C.2
Category 6 component standards at swept frequencies up to 250 MHz
Conductors/
insulators:
Flame rating:
PoE compliance:
Installation
tension:
Temperature
rating:
Cable jacket:
Cable diameter:
Cable weight:
Packaging:
23 AWG solid copper insulated with HDPE
LSZH – IEC 60332-3d, IEC 60754-1 and -2, IEC 61034-2
Meets IEEE 802.3af and IEEE 802.3at for PoE applications
110 N (25 lbf) maximum
0°C to 50°C (32°F to 122°F) during installation
-20°C to 75°C (-4°F to 167°F) during operation
LSZH – Low Smoke Zero Halogen
6.2mm (0.244 in.) nominal
13 kg/305m (29 lbs./1000 ft.)
Packaged 305 meters (1000 feet) on a reel
Package tested to ISTA Procedure 1A
DP6
™
PLUS
Flat Punchdown Patch Panels
12-port, 1 RU:
24-port, 1 RU:
48-port, 2 RU:
DP12688TGY
DP24688TGY
DP48688TGY
Mini-Com
®
Angled Flush Mount
Modular Patch Panels
24-port, 1 RU:
48-port, 2 RU:
CPPA24FMWBLY
CPPA48FMWBLY
Mini-Com
®
Flat Flush Mount
Modular Patch Panels
24-port, 1 RU:
48-port, 2 RU:
Termination
tools:
Wire
snipping tool:
Wire
stripping tool:
CPP24FMWBLY
CPP48FMWBLY
Termination and Cable Prep Tools
EGJT or TGJT
CWST
CJAST
key features and benefits
Third party tested
Cable has been tested as part of the TX6000
™
Category 6 U/UTP
Copper Cabling System by an independent laboratory and complies with
the electrical channel requirements of ANSI/TIA-568-C.2 Category 6
and ISO 11801 Class E standards
Separates pairs for exceptional cable performance
Easy identification of remaining cable reduces installation time and
cable scrap
Cable has been characterized to 550 MHz, 300 MHz above
the standard
Ensures proper performance and provides quick installation
Integrated
pair divider
Descending length
cable markings
Tested beyond
the standards
Packaged on a reel
applications
TX6000
™
U/UTP Copper Cable is a component of the Panduit
®
TX6000
™
U/UTP Copper
Cabling System. This end-to-end system provides Gigabit Ethernet performance with usable
bandwidth beyond 250 MHz. With certified performance to the ANSI/TIA-568-C.2 Category 6
and ISO 11801 Class E standards, this system will support the following applications:
• Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)
• 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM
• Token ring 4/16
*To designate color, replace * with suffix
WH (White), BU (Blue), BL (Black), GR (Green),
IG (International Gray), OR (Orange), RD (Red),
VL (Violet), or YL (Yellow)
**To designate color, replace suffix IW
(Off White) with AW (Arctic White), EI (Electric
Ivory), IG (International Gray), WH (White), BL
(Black), OR (Orange), RD (Red), BU (Blue),
GR (Green), YL (Yellow), or VL (Violet).
Add -24 to end of part number for 24-pack
convenience package.
^For lengths 1 to 10 meters (increments of
one meter) and 0.5, 1.5, 2.5, 15, 20 meters,
change the length designation in the part
number to the desired length. For standard
cable colors other than Off White, add suffix
BL (Black), BU (Blue), RD (Red), GR (Green),
YL (Yellow), OR (Orange), or VL (Violet) after
the M in the part number. For example, the part
number for a blue 15-meter patch cord is
UTPSPL15MBUY.
w w w. p and uit.co m
