MKKDSN 1,5/ 5
Order No.: 1726121

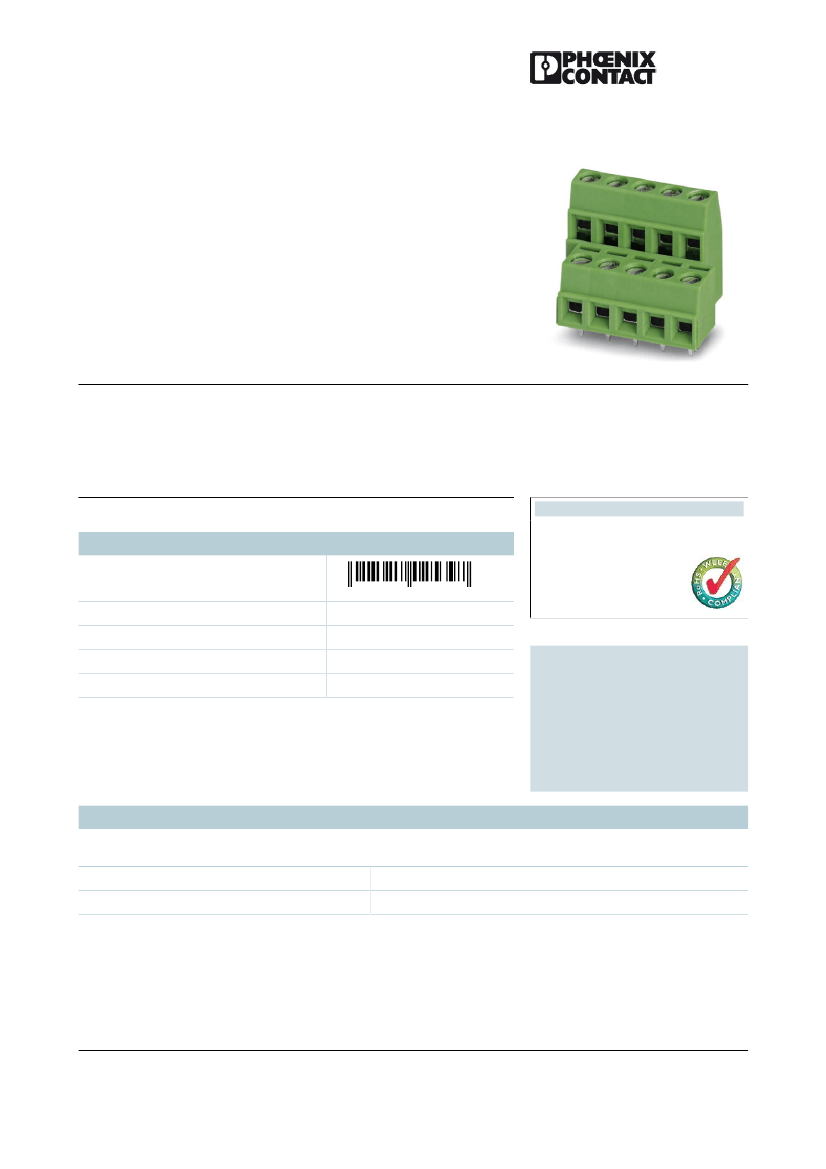

The illustration shows a 5-position version
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1726121
PC terminal block, Nominal current: 13.5 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 5, Type of connection: Screw
connection, Mounting: Soldering, Conductor/PCB connection direction:
0 °, Color: green, The article can be aligned to create different nos. of
positions!
Product notes
Commercial data
GTIN (EAN)
4
017918
025397
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
E020
50 pcs.
85369010
Page 61 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Length
Pitch
18.3 mm
5 mm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Jan 18, 2011
MKKDSN 1,5/ 5
Order No.: 1726121
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1726121
Dimension a
Number of positions
Pin dimensions
Hole diameter
Screw thread
Tightening torque, min
Tightening torque max
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
20 mm
5
0,5 x 1 mm
1.3 mm
M3
0.5 Nm
0.6 Nm
MKKDSN 1,5
I
4 kV
4 kV
4 kV
400 V
630 V
EN-VDE
13.5 A
250 V
1.5 mm²
13.5 A
PA
V0
A1
6 mm
300 V
10 A
300 V
10 A
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Jan 18, 2011
MKKDSN 1,5/ 5
Order No.: 1726121
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1726121
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
Certificates / Approvals
1.5 mm²
0.25 mm²
1.5 mm²
26
16
0.14 mm²
0.75 mm²
0.14 mm²
0.75 mm²
0.25 mm²
0.5 mm²
30
14
Certification
CSA, CUL, GOST, UL
Accessories
Item
Bridges
1733172
1733198
EBP 3- 5
EBP 5- 5
Insertion bridge, fully insulated, for plug connectors with 5.0 or
5.08 mm pitch, no. of positions: 3
Insertion bridge, fully insulated, for plug connectors with 5.0 or
5.08 mm pitch, no. of positions: 5
Designation
Description
General
1733169
EBP 2- 5
Insertion bridge, fully insulated, for plug connectors with 5.0 or
5.08 mm pitch, no. of positions: 2
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Jan 18, 2011
MKKDSN 1,5/ 5
Order No.: 1726121
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1726121
Marking
1051993
0804183
B-STIFT
SK 5/3,8:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Marker card, special printing, self-adhesive, labeled acc. to
customer requirements, 12 identical marker strips per card, max.
25-position labeling per strip, color: white
Marker cards, unprinted, with pitch divisions, self-adhesive, 10-
section marker strips, 12 strips per card, can be labeled with the
M-PEN
0805072
SK 5/3,8:SO
0805409
SK 5/3,8:UNBEDRUCKT
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
Diagrams/Drawings

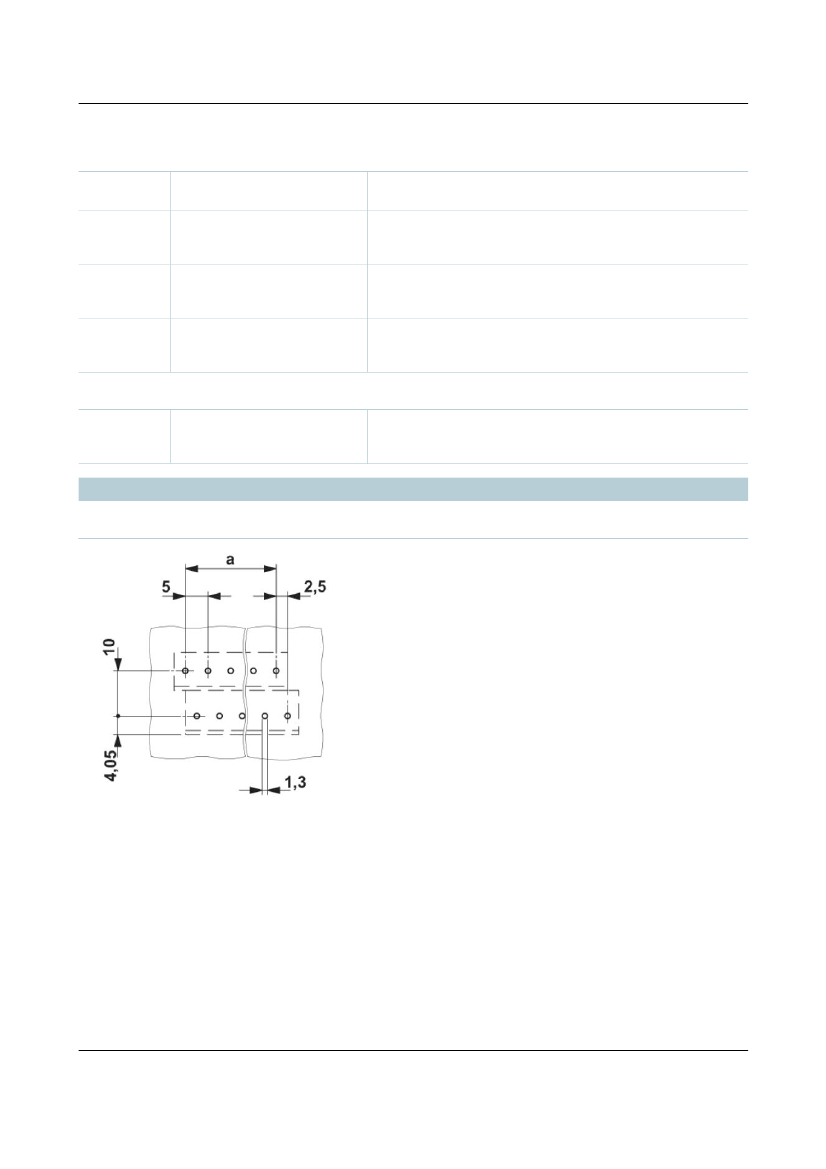

Drilling plan/solder pad geometry
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Jan 18, 2011
MKKDSN 1,5/ 5
Order No.: 1726121
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1726121
Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 6
Jan 18, 2011
