172447-0006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 172447-0006

172447-0006: DescriptionHeaders u0026 Wire Housings FEMALE TERM 20-24; CategoryThe connector; File Size36KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

172447-0006 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	172447-0006	-	-	View	Buy Now

172447-0006 Overview

Headers u0026 Wire Housings FEMALE TERM 20-24

172447-0006 Parametric

Parameter Name	Attribute value
Product Category	Power to the Board
Manufacturer	Molex
RoHS	Details
Contact Gender	Pin (Male)
Current Rating	9 A
Voltage Rating	600 V
Number of Positions	6 Position
Mounting Style	Board Lock
Termination Style	Through Hole
Pitch	4.2 mm
Contact Material	Brass
Contact Plating	Tin
Housing Material	Nylon
Factory Pack Quantity	3840
Unit Weight	0.053758 oz

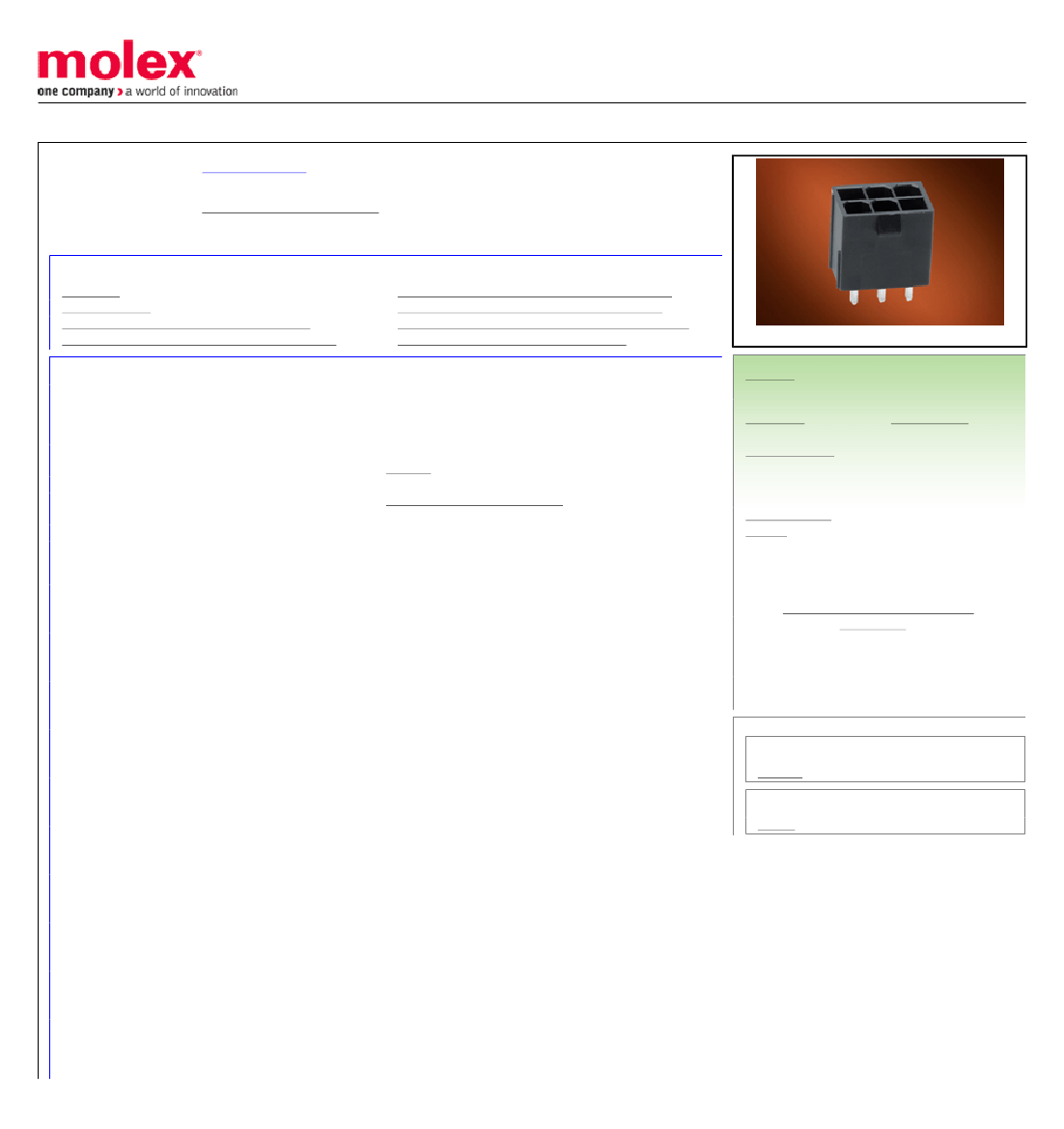

Preview

Download Datasheet

View All

This document was generated on 10/24/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

1724470006

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 6 Circuits,

PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, Glow Wire Capable

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

Product Specification TS-5556-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Product Specification TS-5566-002-001 (PDF)

Packaging Specification PK-5566-001 (PDF)

Packaging Specification PK-5566-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2017 (12

January 2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

172447

Power, Wire-to-Board

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

887191729602

Black

94V-2

Yes

None

Yes

Brass

Tin

Nylon

1.524/g

Vertical

Yes

1.60mm

Tray

4.20mm

Yes

Fully

-40°C to +105°C

Through Hole

Search Parts in this Series

172447 Series

Mates With

46992 Mini-Fit Jr. Receptacle

Recommended Resources
