Plug - UP 4/ 1 - 3060115
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Screw connection, Number of positions: 1, Cross section: 0.2 mm² - 6 mm²,
AWG: 24 - 10, Width: 6.2 mm, Height: 41.2 mm, Color: gray
Product Features
■
■
■
Screw actuation from the side
Conductor connection from above
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
5.22 g
85366990
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
Overvoltage category
1
1
4 mm²
gray
PA
V0
32 A (with 6 mm² conductor cross section)
8 kV
3
III
04/27/2016 Page 1 / 11
https://www.phoenixcontact.com/us/products/3060115
Plug - UP 4/ 1 - 3060115
Technical data
General
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
I
32 A (with 6 mm² conductor cross section)
32 A
800 V
Dimensions
Width
Length
Height
Pitch
6.2 mm
21 mm
41.2 mm
24.80 mm
6.20 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
Screw connection
IEC 61984
0.2 mm²
6 mm²
24
10
0.2 mm²
6 mm²
24
10
0.25 mm²
4 mm²
0.25 mm²
4 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
0.25 mm²
1.5 mm²
9 mm
04/27/2016 Page 2 / 11
https://www.phoenixcontact.com/us/products/3060115
Plug - UP 4/ 1 - 3060115
Technical data
Connection data
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
A4
M3
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 61984
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27141120
27141120
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
04/27/2016 Page 3 / 11
https://www.phoenixcontact.com/us/products/3060115
Plug - UP 4/ 1 - 3060115

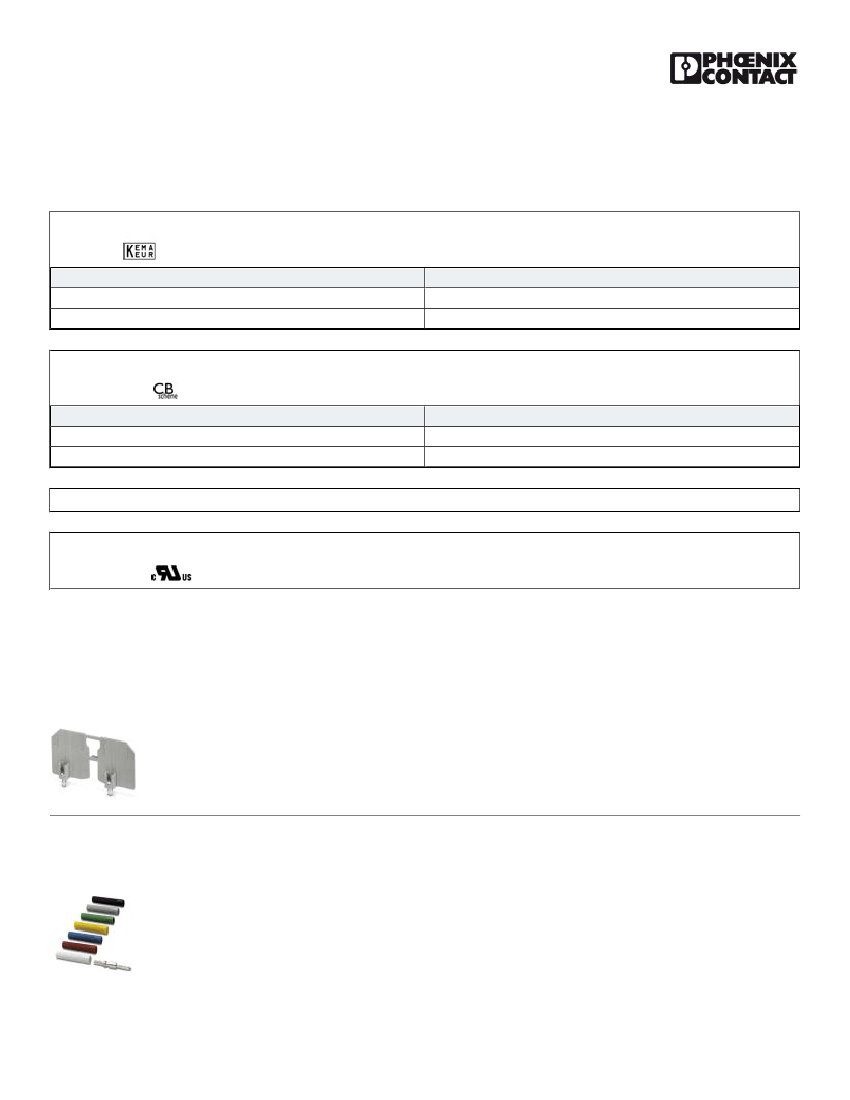

Approvals
KEMA-KEUR
Nominal current IN
Nominal voltage UN
32 A
800 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
32 A
800 V
EAC
cULus Recognized
Accessories
Accessories
End cover
Flange cover - DF-UP 4 - 3060348
Flange cover, Length: 47 mm, Width: 4.5 mm, Height: 24.7 mm, Color: gray
Insulating sleeve
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
04/27/2016 Page 5 / 11
