PCB terminal block - SMKDS 1/ 9-3,5 - 1751167
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

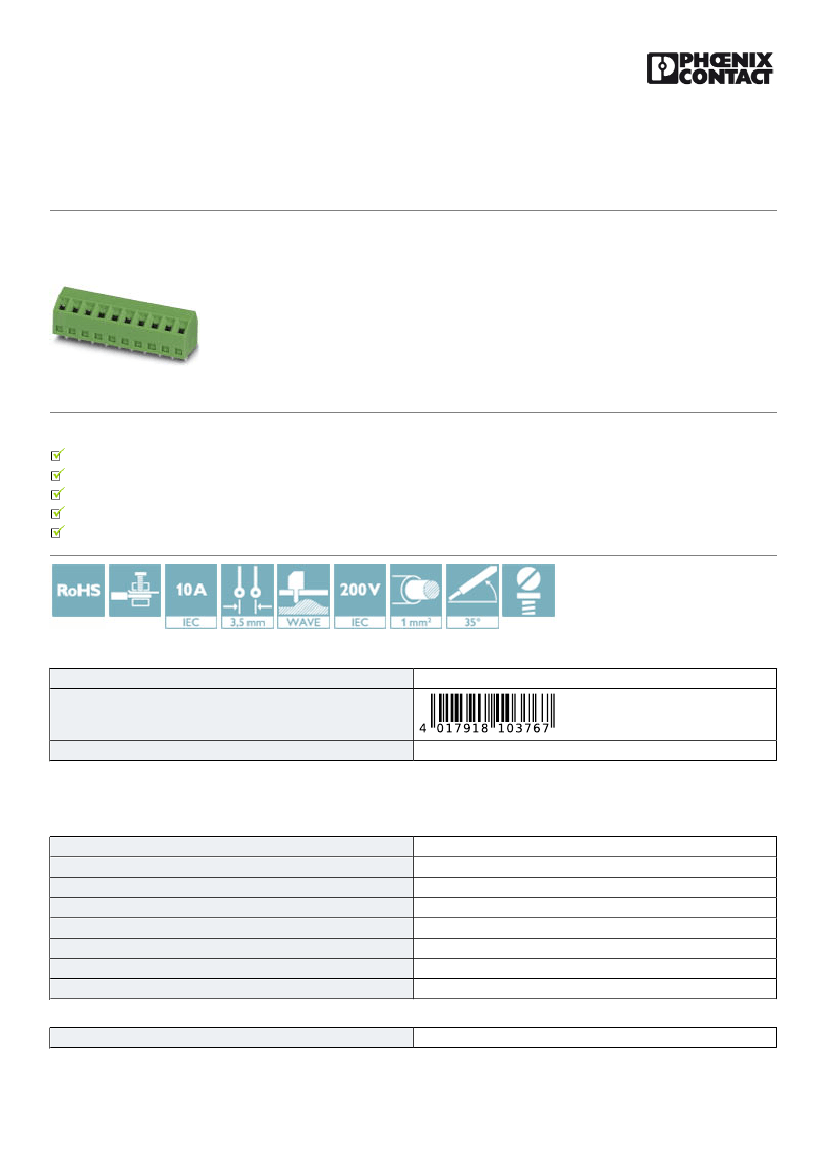

PCB terminal block, nominal current: 10 A, nom. voltage: 200 V, pitch: 3.5 mm, number of positions: 9,
connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB
connection direction: 35 °, color: green
The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Angled connection enables multi-row arrangement on the PCB
Extremely small design for the respective conductor cross section
Key Commercial Data
Packing unit
GTIN
GTIN
4017918103767
100 pc
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Hole diameter
10 mm
3.5 mm
28 mm
32 mm
9.5 mm
13 mm
3.5 mm
1.1 mm
General
Range of articles
SMKDS 1
11/11/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/1751167
PCB terminal block - SMKDS 1/ 9-3,5 - 1751167
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
I
2.5 kV
2.5 kV
2.5 kV
160 V
200 V
400 V
EN-VDE
10 A
1 mm²
12 A
PA
V0
5 mm
9
M2
0.22 Nm
0.25 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
0.25 mm²
0.25 mm²
0.5 mm²
26
16
0.14 mm²
0.5 mm²
0.14 mm²
0.2 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 0.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
11/11/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/1751167
PCB terminal block - SMKDS 1/ 9-3,5 - 1751167
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

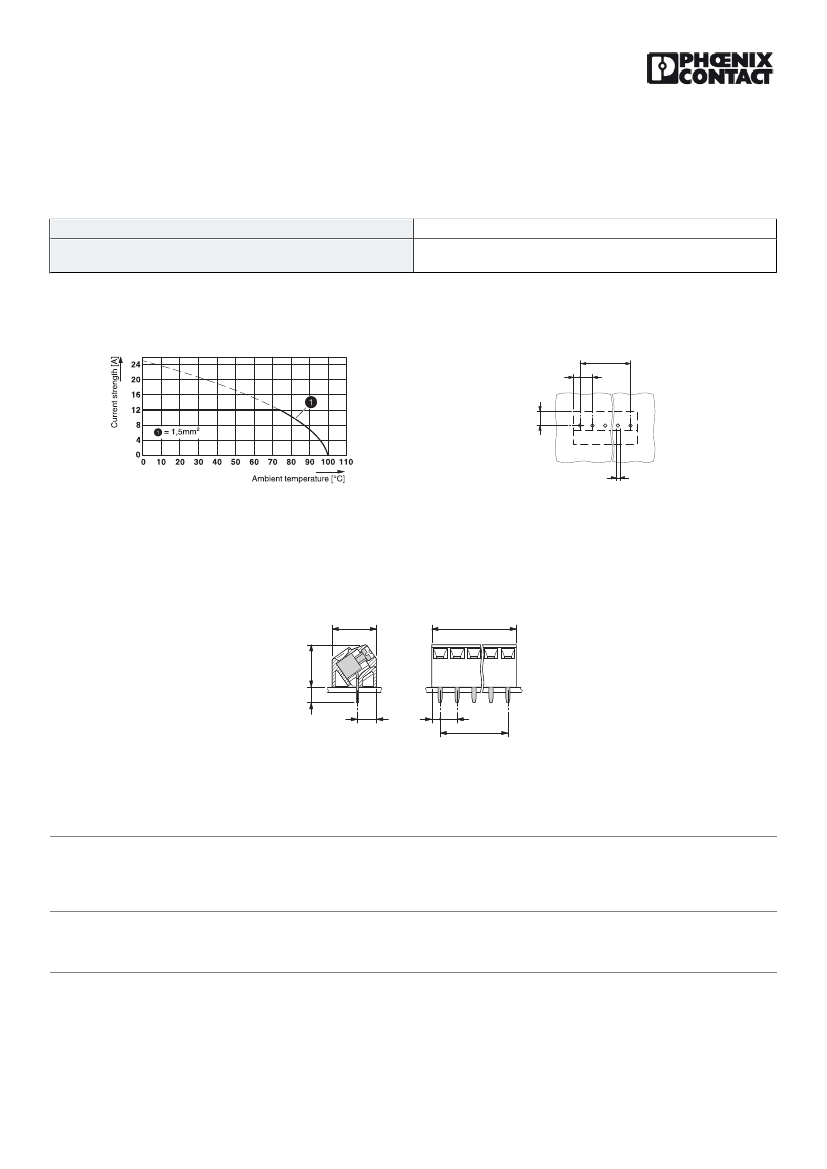

Drawings
Diagram
Drilling diagram
a
2
3,5
4,3
1,1
Type: SMKDS 1/5-3,5
Tested according to DIN EN 60512-5-2:2003-01
Reduction factor = 1
Number of positions: 5
Dimensional drawing
10
a+4
3,5
9,5
4,3
2
3,5
a
Approvals
Approvals
Approvals
CSA / IECEE CB Scheme / SEV / EAC / cULus Recognized
Ex Approvals
Approval details
11/11/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/1751167
PCB terminal block - SMKDS 1/ 9-3,5 - 1751167
Approvals
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
28-16
http://www.csagroup.org/services-industries/product-listing/
B
150 V
10 A
28-16
13631
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
CH-8225
125 V
12 A
1.5
SEV
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html
125 V
12 A
1.5
IK-3542-M1
EAC
D
300 V
10 A
30-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
B
300 V
10 A
30-16
11/11/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/1751167
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 5 / 5
