NP-15034 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> NP-15034

NP-15034: DescriptionStandard Circular Connector NEPTUNE PLUG 150 AMP 3P 4W; CategoryThe connector; File Size2MB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

NP-15034 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NP-15034	-	-	View	Buy Now

NP-15034 Overview

Standard Circular Connector NEPTUNE PLUG 150 AMP 3P 4W

NP-15034 Parametric

Parameter Name	Attribute value
Product Category	Standard Circular Connector
Manufacturer	Amphenol
Product	Plugs
Number of Positions	3p4w
Contact Gender	Pin (Male)
Shell Material	Anodic
Current Rating	150 A
Wire Gauge	2-1/0

Preview

Download Datasheet

View All

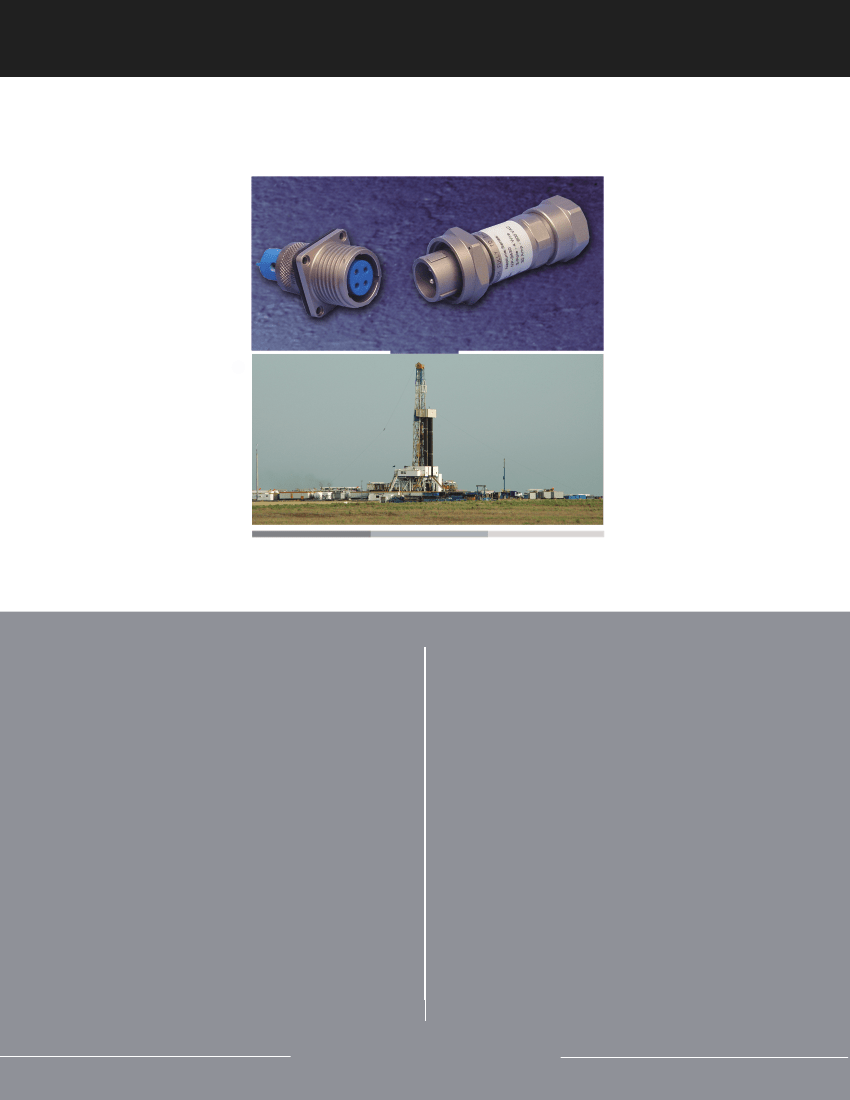

IDS-32

Amphenol

NEPTUNE

Rugged Environment

Connector featuring RADSOK

Contacts.

Amphenol Industrial Operations introduces a new power

connector family featuring Amphenol’s exclusive RADSOK

contact system. The new NEPTUNE

connector series is

designed to perform in the most demanding environments.

NEPTUNE

incorporates our RADSOK

contact technology.

The RADSOK

system is a patented electrical terminal based

on a hyperbolic grid configuration. As a male pin is inserted,

the grid deflects, imparting high normal forces. The hyperbolic

configuration ensures a large coaxial, face-to-face

engagement area for a low milli-volt drop connection with low

insertion force. The stamped grid and cylinder are very rugged,

allowing for a high quantity of insertion cycles and off axis

insertions.

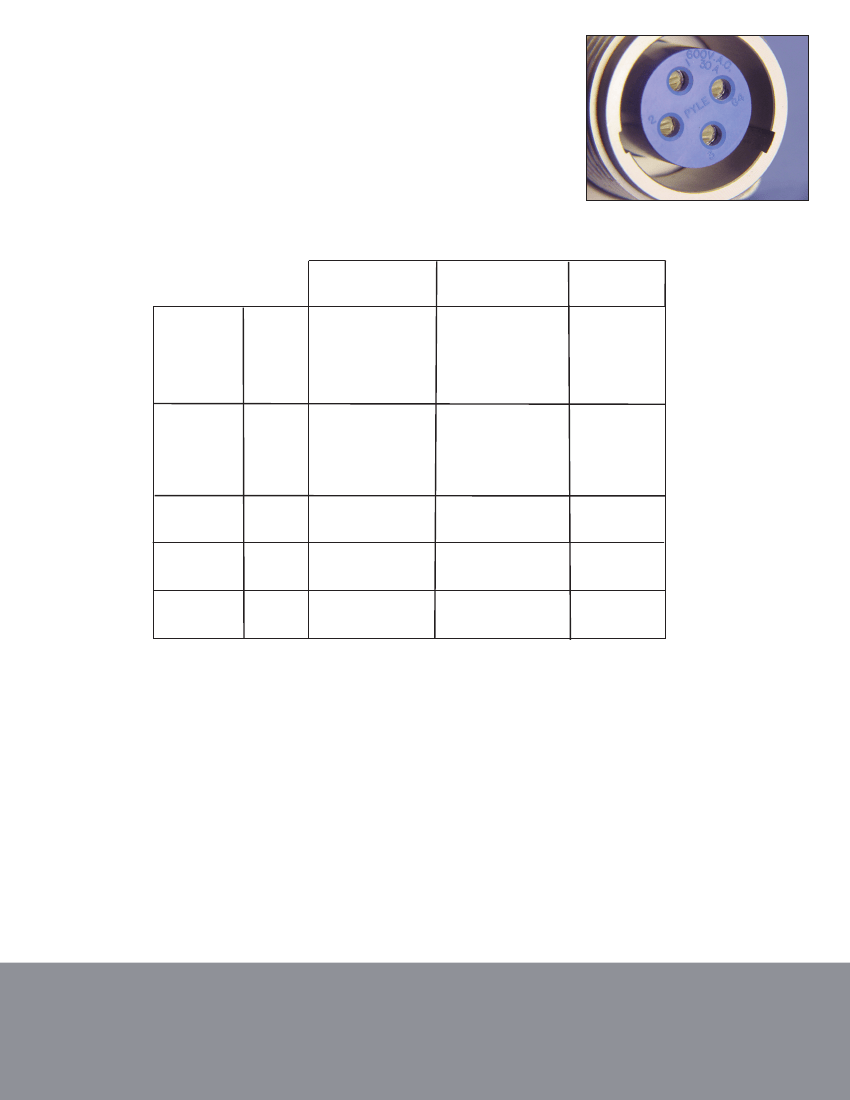

Features:

• RADSOK contacts provide increased amperage in smaller

package

• 30 Amp through 400 Amp/600 Volt inserts available

• Decreased weight & panel layout compared to the competition

• Double lead Acme threads for easy coupling

• Machined contacts designed for longer life/mating cycles

• RADSOKs allow for lower insertion forces than standard contacts

• Three key design to limit cross-mating

• Machined aluminum dust cap for environmental protection

• Plugs utilize mechanical clamp strain relief

• VFD rated inserts

• U.L. approval pending

www.amphenol-industrial.com
