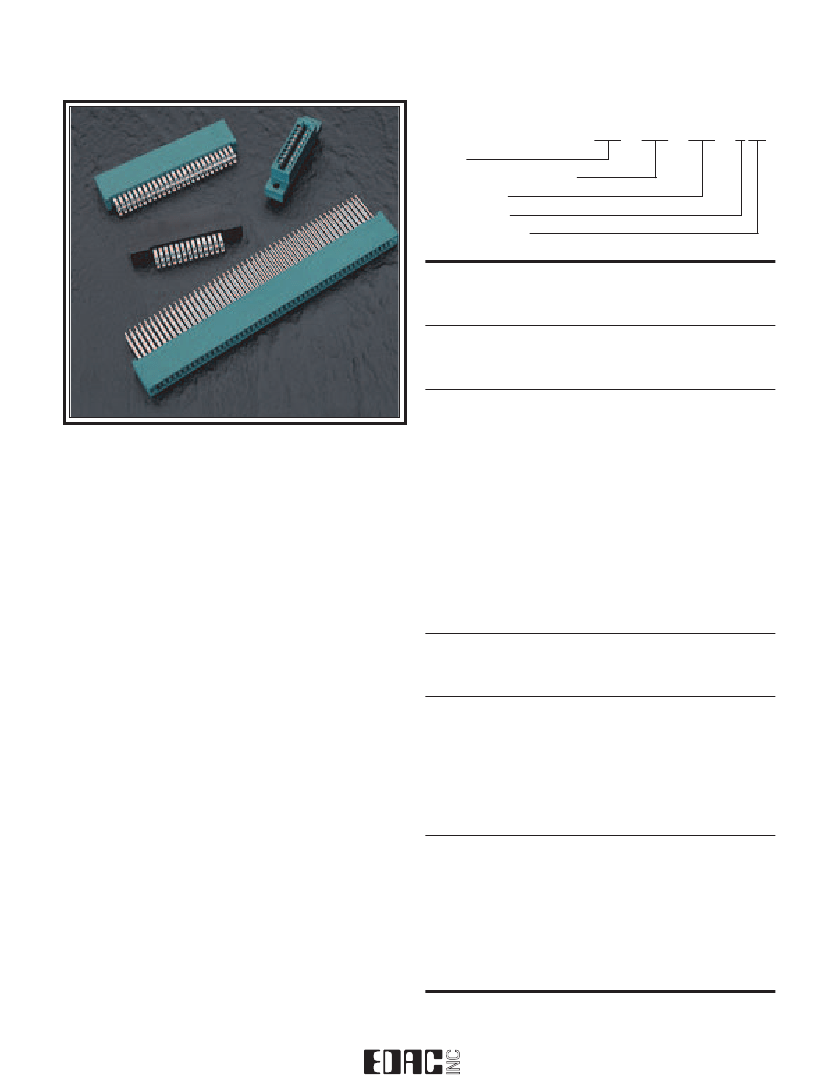

342/392 SERIES CARD EDGE CONNECTOR
.100" (2.54mm) Contact Spacing
Example Part Number 342 - 100 - 541 - 2 02
Series
Total Number of Contacts
Contact Code
Contact Rows
Mounting Options
Series
342
392
Total Number of Contacts
1
005, 006,...058
010, 012,...116
Insulator Colour
Green
Black
Contact Rows
Single Row
Dual Row
342/392 SERIES ORDERING CODE
UL Recognized
.100 (2.54) Contact Spacing x .200 (5.08) Row Spacing
Accepts .062 (1.57) Nominal Thickness P.C. Board
High Profile Insulator Body, .590 (14.99)
Contact Termination Options include P.C. Tail, Wire Hole,
Wire Wrap, 90 Degree & Extender Board Bends
●
Single or Dual Row Configurations
●
Variety of Mounting Options
●
Accepts Between Contact and In-Contact Polarizing Keys
●
Design based on Requirements of HE 901 Specification
●
●
●
●
●
FEATURES
Contact Code
2, 3
Description & Tail Size
Tail Length "G"
Wire Hole .050 x .025 (1.27 x 0.64)
.270 (6.86)
500
520
P.C. Tail .030 x .018 (0.76 x 0.46)
.185 (4.70)
P.C. Tail .025 Square (0.64 Square) .160 (4.06)
521
P.C. Tail .025 Square (0.64 Square) .400 (10.16)
523
524
P.C. Tail .018 Square (0.46 Square) .185 (4.70)
Wire Wrap .025 Square (0.64 Square) .570 (14.48)
540
541
Wire Wrap .025 Square (0.64 Square) .760 (19.30)
Wire Wrap .025 Square (0.64 Square) .655 (16.64)
542
Wire Wrap .050 x .025 (1.27 x 0.64)
.760 (19.30)
544
555
Extender Board Bend (Code 500 Contacts)
Extender Board Bend (Code 520 Contacts)
556
90 Degree Bend (Code 541 Contacts)
558
90 Degree Bend (Code 541 Contacts)
559
Extender Board Bend (Code 523 Contacts)
560
Contact Rows
1
2
Mounting Options
4
01
02
03
04
07
08
12
Description
Single Row
Dual Row
Description
No Mounting Lugs
.128 (3.25) Wide Mounting Slots
.116 (2.95) I.D. Floating Eyelets
.156 (3.96) Dia. Mounting Holes
M3-0.5 Metric Threaded Inserts
#4-40 Unified Threaded Inserts
.128 (3.25) Dia. Side Mounting Holes
◆
Insulator Material: Thermoplastic Polyester, UL 94V-0
◆
Contact Material: Copper, Nickel, Tin Alloy CA-725
◆
Contact Plating: Gold on the Mating Area, Tin on the
Contact Tails, Nickel Underplate
◆
Current Rating: 3 Amperes Continuous
◆
Contact Resistance: 10 Milliohms Maximum
◆
Dielectric Withstanding Voltage: 1200 V AC rms at Sea Level
Between Adjacent Contacts
◆
Insulation Resistance: 5000 Megohms Minimum
◆
Operating Temperature: -65 to +105 Degrees C
◆
Insertion Force: 16 oz (4.45 N) Maximum per Contact Pair
when Tested with a .070 (1.78) Thick Gauge
◆
Withdrawal Force: 1 oz (0.28 N) Minimum per Contact Pair
when Tested with a .054 (1.37) Thick Gauge
SPECIFICATIONS
Ordering Code Notes
1) All connector sizes up to 58 contacts single row / 116
contacts dual row are available upon request.
2) The 500 contact code is only available in the 342 series.
Green polyphenylene sulphide insulator material will be
supplied.
3) For details of the extender board and 90 degree bends, refer
to page 66.
4) For details of the mounting options, refer to page 68.
Page 28
Tel: (416) 754 - 3322
CARD EDGE CONNECTOR SERIES 342/392
Contact Spacing .100" (2.54mm)
NUMBER OF CONTACTS
Single
5
10
13
15
18
22
25
30
31
35
36
43
50
58
Dual
10
20
26
30
36
44
50
60
62
70
72
86
100
116
Inch
1.300
1.800
2.100
2.300
2.600
3.000
3.300
3.800
3.900
4.300
4.400
5.100
5.800
6.600
"A"
(mm)
(33.02)
(45.72)
(53.34)
(58.42)
(66.04)
(76.20)
(83.82)
(96.52)
(99.06)
(109.22)
(111.76)
(129.54)
(147.32)
(167.64)
Inch
1.022
1.522
1.822
2.022
2.322
2.722
3.022
3.522
3.622
4.022
4.122
4.822
5.522
6.322
"B"
(mm)
(25.96)
(38.66)
(46.28)
(51.36)
(58.98)
(69.14)
(76.76)
(89.46)
(92.00)
(102.16)
(104.70)
(122.48)
(140.26)
(160.58)
Inch
.746
1.246
1.546
1.746
2.046
2.446
2.746
3.246
3.346
3.746
3.846
4.546
5.246
6.046
"C"
(mm)
(18.95)
(31.65)
(39.27)
(44.35)
(51.97)
(62.13)
(69.75)
(82.45)
(84.99)
(95.15)
(97.69)
(115.47)
(133.25)
(153.57)
Inch
.600
1.100
1.400
1.600
1.900
2.300
2.600
3.100
3.200
3.600
3.700
4.400
5.100
5.900
"D"
(mm)
(15.24)
(27.94)
(35.56)
(40.64)
(48.26)
(58.42)
(66.04)
(78.74)
(81.28)
(91.44)
(93.98)
(111.76)
(129.54)
(149.86)
Inch
.400
.900
1.200
1.400
1.700
2.100
2.400
2.900
3.000
3.400
3.500
4.200
4.900
5.700
"E"
(mm)
(10.16)
(22.86)
(30.48)
(35.56)
(43.18)
(53.34)
(60.96)
(73.66)
(76.20)
(86.36)
(88.90)
(106.68)
(124.46)
(144.78)
Dimensions of Other Connector Sizes are Listed on Page 72
Fax: (416) 754 - 3299
Page 29
.100" (2.54mm) CONTACT SPACING CONNECTOR DIMENSIONS
325, 340, 341, 342, 345, 391, 392, 395, 745 Series Card Edge Connectors
DIMENSION
SERIES
Number of
Contacts
Single Dual
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
"A"
340
341, 391
342, 392
345, 395
325
340
"B"
341, 391
345, 395
342, 392
325
Inch
1.355
1.455
1.555
1.655
1.755
1.855
1.955
2.055
2.155
2.255
2.355
2.455
2.555
2.655
2.755
2.855
2.955
3.055
3.155
3.255
3.355
3.455
3.555
3.655
3.755
3.855
3.955
4.055
4.155
4.255
4.355
4.455
4.555
4.655
4.755
4.855
4.955
5.055
5.155
5.255
5.355
5.455
5.555
5.655
5.755
5.855
5.955
6.055
6.155
6.255
6.355
6.455
6.555
6.655
6.755
6.855
6.955
(mm)
(34.42)
(36.96)
(39.50)
(42.04)
(44.58)
(47.12)
(49.66)
(52.20)
(54.74)
(57.28)
(59.82)
(62.36)
(64.90)
(67.44)
(69.98)
(72.52)
(75.06)
(77.60)
(80.14)
(82.68)
(85.22)
(87.76)
(90.30)
(92.84)
(95.38)
(97.92)
(100.46)
(103.00)
(105.54)
(108.08)
(110.62)
(113.16)
(115.70)
(118.24)
(120.78)
(123.32)
(125.86)
(128.40)
(130.94)
(133.48)
(136.02)
(138.56)
(141.10)
(143.64)
(146.18)
(148.72)
(151.26)
(153.80)
(156.34)
(158.88)
(161.42)
(163.96)
(166.50)
(169.04)
(171.58)
(174.12)
(176.66)
Inch
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
3.700
3.800
3.900
4.000
4.100
4.200
4.300
4.400
4.500
4.600
4.700
4.800
4.900
5.000
5.100
5.200
5.300
5.400
5.500
5.600
5.700
5.800
5.900
6.000
6.100
6.200
6.300
6.400
6.500
6.600
6.700
6.800
6.900
7.000
7.100
7.200
7.300
7.400
(mm)
(48.26)
(50.80)
(53.34)
(55.88)
(58.42)
(60.96)
(63.50)
(66.04)
(68.58)
(71.12)
(73.66)
(76.20)
(78.74)
(81.28)
(83.82)
(86.36)
(88.90)
(91.44)
(93.98)
(96.52)
(99.06)
(101.60)
(104.14)
(106.68)
(109.22)
(111.76)
(114.30)
(116.84)
(119.38)
(121.92)
(124.46)
(127.00)
(129.54)
(132.08)
(134.62)
(137.16)
(139.70)
(142.24)
(144.78)
(147.32)
(149.86)
(152.40)
(154.94)
(157.48)
(160.02)
(162.56)
(165.10)
(167.64)
(170.18)
(172.72)
(175.26)
(177.80)
(180.34)
(182.88)
(185.42)
(187.96)
Inch
1.375
1.475
1.575
1.675
1.775
1.875
1.975
2.075
2.175
2.275
2.375
2.475
2.575
2.675
2.775
2.875
2.975
3.075
3.175
3.275
3.375
3.475
3.575
3.675
3.775
3.875
3.975
4.075
4.175
4.275
4.375
4.475
4.575
4.675
4.775
4.875
4.975
5.075
5.175
5.275
5.375
5.475
5.575
5.675
5.775
5.875
5.975
6.075
6.175
6.275
6.375
6.475
6.575
6.675
6.775
6.875
(mm)
(34.93)
(37.47)
(40.01)
(42.55)
(45.09)
(47.63)
(50.17)
(52.71)
(55.25)
(57.79)
(60.33)
(62.87)
(65.41)
(67.95)
(70.49)
(73.03)
(75.57)
(78.11)
(80.65)
(83.19)
(85.73)
(88.27)
(90.81)
(93.35)
(95.89)
(98.43)
(100.97)
(103.51)
(106.05)
(108.59)
(111.13)
(113.67)
(116.21)
(118.75)
(121.29)
(123.83)
(126.37)
(128.91)
(131.45)
(133.99)
(136.53)
(139.07)
(141.61)
(144.15)
(146.69)
(149.23)
(151.77)
(154.31)
(156.85)
(159.39)
(161.93)
(164.47)
(167.01)
(169.55)
(172.09)
(174.63)
Inch
1.300
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
3.700
3.800
3.900
4.000
4.100
4.200
4.300
4.400
4.500
4.600
4.700
4.800
4.900
5.000
5.100
5.200
5.300
5.400
5.500
5.600
5.700
5.800
5.900
6.000
6.100
6.200
6.300
6.400
6.500
6.600
(mm)
(33.02)
(35.56)
(38.10)
(40.64)
(43.18)
(45.72)
(48.26)
(50.80)
(53.34)
(55.88)
(58.42)
(60.96)
(63.50)
(66.04)
(68.58)
(71.12)
(73.66)
(76.20)
(78.74)
(81.28)
(83.82)
(86.36)
(88.90)
(91.44)
(93.98)
(96.52)
(99.06)
(101.60)
(104.14)
(106.68)
(109.22)
(111.76)
(114.30)
(116.84)
(119.38)
(121.92)
(124.46)
(127.00)
(129.54)
(132.08)
(134.62)
(137.16)
(139.70)
(142.24)
(144.78)
(147.32)
(149.86)
(152.40)
(154.94)
(157.48)
(160.02)
(162.56)
(165.10)
(167.64)
Inch
1.335
1.435
1.535
1.635
1.735
1.835
1.935
2.035
2.135
2.235
2.335
2.435
2.535
2.635
2.735
2.835
2.935
3.035
3.135
3.235
3.335
3.435
3.535
3.635
3.735
3.835
3.935
4.035
4.135
4.235
4.335
4.435
4.535
4.635
4.735
4.835
4.935
5.035
5.135
5.235
5.335
5.435
5.535
5.635
5.735
5.835
5.935
6.035
6.135
6.235
6.335
6.435
6.535
6.635
6.735
6.835
6.935
7.035
7.135
7.235
7.335
7.435
7.535
7.635
7.735
7.835
7.935
8.035
(mm)
(33.91)
(36.45)
(38.99)
(41.53)
(44.07)
(46.61)
(49.15)
(51.69)
(54.23)
(56.77)
(59.31)
(61.85)
(64.39)
(66.93)
(69.47)
(72.01)
(74.55)
(77.09)
(79.63)
(82.17)
(84.71)
(87.25)
(89.79)
(92.33)
(94.87)
(97.41)
(99.95)
(102.49)
(105.03)
(107.57)
(110.11)
(112.65)
(115.19)
(117.73)
(120.27)
(122.81)
(125.35)
(127.89)
(130.43)
(132.97)
(135.51)
(138.05)
(140.59)
(143.13)
(145.67)
(148.21)
(150.75)
(153.29)
(155.83)
(158.37)
(160.91)
(163.45)
(165.99)
(168.53)
(171.07)
(173.61)
(176.15)
(178.69)
(181.23)
(183.77)
(186.31)
(188.85)
(191.39)
(193.93)
(196.47)
(199.01)
(201.55)
(204.09)
Inch
1.056
1.156
1.256
1.356
1.456
1.556
1.656
1.756
1.856
1.956
2.056
2.156
2.256
2.356
2.456
2.556
2.656
2.756
2.856
2.956
3.056
3.156
3.256
3.356
3.456
3.556
3.656
3.756
3.856
3.956
4.056
4.156
4.256
4.356
4.456
4.556
4.656
4.756
4.856
4.956
5.056
5.156
5.256
5.356
5.456
5.556
5.656
5.756
5.856
5.956
6.056
6.156
6.256
6.356
6.456
6.556
6.656
(mm)
(26.82)
(29.36)
(31.90)
(34.44)
(36.98)
(39.52)
(42.06)
(44.60)
(47.14)
(49.68)
(52.22)
(54.76)
(57.30)
(59.84)
(62.38)
(64.92)
(67.46)
(70.00)
(72.54)
(75.08)
(77.62)
(80.16)
(82.70)
(85.24)
(87.78)
(90.32)
(92.86)
(95.40)
(97.94)
(100.48)
(103.02)
(105.56)
(108.10)
(110.64)
(113.18)
(115.72)
(118.26)
(120.80)
(123.34)
(125.88)
(128.42)
(130.96)
(133.50)
(136.04)
(138.58)
(141.12)
(143.66)
(146.20)
(148.74)
(151.28)
(153.82)
(156.36)
(158.90)
(161.44)
(163.98)
(166.52)
(169.06)
Inch
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
3.700
3.800
3.900
4.000
4.100
4.200
4.300
4.400
4.500
4.600
4.700
4.800
4.900
5.000
5.100
5.200
5.300
5.400
5.500
5.600
5.700
5.800
5.900
6.000
6.100
6.200
6.300
6.400
6.500
6.600
6.700
6.800
6.900
(mm)
(35.56)
(38.10)
(40.64)
(43.18)
(45.72)
(48.26)
(50.80)
(53.34)
(55.88)
(58.42)
(60.96)
(63.50)
(66.04)
(68.58)
(71.12)
(73.66)
(76.20)
(78.74)
(81.28)
(83.82)
(86.36)
(88.90)
(91.44)
(93.98)
(96.52)
(99.06)
(101.60)
(104.14)
(106.68)
(109.22)
(111.76)
(114.30)
(116.84)
(119.38)
(121.92)
(124.46)
(127.00)
(129.54)
(132.08)
(134.62)
(137.16)
(139.70)
(142.24)
(144.78)
(147.32)
(149.86)
(152.40)
(154.94)
(157.48)
(160.02)
(162.56)
(165.10)
(167.64)
(170.18)
(172.72)
(175.26)
Inch
1.075
1.175
1.275
1.375
1.475
1.575
1.675
1.775
1.875
1.975
2.075
2.175
2.275
2.375
2.475
2.575
2.675
2.775
2.875
2.975
3.075
3.175
3.275
3.375
3.475
3.575
3.675
3.775
3.875
3.975
4.075
4.175
4.275
4.375
4.475
4.575
4.675
4.775
4.875
4.975
5.075
5.175
5.275
5.375
5.475
5.575
5.675
5.775
5.875
5.975
6.075
6.175
6.275
6.375
6.475
6.575
6.675
6.775
6.875
6.975
7.075
7.175
7.275
7.375
7.475
7.575
7.675
7.775
(mm)
(27.31)
(29.85)
(32.39)
(34.93)
(37.47)
(40.01)
(42.55)
(45.09)
(47.63)
(50.17)
(52.71)
(55.25)
(57.79)
(60.33)
(62.87)
(65.41)
(67.95)
(70.49)
(73.03)
(75.57)
(78.11)
(80.65)
(83.19)
(85.73)
(88.27)
(90.81)
(93.35)
(95.89)
(98.43)
(100.97)
(103.51)
(106.05)
(108.59)
(111.13)
(113.67)
(116.21)
(118.75)
(121.29)
(123.83)
(126.37)
(128.91)
(131.45)
(133.99)
(136.53)
(139.07)
(141.61)
(144.15)
(146.69)
(149.23)
(151.77)
(154.31)
(156.85)
(159.39)
(161.93)
(164.47)
(167.01)
(169.55)
(172.09)
(174.63)
(177.17)
(179.71)
(182.25)
(184.79)
(187.33)
(189.87)
(192.41)
(194.95)
(197.49)
Inch
1.022
1.122
1.222
1.322
1.422
1.522
1.622
1.722
1.822
1.922
2.022
2.122
2.222
2.322
2.422
2.522
2.622
2.722
2.822
2.922
3.022
3.122
3.222
3.322
3.422
3.522
3.622
3.722
3.822
3.922
4.022
4.122
4.222
4.322
4.422
4.522
4.622
4.722
4.822
4.922
5.022
5.122
5.222
5.322
5.422
5.522
5.622
5.722
5.822
5.922
6.022
6.122
6.222
6.322
(mm)
(25.96)
(28.50)
(31.04)
(33.58)
(36.12)
(38.66)
(41.20)
(43.74)
(46.28)
(48.82)
(51.36)
(53.90)
(56.44)
(58.98)
(61.52)
(64.06)
(66.60)
(69.14)
(71.68)
(74.22)
(76.76)
(79.30)
(81.84)
(84.38)
(86.92)
(89.46)
(92.00)
(94.54)
(97.08)
(99.62)
(102.16)
(104.70)
(107.24)
(109.78)
(112.32)
(114.86)
(117.40)
(119.94)
(122.48)
(125.02)
(127.56)
(130.10)
(132.64)
(135.18)
(137.72)
(140.26)
(142.80)
(145.34)
(147.88)
(150.42)
(152.96)
(155.50)
(158.04)
(160.58)
Page 72
Tel: (416) 754 - 3322

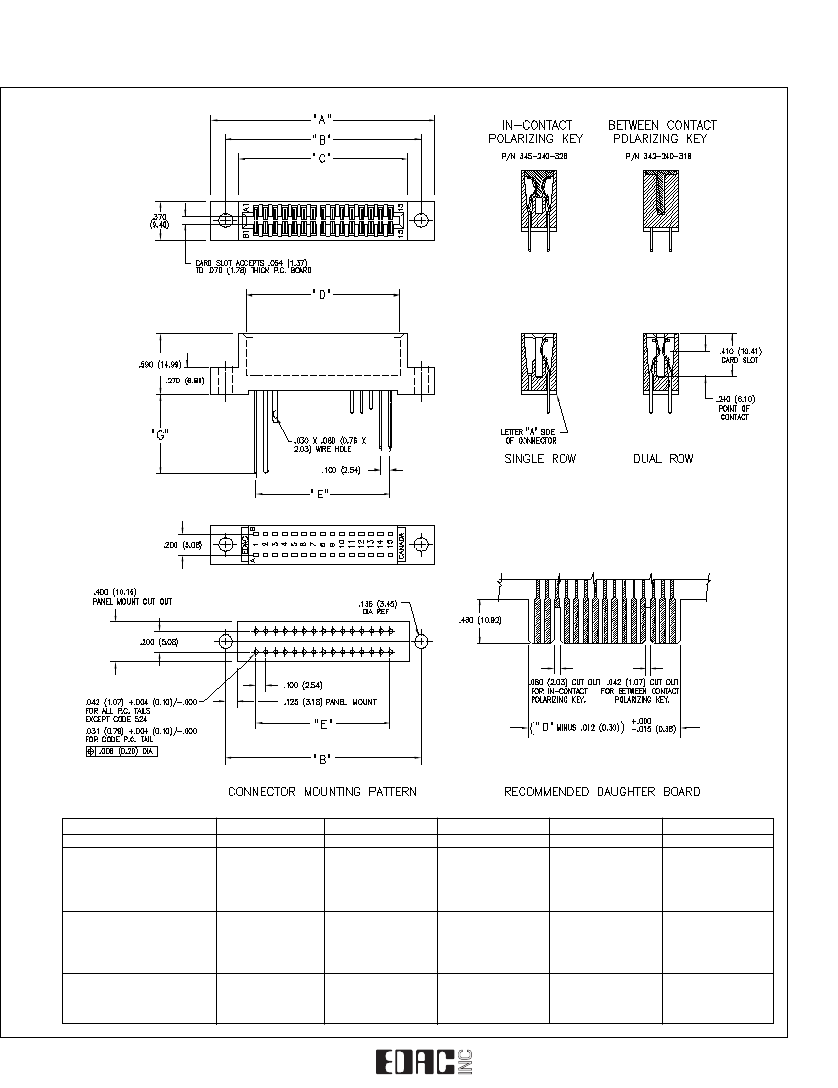

CONNECTOR DIMENSIONS CONTACT SPACING .100" (2.54mm)
Card Edge Connector Series 325, 340, 341, 342, 345, 391, 392, 395, 745
DIMENSION
SERIES
Number of
Contacts
Single Dual
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74
76
78
80
82
84
86
88
90
92
94
96
98
100
102
104
106
108
110
112
114
116
118
120
122
124
126
128
130
132
134
136
138
140
142
144
146
148
150
"C"
325
340
341, 391
342, 392
345, 395
745
340
"D"
REST OF
SERIES
"E"
ALL
SERIES
Inch
.722
.822
.922
1.022
1.122
1.222
1.322
1.422
1.522
1.622
1.722
1.822
1.922
2.022
2.122
2.222
2.322
2.422
2.522
2.622
2.722
2.822
2.922
3.022
3.122
3.222
3.322
3.422
3.522
3.622
3.722
3.822
3.922
4.022
4.122
4.222
4.322
4.422
4.522
4.622
4.722
4.822
4.922
5.022
5.122
5.222
5.322
5.422
5.522
5.622
5.722
5.822
5.922
6.022
6.122
6.222
6.322
(mm)
(18.34)
(20.88)
(23.42)
(25.96)
(28.50)
(31.04)
(33.58)
(36.12)
(38.66)
(41.20)
(43.74)
(46.28)
(48.82)
(51.36)
(53.90)
(56.44)
(58.98)
(61.52)
(64.06)
(66.60)
(69.14)
(71.68)
(74.22)
(76.76)
(79.30)
(81.84)
(84.38)
(86.92)
(89.46)
(92.00)
(94.54)
(97.08)
(99.62)
(102.16)
(104.70)
(107.24)
(109.78)
(112.32)
(114.86)
(117.40)
(119.94)
(122.48)
(125.02)
(127.56)
(130.10)
(132.64)
(135.18)
(137.72)
(140.26)
(142.80)
(145.34)
(147.88)
(150.42)
(152.96)
(155.50)
(158.04)
(160.58)
Inch
.965
1.065
1.165
1.265
1.365
1.465
1.565
1.665
1.765
1.865
1.965
2.065
2.165
2.265
2.365
2.465
2.565
2.665
2.765
2.865
2.965
3.065
3.165
3.265
3.365
3.465
3.565
3.665
3.765
3.865
3.965
4.065
4.165
4.265
4.365
4.465
4.565
4.665
4.765
4.865
4.965
5.065
5.165
5.265
5.365
5.465
5.565
5.665
5.765
5.865
5.965
6.065
6.165
6.265
6.365
6.465
(mm)
(24.51)
(27.05)
(29.59)
(32.13)
(34.67)
(37.21)
(39.75)
(42.29)
(44.83)
(47.37)
(49.91)
(52.45)
(54.99)
(57.53)
(60.07)
(62.61)
(65.15)
(67.69)
(70.23)
(72.77)
(75.31)
(77.85)
(80.39)
(82.93)
(85.47)
(88.01)
(90.55)
(93.09)
(95.63)
(98.17)
(100.71)
(103.25)
(105.79)
(108.33)
(110.87)
(113.41)
(115.95)
(118.49)
(121.03)
(123.57)
(126.11)
(128.65)
(131.19)
(133.73)
(136.27)
(138.81)
(141.35)
(143.89)
(146.43)
(148.97)
(151.51)
(154.05)
(156.59)
(159.13)
(161.67)
(164.21)
Inch
.775
.875
.975
1.075
1.175
1.275
1.375
1.475
1.575
1.675
1.775
1.875
1.975
2.075
2.175
2.275
2.375
2.475
2.575
2.675
2.775
2.875
2.975
3.075
3.175
3.275
3.375
3.475
3.575
3.675
3.775
3.875
3.975
4.075
4.175
4.275
4.375
4.475
4.575
4.675
4.775
4.875
4.975
5.075
5.175
5.275
5.375
5.475
5.575
5.675
5.775
5.875
5.975
6.075
6.175
6.275
(mm)
(19.69)
(22.23)
(24.77)
(27.31)
(29.85)
(32.39)
(34.93)
(37.47)
(40.01)
(42.55)
(45.09)
(47.63)
(50.17)
(52.71)
(55.25)
(57.79)
(60.33)
(62.87)
(65.41)
(67.95)
(70.49)
(73.03)
(75.57)
(78.11)
(80.65)
(83.19)
(85.73)
(88.27)
(90.81)
(93.35)
(95.89)
(98.43)
(100.97)
(103.51)
(106.05)
(108.59)
(111.13)
(113.67)
(116.21)
(118.75)
(121.29)
(123.83)
(126.37)
(128.91)
(131.45)
(133.99)
(136.53)
(139.07)
(141.61)
(144.15)
(146.69)
(149.23)
(151.77)
(154.31)
(156.85)
(159.39)
Inch
.746
.846
.946
1.046
1.146
1.246
1.346
1.446
1.546
1.646
1.746
1.846
1.946
2.046
2.146
2.246
2.346
2.446
2.546
2.646
2.746
2.846
2.946
3.046
3.146
3.246
3.346
3.446
3.546
3.646
3.746
3.846
3.946
4.046
4.146
4.246
4.346
4.446
4.546
4.646
4.746
4.846
4.946
5.046
5.146
5.246
5.346
5.446
5.546
5.646
5.746
5.846
5.946
6.046
(mm)
(18.95)
(21.49)
(24.03)
(26.57)
(29.11)
(31.65)
(34.19)
(36.73)
(39.27)
(41.81)
(44.35)
(46.89)
(49.43)
(51.97)
(54.51)
(57.05)
(59.59)
(62.13)
(64.67)
(67.21)
(69.75)
(72.29)
(74.83)
(77.37)
(79.91)
(82.45)
(84.99)
(87.53)
(90.07)
(92.61)
(95.15)
(97.69)
(100.23)
(102.77)
(105.31)
(107.85)
(110.39)
(112.93)
(115.47)
(118.01)
(120.55)
(123.09)
(125.63)
(128.17)
(130.71)
(133.25)
(135.79)
(138.33)
(140.87)
(143.41)
(145.95)
(148.49)
(151.03)
(153.57)
Inch
.760
.860
.960
1.060
1.160
1.260
1.360
1.460
1.560
1.660
1.760
1.860
1.960
2.060
2.160
2.260
2.360
2.460
2.560
2.660
2.760
2.860
2.960
3.060
3.160
3.260
3.360
3.460
3.560
3.660
3.760
3.860
3.960
4.060
4.160
4.260
4.360
4.460
4.560
4.660
4.760
4.860
4.960
5.060
5.160
5.260
5.360
5.460
5.560
5.660
5.760
5.860
5.960
6.060
6.160
6.260
6.360
6.460
6.560
6.660
6.760
6.860
6.960
7.060
7.160
7.260
7.360
7.460
7.560
7.660
7.760
(mm)
(19.30)
(21.84)
(24.38)
(26.92)
(29.46)
(32.00)
(34.54)
(37.08)
(39.62)
(42.16)
(44.70)
(47.24)
(49.78)
(52.32)
(54.86)
(57.40)
(59.94)
(62.48)
(65.02)
(67.56)
(70.10)
(72.64)
(75.18)
(77.72)
(80.26)
(82.80)
(85.34)
(87.88)
(90.42)
(92.96)
(95.50)
(98.04)
(100.58)
(103.12)
(105.66)
(108.20)
(110.74)
(113.28)
(115.82)
(118.36)
(120.90)
(123.44)
(125.98)
(128.52)
(131.06)
(133.60)
(136.14)
(138.68)
(141.22)
(143.76)
(146.30)
(148.84)
(151.38)
(153.92)
(156.46)
(159.00)
(161.54)
(164.08)
(166.62)
(169.16)
(171.70)
(174.24)
(176.78)
(179.32)
(181.86)
(184.40)
(186.94)
(189.48)
(192.02)
(194.56)
(197.10)
Inch
.610
.710
.810
.910
1.010
1.110
1.210
1.310
1.410
1.510
1.610
1.710
1.810
1.910
2.010
2.110
2.210
2.310
2.410
2.510
2.610
2.710
2.810
2.910
3.010
3.110
3.210
3.310
3.410
3.510
3.610
3.710
3.810
3.910
4.010
4.110
4.210
4.310
4.410
4.510
4.610
4.710
4.810
4.910
5.010
5.110
5.210
5.310
5.410
5.510
5.610
5.710
5.810
5.910
6.010
6.110
(mm)
(15.49)
(18.03)
(20.57)
(23.11)
(25.65)
(28.19)
(30.73)
(33.27)
(35.81)
(38.35)
(40.89)
(43.43)
(45.97)
(48.51)
(51.05)
(53.59)
(56.13)
(58.67)
(61.21)
(63.75)
(66.29)
(68.83)
(71.37)
(73.91)
(76.45)
(78.99)
(81.53)
(84.07)
(86.61)
(89.15)
(91.69)
(94.23)
(96.77)
(99.31)
(101.85)
(104.39)
(106.93)
(109.47)
(112.01)
(114.55)
(117.09)
(119.63)
(122.17)
(124.71)
(127.25)
(129.79)
(132.33)
(134.87)
(137.41)
(139.95)
(142.49)
(145.03)
(147.57)
(150.11)
(152.65)
(155.19)
Inch
.600
.700
.800
.900
1.000
1.100
1.200
1.300
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
3.700
3.800
3.900
4.000
4.100
4.200
4.300
4.400
4.500
4.600
4.700
4.800
4.900
5.000
5.100
5.200
5.300
5.400
5.500
5.600
5.700
5.800
5.900
6.000
6.100
6.200
6.300
6.400
6.500
6.600
6.700
6.800
6.900
7.000
7.100
7.200
7.300
7.400
7.500
7.600
(mm)
(15.24)
(17.78)
(20.32)
(22.86)
(25.40)
(27.94)
(30.48)
(33.02)
(35.56)
(38.10)
(40.64)
(43.18)
(45.72)
(48.26)
(50.80)
(53.34)
(55.88)
(58.42)
(60.96)
(63.50)
(66.04)
(68.58)
(71.12)
(73.66)
(76.20)
(78.74)
(81.28)
(83.82)
(86.36)
(88.90)
(91.44)
(93.98)
(96.52)
(99.06)
(101.60)
(104.14)
(106.68)
(109.22)
(111.76)
(114.30)
(116.84)
(119.38)
(121.92)
(124.46)
(127.00)
(129.54)
(132.08)
(134.62)
(137.16)
(139.70)
(142.24)
(144.78)
(147.32)
(149.86)
(152.40)
(154.94)
(157.48)
(160.02)
(162.56)
(165.10)
(167.64)
(170.18)
(172.72)
(175.26)
(177.80)
(180.34)
(182.88)
(185.42)
(187.96)
(190.50)
(193.04)
Inch
.400
.500
.600
.700
.800
.900
1.000
1.100
1.200
1.300
1.400
1.500
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
3.200
3.300
3.400
3.500
3.600
3.700
3.800
3.900
4.000
4.100
4.200
4.300
4.400
4.500
4.600
4.700
4.800
4.900
5.000
5.100
5.200
5.300
5.400
5.500
5.600
5.700
5.800
5.900
6.000
6.100
6.200
6.300
6.400
6.500
6.600
6.700
6.800
6.900
7.000
7.100
7.200
7.300
7.400
(mm)
(10.16)
(12.70)
(15.24)
(17.78)
(20.32)
(22.86)
(25.40)
(27.94)
(30.48)
(33.02)
(35.56)
(38.10)
(40.64)
(43.18)
(45.72)
(48.26)
(50.80)
(53.34)
(55.88)
(58.42)
(60.96)
(63.50)
(66.04)
(68.58)
(71.12)
(73.66)
(76.20)
(78.74)
(81.28)
(83.82)
(86.36)
(88.90)
(91.44)
(93.98)
(96.52)
(99.06)
(101.60)
(104.14)
(106.68)
(109.22)
(111.76)
(114.30)
(116.84)
(119.38)
(121.92)
(124.46)
(127.00)
(129.54)
(132.08)
(134.62)
(137.16)
(139.70)
(142.24)
(144.78)
(147.32)
(149.86)
(152.40)
(154.94)
(157.48)
(160.02)
(162.56)
(165.10)
(167.64)
(170.18)
(172.72)
(175.26)
(177.80)
(180.34)
(182.88)
(185.42)
(187.96)
Fax: (416) 754 - 3299
Page 73
MOUNTING OPTIONS - CARD EDGE CONNECTORS
Standard Mounting Details
CODE x01 - NO MOUNTING LUGS
q
Applicable for 303, 305, 306, 307, 310, 315, 316, 317, 321, 325, 327, 333, 336, 337, 338,
340, 341, 342, 345, 346, 355, 356, 357, 379, 384, 387, 391, 392, 395 and 396 Series
CODE x02, x04 & x09 - THROUGH MOUNTING HOLES
Applicable Series
303, 305, 306, 307, 310, 315,
316,321, 333, 337, 338, 340,
341, 345,346, 355, 356, 357,
379, 384, 387,391, 395, 396
317, 323
325
327
336
342, 392
Code x02
"A" Dia.
.128 (3.25)
Code x04
"A" Dia.
.156 (3.96)
Code x09
"A" Dia.
—
.144 (3.66)
—
—
.128 (3.25)
.128(3.25) x
.146 (3.71)
Slot
.156 (3.96)
—
—
.156 (3.96)
.156 (3.96)
—
.160 (4.06)
.163 (4.14)
.178 (4.52)
—
CODE x03 - FLOATING EYELETS
Applicable Series
303, 305, 306, 307, 310, 315, 316,
317, 321, 323, 333, 336, 337, 338,
341, 345, 346, 355, 356, 357, 379,
384, 387, 391, 395, 396
342, 392
"A"
.328 (8.33)
.348 (8.84)
CODE x07 & x08 - THREADED INSERTS
q
Applicable for 303, 305, 306, 307, 310, 315, 316, 317, 321, 323, 325, 333, 336, 337, 338,
341, 342, 345, 346, 356, 357, 379, 384, 387, 391, 392, 395 and 396 Series
q
See Code x12 for Side Mounting Threaded Inserts
CODE x12 - SIDE MOUNTING HOLES
Applicable Series
307, 333, 337, 345, 346, 357, 387,
395, 396
342, 392
"A"
.125 (3.18)
.135 (3.43)
q
Series Listed Above based on Availability of 90 Degree Bend Contact Tails.
Side Mounting Holes may also be Used for Other Card Edge Connectors with a
Lug Height of .250 (6.35) or Greater.
q
For Side Mounting with Threaded Inserts, Specify Code x17 for M3-0.5 Metric
Threads or Code x18 for #4-40 Unified Threads.
Page 68
Tel: (416) 754 - 3322
Embedded System
京公网安备 11010802033920号
EEWORLD
